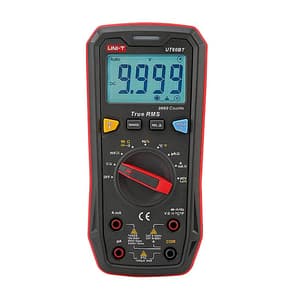

UNI-T 9999 Count True-RMS Digital Multimeter, UT60BT
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 290 g
- Display Count: 9999
- Operation Temperature: 0°C - 40°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,109 (Incl. of all taxes)
₹2,635 + ₹474 GST (18%)
MRP was MRP ₹3,100
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.
Features:
- 9999 counts
- True RMS
- Bluetooth
- Duty cycle
- Diode/Continuity test
- Temperature
- Non-contact voltage
- Analog bar/Data hold
- Backlight/Relative mode
- Auto/Manual range
- Low battery indication (≤3.6V)
- Three-color LED light indicator
- Auto Power Off (15 min)
- Acousto-optic Indication (NCV/continuity/battery power)
Technical Data:
| Range | Accuracy | |
| DC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.5%+3) |
| AC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.8%+3) |
| DC Current | 999.9uA / 999.9mA / 9.999A / 10A | ±(0.8%+3) |
| AC Current | 999.9uA / 999.9mA / 9.999A / 10A | ±(1.0%+3) |
| Resistance | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ | ±(0.8%+2) |
| Capacitor | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF / 9.99mF (UT60EU/UT60BT) / 99.9mF(UT60S) | ±(4.0%+5) |
| Frequency | 99.99Hz~9.999MHz | ±(0.1%+5) |
| Duty Cycle | 0.1~99.9% | ±(3%+5) |
| Temperature | –40°C ~ 1000°C / –40°F~1832°F | ±4°C / ±5°C |
Package Content:
- 1x TRMS Digital Multimeter
- 1x 1.5V Battery (AAA)
- Thermocouple
- Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 9999 |
|---|---|
| Operation Temperature | 0°C - 40°C |
| Safety | CAT II 1000V / CAT III 600V |
| Power Supply | 3x 1.5V AAA Batteries |
| Product Color | Red & Gray |
| Dimensions (LxWxH) | 169 x 81 x 46 mm |
