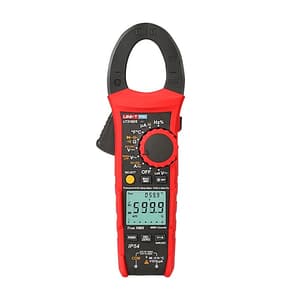

UNI-T Pro 6000 Count / 600A AC/DC True RMS Professional Clamp Meter, UT219DS
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 310 g
- Display Count: 6000
- AC/DC Current (A): 600A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,042 (Incl. of all taxes)
₹11,900 + ₹2,142 GST (18%)
MRP was MRP ₹14,000
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT219DS is a 600A true RMS professional clamp meter with a CAT IV 600V rating. It is industrially designed with an IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This clamp meter is suitable for professional HVAC/R and motor service technicians.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Auto/manual range/ZERO mode
- True RMS/auto power off
- MAX/MIN
- IP54/2m drop proof
- Data hold/relative mode
- Flashlight and auto backlight
- Low battery indication
- Certifications: CE, UKCA, cETLus, GS
Technical Data:
| Specifications | Range | Accuracy |
| AC current (A) | 600A | ±(1.8%+6) |
| DC current (A) | 600A | ±(1.8%+6) |
| AC voltage (V) | 1000V | ±(1%+6) |
| DC voltage (V) | 1000V | ±(0.6%+3) |
| LoZ ACV | 600V | ±(2.5%+6) |
| Resistance (Ω) | 60MΩ | ±(1%+3) |
| Capacitance (F) | 60mF | ±(4%+7) |
| Frequency (Hz) | 600Hz ~ 40MHz | ±(0.1%+6) |
| Duty cycle | 0.1% ~ 99.9% | ±(2.6%+7) |
| Temperature | -40 ~1000°C | ±(2%+5°C) |
| -40~1832°F | ±(2%+9°F) |
Package Content:
- 1x TRMS Professional Clamp Meter
- 3x 1.5V Battery (R03)
- Test leads
- PC software CD
- Contact temperature probe
- blister
- English manual
- Gift box
- Carrying bag
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 6000 |
|---|---|
| AC/DC Current (A) | 600A |
| AC/DC Voltage | 1000V |
| Jaw Opening (mm) | 33 mm |
| Frequency Response | 40Hz ~ 400Hz (AC Current) / 40Hz~1kHz (AC Voltage) |
| Diode Test | 3V |
| Measurement Sampling Rate | 5 Times/s |
| Analog Bar Sampling Rate | 20 Times/s |
| Analog Bar | 31 Segment |
| Display Interface (LCD) | Dual |
| IP Rating | IP54 |
| Input Impedance | >10M Ohm |
| Display Size | 35 mm x 31 mm |
| Product Color | Red & grey |
| Dimensions (mm) | 234.6 x 82 x 47 mm |
