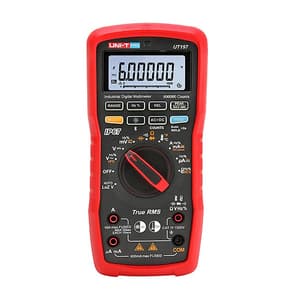

UNI-T Pro 600000 Count True-RMS Industrial Digital Multimeter, UT197
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 835 g
- Display Count: 600000 (DCV) / 9999 (Frequency)
- Diode Test: 3.0V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹29,889 (Incl. of all taxes)
₹25,330 + ₹4,559 GST (18%)
MRP was MRP ₹29,800
Save 15%
7 Business Days
1
–
Download UNI-T CatalogueNot available
Highlights
The UT197 is a high – precision true RMS handheld digital multimeter with 600,000 – count display. It has IP67 protection, can endure 5m drops, and operates in – 40°C~55°C, suiting harsh outdoor conditions. Its built – in VFD anti – interference startup mode filters out carrier – frequency and distorted – voltage interferences for stable inverter measurements. The 1000A AC/DC current measurement (UT – CS07) with Bluetooth enables result recording via UNI – T SmartTest APP, generating graphs and tables. Certified to CAT IV 1000V safety level (CE, cETLus), it’s widely used in power construction, equipment maintenance, petrochemical, engineering, HVAC, new – energy, factory, and laboratory applications.
Features:
- True RMS measurement
- AC/DC voltage: 1000V
- AC/DC current: 10A
- Display count: 600,000 & switchable; 9,999(Hz)
- 12kV pulse protection & anti-EMC interference
- IP67 & 5m Drop Protection
- Overvoltage category: CAT IV 1000V
- Working environment: -40 °C ~ 55 °C
- Input terminal visible alarm
- Automatically backlight
- Bluetooth function
- Support UT-CS06A/UT-CS09D current sensor
Technical Data:
| Specification | Range | Accuracy |
| AC Current (A) | 600.00uA / 6000.0uA / 60.000mA / 600.00mA / 6.0000A / 10.000A | ±(0.5%+50) |
| DC Current (A) | 600.00uA / 6000.0uA / 60.000mA / 600.00mA / 6.0000A / 10.000A | ±(0.1%+20) |
| AC+DC Current (A) | 600.0uA / 6000uA / 60.00mA / 600.0mA / 6.000A / 10.00A | ±(1.0%+5) |
| AC Voltage (V) | 600.00mV / 6.0000V / 60.000V / 600.00V / 1000.0V | ±(0.3%+20) |
| Voltage (DCV) (60000 count) | 600.00mV / 6.0000V / 60.000V / 600.00V / 1000.0V | ±(0.03%+5) |
| Voltage (DCV) (600000 count) | 600.000mV / 6.00000V / 60.0000V / 600.000V / 1000.00V | ±(0.015%+10) |
| Auto AC/DC Voltage | 600.0V | ±(0.8%+5) |
| Voltage Range (ACV+DCV) | 600.0mV / 6.000V / 60.00V / 600.0V / 1000V | ±(0.8%+5) |
| Externalcurrent (DC) (Optional: UT-CS07) | 100.0A(10mV/A / 1000A 1V/A) | ±(1.5%+5) |
| Externalcurrent (AC) (Optional: UT-CS07) | 100.0A(10mV/A / 1000A 1V/A) | ±(1.5%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.002%+5) |
| Resistance (Ω) | 600.00Ω / 6.0000kΩ / 60.000kΩ / 600.00kΩ / 6.0000MΩ / 60.00MΩ | ±(0.07%+2) |
| Capacitance (F) | 60.00nF / 600.0nF / 6.000μF / 60.00μF / 600.0μF / 6.000mF / 60.00mF | ±(0.8%+3) |
| Temperature (°C) | -40°C ~ 1000°C | ±(1.0%+15) |
| Temperature (°F) | -40°F ~ 1832°F | ±(1.0%+30) |
| Duty Cycle (%) | 10Hz~10kHz (10%~90%) | ±(1.2%+5) |
Package Content:
- 1x TRMS Industrial Digital Multimeter
- 2x 1.5V AA Battery
- Test lead,
- Temperature probe,
- Clips
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 600000 (DCV) / 9999 (Frequency) |
|---|---|
| Diode Test | 3.0V |
| Auto Power Off | Around 15 minutes |
| Drop Test | 5m |
| IP Protection Level | IP67 |
| Safety Standard Level | CAT IV 1000V |
| Certification | CE, cETLus, ROHS |
| Power Supply | 2x 1.5V AA Batteries |
| Product Color | Black & Red |
| Dimensions (mm) | 220 x 104 x 67 mm |
