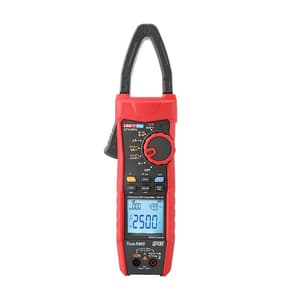

UNI-T Pro 9999 Count / 1000A AC/DC True RMS Digital Clamp Meter, UT219PV
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Display Count: 9999
- Current Measurement: 1000A AC/DC
- Voltage Measurement: 1500V (AC) / 2500V (DC)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹23,069 (Incl. of all taxes)
₹19,550 + ₹3,519 GST (18%)
MRP was MRP ₹23,000
Save 15%
7 Business Days
1
–
Download UNI-T CatalogueNot available
Highlights
The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS) and large motors.
Features:

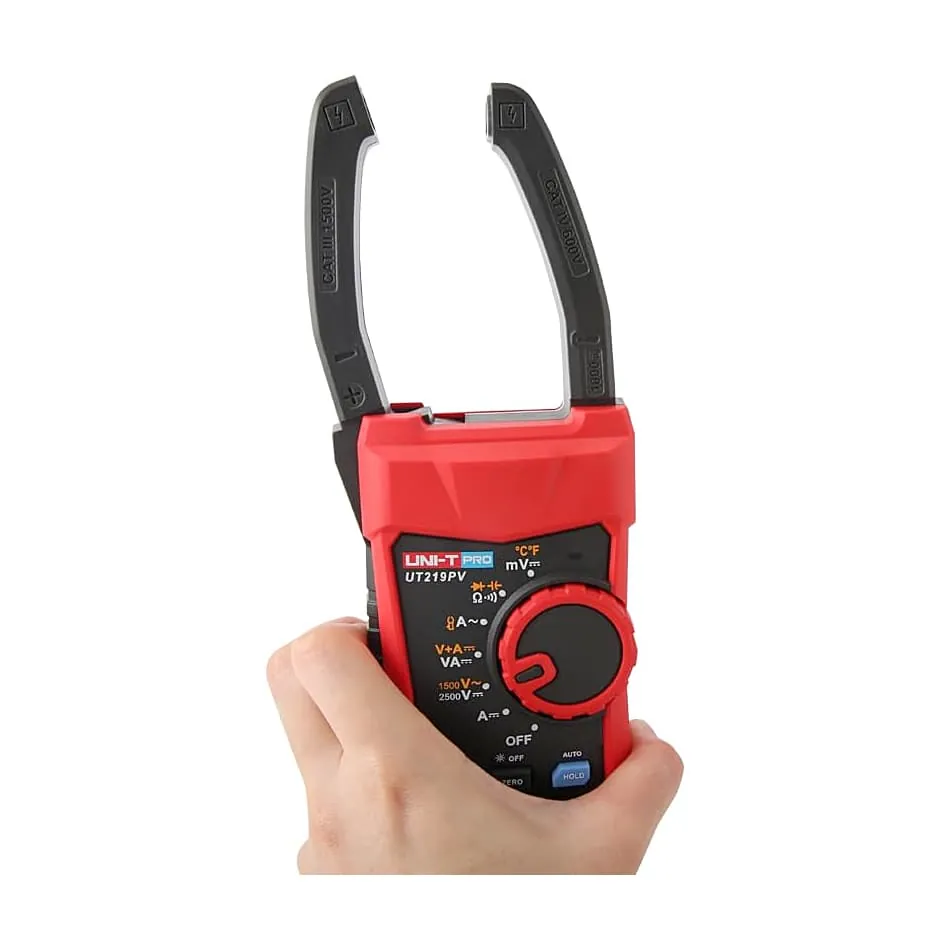

- 35mm Ultra-thin Jaw: suitable for inverter or combiner box
- External clamp sensor: UT-CS09D(AC 3000A)
- Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm
- Bluetooth APP
- Auto backlight & Auto power off
- True RMS / Diode / High voltage alarm
- Over range indication / AUTO HOLD / Inrush current
- PEAK / Auto backlight / Low battery indication
Applications:
 |

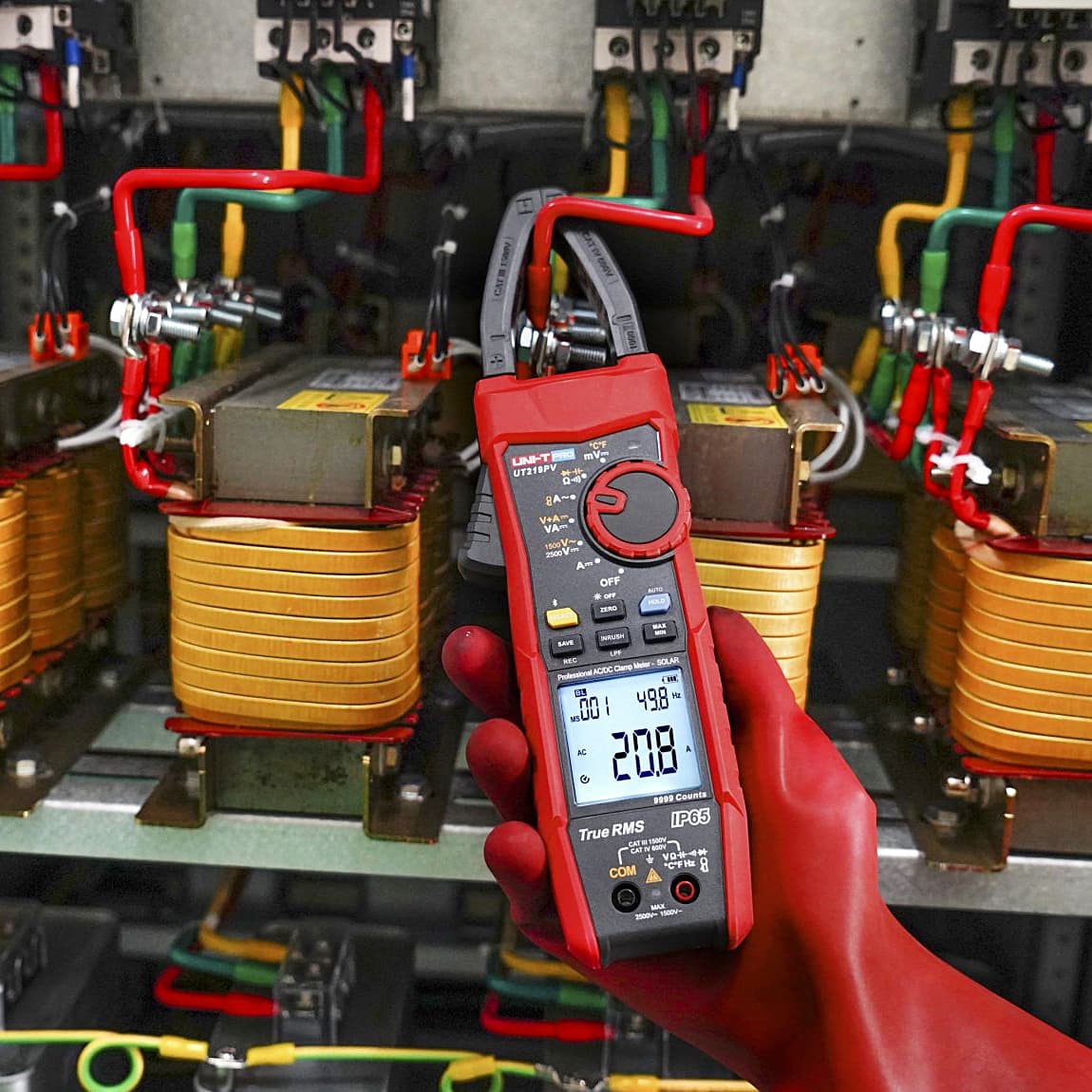

Ultra-thin Clamp: 35mm ultra-thin clamp, designed for narrow gaps in the combiner or inverter and other tight spaces environment. |
 |

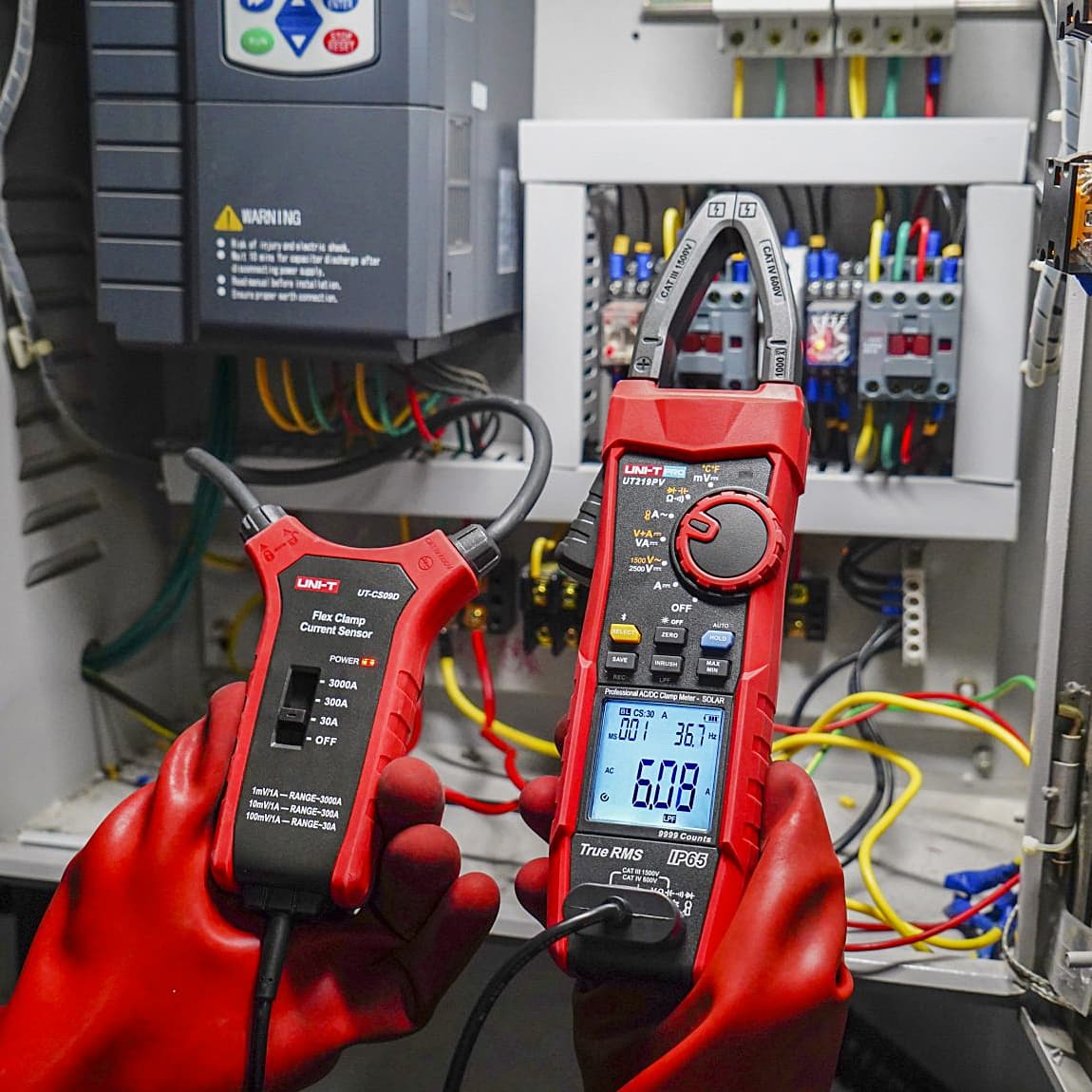

External clamp sensor: The UT-CS09D flex clamp sensor is supported, which means the AC current measurement range can expand to 3000A, and the flexible coils can handle measurements in narrow spaces. |
 |

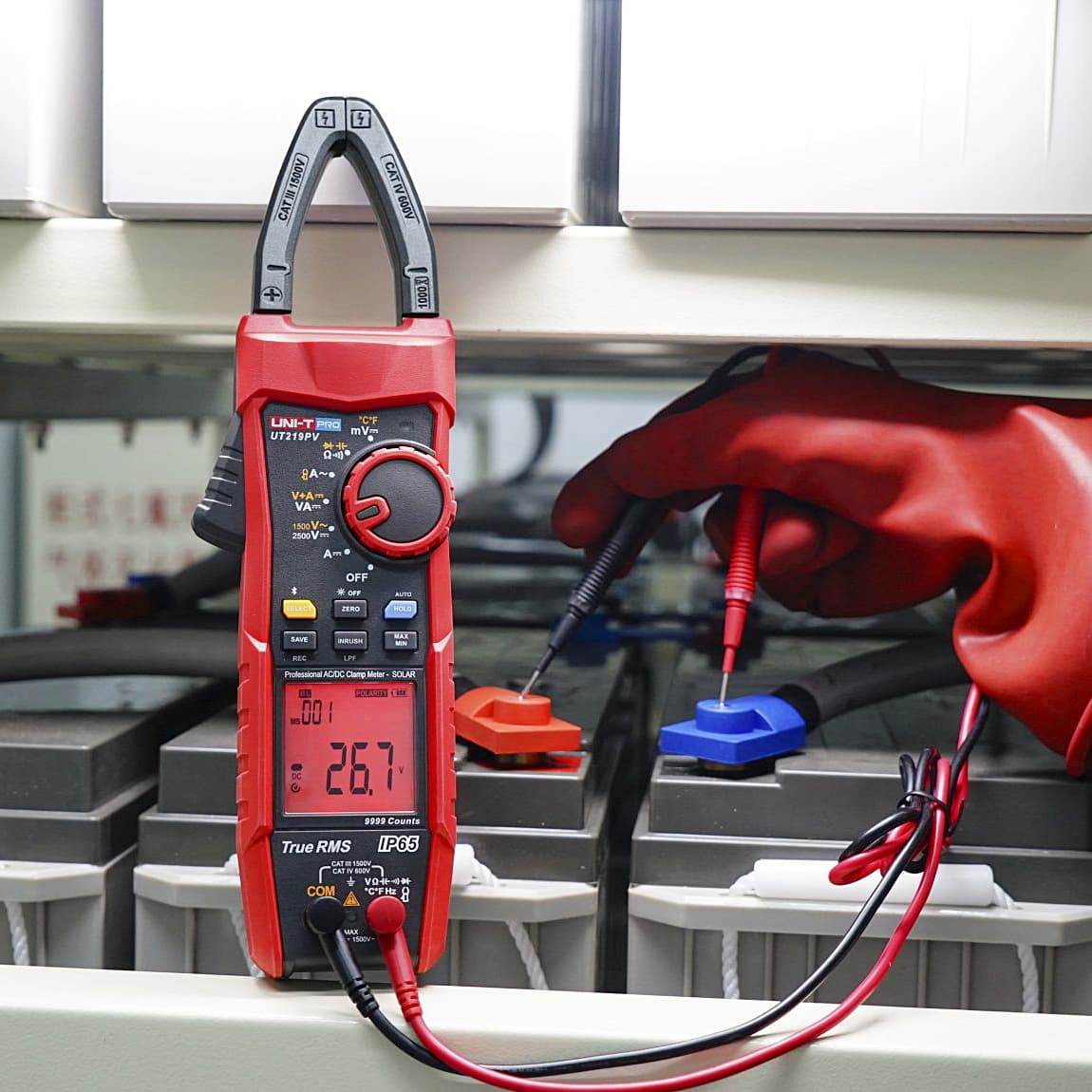

Polarity indication: If the voltage is below -10V DC, the system will activate a series of indicators: The red LED will flash for a period of 10 seconds, accompanied by buzzing. Additionally, the LCD screen will display the "POLARITY" symbol, alerting the user to the reversed probe. |
 |

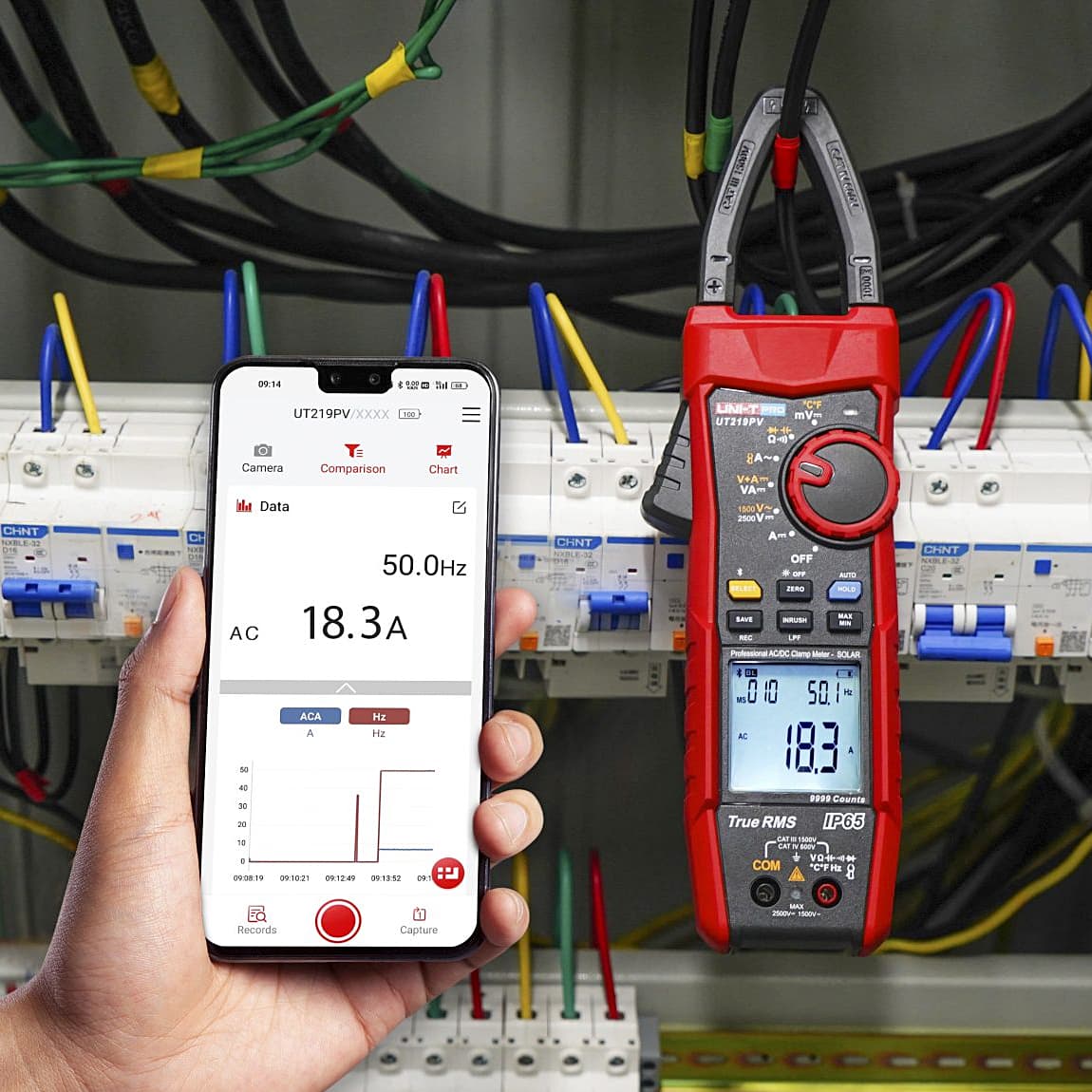

Bluetooth APP: By utilizing the Bluetooth app, you can conveniently record the testing results and measurement details. Moreover, the testing reports and data can be effortlessly transported and shared with your colleagues or team members. |
Technical Data:
| Range | Accuracy | |
| Current (ACA) | 999.9 A | 40Hz - 100Hz: ±(2.0%+5) 100Hz - 1000Hz: ±(2.5%+5) |
| Current (DCA) | 999.9 A | ±(2.0%+5) |
| Voltage (ACV) | 999.9V/1500V | 40Hz - 1000Hz: ±(1.0%+5) |
| Voltage (DCV) | 999.9V/2500V | ±(1.0%+5) |
| Voltage (DC mV) | 999.9 mV | ±(1.0%+5) |
| ACV(with LPF) | 999.9V | ±(2.0%+9) |
| ACA(with LPF) | 999.9A | ±(2.5%+9) |
| ACA(with LPF): flex clamp sensor | 30.00A/300.0A/3000A | ±(4.0%+9)(center area) |
| ACA;with flex clamp sensor | 30.00A/300.0A/3000A | ±(3.0%+5) (center area) |
| Power (DC) | 999.9 kVA/2500 kVA | ±(2.0%+20) |
| Frequency (A&V) | 5.0 Hz to 999.9Hz | ±(0.5%+5) |
| Resistance (Ω) | 999.9Ω/9.999KΩ/99.99kΩ | ±(1.0%+5) |
| Cpacitance(F) | 100.0μF/1000 μF | ±(1.0%+5) |
| Temperature | -40°C ~ 400°C/-40°F ~ 752°F | ±(1.0%+30); ±(1.0%+60) |
Package Content:
- 1x AC/DC Clamp Meter
- 2x AA Batteries
- test probe,
- temperature probe
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 9999 |
|---|---|
| Current Measurement | 1000A AC/DC |
| Voltage Measurement | 1500V (AC) / 2500V (DC) |
| Jaw (Max conductor dia.) | 35 mm |
| Display | LCD: Dual display (V+A) |
| Solar Panel Polarity Indication | when < -10 DCV, Audible & Visual Alarm |
| Bluetooth App | BT 5.0 |
| IP Rating | IP65 |
| Overvoltage Category | CAT III 1500V; CAT IV 600V |
| Certificates | CE, cETLus, RoHS |
| Power Supply | 2x AA Batteries |
| Dimensions (mm) | 295 x 73 x 50 mm |
| Product Color | Grey + Red |
