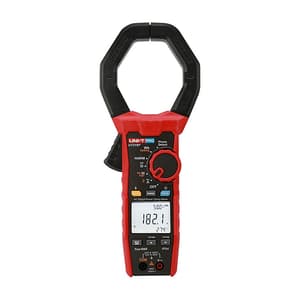

UNI-T Pro 9999 Count / 1000A AC True RMS Digital Power Clamp Meter, UT219P
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Display Count: 9999
- Jaw Opening (mm): 75 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,574 (Incl. of all taxes)
₹20,825 + ₹3,749 GST (18%)
MRP was MRP ₹24,500
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT219P is an intelligent, handheld, and stable power and harmonics clamp meter, with the functions of a digital ammeter and power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC current, power, power factor, and more. It is widely used in photovoltaic power stations, motor manufacturing, and power/harmonic measurement of electrical equipment and distribution cabinets in residential enterprises.
Features:
- 1000A AC current measurement
- 1000V AC voltage measurement
- AC and DC PEAK measurement
- Three-phase power measurement (up to 3000kW)
- Harmonic/THD/Power Factor/Phase Sequence Measurement
- Single Phase power measurement

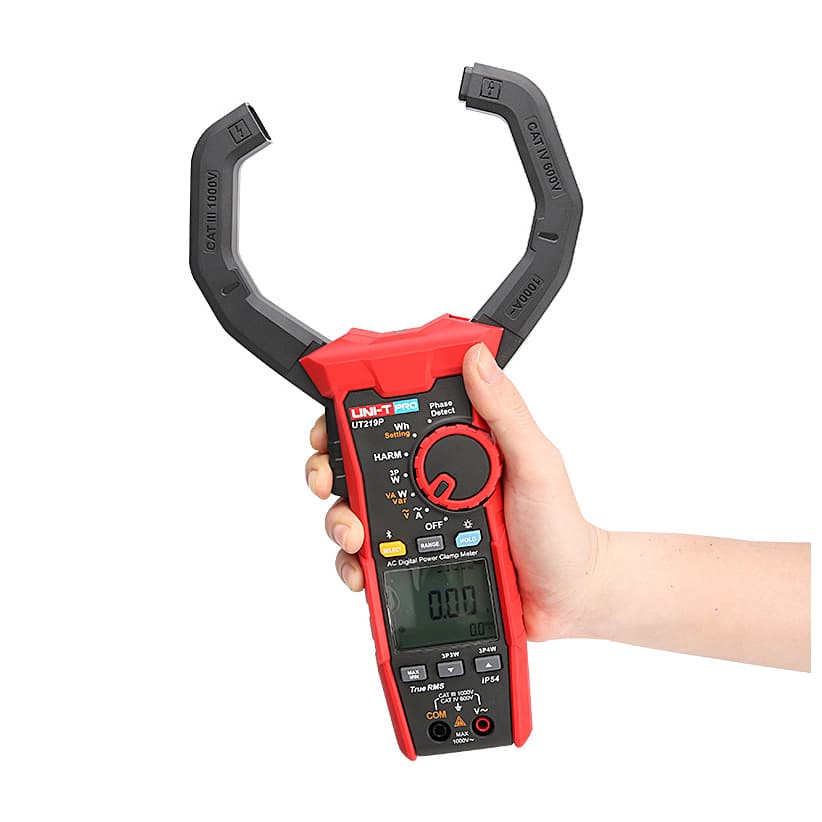

- Large pliers head (up to 75 mm diameter)
- True RMS measurement
- Bluetooth 5.0
- Certifications: CE, ETL, REACH, FCC
Technical Data:
| Specifications | Range | Accuracy |
| AC current (A) | 1000A | ±(1.5%+3) |
| AC voltage (V) | 1000V | ±(0.7%+3) |
| Power (single phase) | 1000KW | ±(1.7%+5) |
| Power (3-phase & 3-wires) | 1732KW | |
| Power (3-phase & 4-wires) | 3000KW | |
| Power frequency (Hz) | 15Hz - 1000Hz | ±(0.3%+3) |
| Phase angle (-180°~ 179.9°) | 15Hz - 40Hz | ±5° |
| 40Hz~70Hz | ±3° | |
| 70Hz~1000Hz | ±5° | |
| Power factor | -1 ~ 1 | Based on the Accuracy of the Phase angle |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 9999 |
|---|---|
| Jaw Opening (mm) | 75 mm |
| Phase Detection | 80V ~ 1000V (Positive & Negative) |
| Harmonic Measurement | 32 Times |
| Display Mode (LCD screen) | 4 Kinds of Results at The Same Time |
| Auto Power Off | Around 15 Minutes |
| Overvoltage Category | CAT III 1000V / CAT IV 600V |
