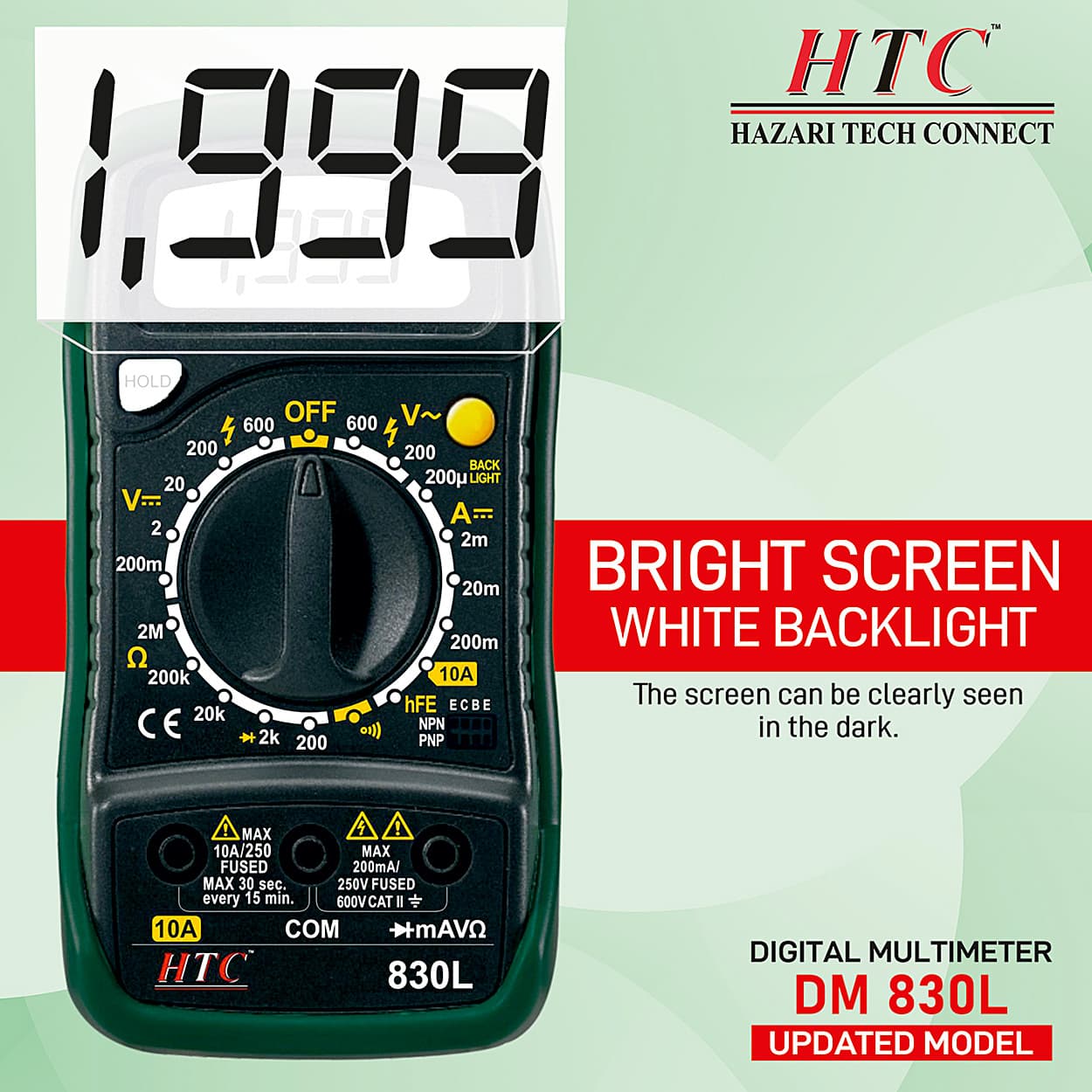

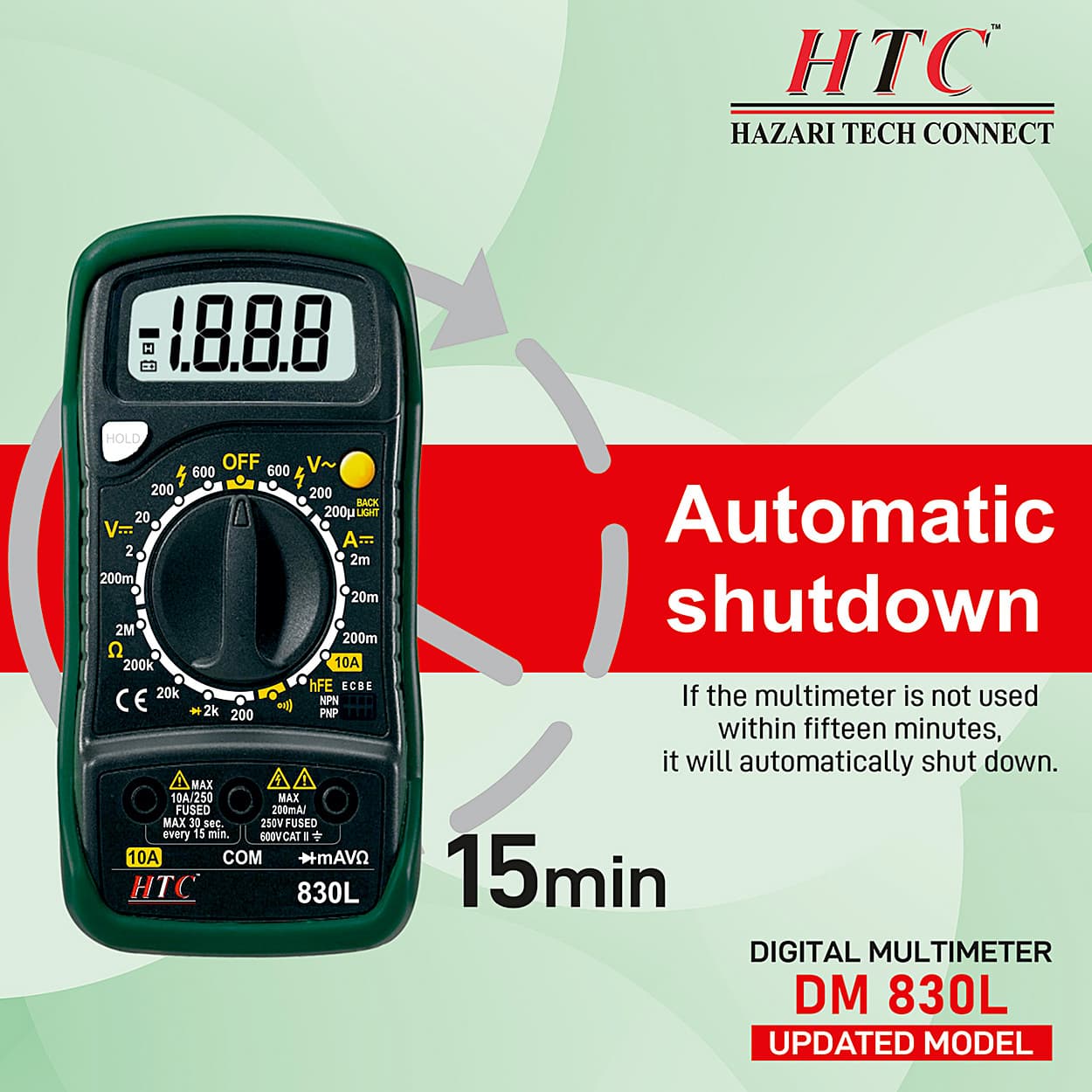

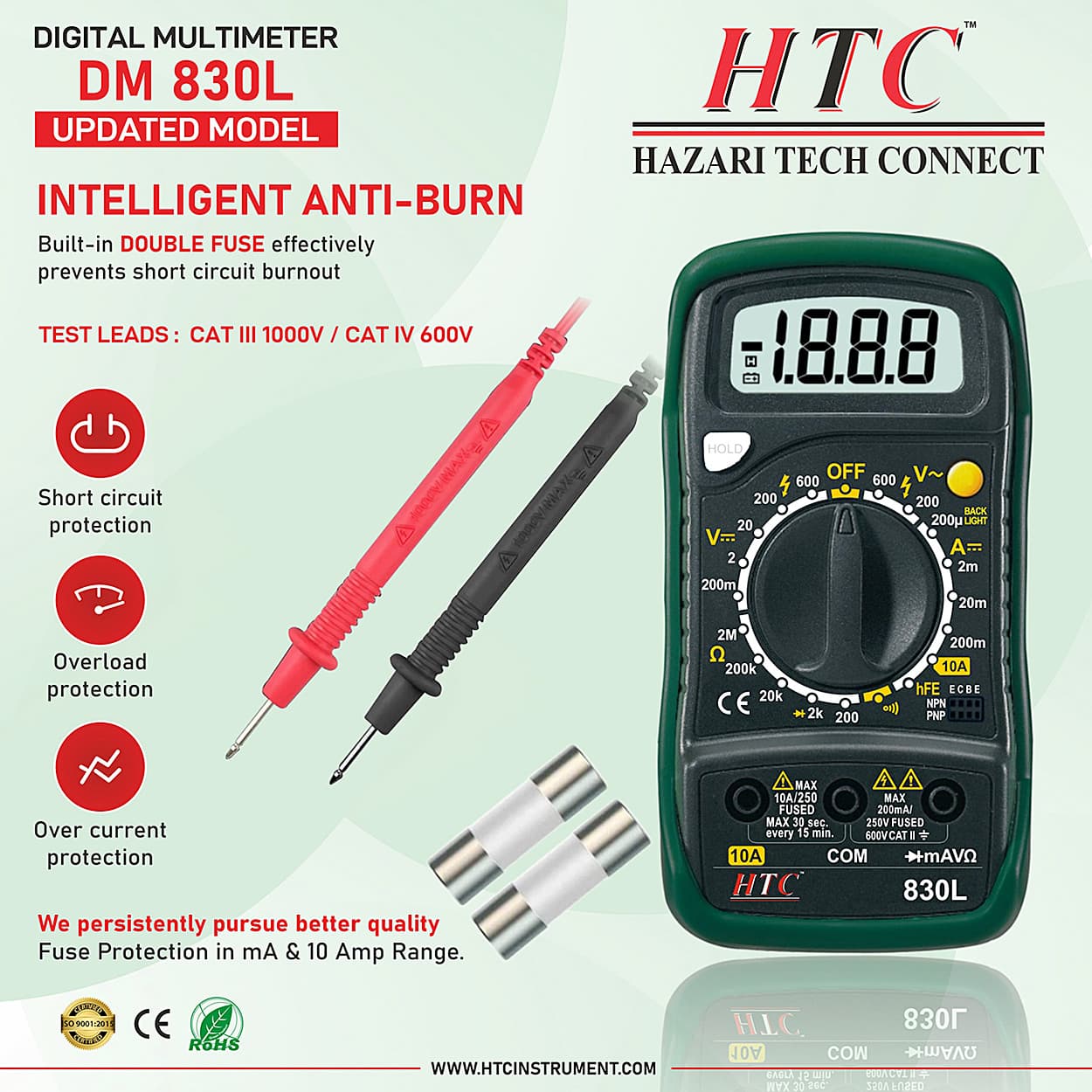

HTC 3-1/2 Digit / 1999 Count Digital Manual Multimeter With Backlight, DM-830L
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Display: 31⁄2 Digit
- Power: 9V (6F22) x 1
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹637 (Incl. of all taxes)
₹540 + ₹97 GST (18%)
MRP was MRP ₹675
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit Manual Multimeter with Backlight.
- 1,999 Count, Data Hold, Transistor & Diode Test.
- Overload Protection, Low Battery Indication, CAT II 600V.

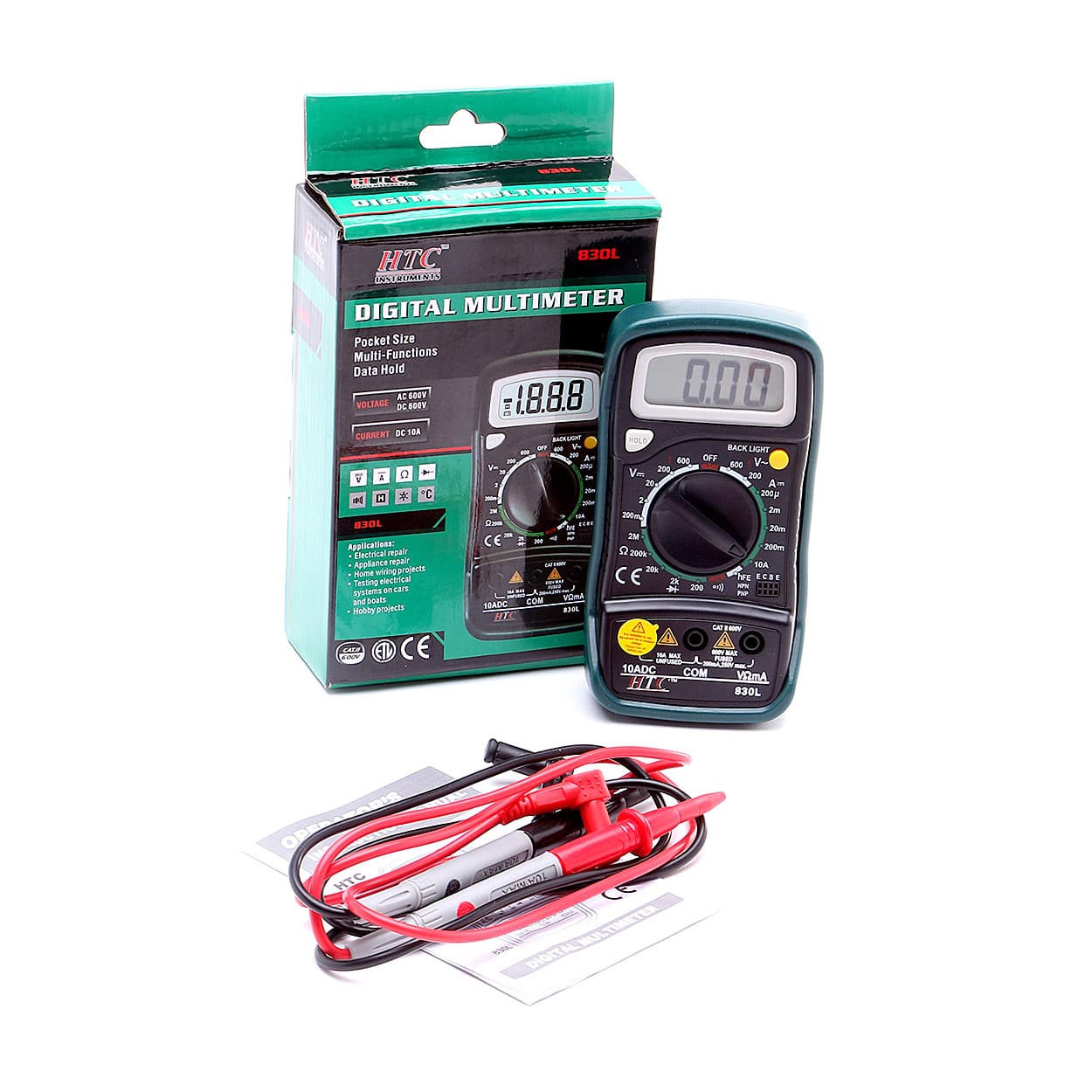

Package Contents:
- Test Lead
- Manual
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 100μV | ±0.5% of rdg + 2 digits |
| 2V | 1mV | |
| 20V | 10mV | |
| 200V | 100mV | |
| 600V | 1V | ±0.8% of rdg + 2 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 200V | 100mV | ±1.2% of rdg + 10 digits |
| 600V | 1V |
Transistor hFE Test (0-1000):
| Range | Test Range | Test Current | Test Voltage |
| NPN & PNP | 0-1000 | 1b=10μA | Vce=3V |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±0.8% of rdg + 3 digits |
| 2kΩ | 1Ω | ±0.8% of rdg + 2 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1KΩ | ±1.0% of rdg + 2 digits |
DC Current:
| Range | Resolution | Accuracy |
| 200μA | 0.1μA | ±1% of rdg + 2 digits |
| 2mA | 1μA | |
| 20mA | 10μA | |
| 200mA | 100μA | ±1.5% of rdg + 2 digits |
| 10A | 10mA | ±3% of rdg + 2 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 31⁄2 Digit |
|---|---|
| Power | 9V (6F22) x 1 |
| Dimension | 69 (H) x 138 (W) x 31 (D) mm |
