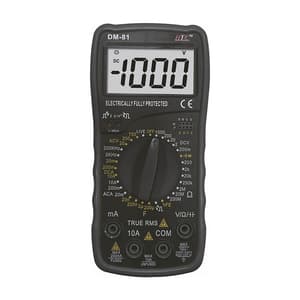

HTC 3-1/2 Digit / 1999 Count True RMS Digital Manual Multimeter, DM-81

Name: HTC 3-1/2 Digit / 1999 Count True RMS Digital Manual Multimeter, DM-81
Brand: HTC
SKU: ME.EL.MU.00115
Price: 826.00 INR
Availability: InStock

Shop all HTC

SKU: ME.EL.MU.00115

Model: DM81

Roll over the image to zoom in

Visit HTC Store

Key Features

Product Type: Multimeter
Transistor hFE Test (0 - 1000) Description: hFE
Transistor hFE Test (0 - 1000) Range: 0~1000ß
Transistor hFE Test (0 - 1000) Display: 1bo~10μA

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹826 (Incl. of all taxes)

₹700 + ₹126 GST (18%)

MRP was MRP ₹875

Save 20%

Dispatch: 5 Business Days

Items in Pack: 1

HSN Code: 90303100

Download Product LeafletNot available

Download HTC CatalogueNot available

Highlights

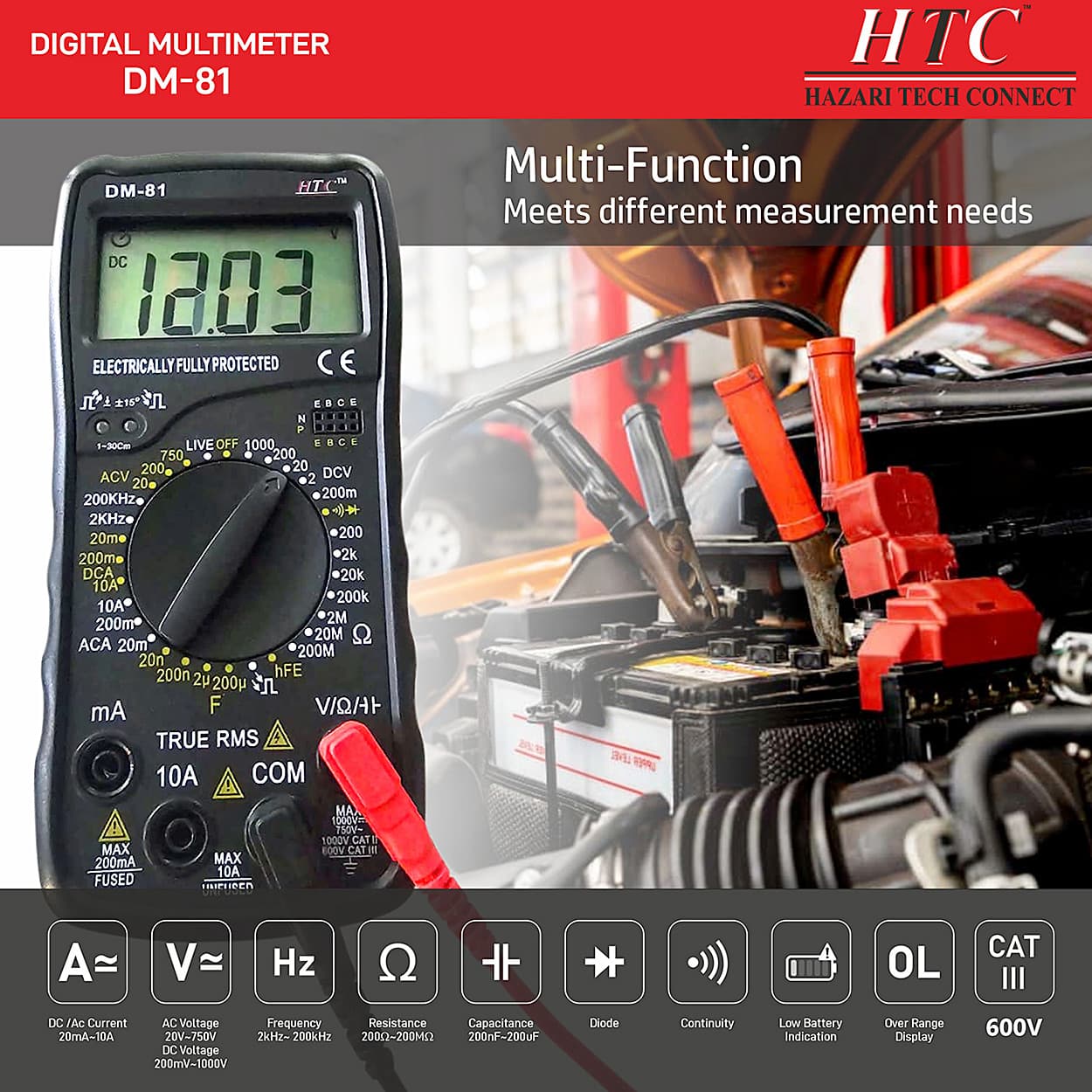

3½ Digit Manual Multimeter

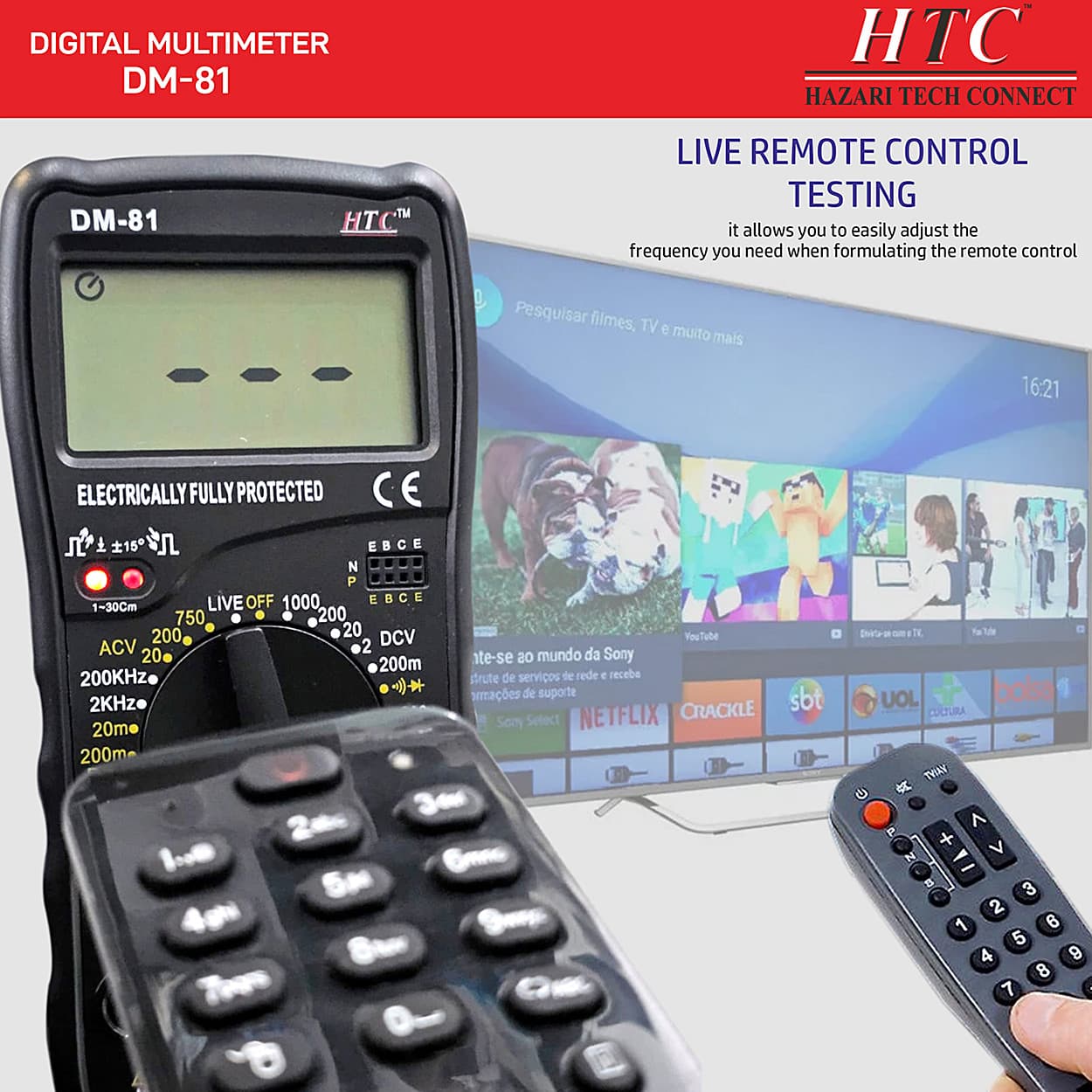

Live Remote Control Testing
1,999 Count

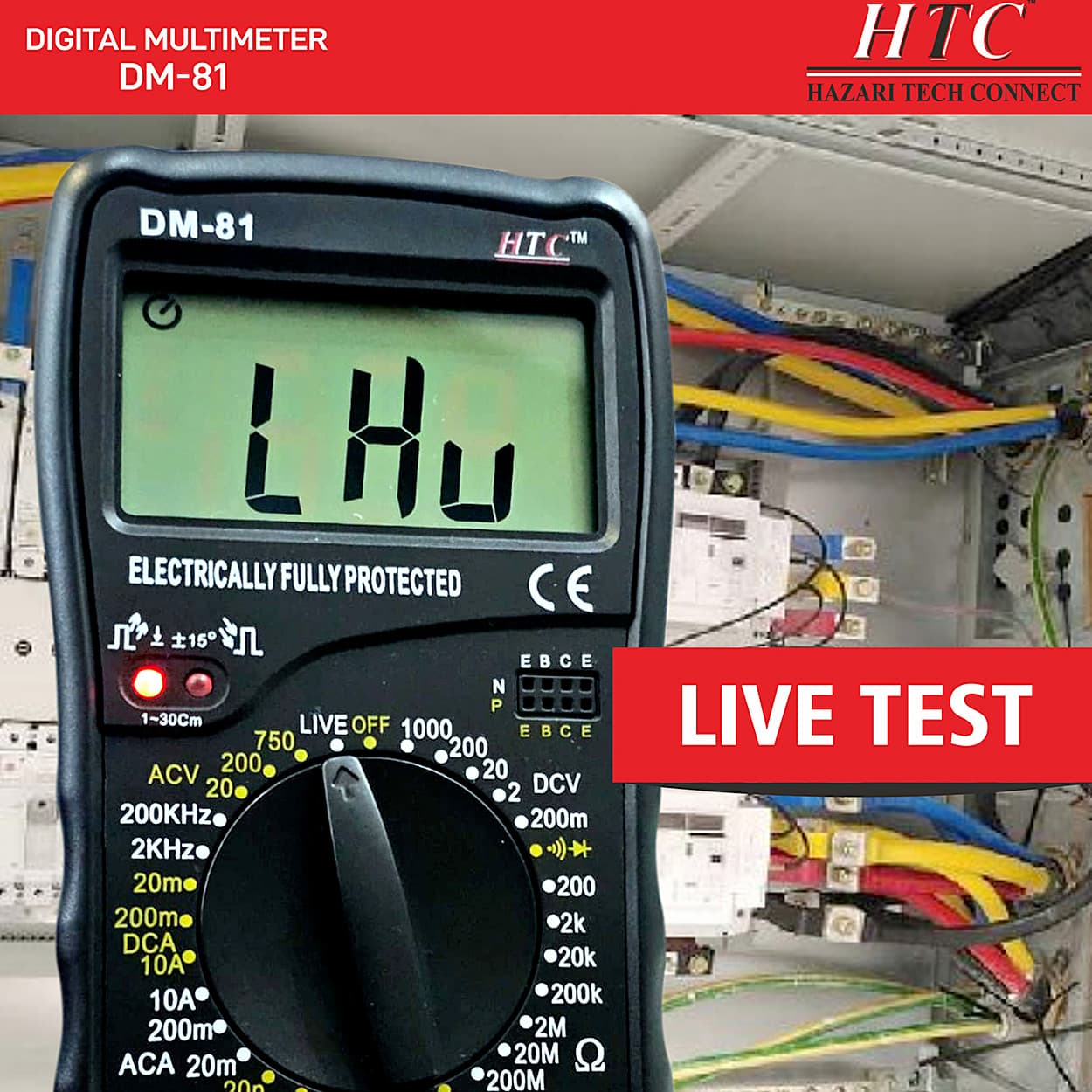

Live Wire Recognition

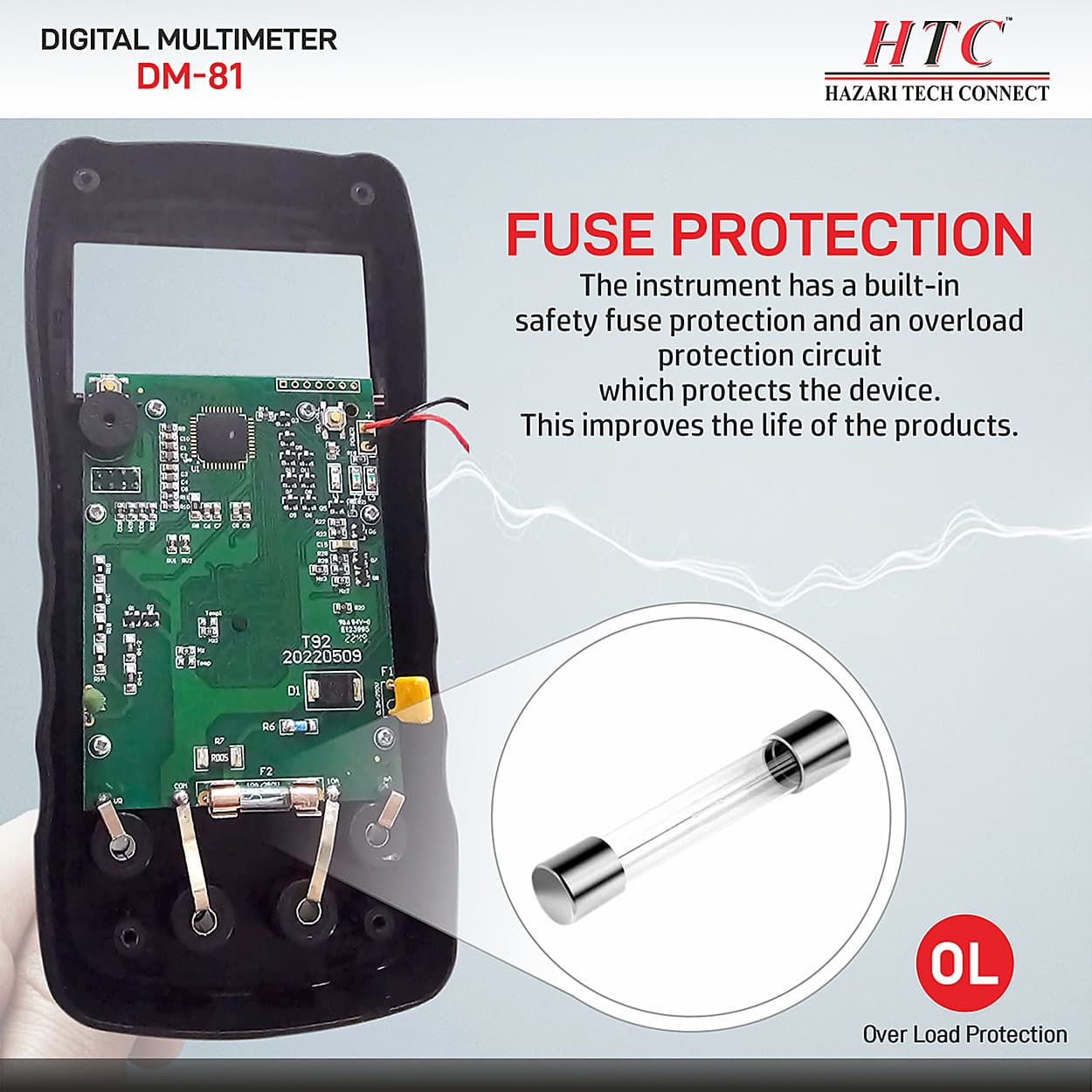

Full Overload Protection
True RMS

Special Function:

Diode Test
Continuity Buzzer Approx. < 50Ω
Transistor Testing
Auto Power OFF Approx. 15min
Power AA1.5V x 2

Package Contents:

Test leads,
Battery
User Manual.

DC Voltage:

Range	Resolution	Accuracy
200mV	0.1mV	±1.2% of rdg 5 digits
2V	1mV
20V	10mV
200V	100mV
1000V	1V	±1.5% of rdg 5 digits

DC Current:

Range	Resolution	Accuracy
20mA	10μA	±1.5% of rdg 5 digits
200mA	100μA	±2% of rdg 5 digits
10A	10mA	±3% of rdg 5 digits

AC Voltage:

Range	Resolution	Accuracy
20V	10mV	±1.5% of rdg 5 digits
200V	100mV
750V	1V	±2% of rdg 7 digits

AC Current:

Range	Resolution	Accuracy
20mA	10μA
200mA	100μA	±2.5% of rdg 5 digits
10A	10mA	±3% of rdg 7 digits

Capacitance:

Range	Resolution	Accuracy
20nF	10p	±4% of rdg 25 digits
200nF	100pF	±4% of rdg 5 digits
2μF	1nF
200μF	10nF

Frequency:

Range	Resolution	Accuracy
2kHz	0.001kHz	±1.5% of rdg 10 digits
200kHz	0.1kHz

Resistance:

Range	Resolution	Accuracy
200Ω	0.1Ω	±1.5% of rdg 5 digits
2KΩ	1Ω
20KΩ	10Ω
200KΩ	100Ω
2MΩ	1KΩ
20MΩ	10KΩ	±2% of rdg 5 digits
200MΩ	100KΩ	±5% of rdg 10 digits

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for HTC 3-1/2 Digit / 1999 Count True RMS Digital Manual Multimeter, DM-81
Transistor hFE Test (0 - 1000) Description	hFE
Transistor hFE Test (0 - 1000) Range	0~1000ß
Transistor hFE Test (0 - 1000) Display	1bo~10μA
Transistor hFE Test (0 - 1000) Measuring Condition	Vce~2.8V
Dimension	175 (H) x 83 (W) x 31 (D) mm
