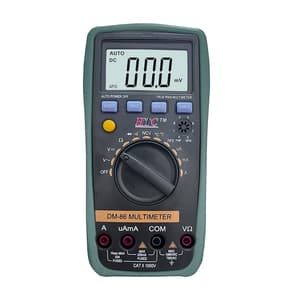

HTC 3-1/2 Digit / 1999 Count True RMS Auto Power Off Digital Multimeter With Backlight, DM-86
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Transistor hFE Test (0 - 1000) Range: NPN Or PNP
- Transistor hFE Test (0 - 1000) Test Range: 0 ~ 1000
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,378 (Incl. of all taxes)
₹1,168 + ₹210 GST (18%)
MRP was MRP ₹1,460
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit Multimeter with Backlight
- 1,999 Count

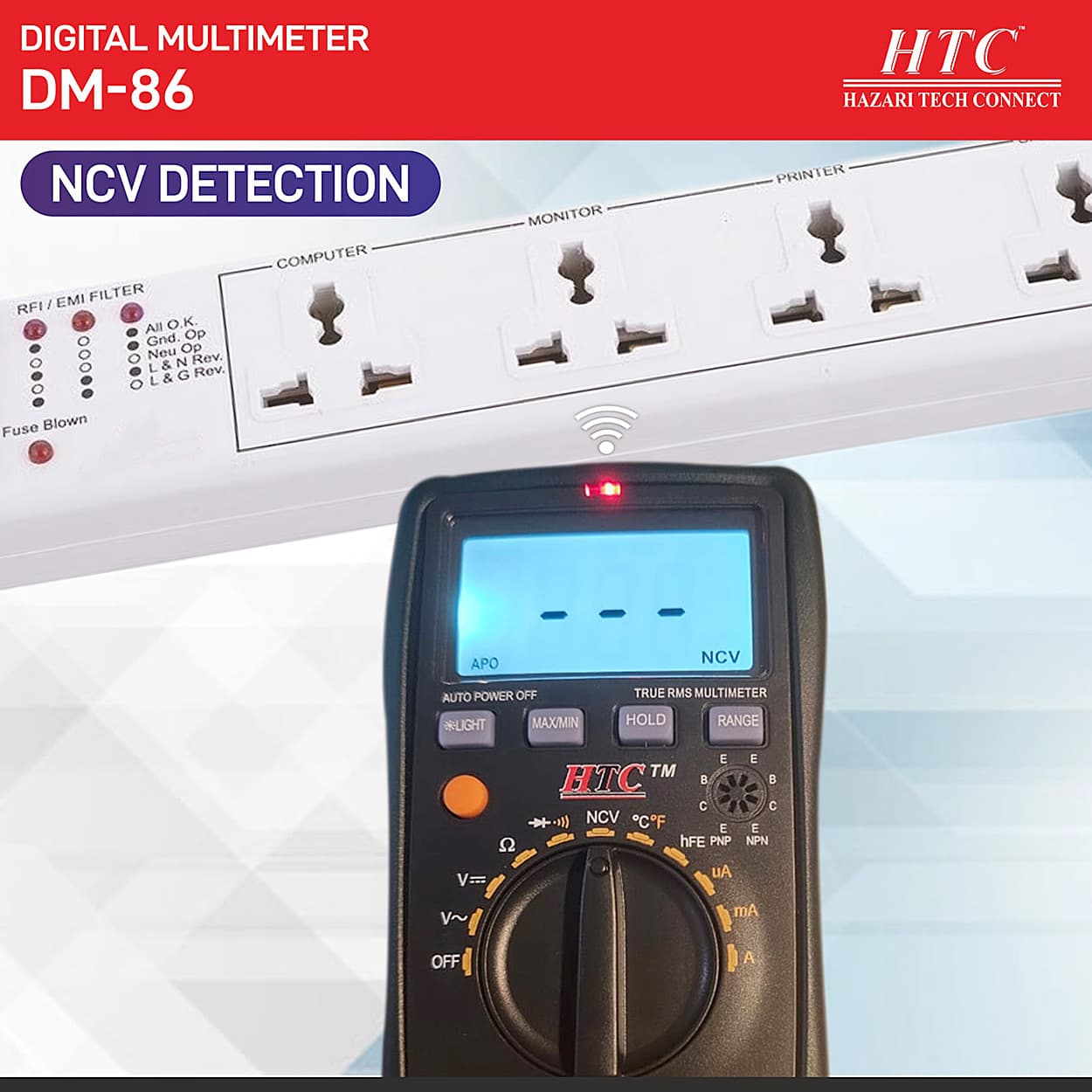

- Non Contact Voltage (NCV)
- Auto Power Off (APO) under natural operation
- True RMS
Special Function:
- Diode Test NCV
- Transistor Testing Input impedance 10MΩ
- Continuity Buzzer Approx. <30+10 Sampling Rate 3 times per second
- Low Battery Display Approx. <7.5V AC Frequency Response 40-400Hz
- Auto Power OFF Approx. 30 min Power 9V (6F22) x 1
Package Contents:
- Test Lead
- Manual
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±0.5% of rdg + 4 digits |
| 2V | 1mV | |
| 20V | 10mV | |
| 200V | 100mV | |
| 1000V | 1V | ±1.0% of rdg + 4 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±1.5% of rdg + 15 digits |
| 2V | 1mV | ±0.8% of rdg + 6 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 750V | 1V | ±1.0% of rdg + 6 digits |
DC Current:
| Range | Resolution | Accuracy |
| 200μA | 0.1μA | ±1.0% of rdg + 5 digits |
| 2000μA | 1μA | |
| 20mA | 10μA | |
| 200mA | 100μA | |
| 2A | 1mA | |
| 20A | 10mA | ±2.0% of rdg + 5 digits |
AC Current:
| Range | Resolution | Accuracy |
| 200μA | 0.1μA | ±1.5% of rdg + 5 digits |
| 2000μA | 1μA | |
| 20mA | 10μA | |
| 200mA | 100μA | |
| 2A | 1mA | |
| 20A | 10mA | ±2.0% of rdg + 10 digits |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±0.8% of rdg + 5 digits |
| 2kΩ | 1Ω | ±0.8% of rdg + 1 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1KΩ | |
| 20MΩ | 10KΩ | ±1.2% of rdg + 5 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Transistor hFE Test (0 - 1000) Range | NPN Or PNP |
|---|---|
| Transistor hFE Test (0 - 1000) Test Range | 0 ~ 1000 |
| Transistor hFE Test (0 - 1000) Test Current / Voltage | Base Current Is Approximate 15μA Vce Is About 4.5V |
| Dimension | 225 (H) x 38 (W) x 26 (D) mm |
