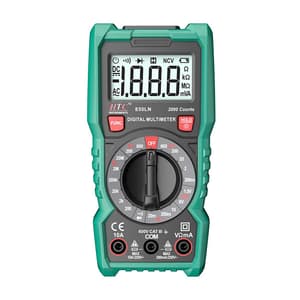

HTC 3-1/2 Digit / 2000 Count True RMS Digital Manual Multimeter, DM-830LN
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Power: AAA 1.5V x 2
- Test: Diode Test
- Function: Continuity
- Dimension: 151 (H) x 75 (W) x 45 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹595 (Incl. of all taxes)
₹504 + ₹91 GST (18%)
MRP was MRP ₹630
Save 20%
Out of Stock
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit Manual Multimeter
- Count 2000
- Battery Test
- Max / Min Hold
- Data Hold
- Auto Power Off (APO)
- True RMS

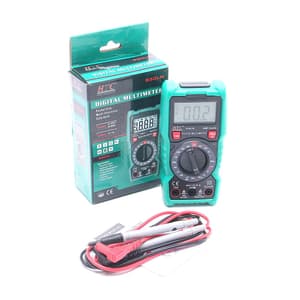

Package Contents:
- Test Lead
- Manual
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±0.5% of rdg + 3 digits |
| 2V | 0.001V | |
| 20V | 0.01V | |
| 200V | 0.1V | |
| 600V | 1V |
DC Current:
| Range | Resolution | Accuracy |
| 20mA | 0.01mA | ±1.2% of rdg + 3 digits |
| 200mA | 0.1mA | |
| 10A | 0.01A |
AC Voltage:
| Range | Resolution | Accuracy |
| 200V | 0.1V | ±1.2% of rdg + 5 digits |
| 600V | 1V |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±1.0% of rdg + 3 digits |
| 2kΩ | 0.001Ω | |
| 20kΩ | 0.01Ω | |
| 200kΩ | 0.1Ω | |
| 2MΩ | 0.001Ω | ±1.5% of rdg + 3 digits |
| 20MΩ | 0.01Ω |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | AAA 1.5V x 2 |
|---|---|
| Test | Diode Test |
| Function | Continuity |
| Dimension | 151 (H) x 75 (W) x 45 (D) mm |
