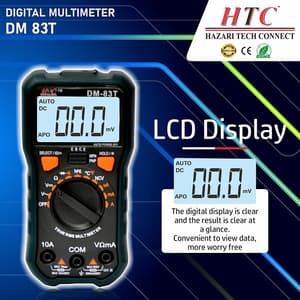

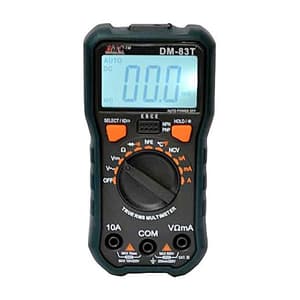

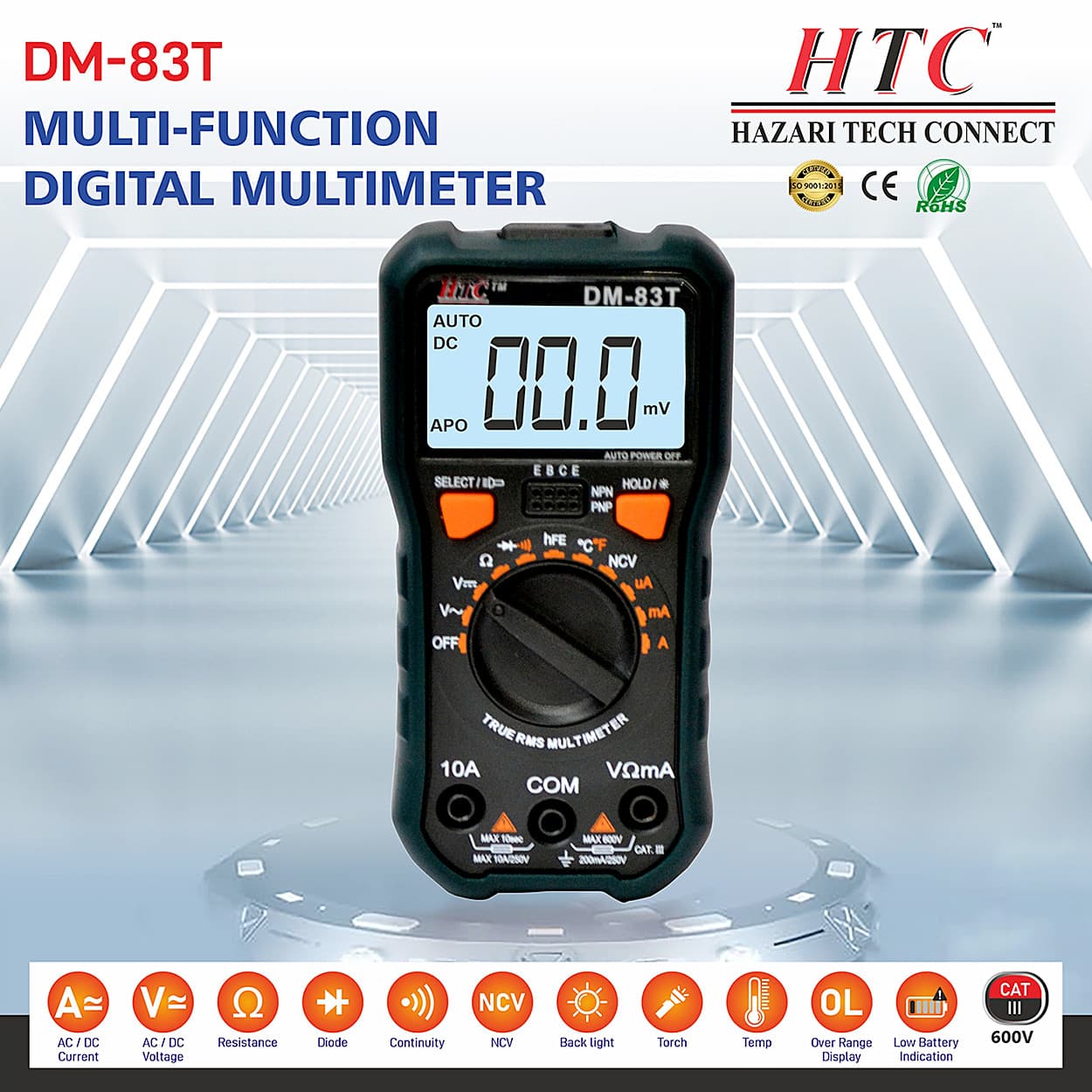

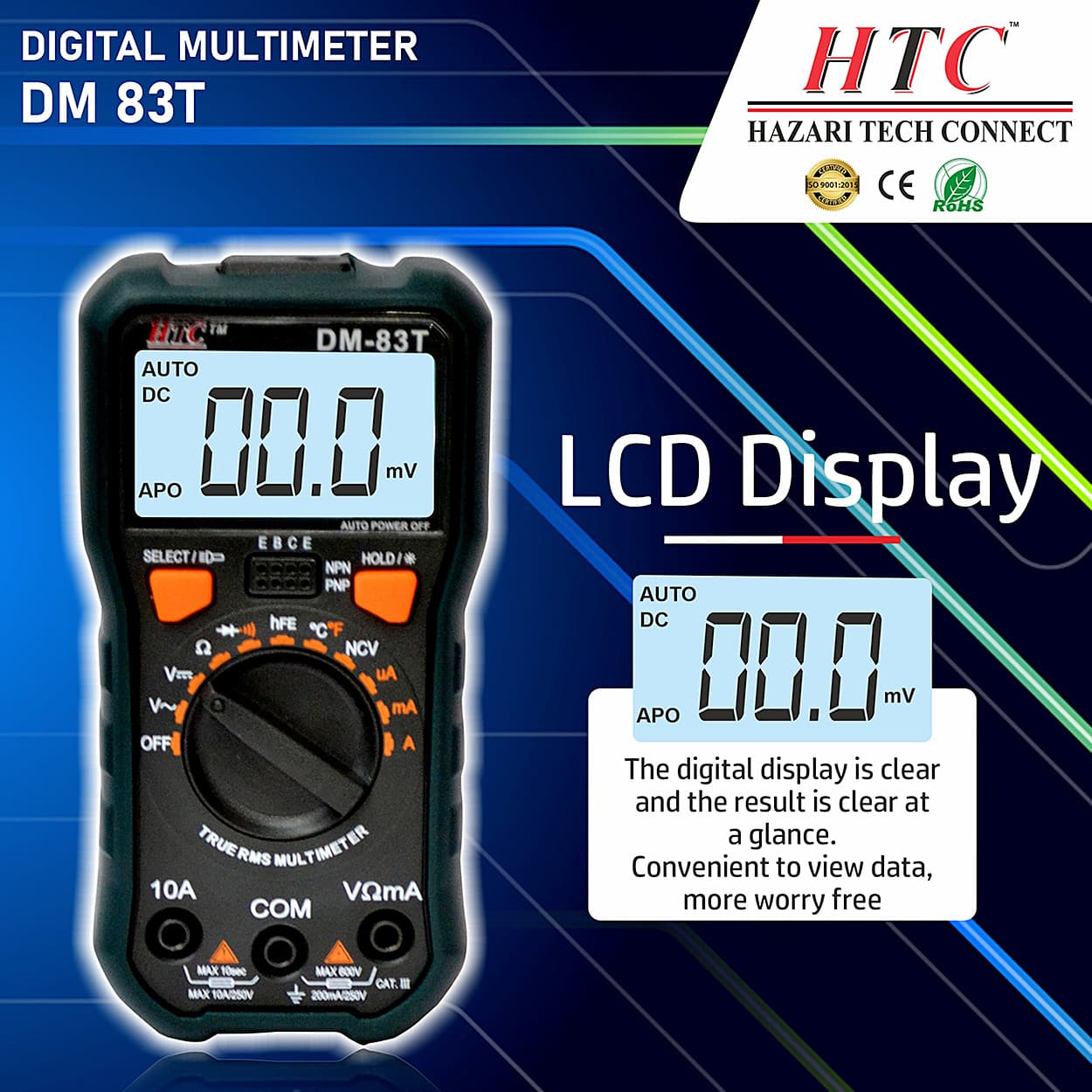

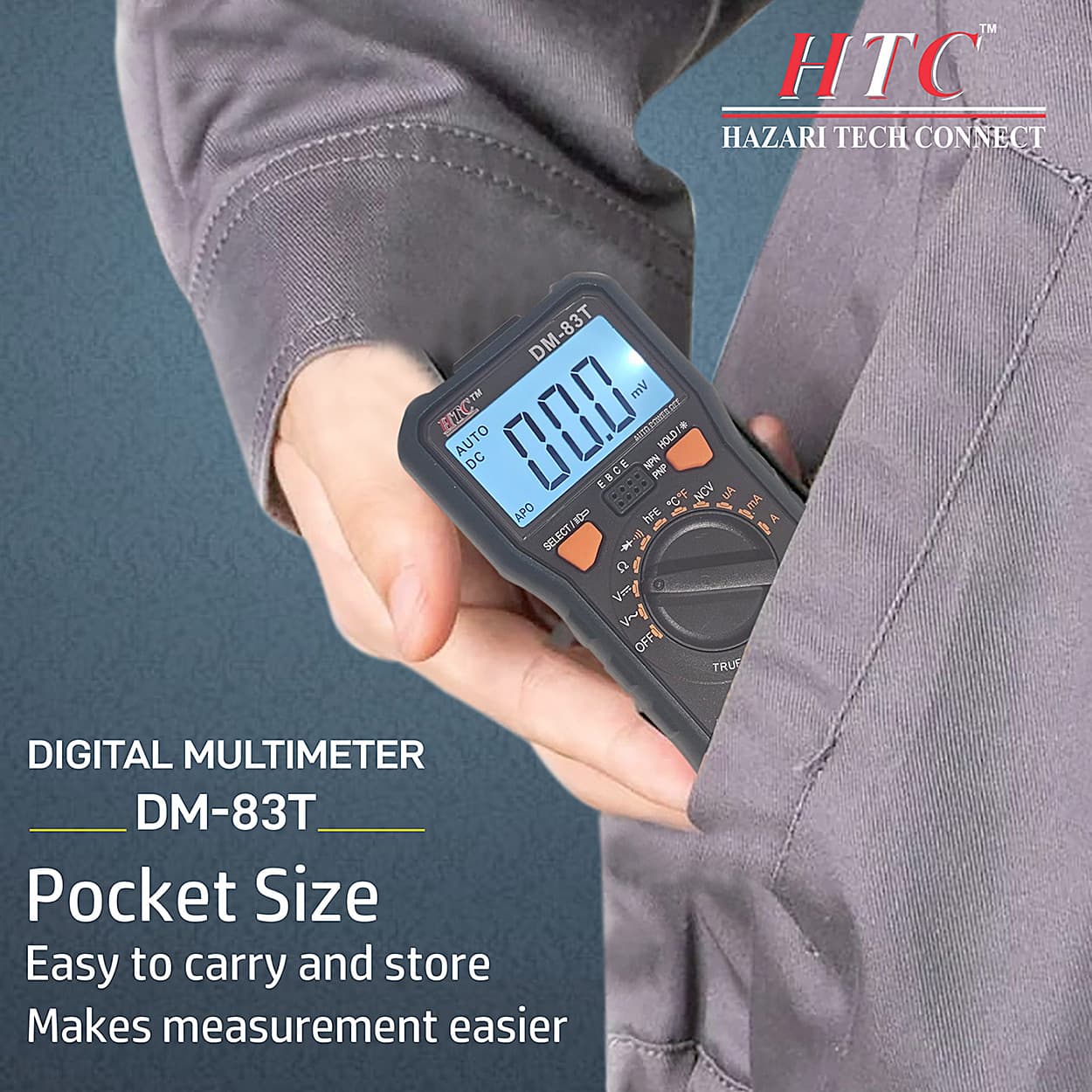

HTC 3-1/2 Digit / 1999 Count True RMS Digital Multimeter With Backlight & Torch Function, DM-83T
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Power: AAA 1.5V X 2
- Dimension: 245 (H) x 220 (W) x 82 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹986 (Incl. of all taxes)
₹836 + ₹150 GST (18%)
MRP was MRP ₹1,045
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

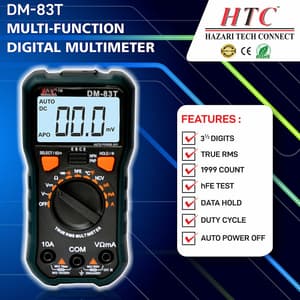

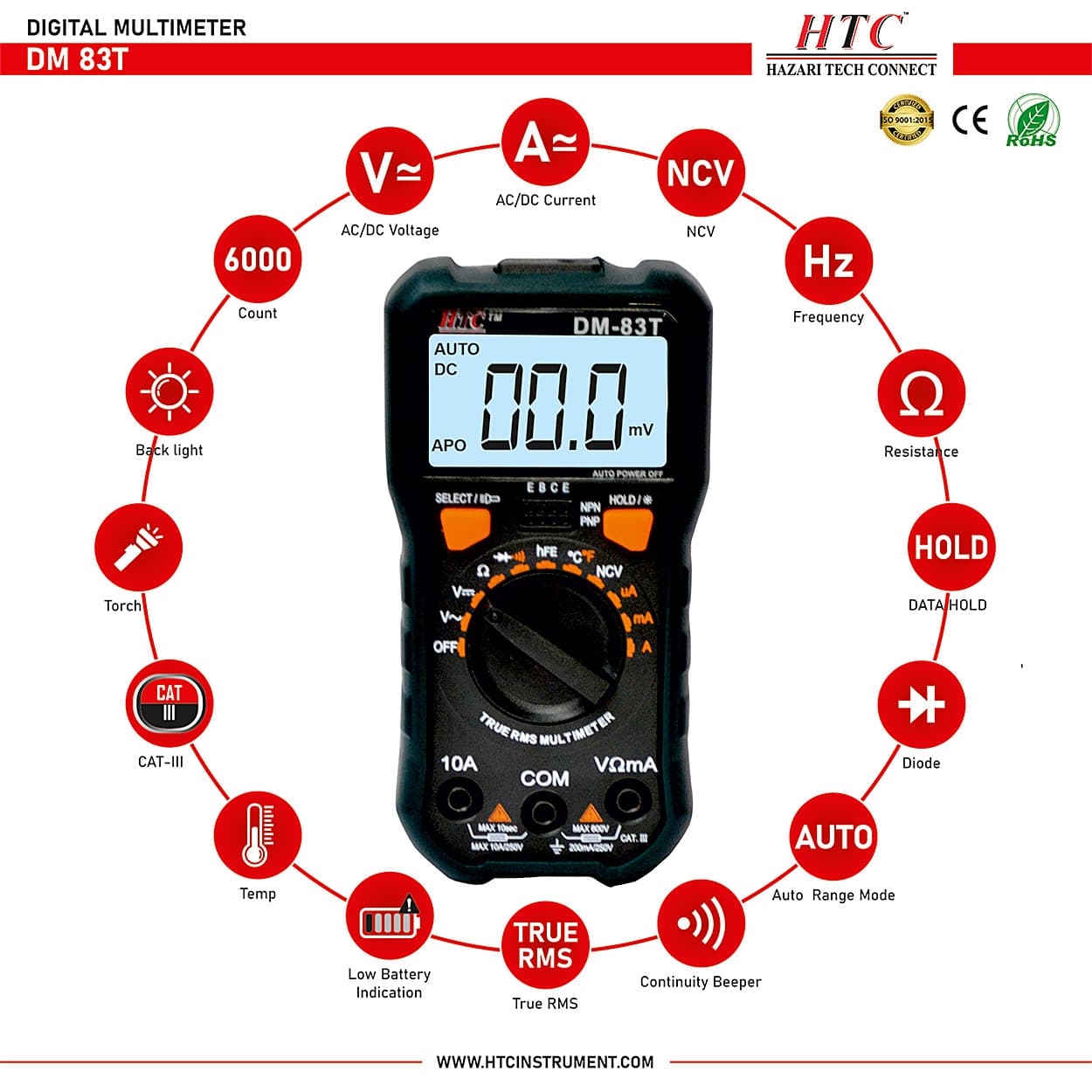

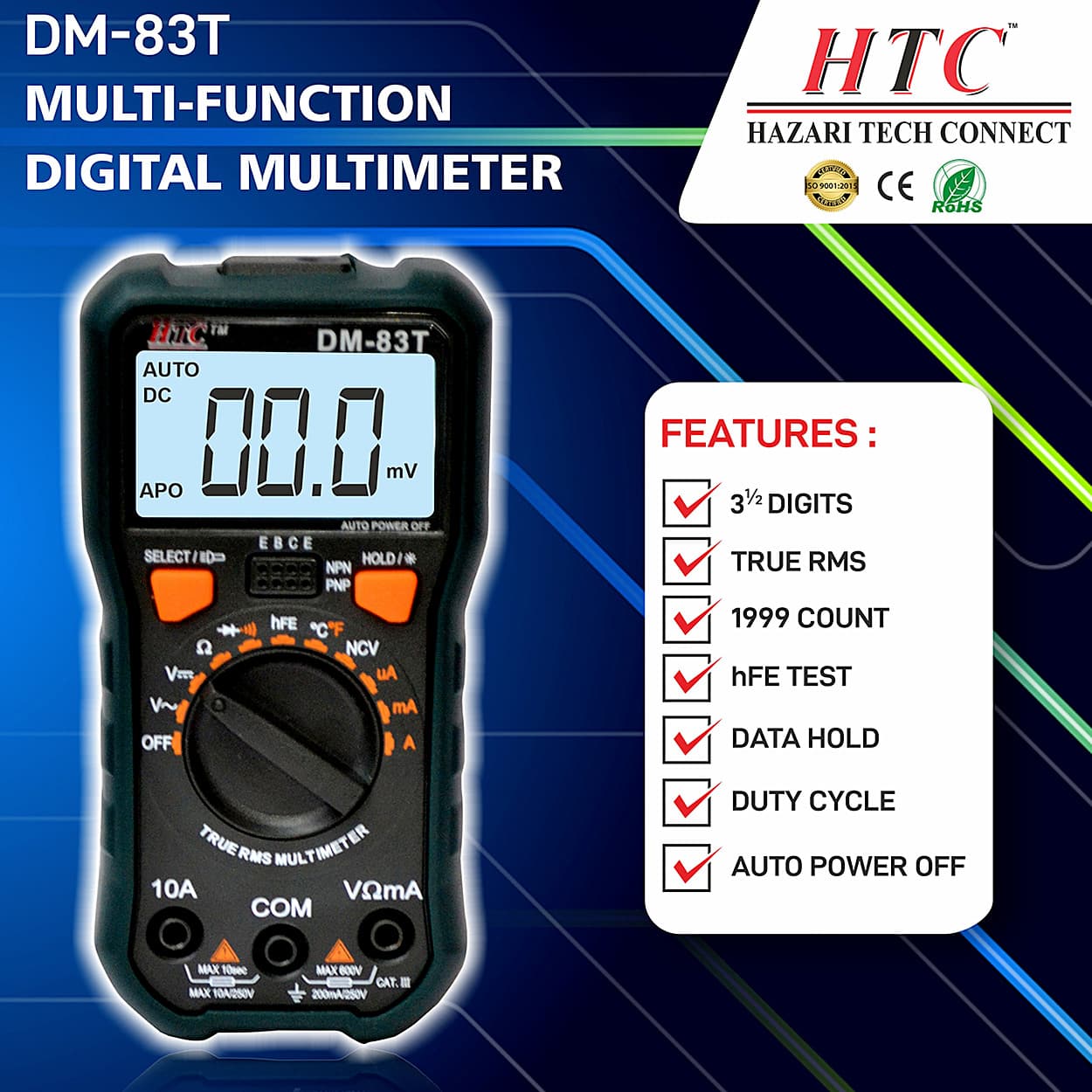

Highlights
- 3½ Digit Multimeter with Backlight
- 1999 Count
- Torch Function
- NCV
- True RMS

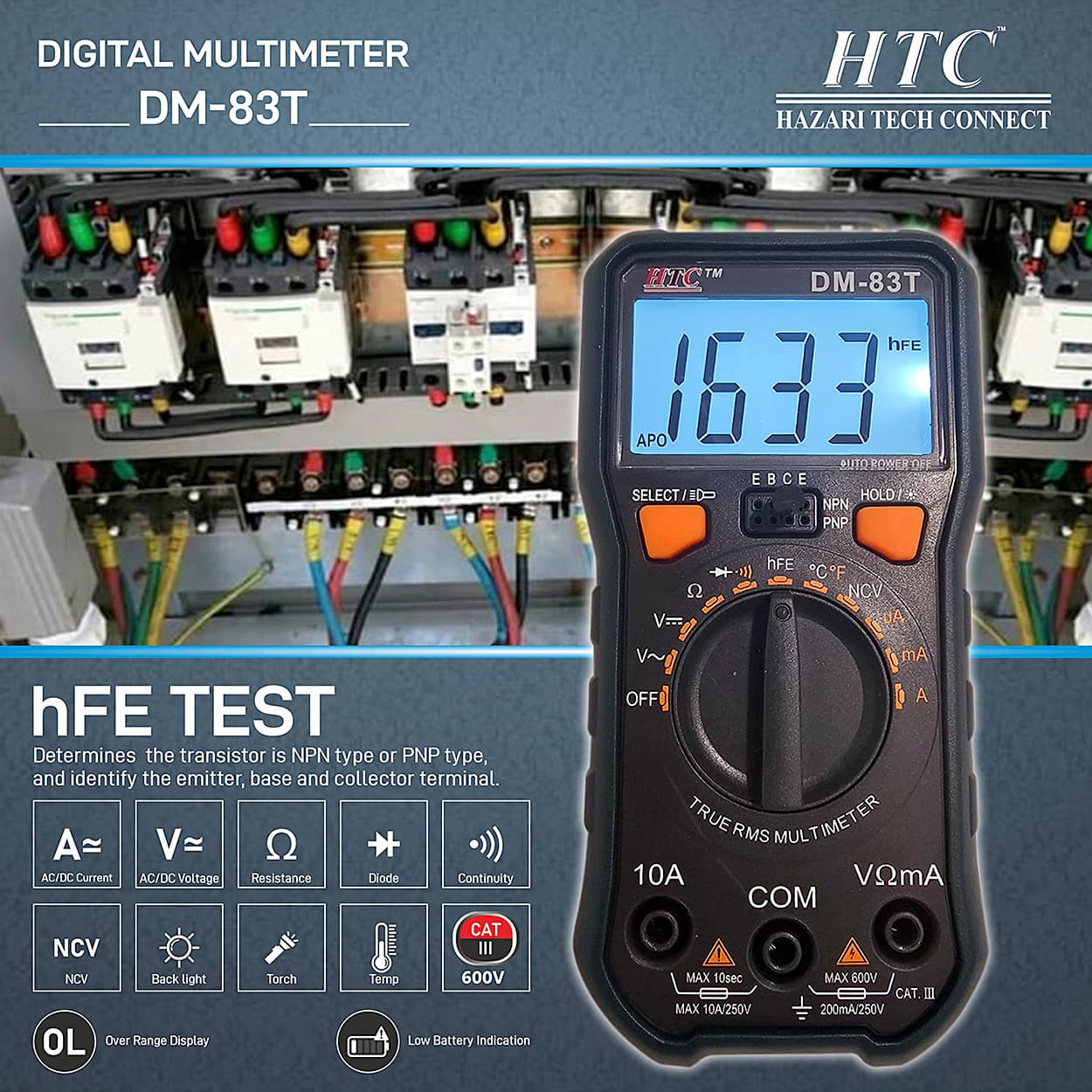

- hFE test

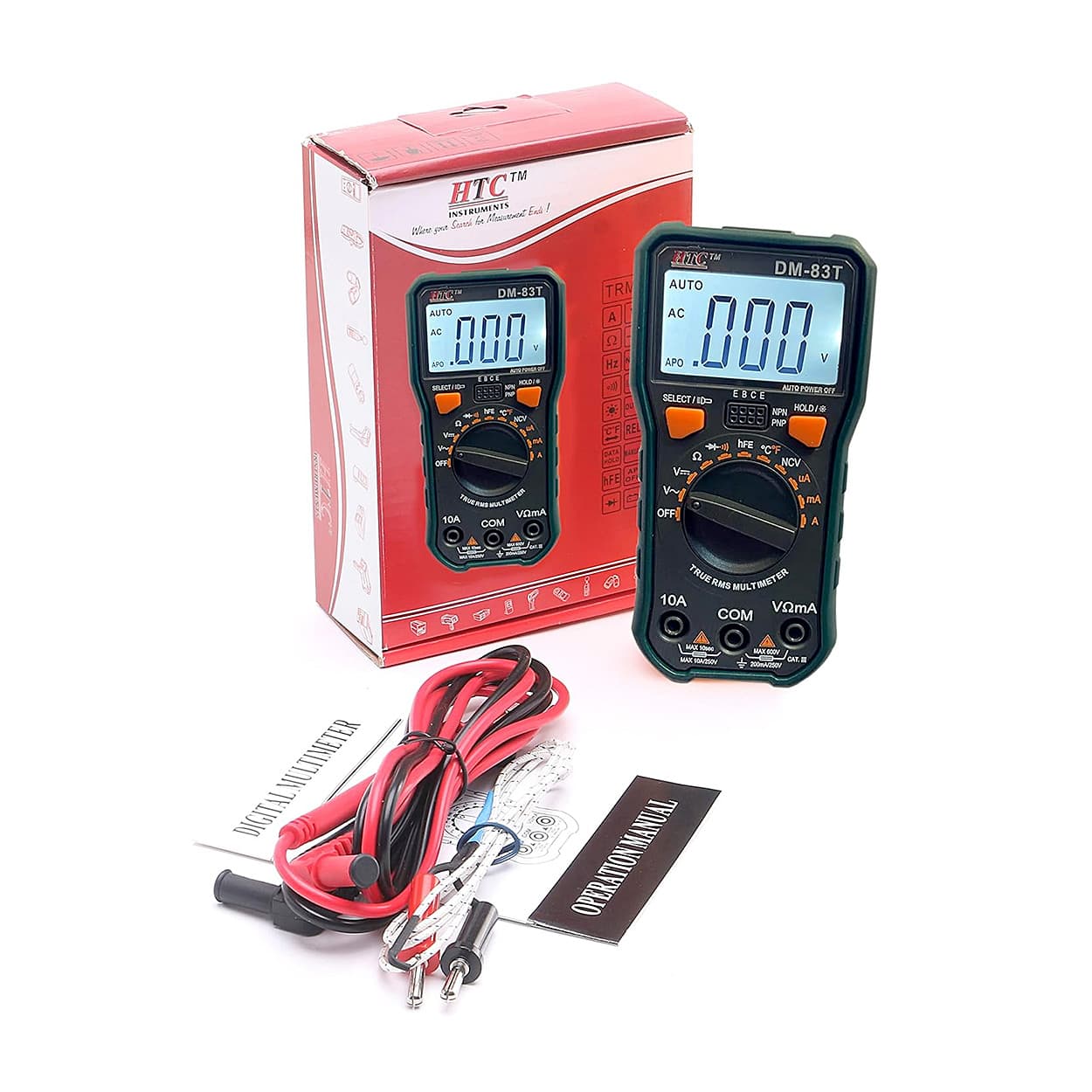

Package Contents:
- Manual,
- Test Lead.
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±1.0% of rdg + 4 digits |
| 2V | 1mV | |
| 20V | 10mV | |
| 200V | 100mV | |
| 600V | 1V | ±1.0% of rdg + 4 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 2V | 1mV | ±0.8% of rdg + 6 digits |
| 20V | ||
| 200V | 10mV | ±1.0% of rdg + 6 digits |
| 600V |
DC Current:
| Range | Resolution | Accuracy |
| 200uA | 0.1µA | ±1.0% of rdg + 5 digits |
| 2000uA | 1µA | |
| 20mA | 10µA | |
| 200mA | 100µA | |
| 2A | 1mA | |
| 10A | 10mA | ±2.0% of rdg + 5 digits |
AC Current:
| Range | Resolution | Accuracy |
| 200uA | 0.1µA | ±1.5% of rdg + 5 digits |
| 2000uA | 1µA | |
| 20mA | 10µA | |
| 200mA | 100µA | |
| 2A | 1mA | |
| 10A | 10mA | ±2.0% of rdg + 10 digits |
Temperature:
| Range | Resolution | Accuracy |
| -40~1000°C | 1°C |
|
| 0~1832°F | 1°F |
|
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±0.8% of rdg + 1 digits |
| 2kΩ | 1Ω | |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1KΩ | |
| 20MΩ | 10KΩ | ±1.2% of rdg + 5 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | AAA 1.5V X 2 |
|---|---|
| Dimension | 245 (H) x 220 (W) x 82 (D) mm |
