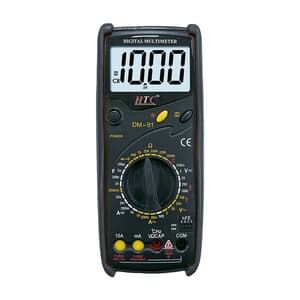

HTC 3-1/2 Digit / 1999 Count Terminal Inter Lock Mechanism Digital Multimeter With Auto Power Off, DM-91
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Frequency Range: 200KHz
- Frequency Resolution: 100Hz
- Frequency Accuracy: ±1.5% of rdg + 10 Digits
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,525 (Incl. of all taxes)
₹1,292 + ₹233 GST (18%)
MRP was MRP ₹1,615
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit Manual Multimeter with Backlight.
- 1,999 Count
- Auto Power Off (APO) under natural operation.

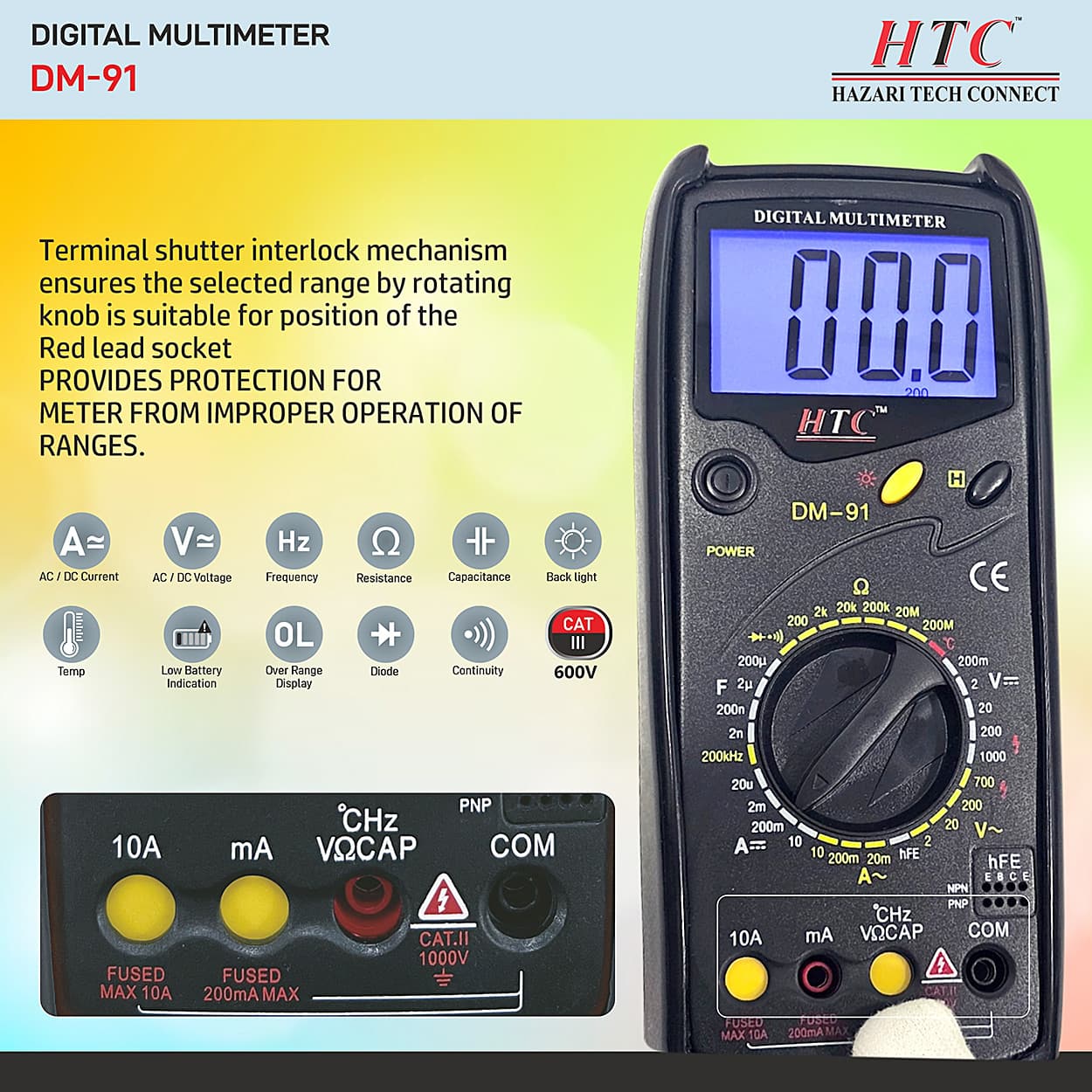

- Terminal Shutter Interlock Mechanism.
Special Function:
- Diode Test Anti Shock Protect.
- Transistor Testing Input impedance 10MΩ.
- Continuity Buzzer Approx. <30Ω+10 Sampling Rate 3 times per second.
- Low Battery Display Approx. <7.5V AC Frequency Response 40-400Hz.
- Auto Power OFF Approx. 30min. Power 9V (6F22) X 1.
Package Contents:

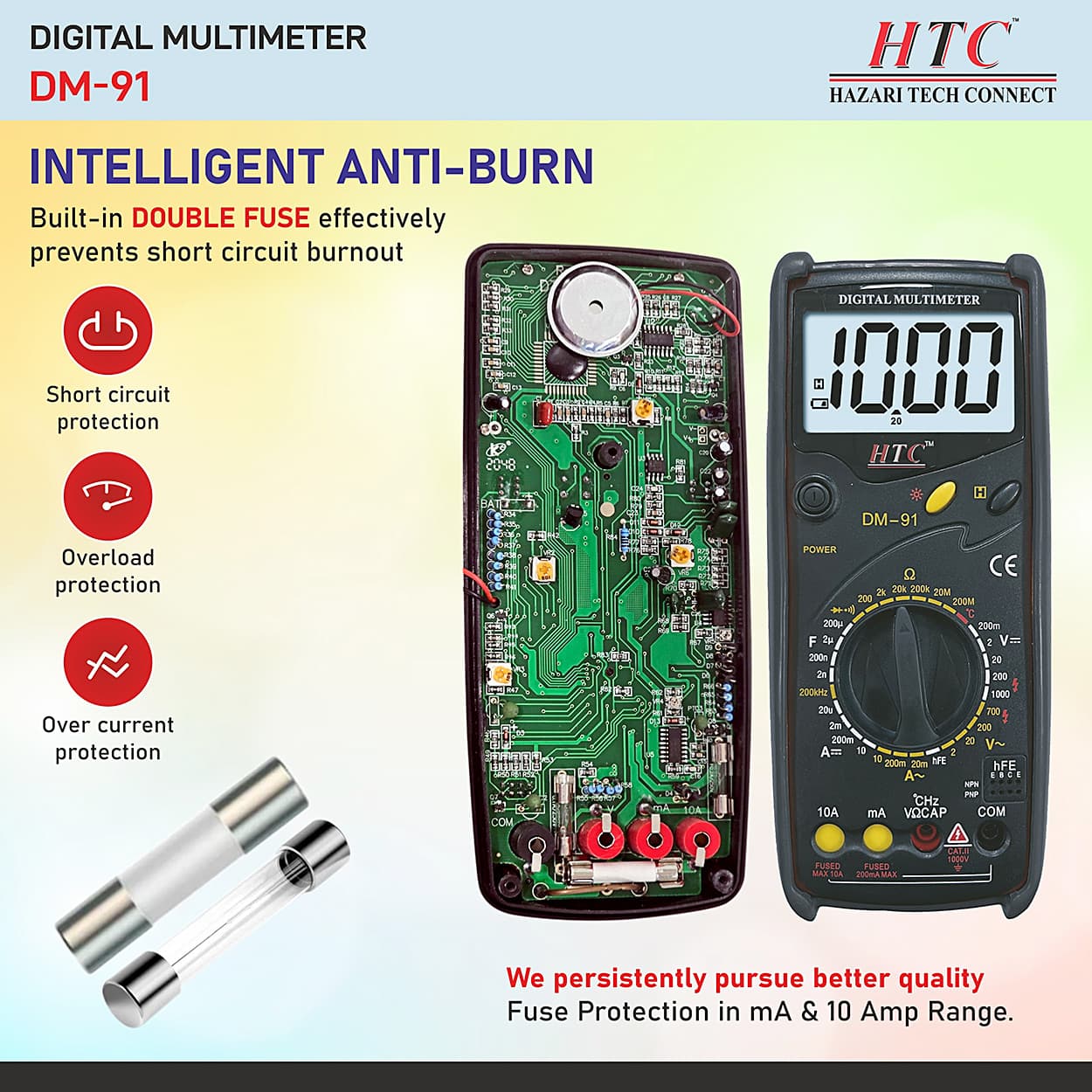

- Test leads, Fuse,
- Manual TP04 Thermocouple,
- Battery.
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±0.5% of rdg + 1 digits |
| 2V | 1mV | ±0.5% of rdg + 3 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 1000V | 1V | ±0.8% of rdg + 3 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 2V | 1mV | ±1.0% of rdg + 5 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 700V | 1V | ±1.2% of rdg + 5 digits |
DC Current:
| Range | Resolution | Accuracy |
| 20µA | 10nA | ±1.2% of rdg + 3 digits |
| 2mA | 1µA | ±1.0% of rdg + 3 digits |
| 200mA | 100µA | ±1.5% of rdg + 5 digits |
| 10A | 10mA | ±2.0% of rdg + 10 digits |
AC Current:
| Range | Resolution | Accuracy |
| 20mA | 10µA | ±1.2% of rdg + 5 digits |
| 200mA | 100µA | ±2.0% of rdg + 5 digits |
| 10A | 10mA | ±3.0% of rdg + 10 digits |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±1.0% of rdg + 10 digits |
| 2kΩ | 1Ω | ±1.0% of rdg + 1 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 20MΩ | 10KΩ | ±1.0% of rdg + 5 digits |
| 200MΩ | 100KΩ | ±5.0% of rdg – 10 digits + 20 digits |
Capacitance:
| Range | Resolution | Accuracy |
| 2nF | 1pF | ±4.0% of rdg + 3 digits |
| 200nF | 0.1nF | |
| 2µF | 1nF | |
| 200µF | 100nF | ±5.0% of rdg + 3 digits |
Temperature:
| Range | Resolution | Accuracy |
| -20°~0°C | 1°C | ±5.0% of rdg + 5 digits |
| 0~400°C | ±1.0% of rdg + 3 digits | |
| 400~1000°C | ±2.0% of rdg + 3 digits |
Transistor hFE Test:
| Range | Test Range | Test Current/Voltage |
| NPN or PNP | 0-1000 | 1b=10µA/Vce=3A |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency Range | 200KHz |
|---|---|
| Frequency Resolution | 100Hz |
| Frequency Accuracy | ±1.5% of rdg + 10 Digits |
| Power | 9V (6F22) X 1 |

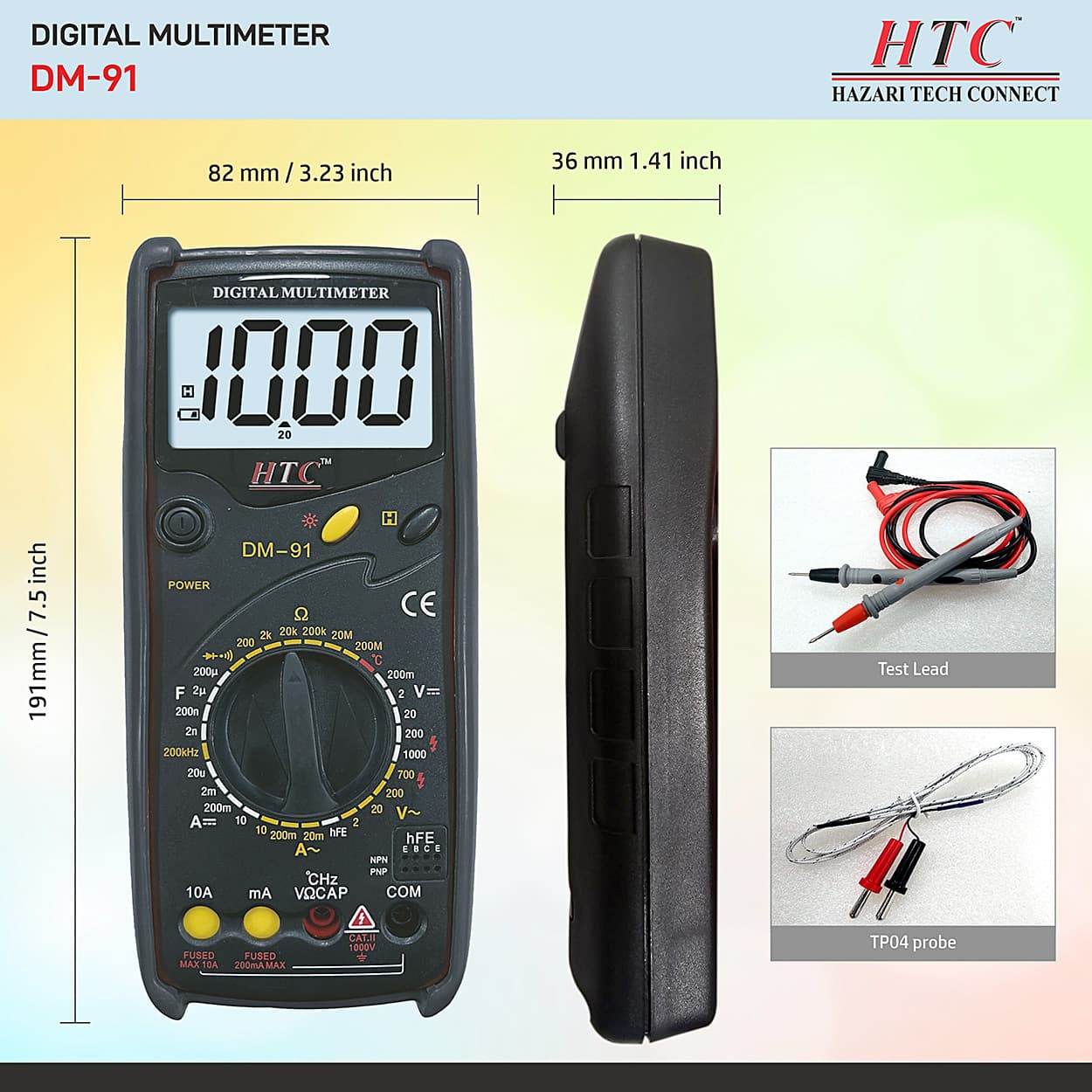

| Dimension | 185 (H) x 93 (W) x 35 (D) mm |
