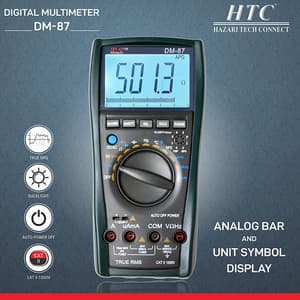

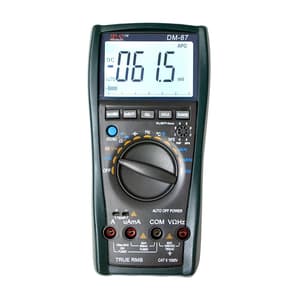

HTC 3-6/7 Digit / 5999 Count True RMS Digital Multimeter With Backlight & VSD, DM-87
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Transistor hFE Test (Range): NPN Or PNP
- Transistor hFE Test (Resolution): 0 - 1000
- Dimension: 185 (H) x 93 (W) x 35 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,986 (Incl. of all taxes)
₹5,920 + ₹1,066 GST (18%)
MRP was MRP ₹7,400
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3 6/7 Digit Multimeter with Backlight
- 5,999 Count
- VSD & True RMS
- Auto Power Off (APO) under natural operation

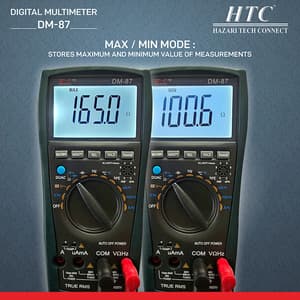

- Data Hold, Max./Min. Value Hold
- Capacitance, Frequency / Duty Cycle, Temperature and Transistor Test
- Temp-40~1000°C Resolution 1°C
Special Function:
- VSD -V 750V (± 2% + 10) True RMS
- Diode Test Function Protection
- Transistor Testing Input impedance 10M?
- Continuity Buzzer Lower 30?+10? Sampling Rate 3 times per second
- Low Battery Display Lower 5.5V AC Frequency Response 30Hz-60Hz or 60Hz-200Hz
- Auto Power OFF Approx. 15 min. Power 9V (6F22) X 1

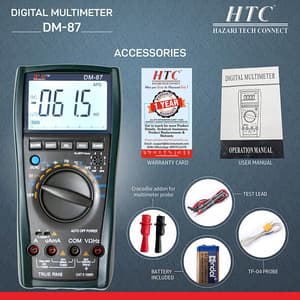

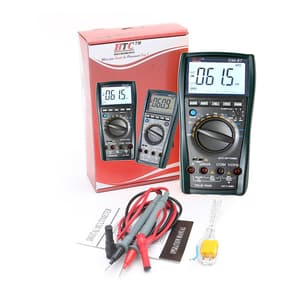

Package Contents:
- Test Lead,
- Manual,
- TP01 Temperature Probe & Battery.
DC Voltage:
| Range | Resolution | Accuracy |
| 600mV | 0.01mV | ±1.0% of rdg + 5 digits |
| 6V | 1mV | ±0.5% of rdg + 3 digits |
| 60V | 10mV | |
| 600V | 100mV | |
| 1000V | 1Mv | ±1.0% of rdg + 3 digits |
AC Voltage (True RMS):
| Range | Resolution | Accuracy |
| 6V | 1mV | 50Hz-5kHz: ± 1.0% of rdg + 10 digits |
| 60V | 10mV | 5kHz-20kHz: ± 1.5% of rdg + 10 digits |
| 600V | 100mV | <200V 50Hz-5kHz & 200V 50Hz-1kHz: ± 1.0 of rdg + 10 digits |
| 750V | 1V | 50Hz-1kHz: ± 1.0% of rdg + 10 digits |
DC Current:
| Range | Resolution | Accuracy |
| 600µA | 0.1µA | ±1.0% of rdg + 3 digits |
| 6000µA | 1µA | |
| 60mA | 10µA | |
| 600mA | 100µA | |
| 6A | 1mA | ±2.0% of rdg + 5 digits |
| 20A | 10mA |
AC Current (True RMS):
| Range | Resolution | Accuracy |
| 600µA | 0.1µA | ±1.2% of rdg + 20 digits / (40Hz-400Hz) |
| 6000µA | 1µA | |
| 60mA | 10µA | |
| 600mA | 100µA | |
| 6A | 1mA | ±1.5% of rdg + 20 digits / (40Hz-400Hz) |
| 20A | 10mA | ±2.5% of rdg + 20 digits / (40Hz-400Hz) |
Resistance:
| Range | Resolution | Accuracy |
| 600Ω | 0.1Ω | ±0.8% of rdg + 5 digits |
| 6kΩ | 1Ω | ±0.8% of rdg + 3 digits |
| 60kΩ | 10Ω | |
| 600kΩ | 100Ω | |
| 6MΩ | 1KΩ | |
| 30MΩ | 10KΩ | ±1.2% of rdg – 10 digits + 5 digits |
Capacitance:
| Range | Resolution | Accuracy |
| 40nF | 10pF | ±2.5% of rdg + 5 digits |
| 400nF | 100pF | ±2.5% of rdg + 5 digits |
| 4µF | 1nF | |
| 40µF | 10nF | |
| 400µF | 100nF | |
| 2000µF | 1µF | ±5.0% of rdg + 10 digits |

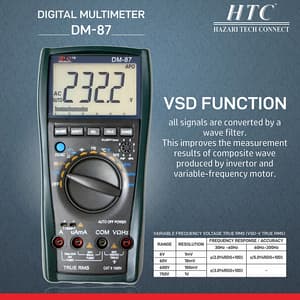

Variable Frequency Voltage True RMS (VSD-V True RMS):
| Range | Resolution | Accuracy | |
| 30Hz-60Hz | 60Hz-200Hz | ||
| 6V | 1mV | ±2.0% of rdg + 10 digits | ±5.0% of rdg + 10 digits |
| 60V | 10mV | ||
| 600V | 100mV | ±3.0% of rdg + 10 digits | |
| 750V | 1V |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Transistor hFE Test (Range) | NPN Or PNP |
|---|---|
| Transistor hFE Test (Resolution) | 0 - 1000 |
| Transistor hFE Test (Accuracy) | Base Current Is Approximate 15μA, Vce Is Approx 4.5V |
| Dimension | 185 (H) x 93 (W) x 35 (D) mm |
