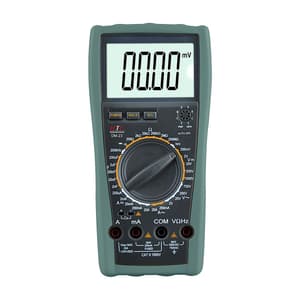

HTC 4-1/2 Digit / 19999 Count Digital Multimeter With Backlight & Auto Power Off, DM-23

Name: HTC 4-1/2 Digit / 19999 Count Digital Multimeter With Backlight & Auto Power Off, DM-23
Brand: HTC
SKU: ME.EL.MU.00122
Price: 3167.00 INR
Availability: InStock

Shop all HTC

SKU: ME.EL.MU.00122

Model: DM23

Roll over the image to zoom in

Visit HTC Store

Key Features

Product Type: Multimeter
Frequency Range: 200kHz
Frequency Resolution: 10Hz
Frequency Accuracy: ±3.0% of rdg + 15 Digits

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹3,167 (Incl. of all taxes)

₹2,684 + ₹483 GST (18%)

MRP was MRP ₹3,355

Save 20%

Dispatch: 5 Business Days

Items in Pack: 1

HSN Code: 90303100

Download Product LeafletNot available

Download HTC CatalogueNot available

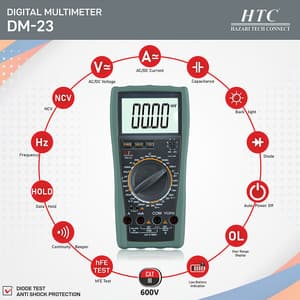

Highlights

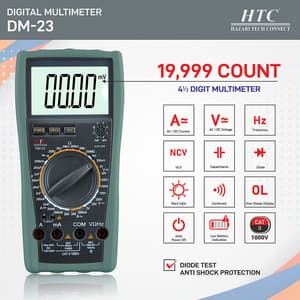

4½ Digit Multimeter with Backlight.
19,999 Count.
Meter is designed according to IEC 1010 standard.
Auto Power Off (APO) under natural operation.

Special Function:

Diode Test Anti Shock Protect.
hFE test Input impedance 10MΩ.
Continuity Buzzer Approx. <30Ω+10Ω Sampling Rate 3 times per second.
Low Battery Display Approx. <7.5V AC Frequency Response 40-400Hz.

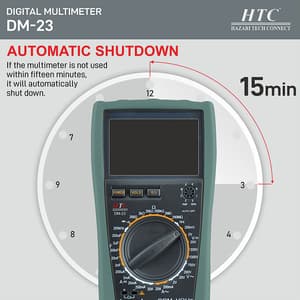

Auto Power OFF Approx. 30 min. Power 9V (6F22) X 1.
Function Protection.

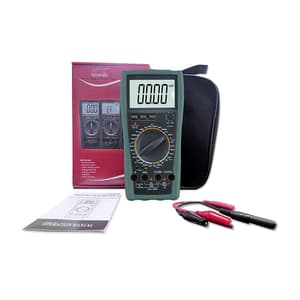

Package Contents:

Test Lead,
Manual

DC Voltage:

Range	Resolution	Accuracy
200mV	10µV	±0.05% of rdg + 3 digits
2V	100µV
20V	1mV
200V	10mV
1000V	100mV	±0.1% of rdg + 5 digits

AC Voltage:

Range	Resolution	Accuracy
2V	10µA	±0.8% of rdg + 25 digits
20V	1mV
200V	10mV
750V	100mV	±1.0% of rdg + 25 digits

DC Current:

Range	Resolution	Accuracy
20µA	0.01µA	±0.5% of rdg + 4 digits
2mA	0.1µA
20mA	1µA
200mA	10µA	±0.8% of rdg + 6 digits
20A	1mA	±2.0% of rdg + 15 digits

Transistor hFE Test:

Range	Resolution	Accuracy
NPN or PNP	0-1000	Base DC current is approx 10µA Vce is aprrox, 3V

AC Current:

Range	Resolution	Accuracy
200mA	10µA	±1.5% of rdg + 25 digits
20A	1mA	±2.5% of rdg + 35 digits

Capacitance:

Range	Resolution	Accuracy
2nF	0.1pF	±3.5% of rdg + 10 digits
20nF	1pF
200nF	10pF
2µF	100pF
200µF	10nF	±3.8% of rdg + 20 digits

Resistance:

Range	Resolution	Accuracy
200Ω	0.01Ω	±0.2% of rdg + 10 digits
2kΩ	0.1Ω	±0.2% of rdg + 5 digits
20kΩ	1Ω
200kΩ	10Ω
2MΩ	100Ω
200MΩ	10KΩ	±5% of rdg – 10 digits + 10 digits
