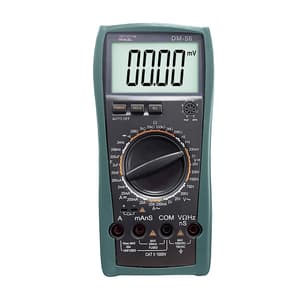

HTC 4-1/2 Digit / 19999 Count Digital Multimeter With Backlight & Conductance, DM-56
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Transistor hFE Test (Range): NPN Or PNP
- Transistor hFE Test (Test Range): 0 - 1000
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,879 (Incl. of all taxes)
₹2,440 + ₹439 GST (18%)
MRP was MRP ₹3,050
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights

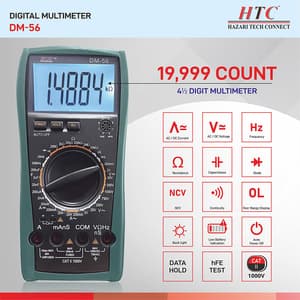

- 4½ Digit Multimeter with Backlight
- 19,999 Count
- Auto Power Off (APO) under natural operation
- Conductance, Capacitance, Frequency
Special Function:
- Diode Test Anti Shock Protection
- hFE Test Input impedance 10MΩ
- Continuity Buzzer Approx. < 30Ω+10Ω Sampling Rate 3 times per second
- Low Battery Display Approx. < 7.5V AC Frequency Response 40-400Hz
- Auto Power OFF Approx. 30 min. Power 9V (6F22) X 1
- Function Protection

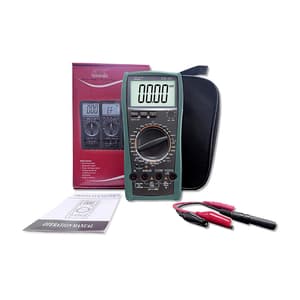

Package Contents:
- Test Leads,
- Manual & Battery
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 10µV | ±0.1% of rdg + 5 digits |
| 2V | 100µV | |
| 20V | 1mV | |
| 200V | 10mV | |
| 1000V | 100mV | ±0.2% of rdg + 5 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 2V | 100µA | ±0.8% of rdg + 25 digits |
| 20V | 1mV | |
| 200V | 10mV | |
| 750V | 100mV | ±1.0% of rdg + 25 digits |
DC Current:
| Range | Resolution | Accuracy |
| 200µA | 0.01µA | ±0.5% of rdg + 4 digits |
| 2mA | 0.1µA | |
| 20mA | 1µA | |
| 200mA | 10µA | ±0.8% of rdg + 6 digits |
| 20A | 1mA | ±2.0% of rdg + 15 digits |
AC Current:
| Range | Resolution | Accuracy |
| 200mA | 10µA | ±1.5% of rdg + 25 digits |
| 20A | 1mA | ±2.5% of rdg + 35 digits |

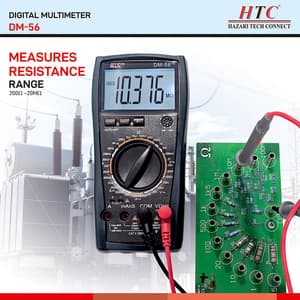

Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.01Ω | ±0.2% of rdg + 10 digits |
| 2kΩ | 0.1Ω | ±0.2% of rdg + 5 digits |
| 20kΩ | 1Ω | |
| 200kΩ | 10Ω | |
| 2MΩ | 100Ω | |
| 20MΩ | 1KΩ | ±0.8% of rdg + 5 digits |
Capacitance:
| Range | Resolution | Accuracy |
| 2nF | 0.1pF | ±3.5% of rdg + 10 digits |
| 20nF | 1pF | |
| 2µF | 100pF | |
| 200µF | 10nF | ±3.8% of rdg + 20 digits |
Frequency:
| Range | Resolution | Accuracy |
| 2kHz | 0.1Hz | ±3.0% of rdg + 15 digit |
| 200kHz | 0.01Hz |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Transistor hFE Test (Range) | NPN Or PNP |
|---|---|
| Transistor hFE Test (Test Range) | 0 - 1000 |
| Transistor hFE Test (Test Current / Voltage) | Base DC Current Is Approx 10μA, Vce is Approx, 3V |

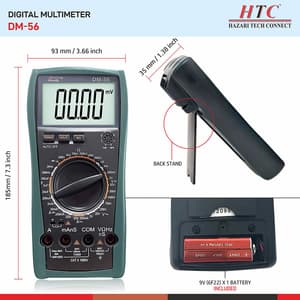

| Dimension | 185 (H) x 93 (W) x 35 (D) mm |
