HTC 4-1/2 Digit / 19999 Count True RMS Bench Type Digital Multimeter With Backlight, DM-8045R

Name: HTC 4-1/2 Digit / 19999 Count True RMS Bench Type Digital Multimeter With Backlight, DM-8045R
Brand: HTC
SKU: ME.EL.MU.00125
Price: 7340.00 INR
Availability: InStock

Shop all HTC

SKU: ME.EL.MU.00125

Model: DM8045R

Roll over the image to zoom in

Visit HTC Store

Key Features

Product Type: Multimeter
Transistor hFE Test (Range): NPN Or PNP
Transistor hFE Test (Test Range): 0 - 1000

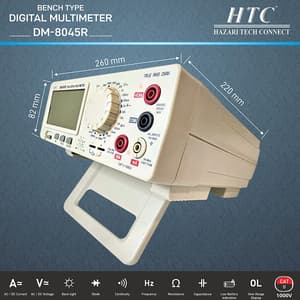

Dimension: 245 (H) x 220 (W) x 82 (D) mm

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹7,340 (Incl. of all taxes)

₹6,220 + ₹1,120 GST (18%)

MRP was MRP ₹7,775

Save 20%

Dispatch: 5 Business Days

Items in Pack: 1

HSN Code: 90303100

Download Product LeafletNot available

Download HTC CatalogueNot available

Highlights

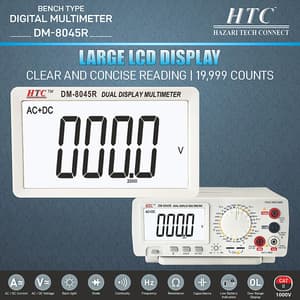

4½ Digit True RMS with Backlight.
19,999 Count.
Auto Power Off (APO)
Data Hold.

Special Function:

Diode Test: Overload Protection.
hFE Test: Function Protection.
True RMS: Anti-Shock Protect.
Continuity Buzzer Approx: <30?+10? Input impedance 10M.
Low Battery Display Approx: <7.5V Sampling Rate 3 times per second.
Auto Power OFF Approx. 30 min: AC Frequency Response 40-400Hz.

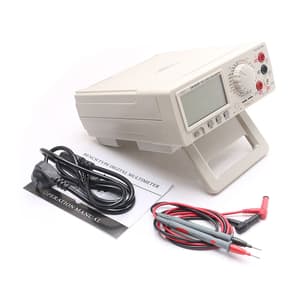

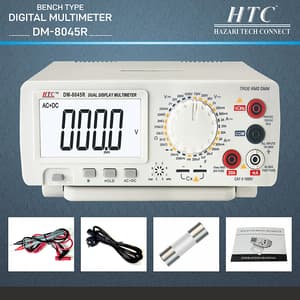

Package Contents:

Test Lead,
Manual,
Power Cord.

DC Voltage:

Range	Resolution	Accuracy
200mV	10µV	±0.05% of rdg + 1 digits
2V	100µV
20V	1mV
200V	10mV
1000V	100mV	±0.1% of rdg + 5 digits

AC Voltage:

Range	Resolution	Accuracy	Input Frequency
200mV	10µA	±0.8% of rdg + 80 digits	50Hz-20kHz
2V	100µA
20V	1mV
200V	10mV	50Hz-5kHz
750V	100mV	±1.0% of rdg + 50 digits	50Hz-400kHz

DC Current:

Range	Resolution	Accuracy
20mA	1µA	±0.35% of rdg + 10 digits
200mA	10µA
2A	100µA	±1.2% of rdg + 20 digits
20A	1mA

AC Current:

Range	Resolution	Accuracy	Input Frequency
200mA	10µA	±0.8% of rdg + 80 digits	50Hz-5kHz
2A	100µA	±1.5% of rdg + 50 digits	50Hz-400Hz
20A	1mA

Resistance:

Range	Resolution	Accuracy
200?	0.01?	±0.1% of rdg + 10 digits
2k?	0.1?	±0.1% of rdg + 5 digits
20k?	1?
200k?	10?
2M?	100?
20M?	1K?	±0.6% of rdg + 5 digits

Capacitance:

Range	Resolution	Accuracy
20nF	1pF	±3.5% of rdg + 20 digits
2µF	100pF
200µF	10nF	±5.0% of rdg + 30 digits

Frequency:

Range	Resolution	Accuracy
20kHz	1Hz	±1.0% of rdg + 20 digits
200kHz	10Hz

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for HTC 4-1/2 Digit / 19999 Count True RMS Bench Type Digital Multimeter With Backlight, DM-8045R
Transistor hFE Test (Range)	NPN Or PNP
Transistor hFE Test (Test Range)	0 - 1000
Transistor hFE Test (Test Current / Voltagey)	Base Current Is Approximate 10μA, Vce Is Approx 3V
Dimension	245 (H) x 220 (W) x 82 (D) mm
