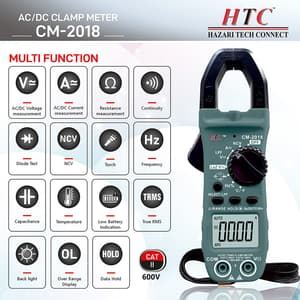

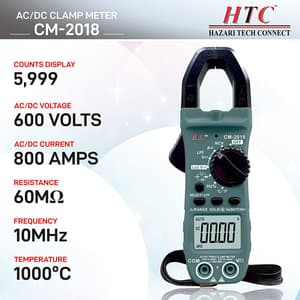

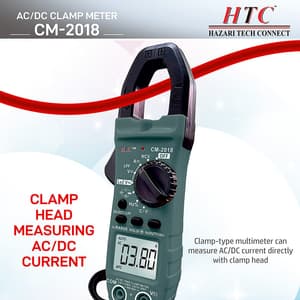

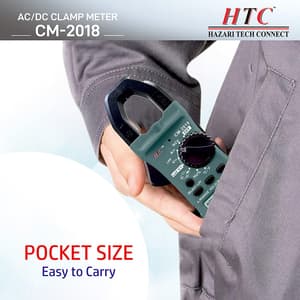

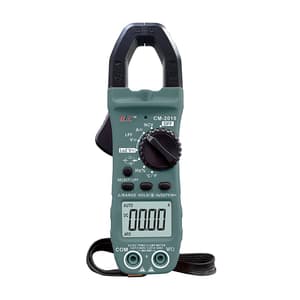

HTC 800A AC / DC 5999 Count Clamp Meter with Backlight, CM-2018
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Jaw Open: 28 mm
- Frequency Range: 10Hz~10MHz
- Frequency Resolution: 0.001Hz~1kHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,615 (Incl. of all taxes)
₹2,216 + ₹399 GST (18%)
MRP was MRP ₹2,770
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3 Digit Clamp Meter with Backlight.
- 5,999 Count & Polarity Display.
- Clamp Torch.
- Non-Contact Voltage (NCV) 5 Ranges.
- True RMS.
- LPF & LoZ V.

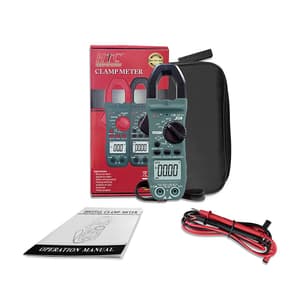

Package Contents:
- Manual Test Lead,
- Soft Carrying Case,
- TP-04 Temperature Probe.
DC Voltage (DCV):
| Range | Resolution | Accuracy |
| 600mV | 0.1mV | ± (1.0% reading + 5) |
| 6V | 0.001V | ± (0.5% reading + 5) |
| 60V | 0.01V | |
| 600V | 0.1V | |
| LoZ 0V-600V | 0.1V | ± (2.0% reading + 10) |
AC Voltage (ACV):
| Range | Resolution | Accuracy |
| 6V | 0.001V | ± (0.8% reading+5) |
| 60V | 0.01V | |
| 600V | 0.1V | |
| LPF 0V-600V | 0.1V | ± (4.0% reading+5) |
| LoZ 0V-600V | 0.1V | ± (2.0% reading+10) |
DV Current (DCA):
| Range | Resolution | Accuracy |
| 60A | 10mA | ± (1.5% reading+5) |
| 600A | 100mA | |
| 800A | 1A |
AC Current (ACA):
| Range | Resolution | Accuracy |
| 60A | 10mA | ± (1.5% reading+5) |
| 600A | 100mA | |
| 800A | 1A |
Resistance:
| Range | Resolution | Accuracy |
| 600Ω | 0.1Ω | ± (0.8% of reading +5) |
| 6kΩ | 1Ω | ± (0.8% of reading +1) |
| 60kΩ | 10Ω | |
| 600kΩ | 100Ω | |
| 6MΩ | 1KΩ | |
| 60MΩ | 10KΩ | ± (1.0% of reading +5) |
Capacitance:
| Range | Resolution | Accuracy |
| 6nF | 1pF | ± (5.0% reading + 10) |
| 60nF | 10pF | |
| 600nF | 100pF | ± (2.5% reading + 5) |
| 6μF | 1nF | |
| 60μF | 10nF | |
| 600μF | 100nF | ± (5.0% reading + 10)/td> |
| 6mF | 1uF | |
| 60mF | 10uF |
Temperature:
| Range | Resolution | Accuracy |
| (-40~1000)°C | 1°C | <400°C: ± (1.0% of reading +5) ≥ 400°C: ± (1.5% of reading +15) |
| (-40~1832)ºC | 1ºF | <750°F: ± (1.0% of reading +5) ≥ 750°F: ± (1.5% of reading +15) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Open | 28 mm |
|---|---|
| Frequency Range | 10Hz~10MHz |
| Frequency Resolution | 0.001Hz~1kHz |
| Frequency Accuracy | ± (0.5% reading + 4) |
| Diode Test | Yes |
| Continuity Buzzer | > 50 Ohm +10 Ohm |
| Low Battery Display | Approx. > 2.6V |
| Auto Power off | 15 min |
| Function Protection | Yes |
| Input impedance | 10MO |
| Sampling Rate | 3 times / sec. |
| AC Frequency Response | 50-400Hz |
| Power | AAA 1.5V X 2 |
| Dimension | 35 (H) x 123 (W) x 270 (D) mm |
