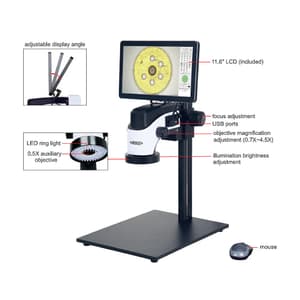

Insize 6X - 38X Large Depth of View Digital Measuring Microscope (Advanced Type), 5322-ID300A
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 7.6 kg
- Pixel: 2M
- Focus distance: 120 mm
- Max workpiece height: 205 mm
- Frame rate: 60fps
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,00,150 (Incl. of all taxes)
₹2,54,364 + ₹45,786 GST (18%)
MRP was MRP ₹3,68,644
Save 31%
3 Business Days
1
–
Download Insize CatalogueNot available
Highlights

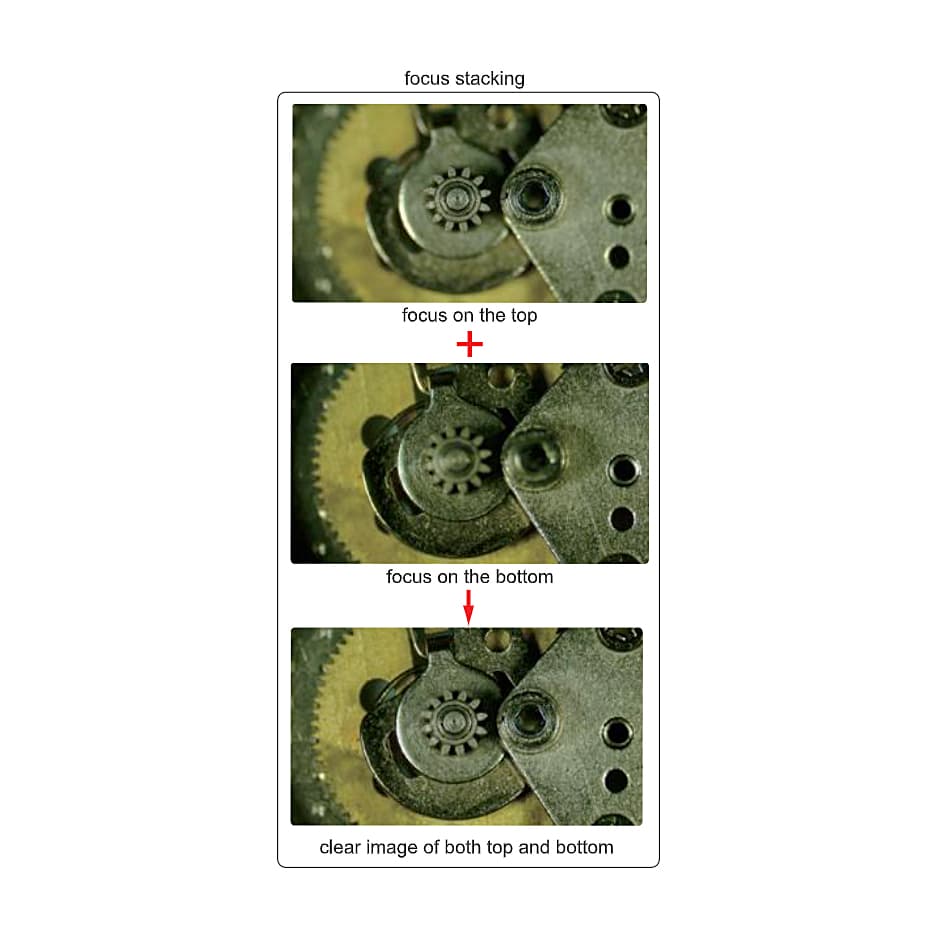

- Dual Screen Operation & Focus Stacking
- Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
- Programmable segmented ring light
- Send photos and measurement data via ethernet (TCP/IP)
- Digital magnification

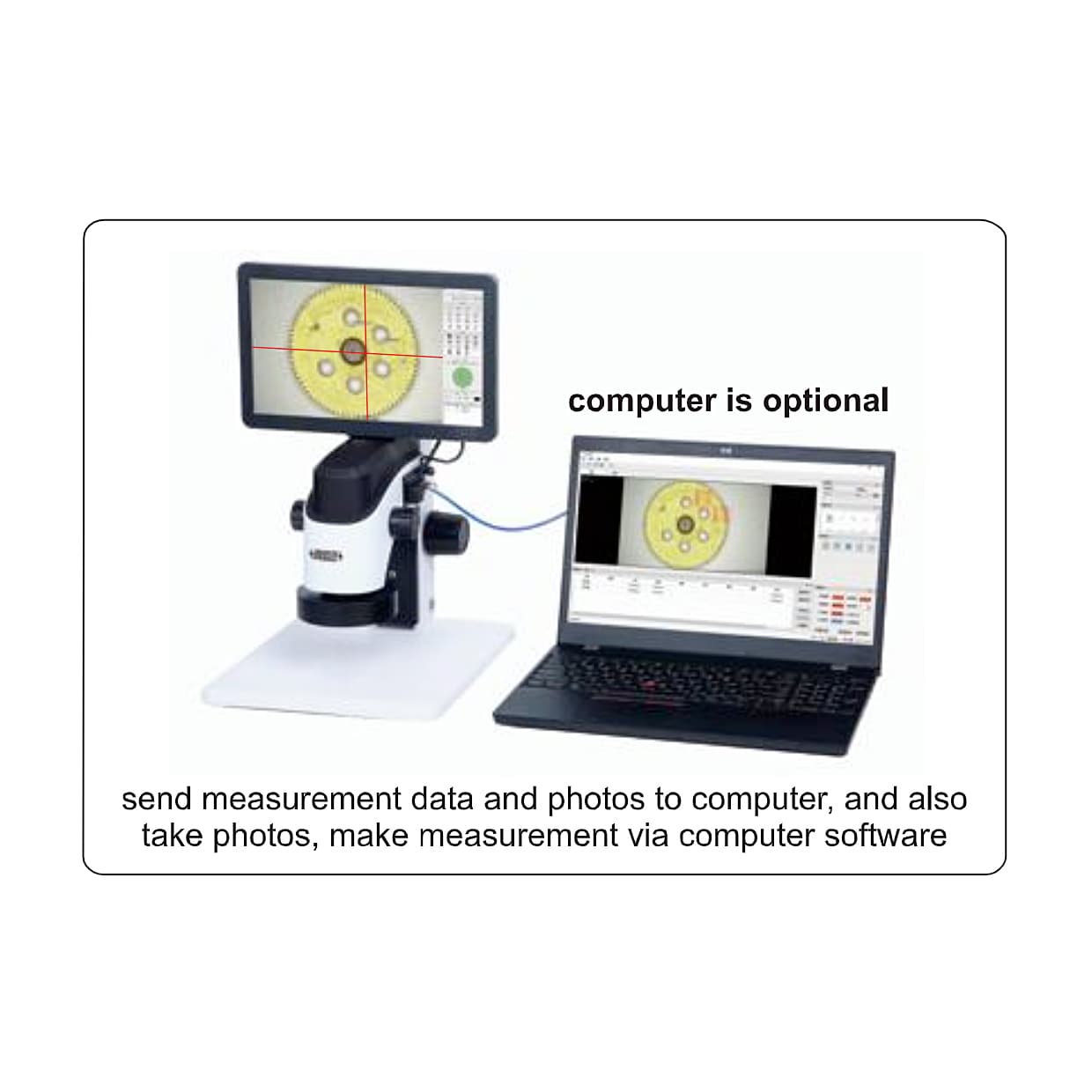

- Can be connected to display and computer at the same time
- Take pictures, save to USB flash disk

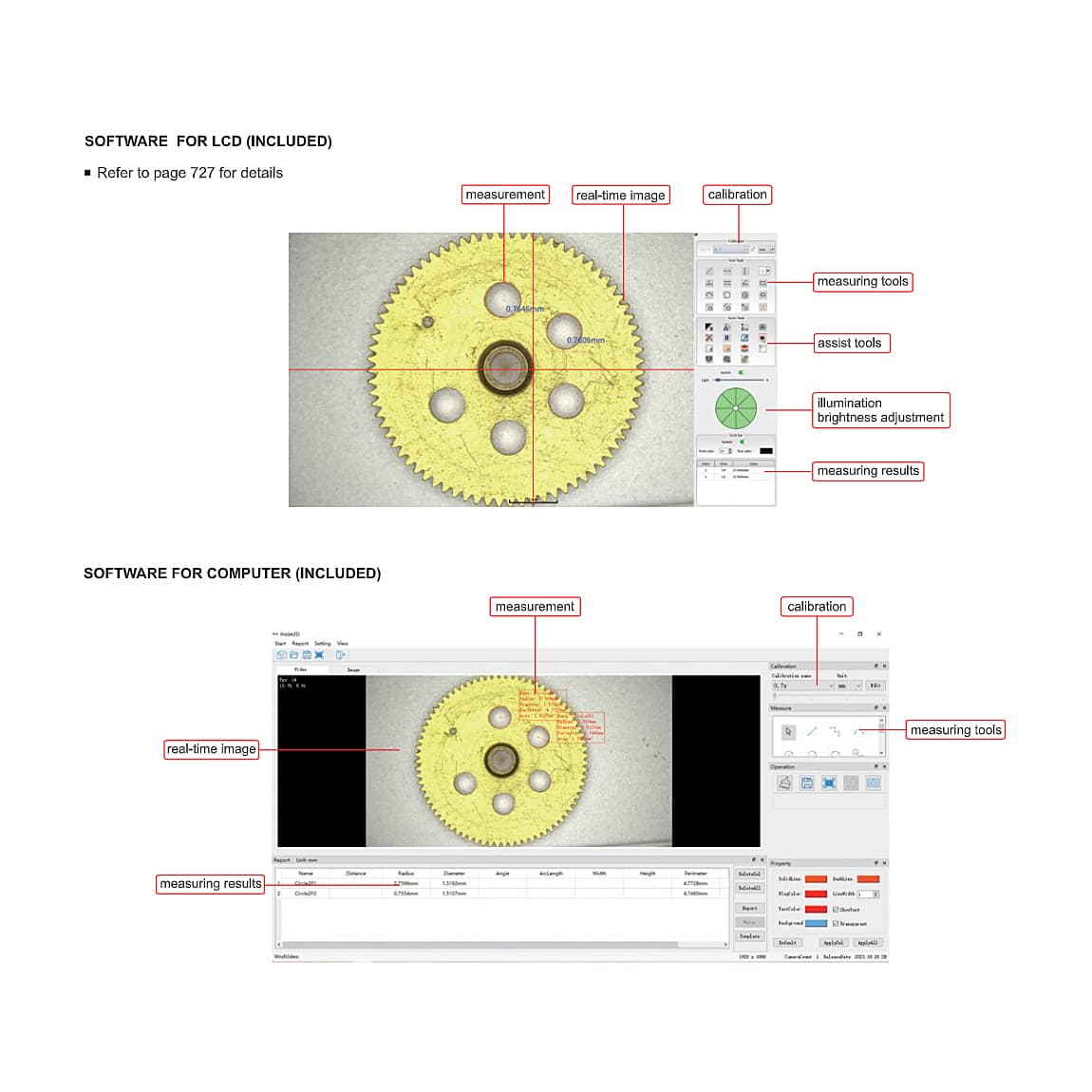

- Measuring results can be sent to Excel
Magnification and Measuring Accuracy:
| Objective magnification | Magnification | Measuring Accuracy |
| 0.7X | 6X | ±15µm |
| 1X | 8X | ±15µm |
| 1.5X | 13X | ±9µm |
| 2X | 17X | ±9µm |
| 2.5X | 21X | ±9µm |
| 3X | 25X | ±9µm |
| 3.5X | 30X | ±8µm |
| 4X | 34X | ±8µm |
| 4.5X | 38X | ±7µm |
Standard Delivery:
| Digital Measuring Microscope | 1 Pc |
| 0.5X Auxiliary Objective | 1 Pc |
| Calibration plate | 1 Pc |
| Power adapter | 1 Pc |
| Mouse | 1 Pc |
| 16G USB flash disk | 1 Pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Sensor | 1/2" CMOS |
|---|---|
| Pixel | 2M |
| Resolution | 1920x1080 Pixel |
| Magnification | 6 - 38X |
| Focus distance | 120 mm |
| View field | 6.4x3.6 - 41.8x23.4 mm |
| Max workpiece height | 205 mm |
| Frame rate | 60fps |
| Output | USB/HDMI/LAN |
| Power supply | Power adapter |
| Dimensions (L x W x H) | 305 x 405 x 530 mm |
