Insize Auto Focus Digital Microscope, 5302-AF105
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Sensor: 1/2.8" CMOS
- Pixel: 2M
- Frame rate: 60 fps
- Auto focus distance: 100 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,75,123 (Incl. of all taxes)
₹1,48,409 + ₹26,714 GST (18%)
MRP was MRP ₹2,12,013
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 1080P high-definition image
- Autofocus camera
- Take pictures and videos, saved them to a memory card
- Connected to TV by HDMI port:black_small_square
- Automatic exposure and white balance
- Brightness, contrast ratio, gain are adjustable

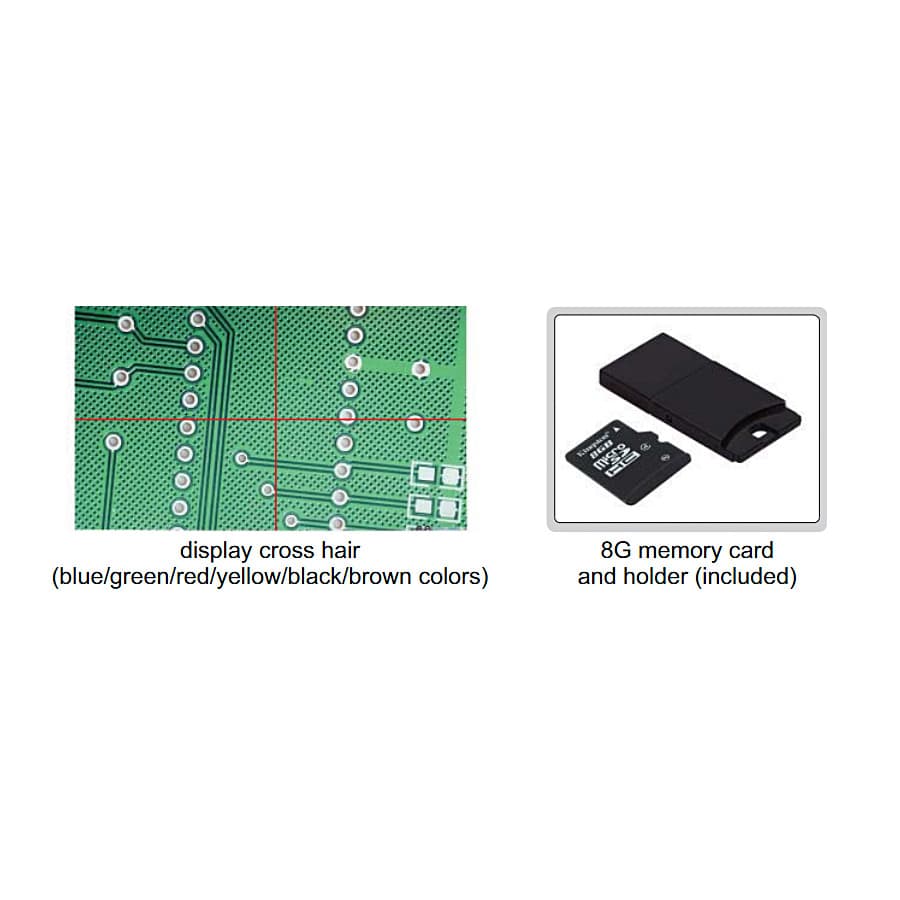

- Display cross-hair (blue/green/red/yellow/black/brown colors)
Focus Distance Magnification And View Field (Manual Focus):
| Focus Distance | Adjustable Magnification (on 28"TV) | View Field |
| 100mm | 4.5~27.5X | 24x14~161x90mm |
| 150mm | 3~21X | 30x17~240x128mm |
| 200mm | 2.3~17.5X | 38x20~305x176mm |
| 250mm | 2~15X | 42x24~320x210mm |
| 270mm | 1.8~14.X | 43x25~378x240mm |
Standard Delivery:
| Main unit (with stand) | 1 Pc |
| LED illumination | 1 Pc |
| 8G memory card and holder | 1 Pc |
| Mouse | 1 Pc |
| HDMI cable (for TV) | 1 Pc |
| Power adapter | 2 Pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 1.8X~27.5X (on28" TV) |
|---|---|
| Sensor | 1/2.8" CMOS |
| Pixel | 2M |
| Resolution | 1920x1080 |
| Frame rate | 60 fps |
| Auto focus distance | 100 mm |
| Output | HDMI |
| Power supply | Power adapter |
| Dimensions (L x W x H) | 500 x 280 x 410 mm |
