Insize Digital Measuring Microscope, 5307-ID100A
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 4.5 kg
- Pixel: 2M
- Focus distance: 100mm
- Max workpiece height: 60mm
- Frame rate: 60fps
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,89,574 (Incl. of all taxes)
₹1,60,656 + ₹28,918 GST (18%)
MRP was MRP ₹2,23,133
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data, and calibration is not needed
- Two methods of LED brightness adjustment, knob adjustment, and software adjustment

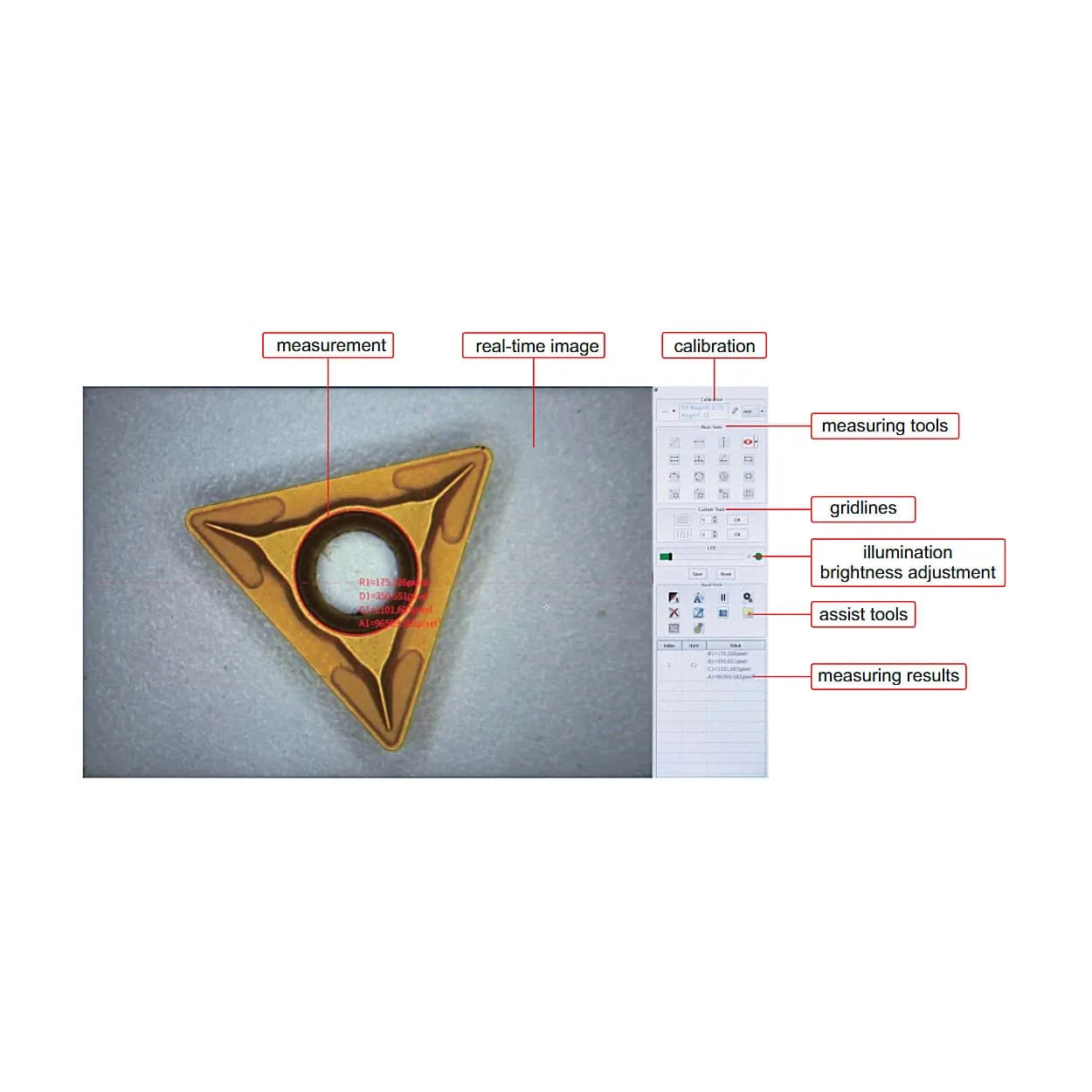

- Built-in software without a computer, operated by a mouse
- Take pictures, save to a USB flash disk
- Measuring results can be sent to Excel.
Standard Delivery:
| Main unit | 1 Pc |
| Calibration plate | 1 Pc |
| Power adapter | 1 Pc |
| Mouse | 1 Pc |
| 16G USB flash dish | 1 Pc |
Magnification and Measuring Accuracy:
| Objective magnification | Magnification | Measuring Accuracy |
| 0.7X | 12X | +/- 9um |
| 1X | 17X | +/- 9um |
| 1.5X | 26X | +/- 8um |
| 2X | 35X | +/- 7um |
| 2.5X | 43X | +/- 7um |
| 3X | 51X | +/- 7um |
| 3.5X | 60X | +/- 6um |
| 4X | 68X | +/- 6um |
| 4.5X | 77X | +/- 5um |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Sensor | 1/2" CMOS |
|---|---|
| Pixel | 2M |
| Resolution | 1920x1080 |
| Magnification | 12~77X |
| Focus distance | 100mm |
| View field | 2.7x1.9~17.5x11.9mm |
| Max workpiece height | 60mm |
| Frame rate | 60fps |
| Output | USB/HDMI |
| Power supply | Power adapter |
| Dimensions (L x W x H) | 610 x 610 x 660 mm |
