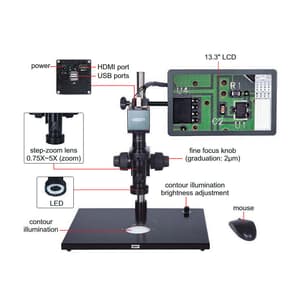

Insize Digital Measuring Microscope (With Display), ISM DL301
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 6.5 kg
- Magnification: 15X~100X
- Sensor: 1/2" CMOS
- Frame rate: 60 fps
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,83,658 (Incl. of all taxes)
₹1,55,642 + ₹28,016 GST (18%)
MRP was MRP ₹2,32,302
Save 33%
3 Business Days
1
90112000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 1080P high-definition image
- Built-in software without a computer, operation by mouse
- Take pictures, saved to USB flash disk Measurement results can be output to Excel
- Automatic white balance and exposure
- Brightness, contrast ratio, dain are adjustable.

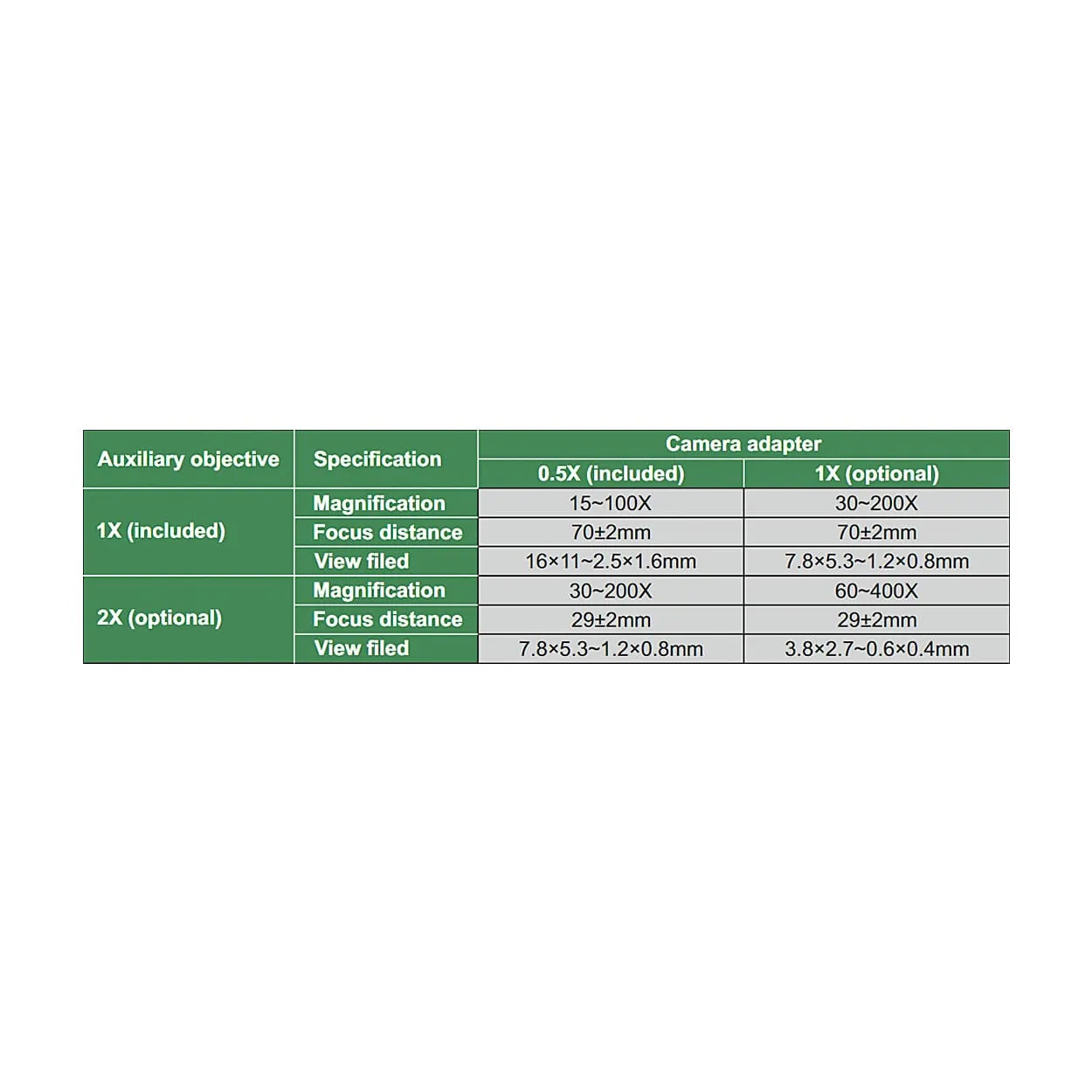

Measuring Accuracy:
| Objective Magnification | Image Magnification | Measuring Accuracy |
| 0.75X | 15X | +/- 8um |
| 1X | 20X | +/- 7um |
| 1.5X | 30X | +/- 6um |
| 2X | 40X | +/- 6um |
| 2.5X | 50X | +/- 6um |
| 3X | 60X | +/- 5um |
| 3.5X | 70X | +/- 5um |
| 4X | 80X | +/- 4um |
| 4.5X | 90X | +/- 4um |
| 5X | 100X | +/- 4um |
Optional Accessory:
| 1X camera adapter | ISM-DL-CA1X |
| 2X auxiliary objection | ISM-DL-OB2X |
| X-Y glass stage (travel:74x60mm) | ISM-DL-STAGE |
| X-Y metal stage | ISM-DL-STAGE1 |
| LED light | see details |
| Auxiliary objective | see details |

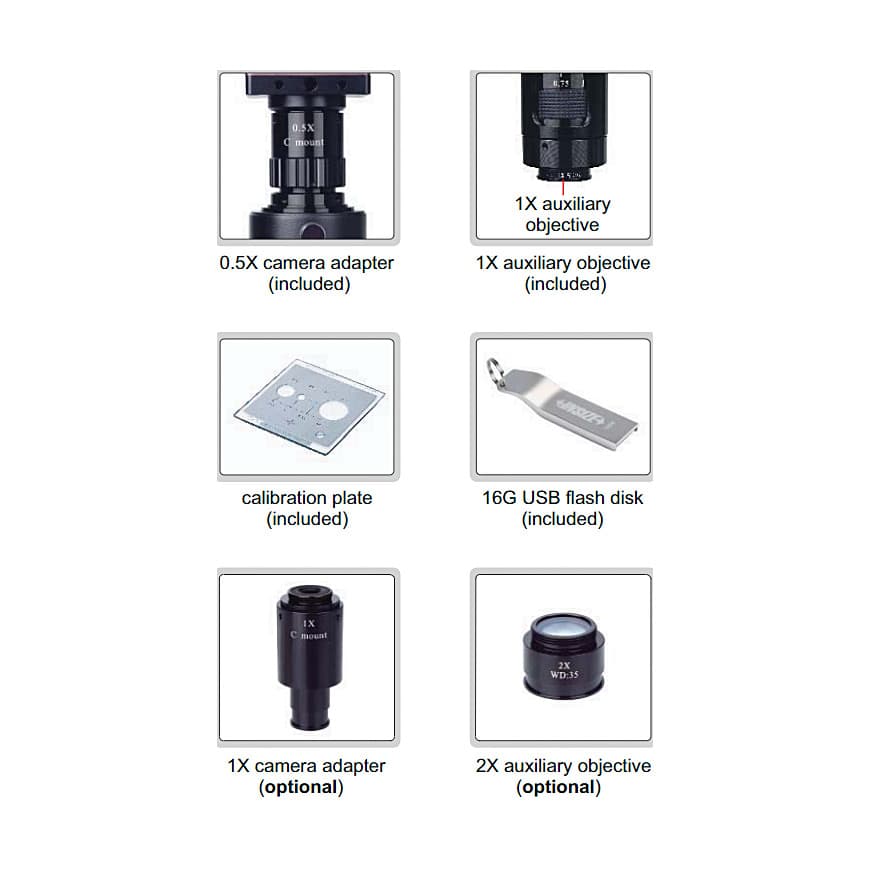

Standard Delivery:
| Main unit | 1 Pc |
| 0.5X camera adapter | 1 Pc |
| 1X auxiliary objective | 1 Pc |
| Calibration plate | 1 Pc |
| 16G USB flash disk | 1 Pc |
| White/black plate | 1 Pc |
| Mouse | 1 Pc |
| HDMI cable | 1 Pc |
| Power adapter | 3 Pcs |
Software:
- Language: English
- Output to Excel
- Edge-detection.
Measurement tools:
| measure the length of line or distance between two points |
| measure angle from horizontal line |
| measure radius, diameter, girth, and area of a circle with three points |
| measure the minimum distance between point and circle |
| measure the minimum distance between line and circle |
| measure the minimum distance between two circles |
| add text |
| measure distance between multiple parallel lines |
| measure angle from the vertical line |
| measure radius, diameter, and area concentric of circles |
| measure distance between point and center of the circle |
| measure distance between line and center of the circle |
| measure center distance between two circles |
| measure radius, diameter, girth, and area of a circle with two points |
| measure radius, diameter, girth, and area of a circle with two points |
| measure the length of line or distance between two points in the horizontal direction |
| measure girth and area of a polygon |
| measure length, width, girth, and area of a rectangle |
| measure the maximum distance between point and circle |
| measure the maximum distance between line and circle |
| measure the maximum distance between two circles |
| measure distance between two parallel lines |
| measure distance between point and line |
| measure distance between three parallel lines |
| measure the radius, length, and angle of the arc |
| measure angle of two lines |
| crosshair. |
Attention:
- Please make the confocal adjustments after changing camera adapters or auxiliary objectives.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 15X~100X |
|---|---|
| Sensor | 1/2" CMOS |
| Pixel | 2M |
| Resolution | 1920x1080 |
| Frame rate | 60 fps |
| Output | HDMI |
| Power supply | Power adapter |
| Dimensions (L x W x H) | 570x300x430mm |
