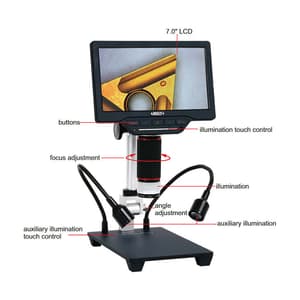

Insize Mini Digital Microscope (Economic Type), 5311-M710
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Sensor: 1/3" CMOS
- Single pixel size: 2umx2um
- Magniication: 1X~16X
- Output: HDMI
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹40,600 (Incl. of all taxes)
₹34,407 + ₹6,193 GST (18%)
MRP was MRP ₹49,153
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

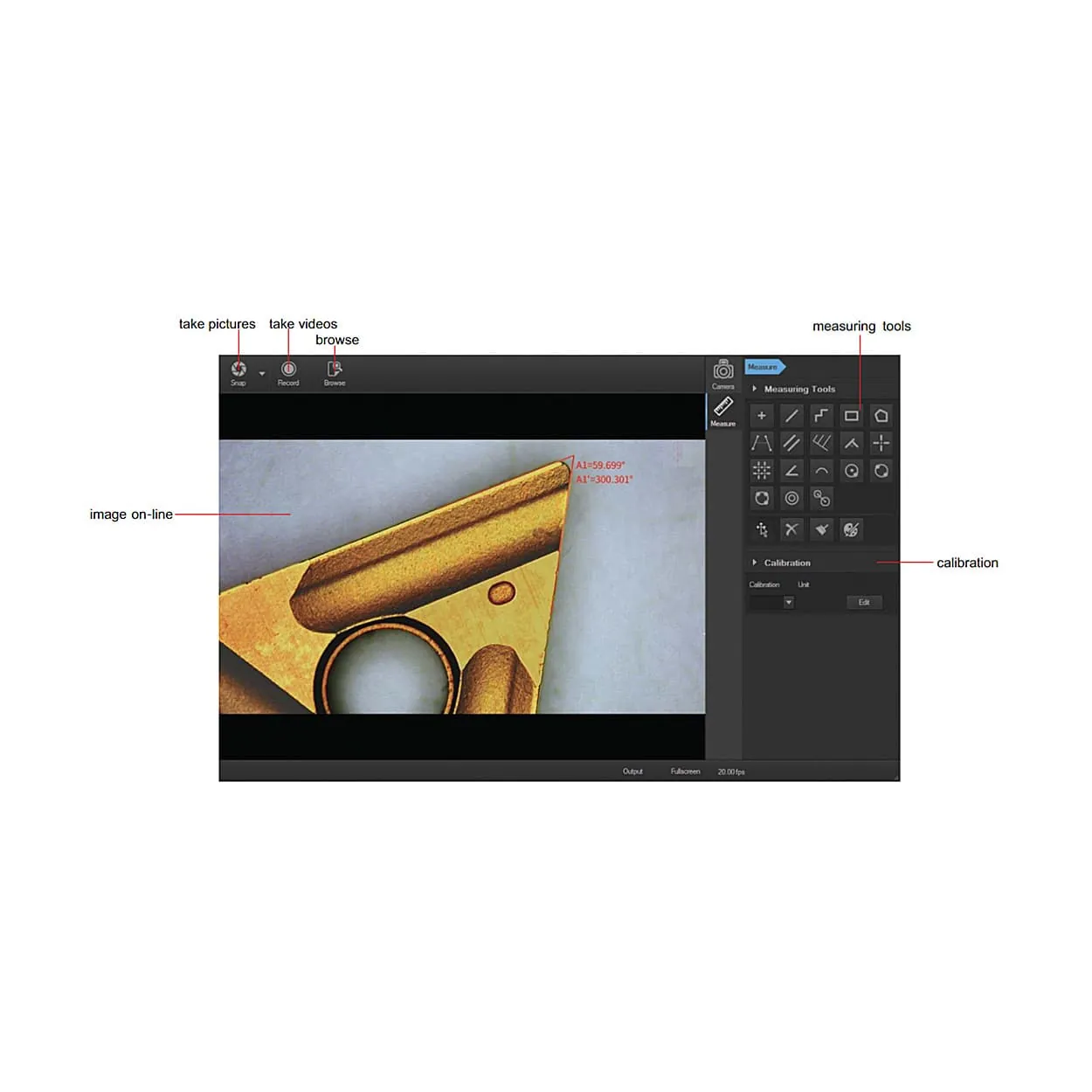

Software For Computer (included)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
- Language: Chinese (Simplified), English
- Operation System: Windows 7/8/8.1/10 (64bit)
- Port: USB2.0 or above
- Measuring accuracy: 0.02mm.
Standard Delivery:
| Main unit | 1 Pc |
| USB cable | 1 Pc |
| HDMI cable | 1 Pc |
| IR remote controller | 1 Pc |
| Mouse | 1 Pc |
| 8G memory card and holder | 1 Pc |
| Plastic calibration rule | 1 Pc |
| Power adapter | 1 Pc |
Function:
| point counting |
| straight-line length |
| continuous line length |
| area of a rectangle |
| area a polygon |
| distance between 2 lines |
| point-line distance |
| distance between parallel lines |
| distance between the line and first parallel line |
| center distance of the concentric circle |
| the radius of a 2-point circle |
| the radius of a 3-point circle |
| center distance of 2 circles |
| the radius of a circle |

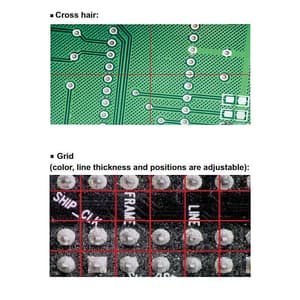

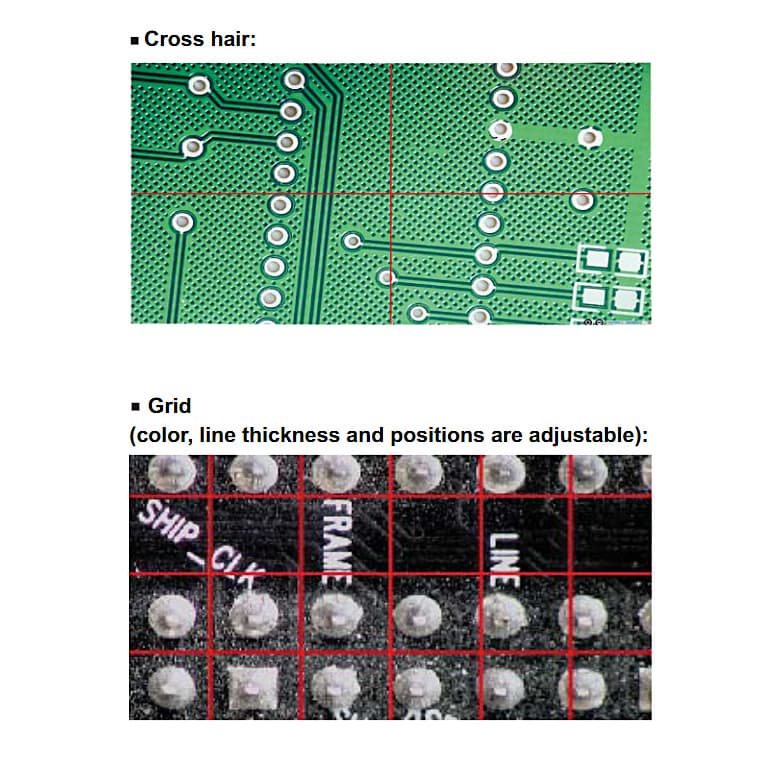

| cross line |
| double cross line |
| angle |
| arc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display resolution | 1024x600 |
|---|---|
| Sensor | 1/3" CMOS |
| Sensor resolution | 1280x960 |
| Single pixel size | 2umx2um |
| Frame rate | 60fps/30fps |
| Magniication | 1X~16X |
| White balance | Auto/manual (10 levels RGB)/calibration |
| Exposure control | AE lock/exposure compensation (10 levels) |
| Image control | Contrast /saturation /sharpness |
| Record media | memory card |
| Output | HDMI |
| Power supply | buit -in lithium battery/power adapter |
| Dimensions (L x W x H) | 174 x 200 x 350 mm |
