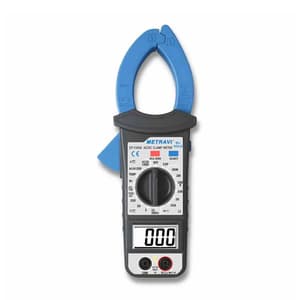

Metravi 3-1/2 Digit / 1000A Digital AC/DC Clamp Meter, DT-1350A
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 0.35 kg
- AC Current Range: 0-200A/1000A
- DC Current Range: 0-200A/1000A
- AC Voltage Range: 0-2V/20V/200V/750V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,791 (Incl. of all taxes)
₹3,213 + ₹578 GST (18%)
MRP was MRP ₹4,725
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights

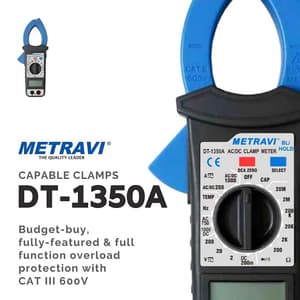

DT-1350A Digital clamp meter has a 3-1/2 digit 2000 Count, backlit, LCD display and is powered by two AAA Batteries. The Unit adopts full function overload protection circuit and can be used for the measurement of AC/DC voltage, AC current, DC current, Resistance, Capacitance, Frequency and Temperature.
It has a sturdy built and adopts a rotary switch that integrates Power on/off, Function selection and Range selection. It is handy and portable making it the ideal tool for electrical measurement.
Safety:
The DT- 1150A/1350A is in compliance with safety standards, including IEC61010-1, IEC 61010-2-032, CAT-III 600V and Pollution Degree II. Always ready the manual carefully before using the device.

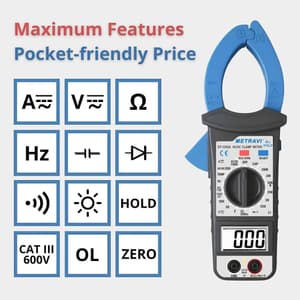

Features:
- Display : 3 ½ Digit 2000 counts backlit LCD, with auto polarity conversion
- Over Range indication : OL will be shown on the LCD
- Hold : Data hold on
- Low battery indication
What's Included In This Package:
- User Manual
- Test Leads
- K-Type Thermocouple
- 2pcs battery
- Soft carry case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | Backlit LCD |
|---|---|
| Colour | Blue-Black |
| Jaw Dia | 40 mm |
| Power Source | Battery Operated |
| Battery Size | AAA |
| Battery Type | Alkaline |
| No of Batteries | 2 |
| AC Current Range | 0-200A/1000A |
| DC Current Range | 0-200A/1000A |
| AC Voltage Range | 0-2V/20V/200V/750V |
| DC Voltage Range | 0-200mV/2V/20V/200V/1000V |
| Capacitance Range | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9uF |
| Frequency Range | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
| Resistance Range | 0–200O/2kO/20kO/200kO/2MO/20MO |
| Temperature Range | -20°C to 750°C |
| AC Current Accuracy | ±3.0% |
| DC Current Accuracy | ±3.0% |
| AC Voltage Accuracy | ±1.5% |
| DC Voltage Accuracy | ±0.8% |
| Resistance Accuracy | ±1.5% |
| Frequency Accuracy | ±0.3% |
| Capacitance Accuracy | ±3.0% |
| Temperature Accuracy | ±1.0% |
| AC Current Resolution | 0.1A to 1A |
| DC Current Resolution | 0.1A to 1A |
| DC Voltage Resolution | 0.1mV to 1V |
| Resistance Resolution | 0.1O to 10kO |
| Frequency Resolution | 0.001Hz to 1kHz |
| Capacitance Resolution | 1pF to 100nF |
| Temperature Resolution | 1°C |
| Certifications | CAT-III 600V, CE, IEC-61010-1, IEC-61010-2-032 |
