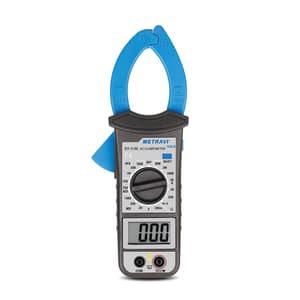

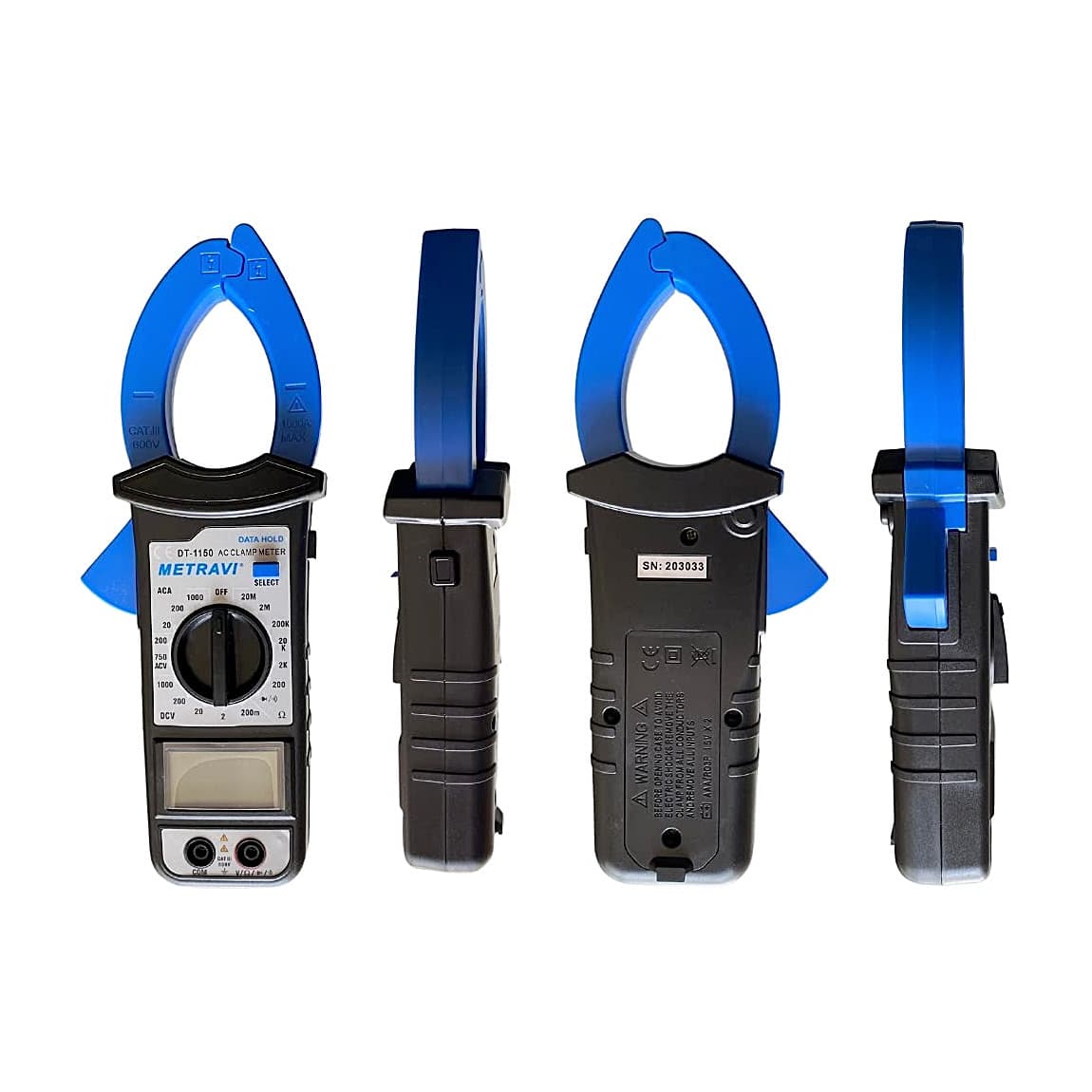

Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150

Shop all Metravi

SKU: ME.EL.CL.00082

Model: DT1150

Roll over the image to zoom in


Key Features

  • Product Type: Clamp Meters
  • Weight: 0.35 kg
  • AC Current Range: 0-20A/200A/1000A
  • AC Voltage Range: 0-200V/750V
  • DC Voltage Range: 0-200mV/2V/20V/200V/1000V
See all product information

ToolBuy Benefits

₹2,221 (Incl. of all taxes)

₹1,882 + ₹339 GST (18%)

MRP was MRP ₹2,768

Save 32%



5 Business Days

1

90303100

Download Product LeafletNot available
Download Metravi CatalogueNot available

Highlights

DT-1150 Digital clamp meter has a 3-1/2 digit 2000 Count LCD display and is powered by two AAA Batteries. The unit adopts full function overload protection circuit and can be used for the measurement of AC/DC voltage, AC current, DC current, Resistance, Diode and Continuity. It has a sturdy built and adopts a rotary switch that integrates Power on/off, Function selection and Range selection. It is handy and portable making it the ideal tool for electrical measurement.


Features:

  • Display : 3 ½ Digit 2000 count LCD, with auto polarity conversion
  • Over-Range Indication : "OL" will be shown on the LCD
  • Low Battery Display : symbol appears
  • Working Environment : 0~40°C, 45% ~ 70% RH Non Condensing (When temperature is less than 10°C)
  • Storage Environment : -10°C~50°C, RH is less than 80%
  • Warranty is one year against manufacturing defects
  • Data Hold
  • Overload Indication
  • Low Battery Indication
  • Diode & Continuity test

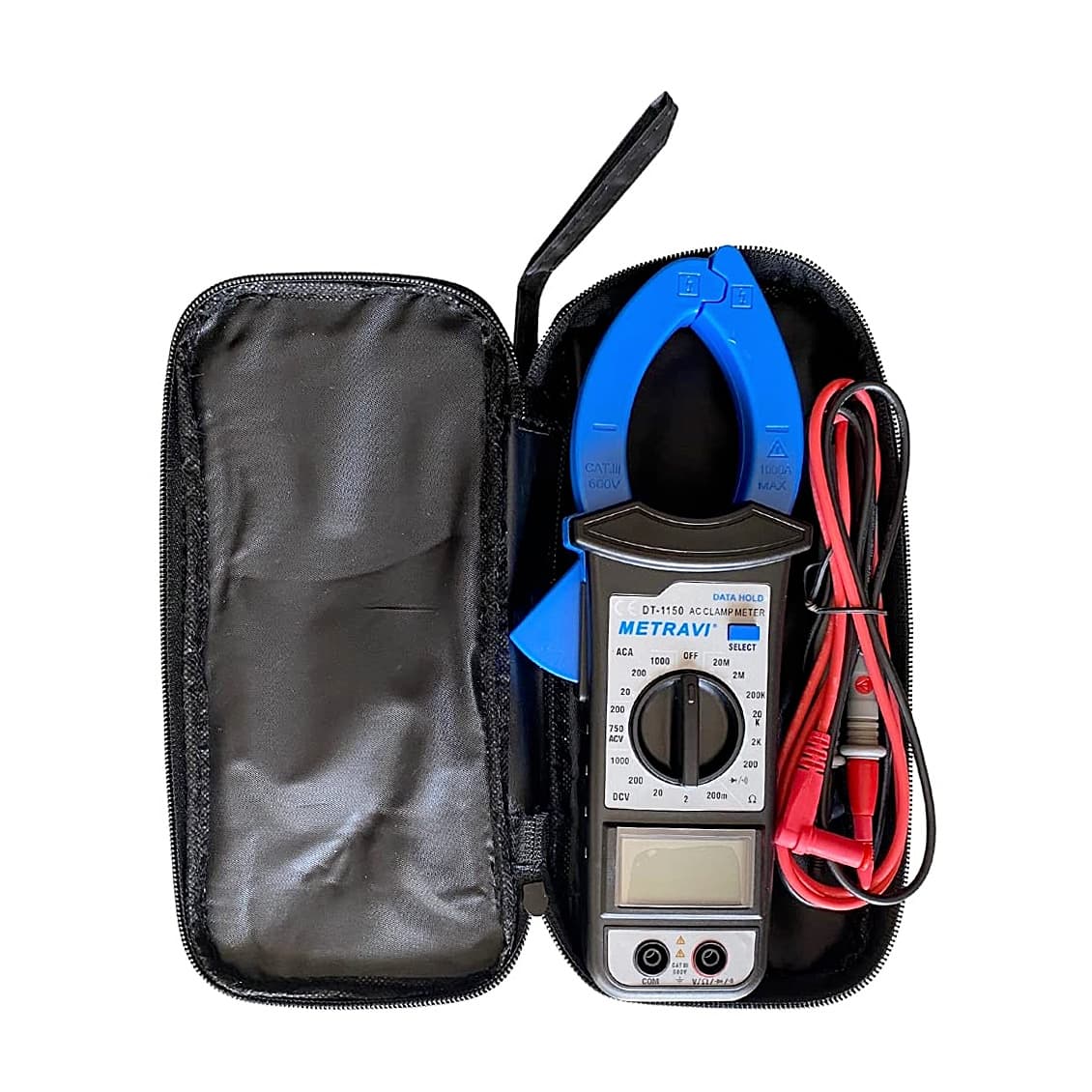

What's Included In This Package:

  • 1x User Manual
  • 1x Test Leads
  • 2x Batteries
  • 1x Soft carry case


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150
AC Current Range0-20A/200A/1000A
AC Voltage Range0-200V/750V
DC Voltage Range0-200mV/2V/20V/200V/1000V
Resistance Range0 to 20MO
ColourBlue-Black
DisplayLCD
Power SourceBattery Operated
Battery TypeAlkaline
Battery SizeAAA
No of Batteries2
Jaw Dia40 mm
Resistance Accuracy±1.5%
DC Voltage Accuracy±0.8%
AC Voltage Accuracy±1.5%
AC Current Accuracy±2.0%
DC Voltage Resolution0.1mV to 1V
AC Voltage Resolution0.1V to 1V
AC Current Resolution0.01A to 1A
Resistance Resolution0.1O to 10kO
CertificationsCAT-III 600V, CE, IEC-61010-1, IEC-61010-2-032, Pollution Grade 2
Length x Width x Height (mm)250 x 97 x 48
