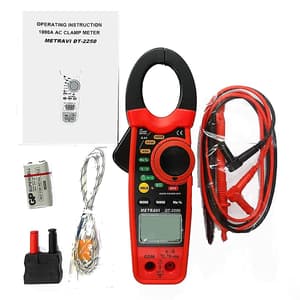

Metravi 3-3/4 Digit / 1000A Digital AC Clamp Meter, DT-2250
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 0.3 kg
- AC Current Range: 0 – 40A / 400A / 1000A
- AC Voltage Range: 0 – 400mV / 4V / 40V / 400V / 600V
- DC Voltage Range: 0 – 400mV / 4V / 40V / 400V / 600V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,224 (Incl. of all taxes)
₹3,580 + ₹644 GST (18%)
MRP was MRP ₹5,265
Save 32%
5 Business Days
1
90308990
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The DT-2250 Clamp meter has 3-3/4 Digits, Backlit LCD, Data Hold, 30mm Jaw Size, AC/DC Voltage, AC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode and Continuity Test Facility. 500V DC/AC Protection in all ranges.
Features:
- Clamp size : Opening 1.2" (30mm) approx
- Diode Test : Test current of 0.3mA typical, Open circuit voltage 1.5V DC
- Continuity Check : Threshold <10002, Test current < 1mA
- Low Battery Indcation : Symbol is displayed
- Overrange Indication : "OL" is displayed
- Measurements Rate : 2 per second, nominal
- Input Impedance : 7.8 MOhm (VDC and VAC)
- Display : 4000 counts Backlit LCD, 3-3/4 digits
- AC Current bandwidth : 50/60Hz (AAC)
- AC Voltage bandwidth : 50/60Hz (VAC)
- Operating Temperature : 14 to 122°F (-10 to 50°C)
- Storage Temperature : -14 to 140°F (-30 to 60°C)
- Relative Humidity : 90% (0°C to 30°C), 75% (30°C to 40°C), 45% (40°C to 50°C)
- Altitude Operating : 3000m
- Altitude Storage : 10,000m
- Over voltage : Category III 600V
- Data Hold : To freeze the displayed data
- Auto Power Off
- Double molded body with rubber coating
- Diode Test and Continuity Test
- Overload Protection of 500V DC/AC RMS in Resistance, Temperature, Frequency, Duty Cycle, Capacitance, Diode and audible continuity test range.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| AC Current Range | 0 – 40A / 400A / 1000A |
|---|---|
| AC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 600V |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 600V |
| Capacitance Range | 0–40nF/400nF/4uF/40uF/100uF |
| Resistance Range | 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Colour | Black-Red |
| Frequency Range | 0–5Hz/50Hz/500Hz/5kHz/50kHz/500kHz/5MHz/10MHz |
| Display | Backlit LCD |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No. of Batteries | 1 |
| Jaw Dia | 30 mm |
| Resistance Accuracy | ±1.0% |
| DC Voltage Accuracy | ±0.8% |
| AC Voltage Accuracy | ±0.8% |
| AC Current Accuracy | ±2.5% |
| Capacitance Accuracy | ±3.0% |
| Certifications | CAT-III 600V, CE, IEC 61010 |
| Frequency Accuracy | ±1.2% |
| Duty Cycle Range | 0.5% to 99% |
| Sampling Time | 2 times/sec |
| Length x Width x Height (mm) | 229 x 80 x 49 |
