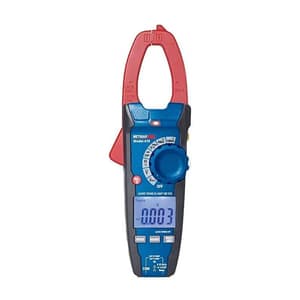

Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- AC Current Range: 0-400A/1000A
- AC Voltage Range: 0-4V/40V/400V/1000V
- DC Voltage Range: 0 – 400mV / 4V / 40V / 400V / 1000V
- Jaw Dia: 34 mm
- Temperature Range: -20°C to 1000°C
- Sampling Time: 2 times/sec
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,666 (Incl. of all taxes)
₹7,344 + ₹1,322 GST (18%)
MRP was MRP ₹10,800
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights

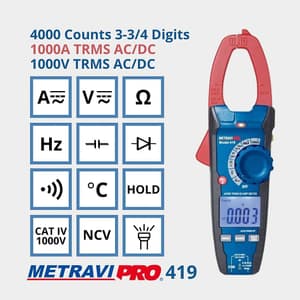

3-3/4 Digits Professional T-RMS AC/DC Clamp Meter, 4000 Counts, 1000V AC T-RMS/DC, 1000A AC T-RMS/DC, Auto Power Off, Non-Contact Voltage Detector, Flashlight, Data Hold, MAX-MIN Record, Relative Measurement, 100mF Capacitance, 100kHz Frequency, 40MΩ Resistance, 1000°C Temperature measurement using K type sensor, Continuity.
METRAVI-PRO 419 is the most complete AC T-RMS / DC clamp meter with data hold, backlit LCD Display, Built-in Flash light to measure in dark areas and Non contact Voltage Detector The instrument confirms to CAT-IV 600V, CAT-III 1000V, CE, IEC-61010-1. It has 35mm Clamp Jaw Dia. With Max / Min / Data Hold facility, the clamp meter is complete on-the-go measuring instrument.
Features:
- Professional T-RMS AC/DC Clamp Meter
- 4000 Counts, 3-3/4 Digits Backlit LCD Display
- Confirms to CAT-IV 600V, CAT-III 1000V, CE, IEC-61010-1
- 600V AC/DC Protection in all ranges
- 34 mm Clamp Jaw Dia
- Auto Power Off,
- Non Contact Voltage Detector
- Flash light in the Jaw to access dark Areas
- Double Injection Housing, providing double insulation
- Data Hold, MAX-MIN Record, Relative Measurement
- 1000V AC T-RMS/DC
- 1000A AC T-RMS/DC
- 100mF Capacitance, 100kHz Frequency, 40MOhms Resistance
- Temperature upto 1000°C using K type sensor
- Temperature measurement in °C / °F scales
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| AC Current Range | 0-400A/1000A |
|---|---|
| DC Current Range | 0-400A/1000A |
| AC Voltage Range | 0-4V/40V/400V/1000V |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 1000V |
| Flashlight | Flashlight for working in dark areas |
| Jaw Dia | 34 mm |
| Colour | Black-Blue-Red |
| Display | Backlit LCD |
| Duty Cycle Range | 10% to 90% |
| Temperature Range | -20°C to 1000°C |
| Power Source | Battery Operated |
| Battery Size | AAA |
| Battery Type | Alkaline |
| No of Batteries | 3 |
| Sampling Time | 2 times/sec |
| Resistance Range | 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Capacitance Range | 0-40nF/400nF/4μF/40μF/400μF/4mF/40mF/100mF |
| Frequency Range | 9.999Hz to 99.99kHz |
| AC Current Accuracy | ±2.5% |
| DC Current Accuracy | ±2.5% |
| AC Voltage Accuracy | ±1.5% |
| DC Voltage Accuracy | ±1.5% |
| Resistance Accuracy | ±1.0% |
| Capacitance Accuracy | ±3.0% |
| Frequency Accuracy | ±1.2% |
| Temperature Accuracy | ±3% |
| Certifications | CAT III 1000V, CAT IV 600V, CAT-III 600V, CE, IEC-61010-1 |
