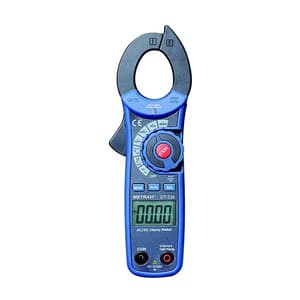

Metravi 3-3/4 Digit / 400A Digital AC/DC Clamp Meter With Non Contact Voltage Detector, DT-230
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 0.21 kg
- AC Current Range: 0–40A/400A
- DC Current Range: 0–40A/400A
- Frequency Range: 10Hz to 10kHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,531 (Incl. of all taxes)
₹4,687 + ₹844 GST (18%)
MRP was MRP ₹6,892
Save 32%
Out of Stock
5 Business Days
1
90303100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, AC/DC Voltage, AC/DC Current up to 400A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test.
Features:
- Data Hold Facility
- Built-in Non Contact Voltage Detector
- Fully Protected up to 600V DC/AC RMS in all ranges including Frequency, Resistance, Capacitance and Continuity test
- Low Battery and Over Range Indication
- Display: 3-3/4 Digits 3999 Counts Backlit LCD
- Confirms to CAT III 600V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | Backlit LCD |
|---|---|
| Jaw Dia | 30 mm |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 2 |
| AC Current Range | 0–40A/400A |
| AC Current Accuracy | ±2.5% |
| DC Current Range | 0–40A/400A |
| DC Current Accuracy | ±2.5% |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 600V |
| DC Voltage Accuracy | ±0.8% |
| Resistance Range | 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Resistance Accuracy | ±1.0% |
| Capacitance Range | 0–40nF/400nF/4uF/40uF/100uF |
| Capacitance Accuracy | ±3.0% |
| Frequency Range | 10Hz to 10kHz |
| Frequency Accuracy | ±1.5% |
| Temperature Range | -20°C to 760°C |
| Temperature Accuracy | ±3% |
| Certifications | CAT-III 600V, CE, IEC 61010, Pollution Grade 2 |
