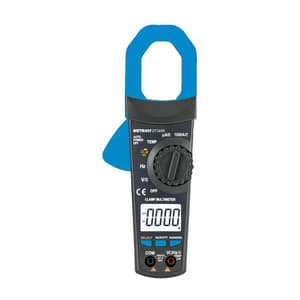

Metravi 3-4/5 Digit / 1000A Digital TRMS AC/DC Clamp Meter, DT-3690
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Temperature Range: -20°C to 1000°C
- AC Voltage Range: 0–600mV/6V/60V/600V/750V
- AC Current Range: 0-60A/600A/1000A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,312 (Incl. of all taxes)
₹3,654 + ₹658 GST (18%)
MRP was MRP ₹5,373
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights

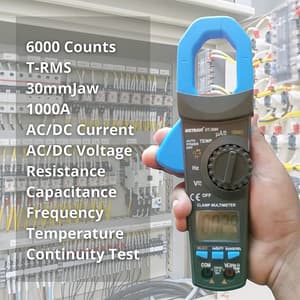

3-4/5 Digits 6000 Counts, LCD, Data Hold,T-RMS, 30mm Jaw Size, AC/DC Voltage, AC/DC Current up to 1000A, Resistance,Capacitance, Frequency and Temperature & Continuity Test. This 3 5/6 digits display clamp meter is a stable and battery powered meter. It has 20mm LCD screen making the readings more clear with 15 seconds backlight display and overload protection, makes it easier to use. It can be used to test DCV, ACV, DCA, ACA, Resistance, Capacitance, Diode, Temperature, Continuity testing and Frequency.
To assure high accuracy and resolution, it uses an 8-bit microprocessor and a dual integral A/D convertor IC. It is an ideal tool for labs, factories radio-technology and household The instrument is designed according to IEC1010 standard (safety standard issued by International Electro technical Committee), CATIII600V and UL3111-1
Features:
- Display: 6000 Counts LCD
- T-RMS (TRMS in AC Current & Voltage)
- Auto Power Off
- Data Hold
- Low Battery Indication
- Overload Indication
- Flame Sensor Current measurement
- Relative Measurement
- Clamp Jaw Dia: 30mm
Technical Specification:
- To assure accuracy, the environment temperature should be (23±5) °C, relative humidity be <75%.
- DC Voltage: Input impedance : 10MΩ. Overload protection : 200mV range : 550V DC or AC Peak value. Other ranges : 1000V DC or AC 750V Peak value
- ACV Voltage T-RMS: Input impedance : 10MΩ. Standard sine wave and Triangular wave : 40Hz-1 kHz Other waveform : 40Hz-200Hz.
- Max. Measurement voltage dorp : 600mV. Overload protection : 600uA/6000uA, 0.6A/250V resettable fuse 60A/600A/1000A,measured from the center of clamp sensor input.
- Max. Measurement voltage dorp : 600mV. Overload protection : 600uA/6000uA, 0.2A/250V resettable fuse. Positive input terminal : VΩ, negative input terminal : COM. 60A/600A/1000A,measured from the center of clamp sensor input.
- Frequency response : Sin wave and Triangular wave : 40Hz-1Kz Other waveform : 40Hz-200Hz Display : TRMS value
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | Backlit LCD |
|---|---|
| Jaw Dia | 30 mm |
| Sampling Time | 3 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 2 |
| Temperature Range | -20°C to 1000°C |
| AC Voltage Range | 0–600mV/6V/60V/600V/750V |
| AC Current Range | 0-60A/600A/1000A |
| DC Voltage Range | 0-600mV/6V/60V/600V/1000V |
| DC Current Range | 0-60A/600A/1000A |
| Resistance Range | 0-600O/6kO/60kO/600kO/6MO/60MO |
| Capacitance Range | 0–60nF/600nF/6uF/60uF/600uF/6000uF |
| Frequency Range | 0–10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/20MHz |
| Duty Cycle Range | 0.1% to 99.9% |
| Temperature Accuracy | ±1.0% |
| AC Voltage Accuracy | ±0.8% |
| AC Current Accuracy | ±0.8% |
| DC Voltage Accuracy | ±0.5% |
| DC Current Accuracy | ±0.8% |
| Resistance Accuracy | ±0.8% |
| Capacitance Accuracy | ±3.5% |
| Frequency Accuracy | ±0.1% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 0.1mV to 1V |
| DC Current Resolution | 0.1μA to 1A |
| AC Current Resolution | 0.1μA to 1A |
| Resistance Resolution | 0.1O to 10kO |
| Capacitance Resolution | 10pF to 1μF |
| Frequency Resolution | 0.01Hz to 10kHz |
| Temperature Resolution | 1°C |
| Certifications | CAT-III 600V, IEC1010, UL 3111-1 |
