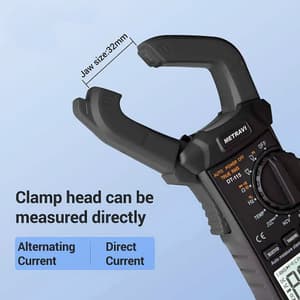

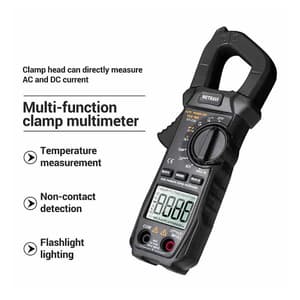

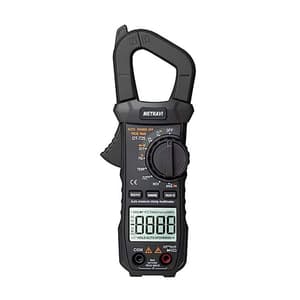

Metravi 3-5/6 Digit / 600A Digital TRMS AC/DC Clamp Meter, DT-725

3-5/6-digit 5999 Count, Backlight LCD, T-RMS, Auto-Ranging, NCV, Flashlight, Relative Measurement, AC(750V)/DC(1000V) Voltage, 600A AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Diode & Continuity. Square Wave Output, CAT-IV 600V. This is a pocket-sized 3-5/6-digit Auto-Ranging Digital Clamp Meter. It has stable performance, high precision & reliability, clear reading LCD Display and overload protection. Driven by AAA 1.5V battery, the instrument has large screen Backlit LCD display and it boosts power supply by Auto Power Off Function.

The meter is easy to carry and is very popular among users. The instrument’s backlight can be turned on and off automatically after 15 seconds. This meter can be used to measure AC voltage and DC voltage, AC Current and DC Current 600A, Resistance, Capacitance, Diode, Temperature, Continuity test, Square wave output, Frequency measurement and has True-RMS measurement. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and hobbyists.

Features:

• 3-5/6 Digit, 6000 Count, Backlight LCD
• T-RMS
• Auto Ranging
• Auto Power Off
• Flashlight for working in dark areas
• Overload Indication
• Low Battery Indication

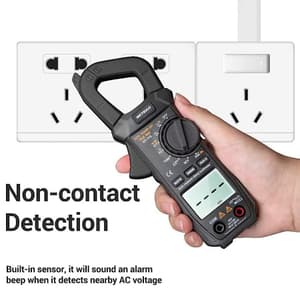

• NCV
• Flashlight for accessing dark areas
• Relative Measurement
• Data Hold

Square Wave Output:

The operation is as follows: (top right)

• Dial to ‘ OUT” ; (default starting output is 50Hz);
• Insert the two inputs of the device under test into the “ V / W / Hz ” and “COM” terminals of the red test pen.
• Trigger the “SELECT” button. The “ V / W / Hz ” and “COM” terminals of the table respectively output 50Hz-100Hz-200Hz300Hz-400Hz-500Hz-600Hz-700Hz-800Hz-900Hz-1000Hz-2000Hz-3000Hz-4000Hz-5000Hz. At the same time, the LCD screen displays the current output value.

What's Included In This Package:

• 1x instruction manual
• 1x certificate
• 1x leather case
• 1x outer packaging box
• 1x pair of test leads
• 1x type K thermocouple TP 01 temperature probe
• 2x AAA1.5V batteries

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
