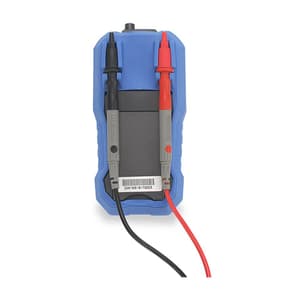

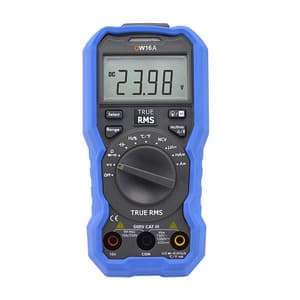

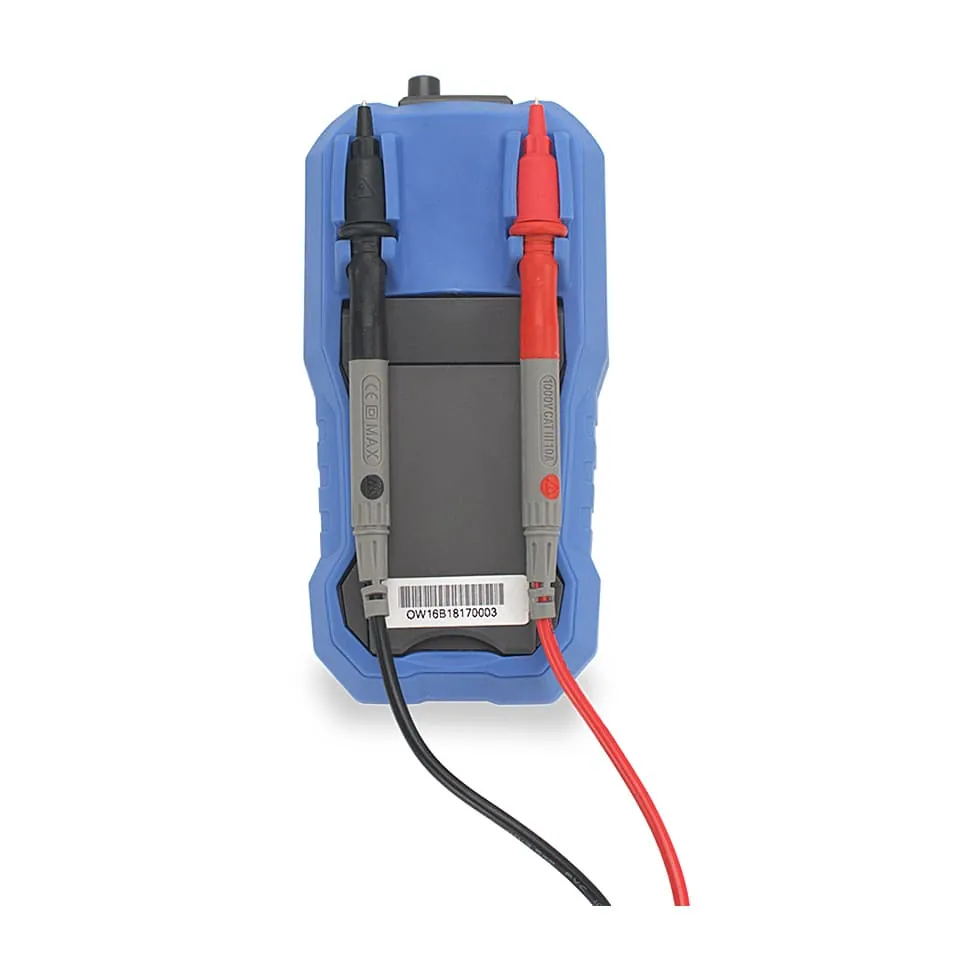

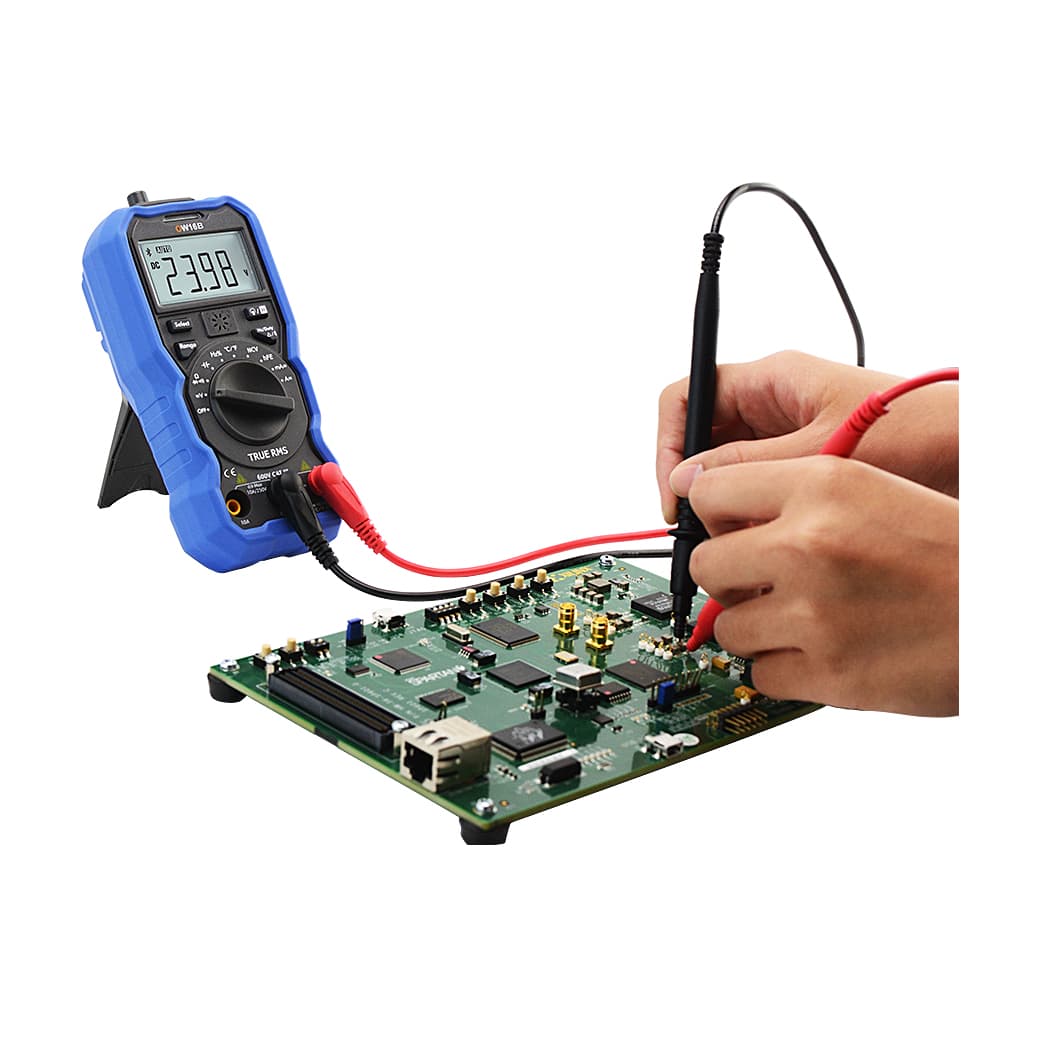

Owon 3-5/6 Digit / 5999 Count True RMS Digital Multimeter, OW 16A
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Display Digits: 3-5/6 inch
- Display Count: 5999
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,587 (Incl. of all taxes)
₹1,345 + ₹242 GST (18%)
MRP was MRP ₹1,640
Save 18%
5 Business Days
1
–
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
- 3-5/6 bit resolution
- Support NCV non-contact voltage sense
- True RMS test supported
Functions:
- Auto ranging
- Auto/Manual Scale Switch
- LCD Backlight
- Diode Test
- Sleep Mode
- Auto Power-off
- Continuity Test
- Low-battery Indicator
- Data Hold
- True RMS
- Input Protection
- Relative Measurement
Technical Data:
| Measurement | Resolution | Accuracy | ||
|
DC Voltage (V) |
6.000V / 60.00V / 600.0V | 0.1mV | ±(0.5%+2 dig) | |
| 1000V | 1 V | ±(0.8%+2 dig) | ||
|
AC Voltage (V) |
6.000V / 60.00V / 600.0V | 0.1 mV | ±(0.8%+3dig) | |
| 750V | 1 V | ±(1%+3dig) | ||
|
DC Current (A) |
μA |
600.0uA / 6000μA ( EU ) | 0.1μA | ±(0.8%+2dig) |
|
mA |
60.00mA / 600.0mA | 0.01mA | ||
|
A |
10.00A | 0.01A | ±(1.2%+3dig) | |
|
AC Current (A) |
μA |
600.0uA / 6000μA (EU) | 0.1μA | ±(1%+3dig) |
|
mA |
60.00mA / 600.0mA | 0.01mA | ||
|
A |
10.00A |
0.01A |
±(1.5%+3dig) | |
| Resistance (Ω) | 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ | 0.1Ω | ±(0.8%+2dig) | |
| 60.00MΩ | 0.01 MΩ | ±(2%+3dig) | ||
| Capacitance (F) | 60.00nF / 600.0nF / 6.000μF / 60.00μF | 0.01nF | ±(3%+3dig) | |
| 600.0μF / 6.000mF / 60.00mF | 0.1μF | ±(3%+5dig) | ||
| Frequency | 9.999Hz / 99,99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz | 0.001Hz | ±(0.8%+2dig) | |
| Duty Ratio (%) | 0.1% ~ 99.9% (Typical Value:Vrms=1V,f=1kHz) | 0.1% | ±(1.2%+3dig) | |
| 0.1% ~ 99.9% (≥1kHz) | ±(2.5%+3dig) | |||

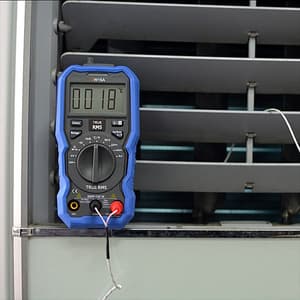

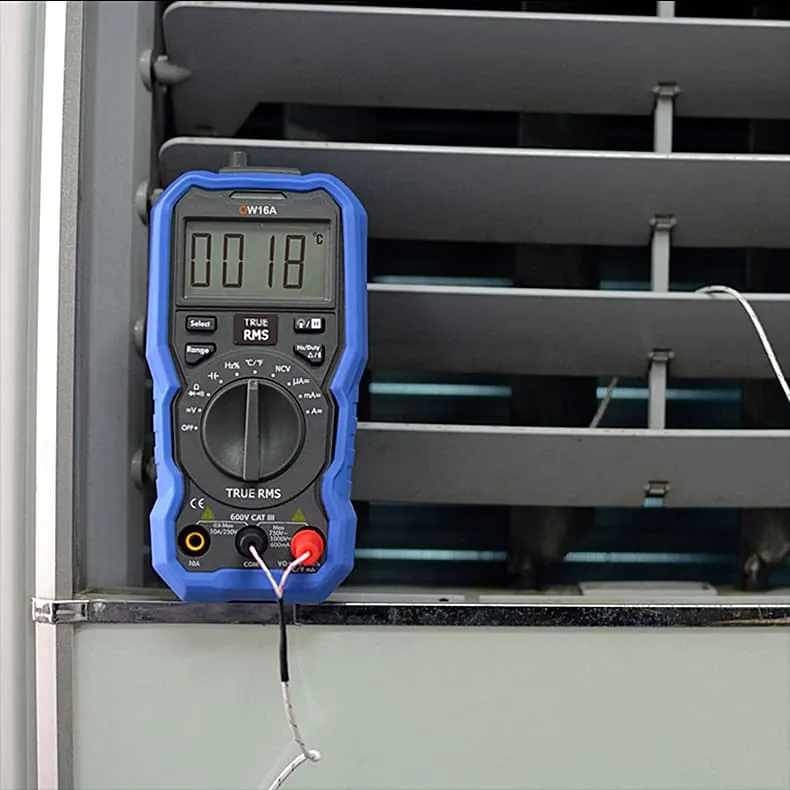

| Temperature (°C/°F) | - 50 ~ 400°C | 1°C | ±(2.5%+3dig) | |
| -58 ~ 752°F | 1°F | ±(4.5%+5dig) |
Package Content:
- 1x TRMS Digital Multimeter
- Quick Guide
- Multimeter Lead
- Alligator Clip (optional)
- K-type Thermocouple
- Bolt Driver
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digits | 3-5/6 inch |
|---|---|
| Display Count | 5999 |
| Frequency Response | 40 - 1000 Hz |
| Shift Rate | 3 Times/s |
| Input Impedance | > 10MO |
| Power Supply | 2x 1.5V AA Batteries |
