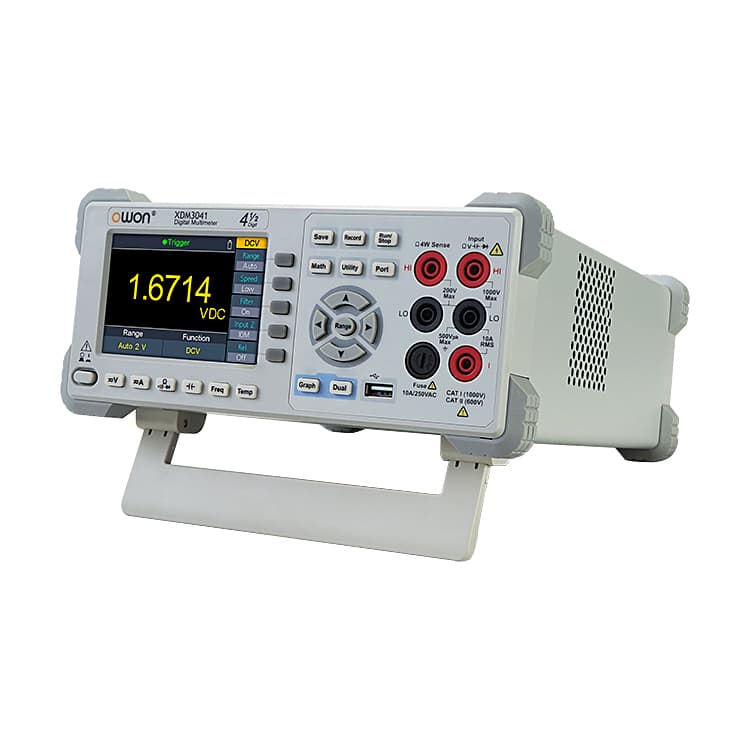

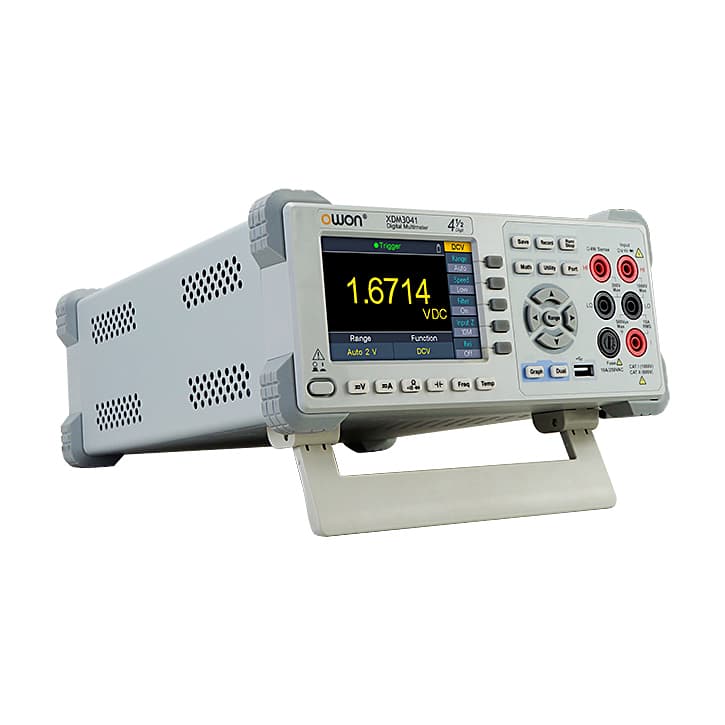

Owon 4-1/2 Digit Bench Type TRMS Digital Multimeter, XDM3041
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Display Digits: 4-1/2 Digits
- Frequency: 20Hz – 1MHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹35,673 (Incl. of all taxes)
₹30,231 + ₹5,442 GST (18%)
MRP was MRP ₹36,867
Save 18%
5 Business Days
1
–
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
- Reading rates up to 150 readings/s
- True RMS AC voltage / current measurement
- Dual line display supported

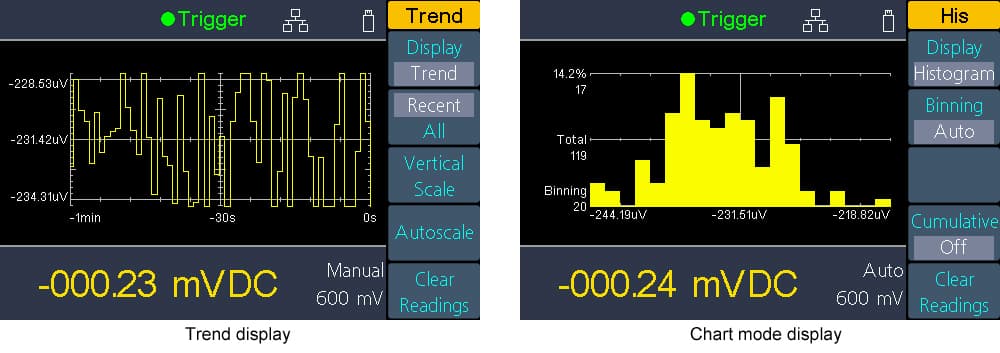

- The change trend analysis accessible via special chart mode
- SCPI supported - remote control, and data-sharing possible via LAN, USB, RS232 port, and WiFi (WiFi module is optional)

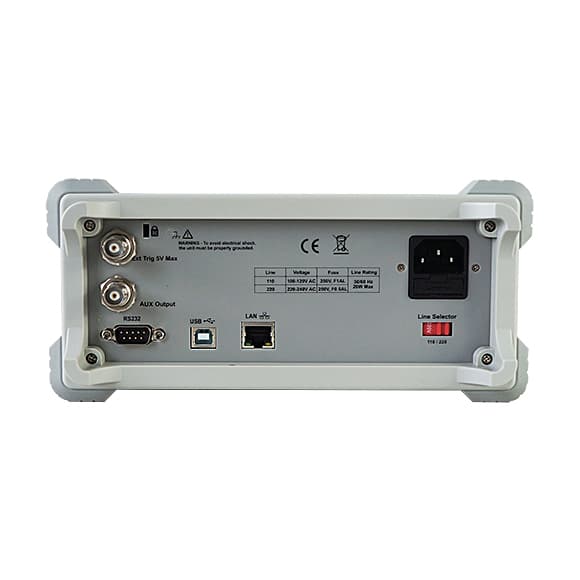

- Multi-IO interface: USB Device / Host, RS232, LAN, and ext. trigger input
4 inches LCD display, more vision to check the data, support dual display. Trends and chart mode display. |

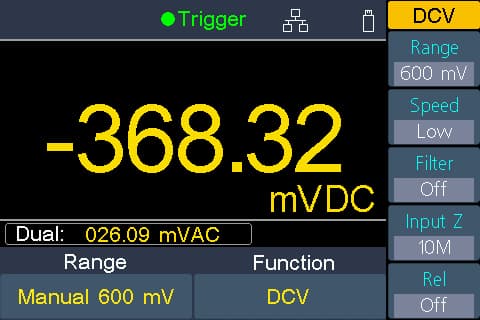

Dual display |
|

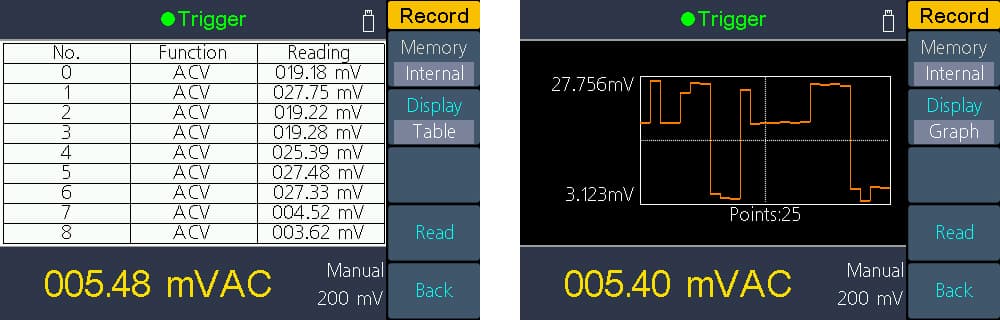

Data-logger Mode: During recording the measurement value, possible to set the logging duration (min. 5ms), and length,then get access to chart or table result. |
Technical Data:
| Measurement Range | Frequency Range | Accuracy: 1 Year ±(% of reading +% of range) | |
|---|---|---|---|
| DC Voltage | 600mV, 6V, 60V, 600V, 1000V | / | 0.02±0.01 |
| True RMS AC Voltage | 600mV, 6V, 60V, 600V, 750V | 20 Hz - 50 Hz | 2 + 0.10 |
| 50 Hz - 10 kHz | 0.2 + 0.06 | ||
| 10 kHz - 50 kHz | 1.0 + 0.05 | ||
| 50 kHz - 100 kHz | 3.0 + 0.08 | ||
| DC Current | 600.00 μA | / | 0.06 + 0.02 |
| 6.0000 mA | 0.06 + 0.02 | ||
| 60.000 mA | 0.1 + 0.05 | ||
| 600.00 mA | 0.2 + 0.02 | ||
| 6.000 A | 0.2 + 0.05 | ||
| 10.0000 A | 0.250 + 0.05 | ||
| True RMS AC Current | 60.000 mA, 600.00 mA, 6.0000 A, 10.000 A |
20 Hz - 45 Hz | 2 + 0.10 |
| 45 Hz - 2 kHz | 0.50 + 0.10 | ||
| 2 kHz - 10 kHz | 2.50 + 0.20 | ||
| Resistance | 600.00 Ω | / | 0.040 + 0.01 |
| 6.0000 kΩ | 0.030 + 0.01 | ||
| 60.000 kΩ | 0.030 + 0.01 | ||
| 600.00 kΩ | 0.040 + 0.01 | ||
| 6.0000 MΩ | 0.120 + 0.03 | ||
| 60.000 MΩ | 0.90 + 0.03 | ||
| 100.00 MΩ | 1.75 + 0.03 | ||
| Diode Test | 3.0000 V | / | 0.5 + 0.01 |
| Continuity | 1000 Ω | / | 0.5 + 0.01 |
| Frequency Period | 600 mV - 750 V | 20 Hz - 2 kHz | 0.01 + 0.003 |
| 2 kHz - 20 kHz | 0.01 + 0.003 | ||
| 20 kHz - 200 kHz | 0.01 + 0.003 | ||
| 200 kHz - 1 MHz | 0.01 + 0.006 | ||
| 60 mA - 10 A | 20 Hz - 2 kHz | 0.01 + 0.003 | |
| 2 kHz - 10 kHz | 0.01 + 0.003 | ||
| Test Current | |||
| Capacitance | 2.000 nF | 200 nA | 3 + 1.0 |
| 20.00 nF | 200 nA | 1 + 0.5 | |
| 200.0 nF | 2 μA | 1 + 0.5 | |
| 2.000 μF | 10 μA | 1 + 0.5 | |
| 200 μF | 100 μA | 1 + 0.5 | |
| 10000 μF | 1 mA | 2 + 0.5 | |
| Temperature | temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type) |
Package Content:
- 1x Bench-type Digital Multimeter
- Power Cord
- Quick Guide
- USB Cable
- Multimeter Leads
- Fuse
- Alligator Clip
- Four-wire Type Test Lead (optional)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display Digits | 4-1/2 Digits |
|---|---|
| Frequency | 20Hz – 1MHz |
| Capacitance | 2.000nF - 10000μF |
| Diode | 3.0000V |
| Continuity | 1000 Ohm |
| Logging Duration | 5ms |
| Logging Length | 1M Points |
| Display Screen | 4-inch LCD with High Resolution 480 x 320 Pixels |
| Remote Interface | RS232 |
