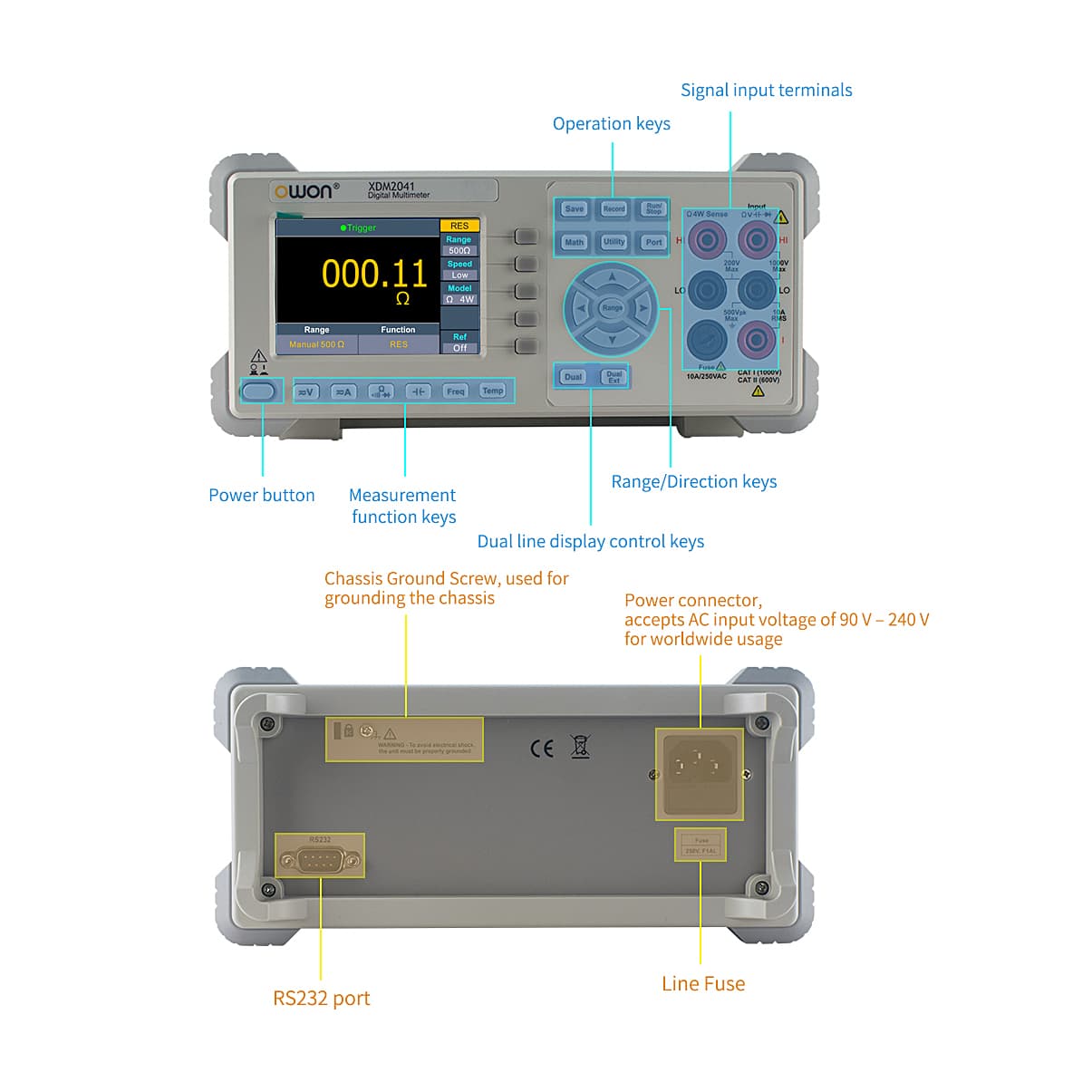

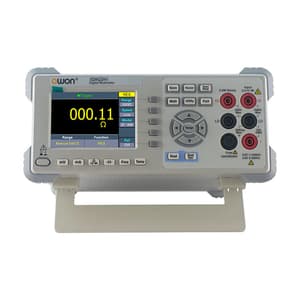

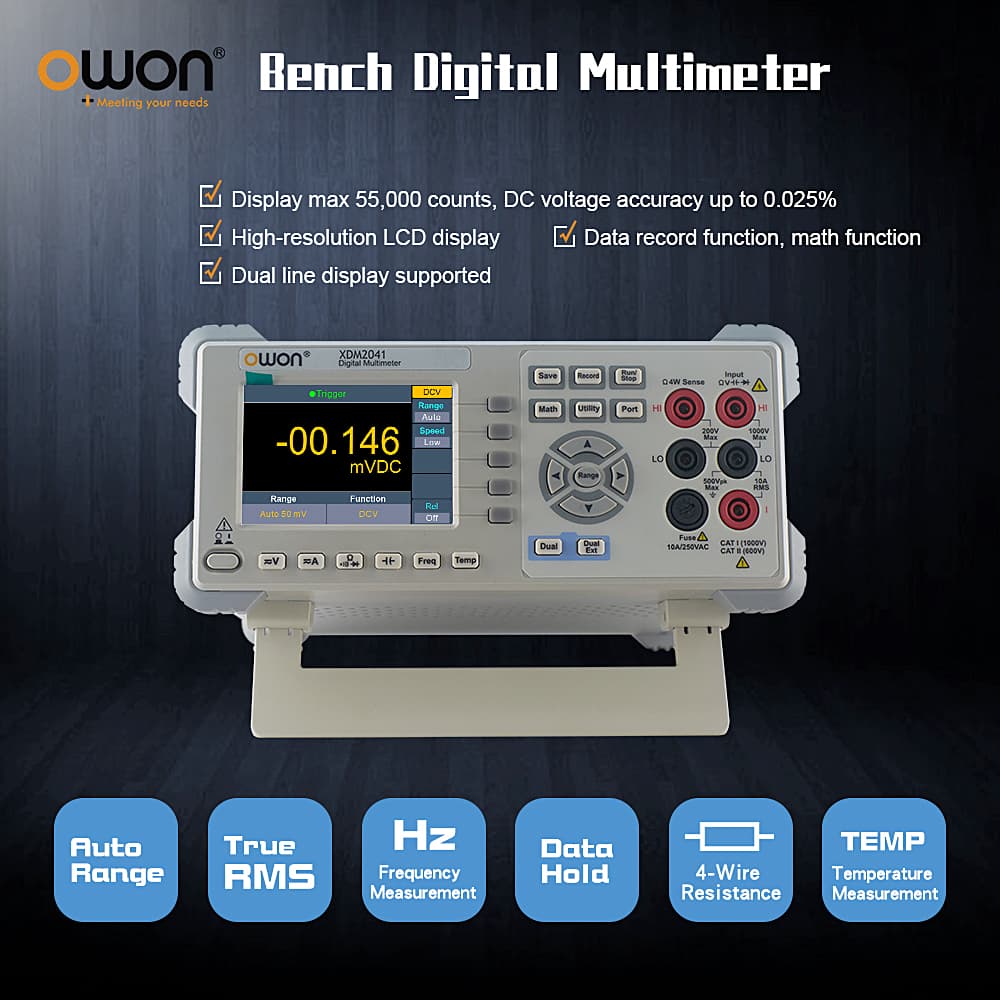

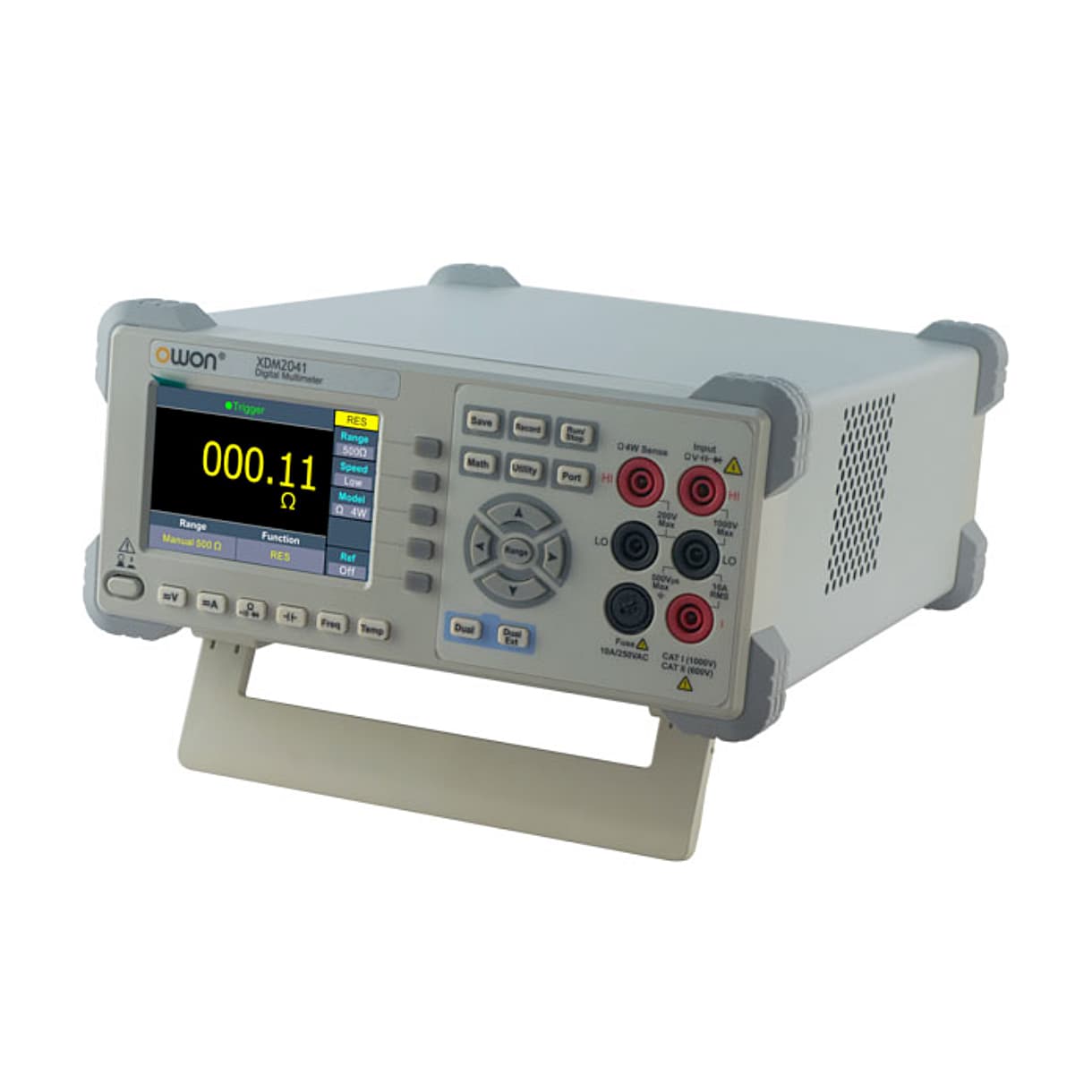

Owon 4-1/2 Digit / 55000 Count Bench Type TRMS Digital Multimeter, XDM 2041
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 2.3 kg
- Display Digits: 4-1/2 Digits
- Display Counts: 55000 Counts
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,191 (Incl. of all taxes)
₹12,874 + ₹2,317 GST (18%)
MRP was MRP ₹15,700
Save 18%
5 Business Days
1
–
Download OWON CatalogueNot available

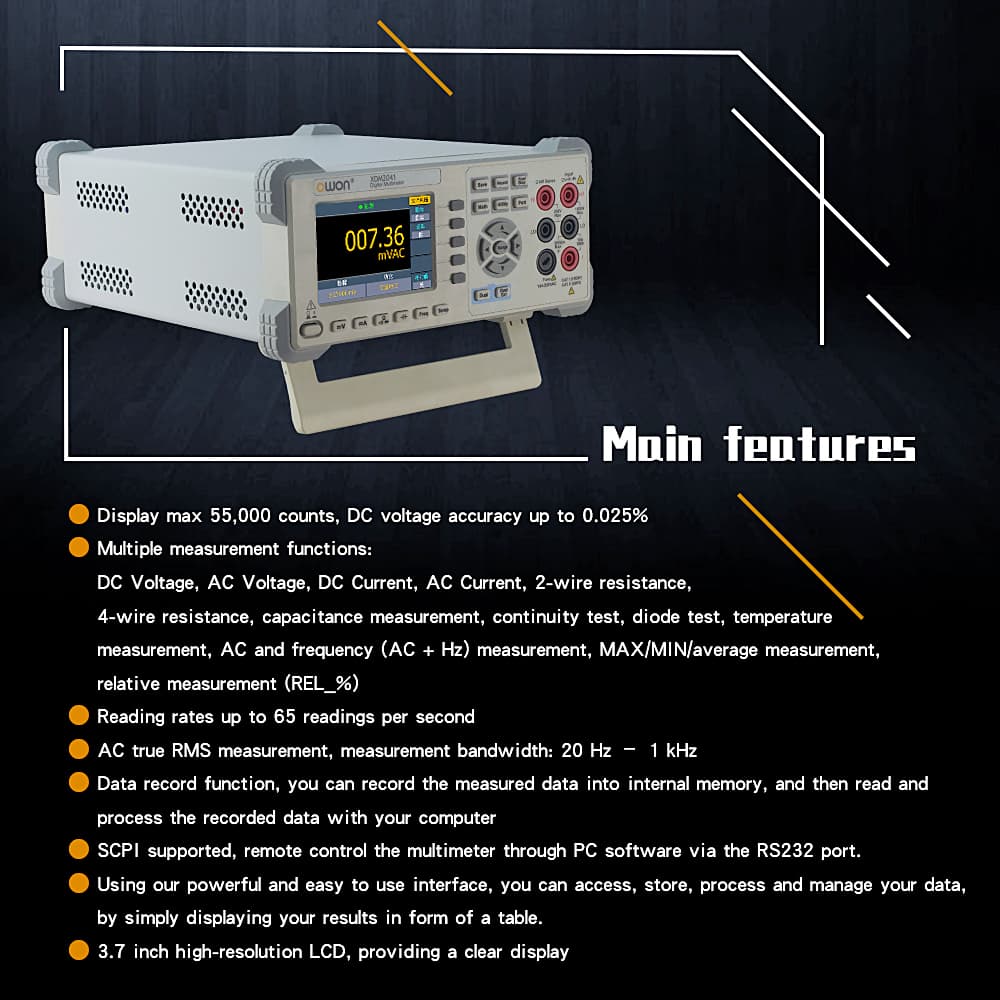

Highlights
- Up to 65 readings per second
- True RMS AC voltage / current measurement

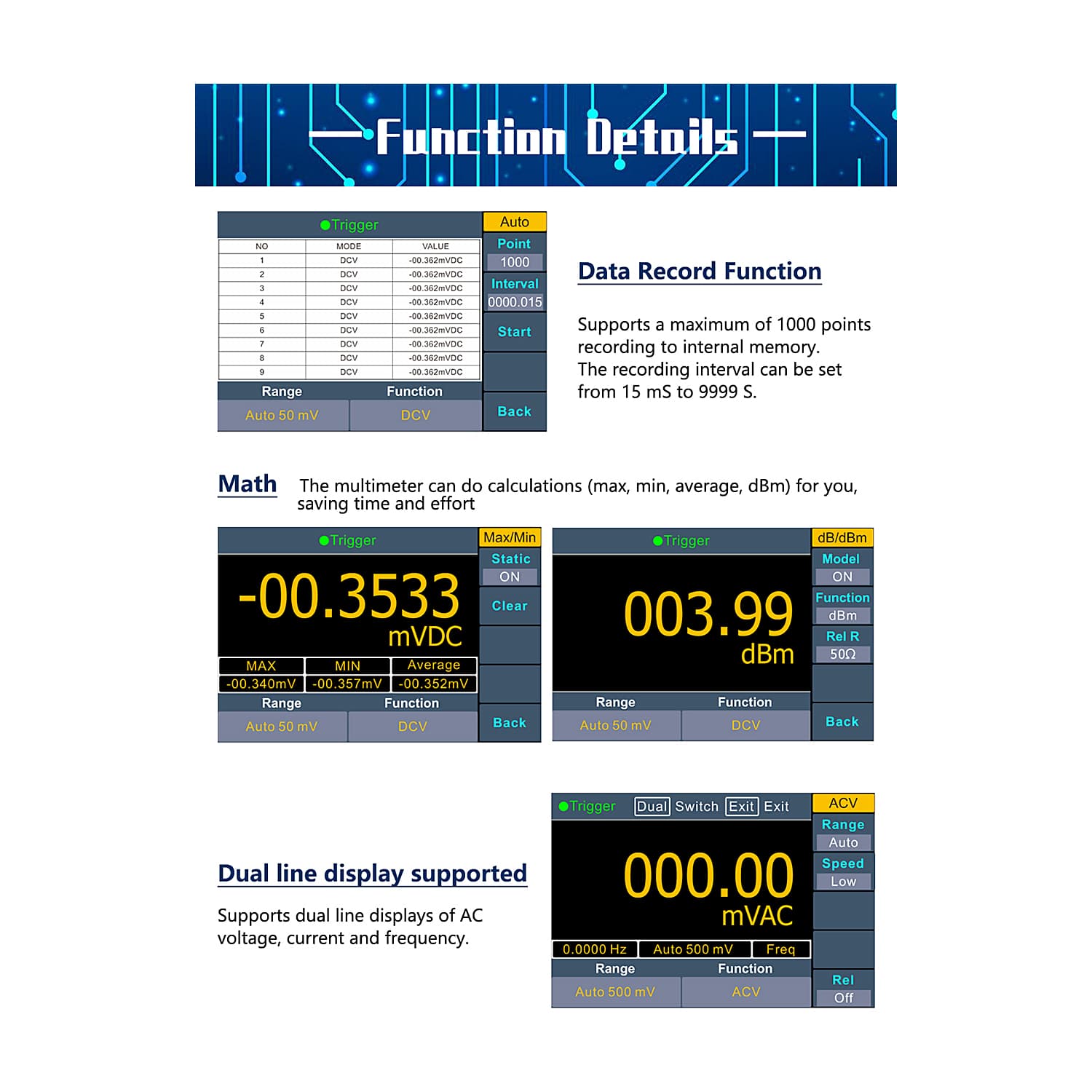

- Dual line display supported
- Trend analysis is accessible in chart mode
- SCPI support
- Operating Environment: Full temperature from 0°C to 50°C, 80% RH and 40°C, non condensing (Storage Temperature: -20 to 70°C)
- Electromagnetic compatibility: Conforming to EMC Directive 2014/30/EU and EN 55032:2012/AC: 2013
- Safety: Conforming to EN 61010-1:2010 and low voltage instructions LVDDirective 2014/35/EU
- Programmer Language: Standard SCPI, compatible with the commands of mainstream multimeters
 |
 |
 |
 |
 |
 |
 |
 |
Technical Data:
|
|
Measurement Range |
Resolution |
Accuracy ±(% of reading + LSB) |
|
DC Voltage |
50.000mV |
0.001mV |
0.1%+10 |
|
500.00mV |
0.01mV |
0.025%+5 |
|
|
5.0000V |
0.0001V |
0.025%+5 |
|
|
50.000V |
0.001V |
0.03%+5 |
|
|
500.00V |
0.01V |
0.1%+5 |
|
|
1000.0V |
0.1V |
0.1%+5 |
|
|
AC Voltage |
500mv-750v |
20Hz~45Hz |
1% + 30 |
|
45Hz~65Hz |
0.5% + 30 |
||
|
65Hz~1KHz |
0.7% + 30 |
||
|
DC Current |
500uA |
0.01uA |
0.15%+20 |
|
5000uA |
0.1uA |
0.15%+10 |
|
|
50mA |
0.001mA |
0.15%+20 |
|
|
500mA |
0.01mA |
0.15%+10 |
|
|
5A |
0.0001A |
0.5%+10 |
|
|
10A |
0.001A |
0.5%+10 |
|
|
AC Current |
500uA-500mA |
20 Hz – 1 kHz |
0.5%+20 |
|
5A-10A |
1.5%+20 |
||
|
Resistance |
500Ω |
0.01Ω |
0.1%+10 |
|
5KΩ |
0.0001KΩ |
0.1%+5 |
|
|
50KΩ |
0.001KΩ |
0.1%+5 |
|
|
500KΩ |
0.01KΩ |
0.1%+5 |
|
|
5MΩ |
0.0001MΩ |
0.25%+5 |
|
|
50MΩ |
0.001MΩ |
0.1%+10 |
|
|

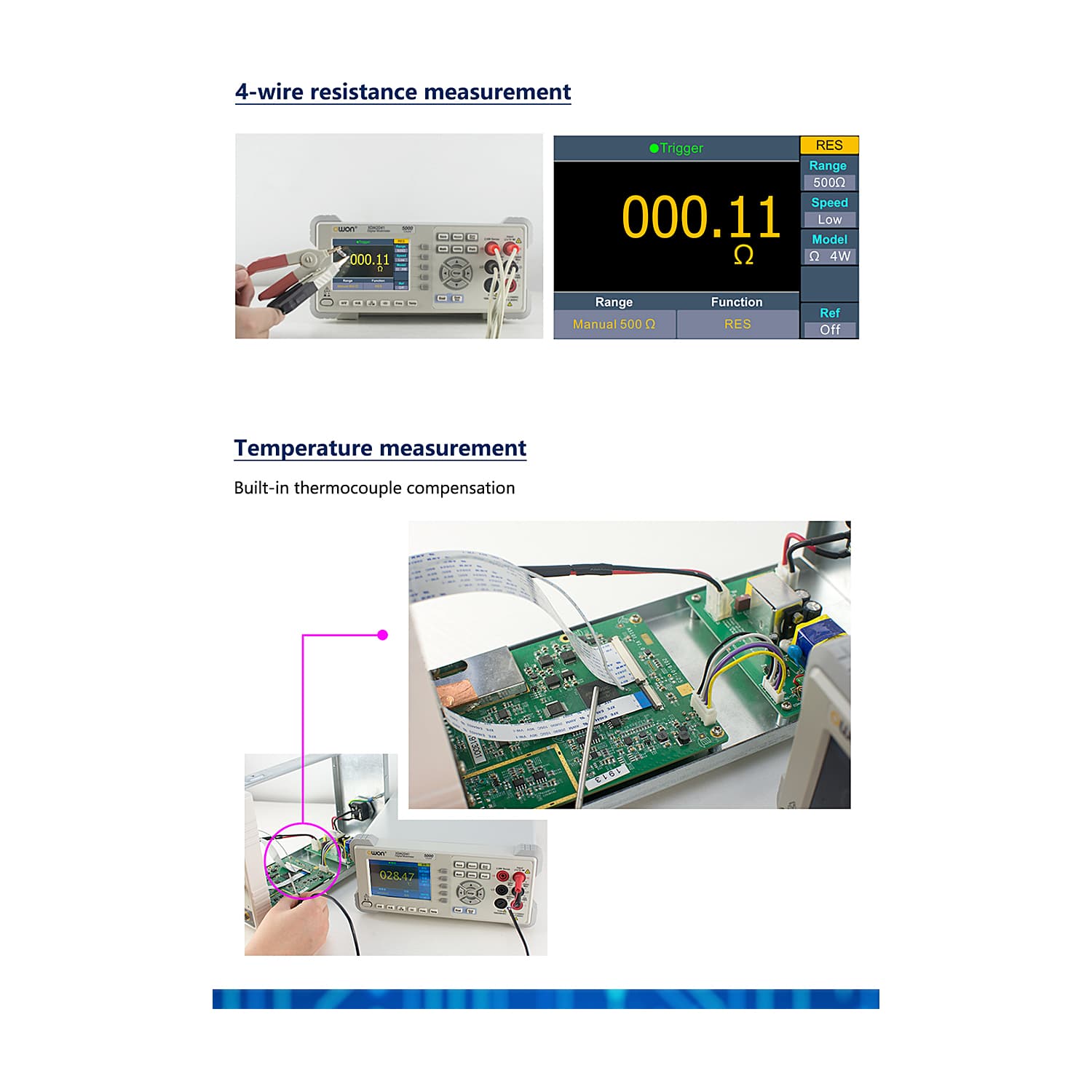

Four-wire resistance |
500Ω |
0.01Ω |
0.1%+10 |
|
5KΩ |
0.0001KΩ |
0.1%+5 |
|
|
50KΩ |
0.001KΩ |
0.1%+5 |
|
|
Frequency |
10.000Hz–60MHz |
/ |
±(0.2%+8) |
|
Capacitance |
50nF-500uF |
/ |
2.5%+5 |
|
5mF-50mF |
5%+8 |
Package Content:
- 1x Bench-type Digital Multimeter
- Power Cord
- Quick Guide
- Multimeter Leads
- Fuse
- Alligator Clip
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display Digits | 4-1/2 Digits |
|---|---|
| Display Counts | 55000 Counts |
| Frequency | 10.000Hz – 60MHz |
| Capacitance | 50nF-500uF / 5mF-50mF |
| Diode | 3.0000 V (Resolution: 0.0001V) |
| Continuity | 1000 Ohm (Resolution: 0.1 Ohm) |
| Temperature | K type, PT100 |
| Logging Duration | 15ms - 9999s |
| Logging Length | 1000 Points |

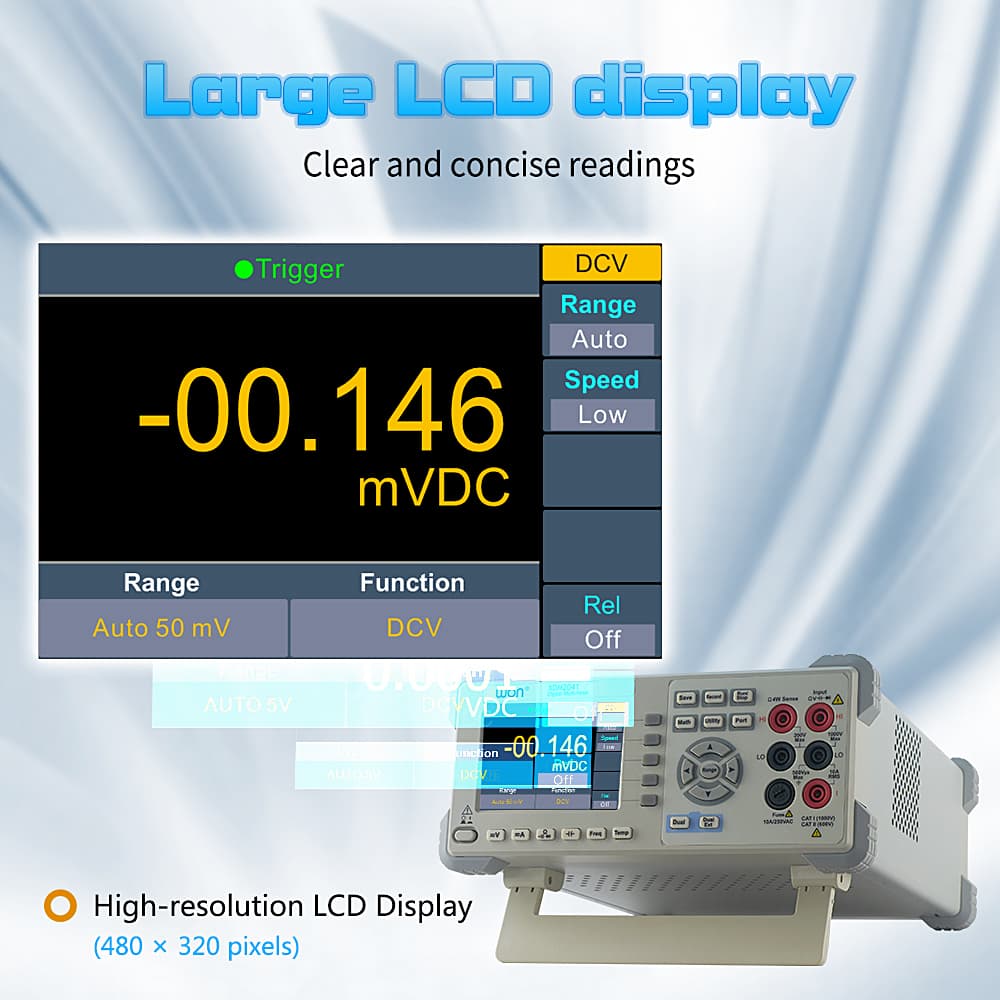

| Display Screen | 3.7-inch TFT LCD with resolution 480 x 320 |

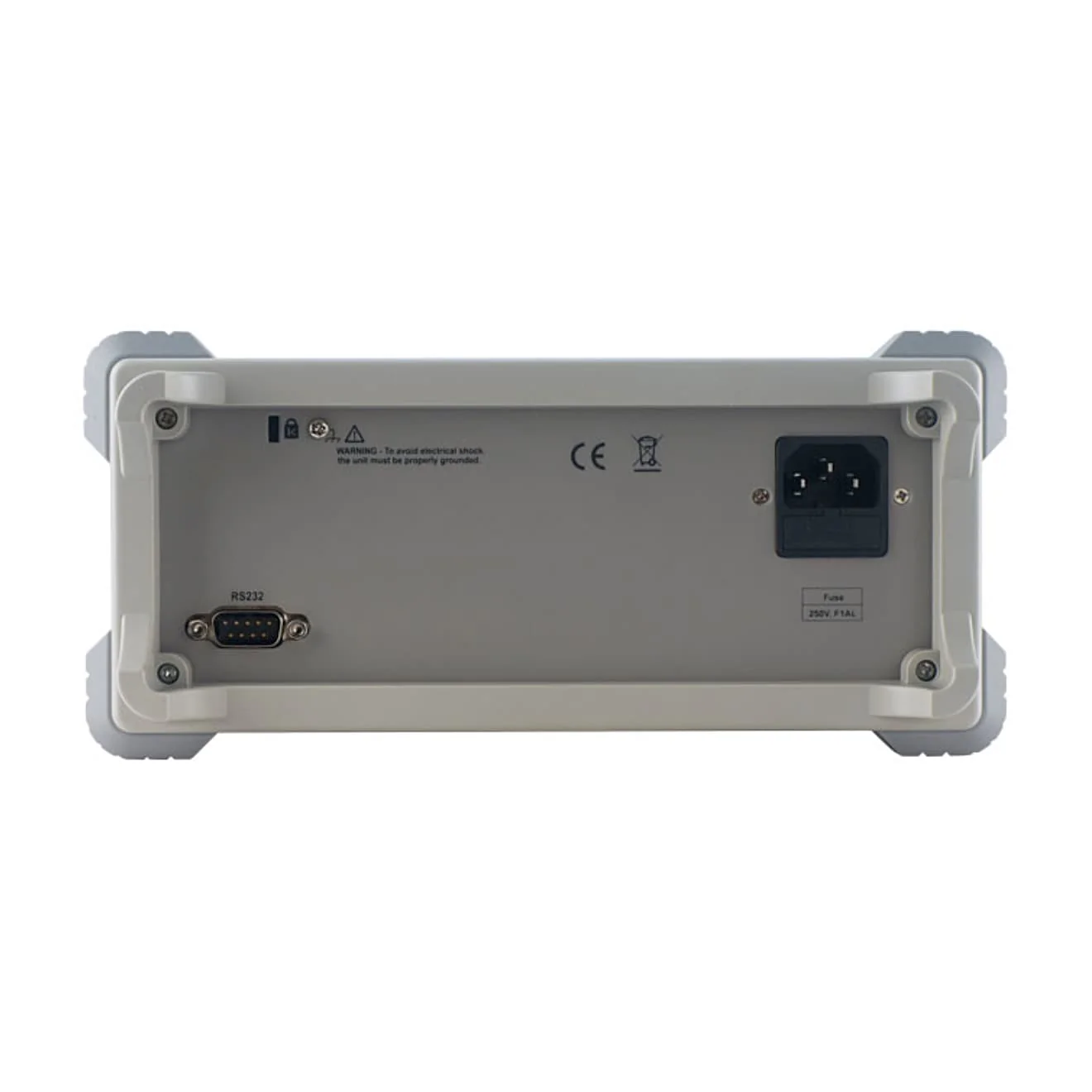

| Remote Interface | RS232 |
| Warm Up Time | 30 Minutes |
| Dimensions (W×H×D) | 235 x 110 x 295 mm |
