Owon 4-4/5 Digit / 55000 Count True RMS Bench-type Digital Multimeter with Rechargeable Battery, XDM 1241
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 450 g
- Display Digit: 4-4/5 Digit
- Display Count (max.): 55000 Counts
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,805 (Incl. of all taxes)
₹10,004 + ₹1,801 GST (18%)
MRP was MRP ₹12,200
Save 18%
5 Business Days
1
–
Download OWON CatalogueNot available
Highlights
- 3.5-inch (480x320) high-resolution LCD, providing a clear display
- Display max 55000 counts (4-4/5 digits), DC voltage accuracy up to 0.05%
- Reading rates Up to 60 readings per second
- True RMS AC voltage / current measurement
- Dual line display supported

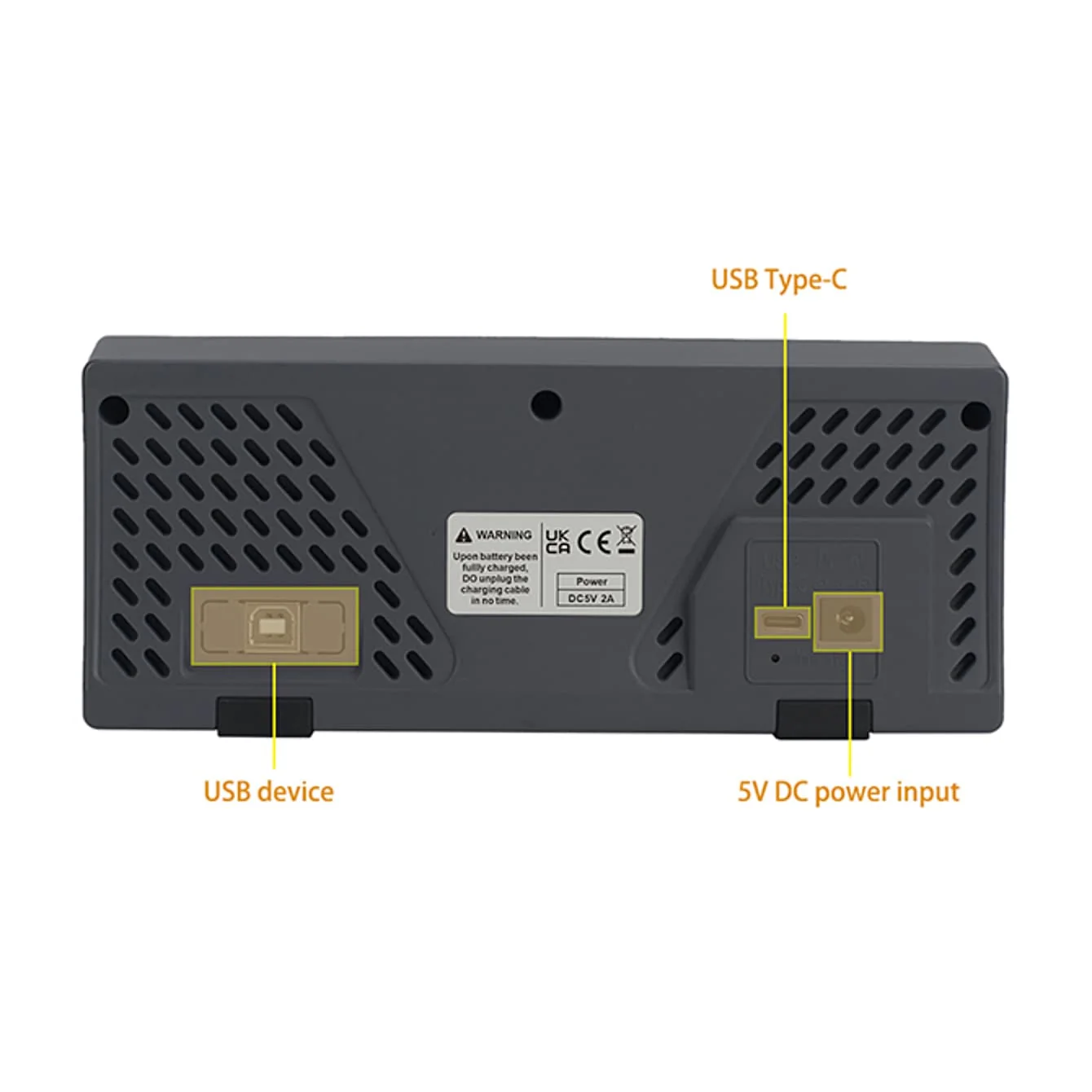

- SCPI supported, remote control the multimeter through PC software via USB port

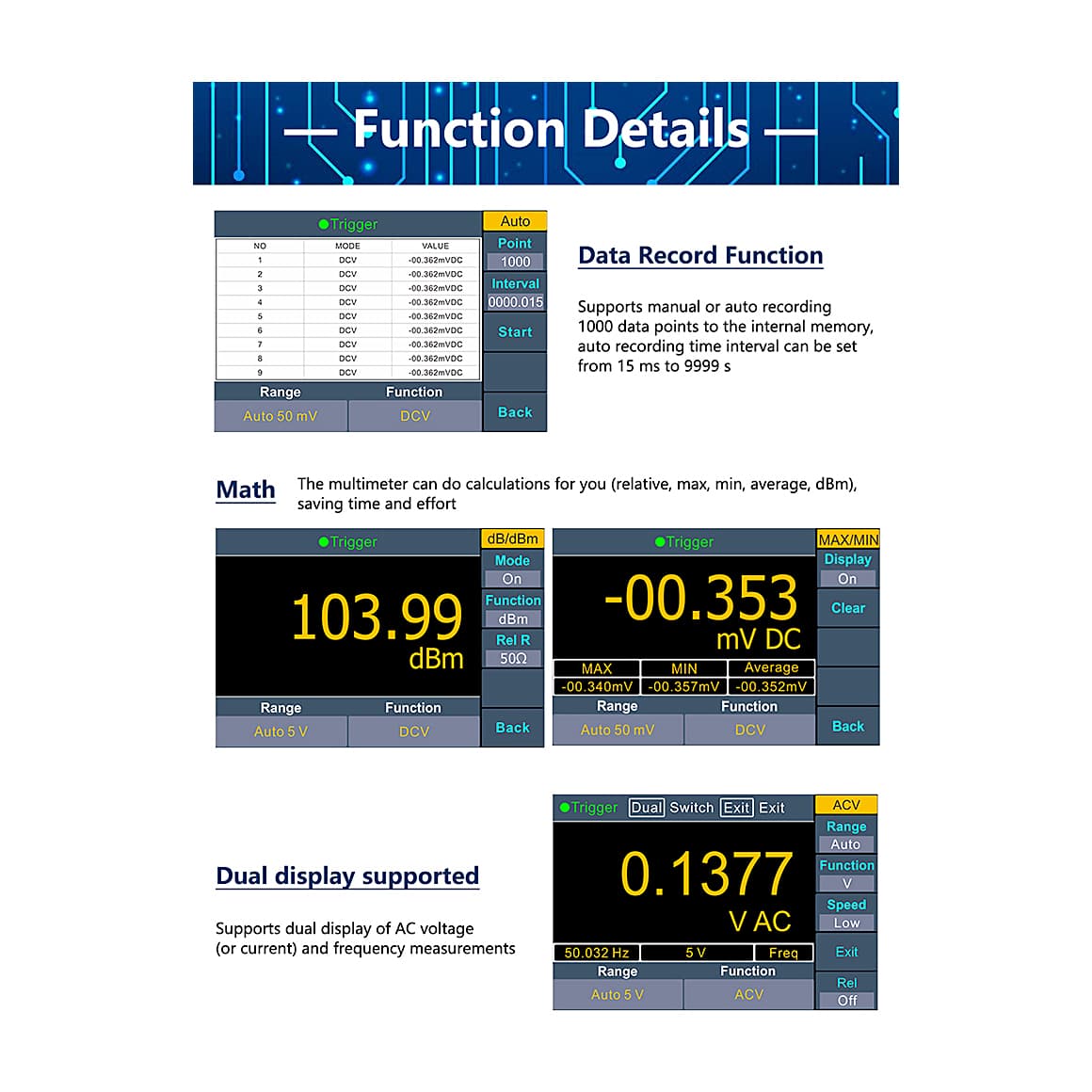

- Data record function, you can record the measured data into internal memory and then read and process the recorded data with your computer
- Lithium battery, suitable for different application scenarios
- Multiple measurement functions: DC/AC Voltage, DC/AC Current, resistance, capacitance measurement, continuity test, diode test, temperature measurement, AC and frequency (AC + Hz) measurement, MAX/MlN/average measurement, relative measurement (REL_%)
- AC True RMS measurement, measurement bandwidth: 20 Hz - 1kHz
- Manual or auto record the measured data into internal memory, and displayed in table
 |
 |
Technical Data:
|
|
Measurement Range |
Resolution |
Accuracy ±(% of reading +LBS) |
|
DC Voltage |
50.000mV |
0.001mV |
0.1%+10 |
|
500.00mV |
0.01mV |
0.05%+5 |
|
|
5.0000V |
0.0001V |
0.05%+5 |
|
|
50.000V |
0.001V |
0.05%+5 |
|
|
500.00V |
0.01V |
0.1%+5 |
|
|
1000.0V |
0.1V |
0.1%+10 |
|
|
AC Voltage |
500mv - 750v |
20Hz - 45Hz |
1% + 30 |
|
45Hz - 65Hz |
0.5% + 30 |
||
|
65Hz - 1KHz |
0.7% + 30 |
||
|
DC Current |
500uA |
0.01uA |
0.15%+20 |
|
5000uA |
0.1uA |
0.15%+10 |
|
|
50mA |
0.001mA |
0.15%+20 |
|
|
500mA |
0.01mA |
0.15%+10 |
|
|
5A |
0.0001A |
0.5%+10 |
|
|
10A |
0.001A |
0.5%+10 |
|
|
AC Current |
500uA - 500mA |
20Hz - 1KHz |
0.5%+20 |
|
5A - 10A |
1.5%+20 |
||
|
Resistance |
500Ω |
0.01Ω |
0.15%+10 |
|
5KΩ |
0.0001KΩ |
0.15%+5 |
|
|
50KΩ |
0.001KΩ |
0.15%+5 |
|
|
500KΩ |
0.01KΩ |
0.15%+5 |
|
|
5MΩ |
0.0001MΩ |
0.3%+5 |
|
|
50MΩ |
0.001MΩ |
1%+10 |
|
|
Frequency |
10.000Hz–60MHz |
- |
±(0.2%+10) |
|
Capacitance |
50nF-500uF |
- |
2.5%+10 |
|
5mF-50mF |
5%+10 |
||
|
Diode |
3.0000 V |
0.0001V |
- |
|
Continuity |
1000 Ω |
0.1Ω |
Adjustable threshold |
Package Content:
- 1x TRMS Bench-type Digital Multimeter
- Quick Guide
- USB Cable
- Multimeter Leads
- Alligator Clip
- USB to DC Cord
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digit | 4-4/5 Digit |
|---|---|
| Display Count (max.) | 55000 Counts |

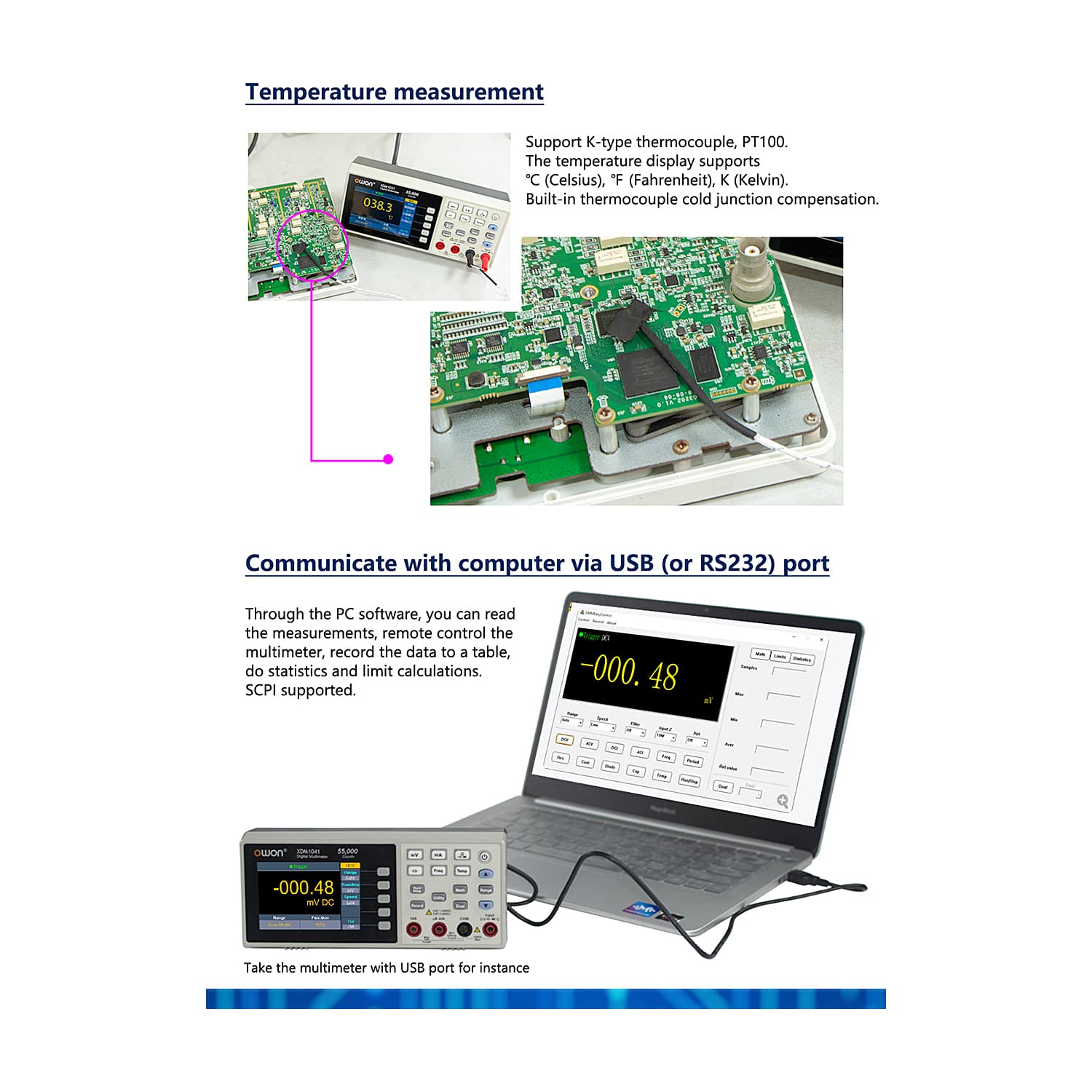

| Temperature | K type, PT100 |
| Data-Logging Duration | 15ms - 9999.999s |
| Logging Length | 1000 Points |
| Display Screen | 3.5 - inch TFT LCD with resolution 480 x 320 |
| Power Supply | 1x 2A Lithium Battery (DC5V) |
| Dimensions (W×H×D) | 235 x 88 x 65 (mm) |
