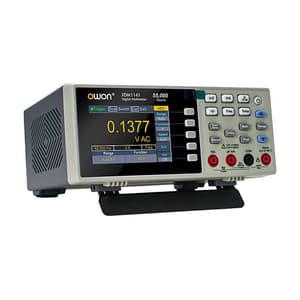

Owon 4-1/2 Digit / 55000 Count Bench Type Digital Multimeter, XDM1141
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 500 g
- Display Digits: 4-1/2 Digits
- Display Counts: 55000 Counts
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,191 (Incl. of all taxes)
₹12,874 + ₹2,317 GST (18%)
MRP was MRP ₹15,700
Save 18%
5 Business Days
1
–
Download OWON CatalogueNot available

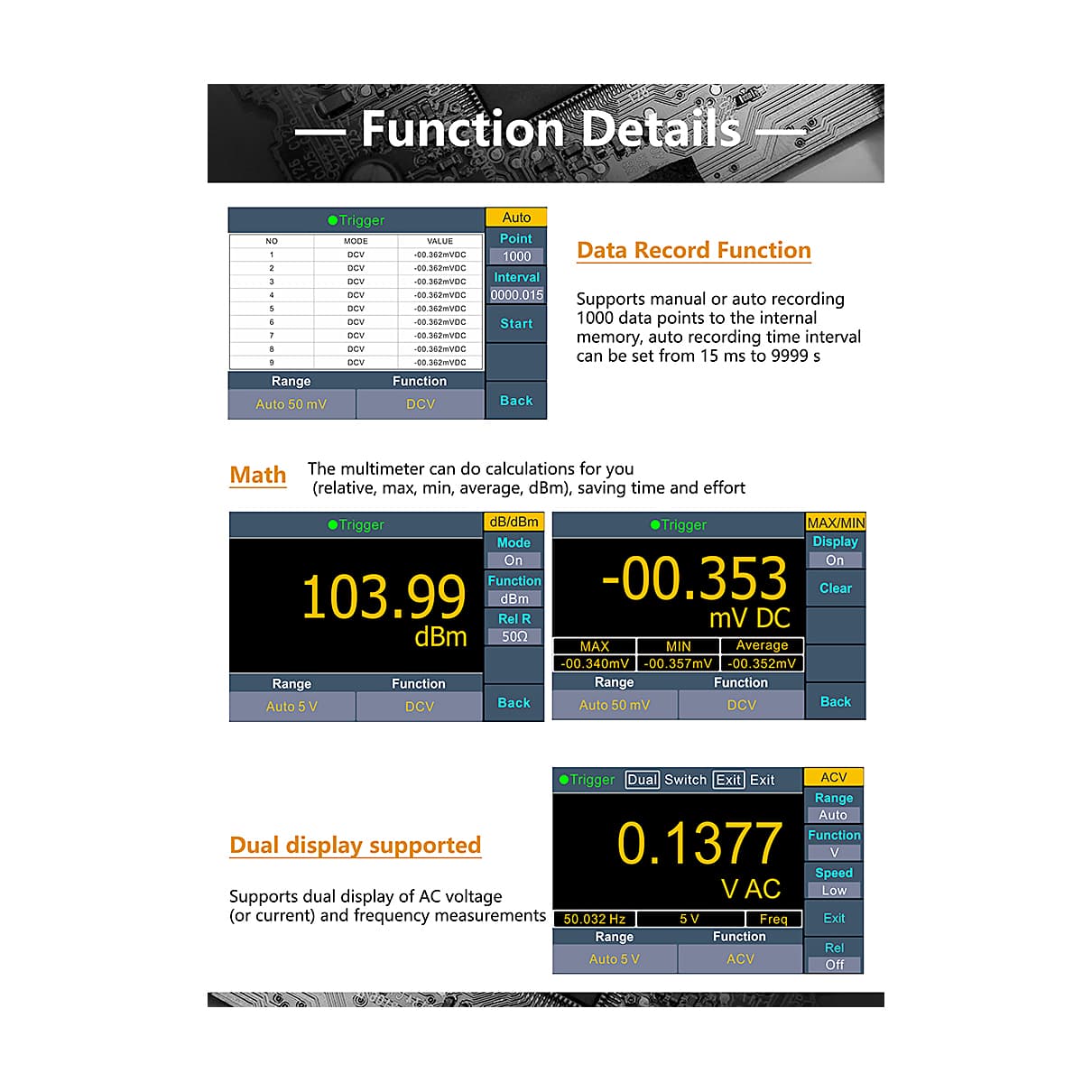

Highlights
- Up to 65 readings per second
- Dual-line display supported
- SCPI support
- Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer
 |
 |
 |
Technical Data:
|
Measurement Range |
Resolution |
Accuracy ±(% of reading +LBS) |
|
|
DC Voltage |
50.000mV |
0.001mV |
0.1%+10 |
|
500.00mV |
0.01mV |
0.05%+5 |
|
|
5.0000V |
0.0001V |
0.05%+5 |
|
|
50.000V |
0.001V |
0.05%+5 |
|
|
500.00V |
0.01V |
0.1%+5 |
|
|
1000.0V |
0.1V |
0.1%+10 |
|
|
AC Voltage |
500mv-750v |
20Hz~45Hz |
1% + 30 |
|
45Hz~65Hz |
0.5% + 30 |
||
|
65Hz~1KHz |
0.7% + 30 |
||
|
DC Current |
500uA |
0.01uA |
0.15%+20 |
|
5000uA |
0.1uA |
0.15%+10 |
|
|
50mA |
0.001mA |
0.15%+20 |
|
|
500mA |
0.01mA |
0.15%+10 |
|
|
5A |
0.0001A |
0.5%+10 |
|
|
10A |
0.001A |
0.5%+10 |
|
|
AC Current |
500uA-500mA |
20Hz-1KHz |
0.5%+20 |
|
5A-10A |
1.5%+20 |
||
|
Resistance |
500Ω |
0.01Ω |
0.15%+10 |
|
5KΩ |
0.0001KΩ |
0.15%+5 |
|
|
50KΩ |
0.001KΩ |
0.15%+5 |
|
|
500KΩ |
0.01KΩ |
0.15%+5 |
|
|
5MΩ |
0.0001MΩ |
0.3%+5 |
|
|
50MΩ |
0.001MΩ |
1%+10 |
|
|
Frequency |
10.000Hz–60MHz |
/ |
±(0.2%+10) |
|
Capacitance |
50nF-500uF |
/ |
2.5%+10 |
|
5mF-50mF |
5%+10 |
||
|
Diode |
3.0000 V |
0.0001V |
/ |
|
Continuity |
1000 Ω |
0.1Ω |
Adjustable threshold |
Package Content:
- 1x Bench-type Digital Multimeter
- Power Cord
- Quick Guide
- USB Cable
- Multimeter Leads
- Fuse
- Alligator Clip (Optional)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display Digits | 4-1/2 Digits |
|---|---|
| Display Counts | 55000 Counts |
| DC Voltage Accuracy | up to 0.05% |
| Frequency | 10.000Hz – 60MHz |
| Capacitance | 50nF-500uF / 5mF-50mF |
| Diode | 3.0000 V (Resolution: 0.0001V) |
| Continuity | 1000 Ohm (Resolution: 0.1 Ohm) |
| Temperature | K type, PT100 |
| Logging Duration | 15ms - 9999.999s |
| Logging Length | 1000 Points |

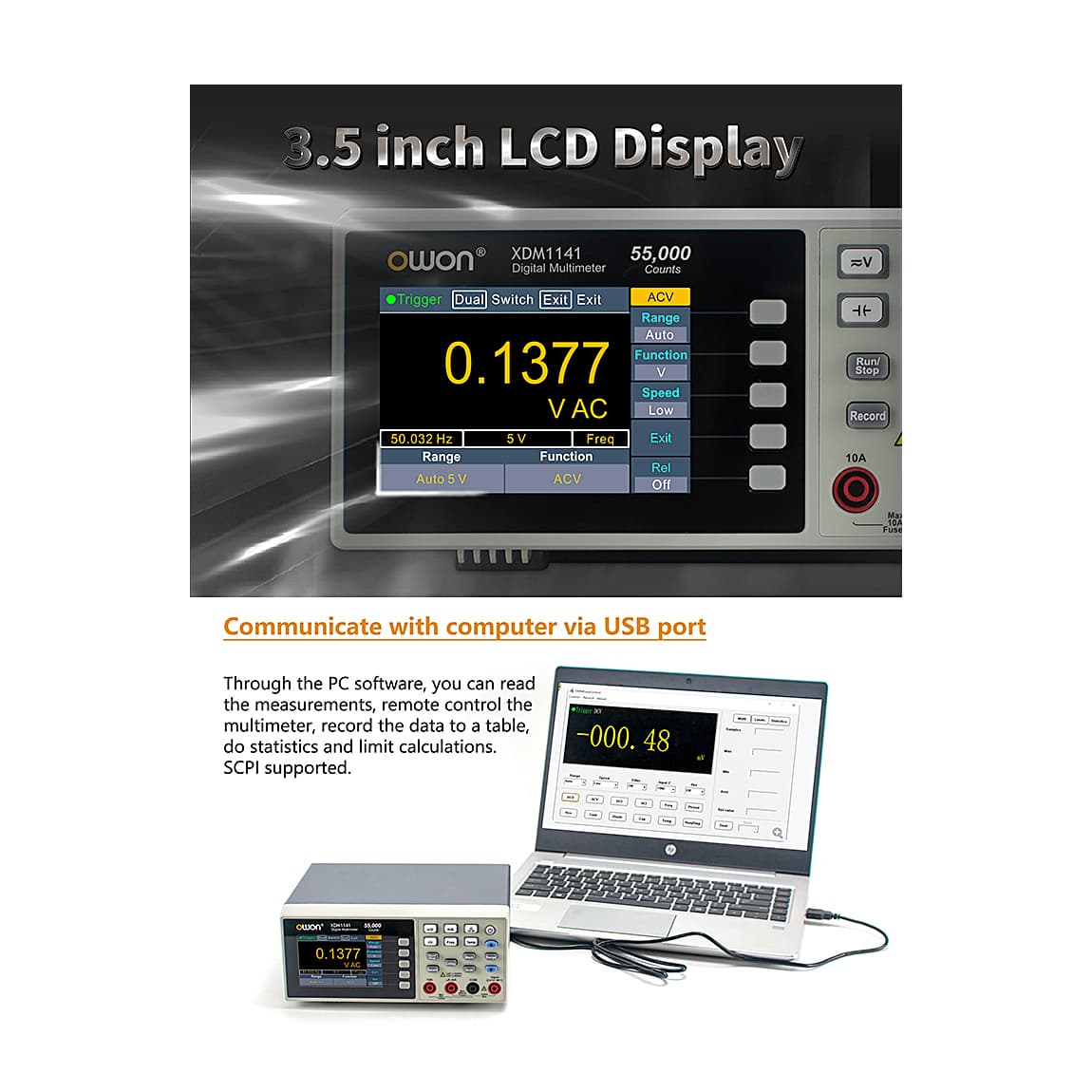

| Display Screen | 3.5 - inch TFT LCD with resolution 480 x 320 |

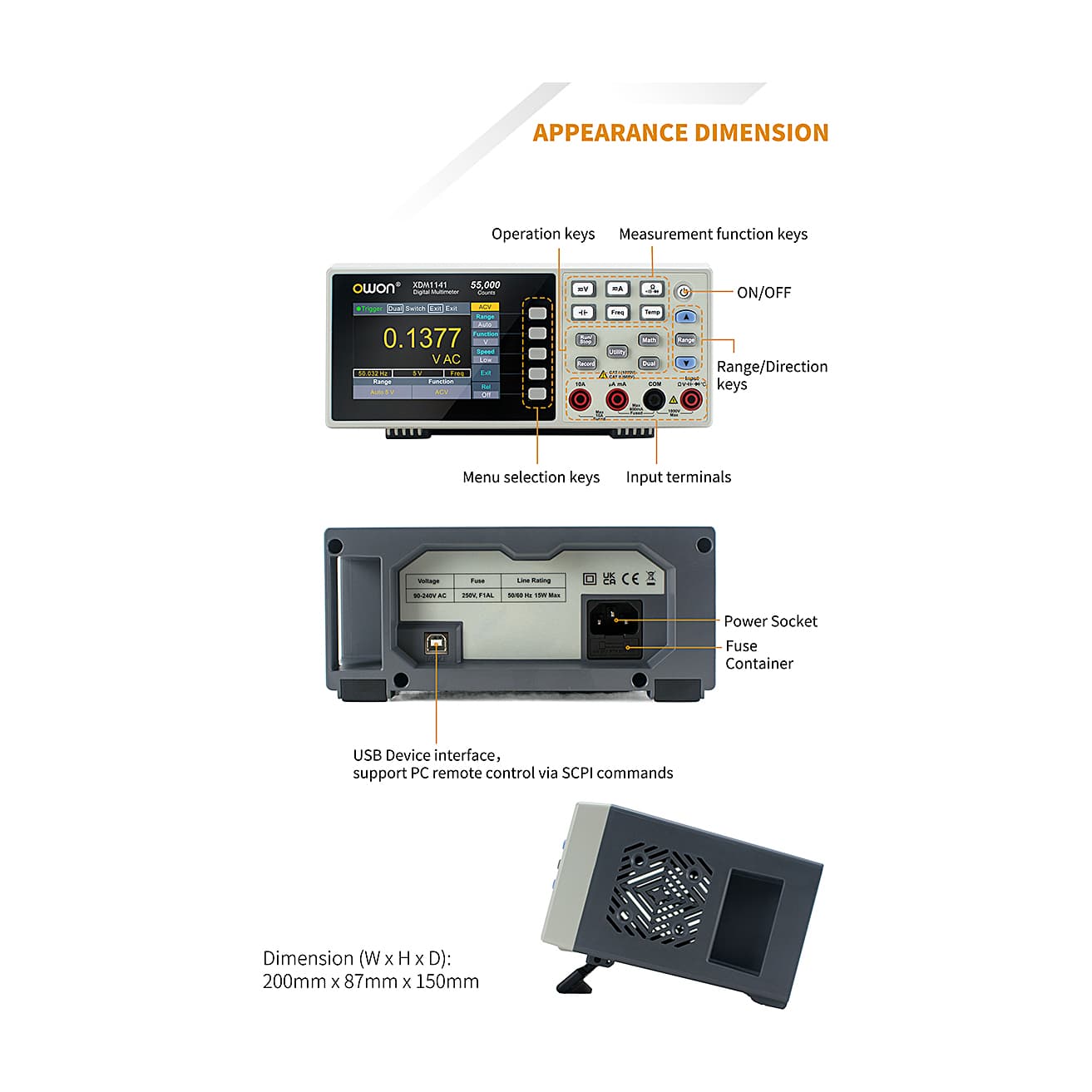

| Dimensions (W×H×D) | 200 x 88 x 150 mm |
