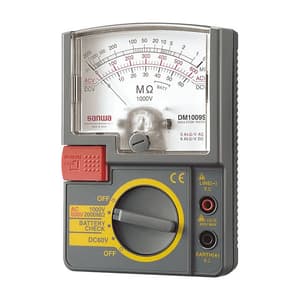

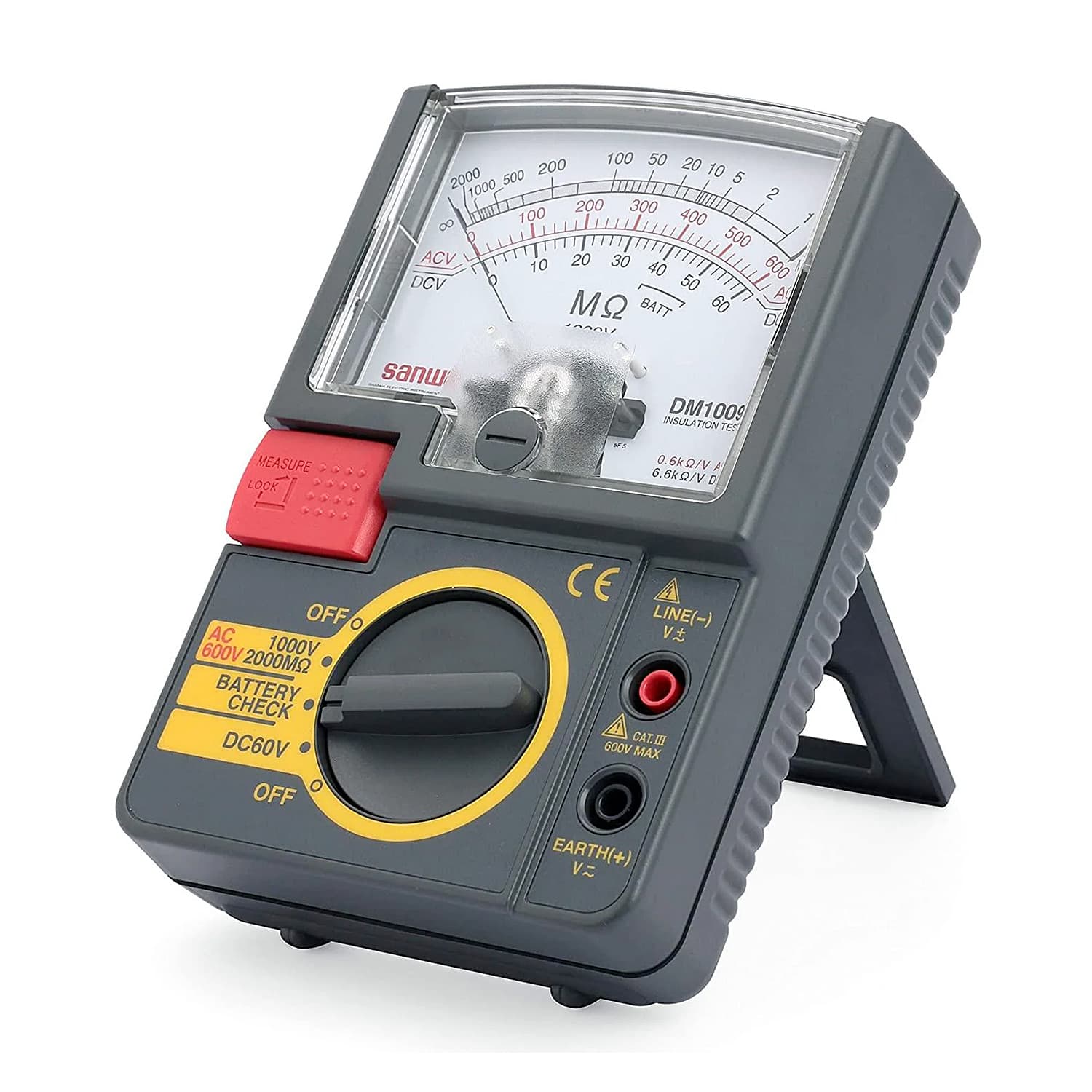

Sanwa 1000V / 2000 MOhms Range Analog Insulation Tester, DM1009S
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 310 g
- Voltage: 1000 V
- Range: 2000 MOhms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,275 (Incl. of all taxes)
₹11,250 + ₹2,025 GST (18%)
MRP was MRP ₹12,500
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The Sanwa DM1009S a DC insulation resistance tester to measure the insulation resistance of electric lines and equipment. The measured voltage is maintained until the low insulation resistance value at the rated current specified in IEC61557-2. This instrument is CAT. III 600V certified. The DM1009S is equipped with the discharge function to discharge a test circuit once the user is done testing it. The device can measure up to 2000MΩ of insulation resistance when a test voltage of 1000 volts is applied. This instrument can also measure voltages of up to 60V DC and 600V AC with an accuracy of ±5% of full scale.
Features:
- Test voltage DC1000V
- One-shot or continuous measurement push switch
- DCV measurement range (DC60V)
- Auto-discharge function
- Inner battery check range
- ACV measurement range
- Lightweight Design
Tolerance:
| Scale (MΩ) |
|
| ACV | Within ±5% of the max. scale value(50~60Hz sine wave) |
| DCV | Within ±5% of the max. scale value |

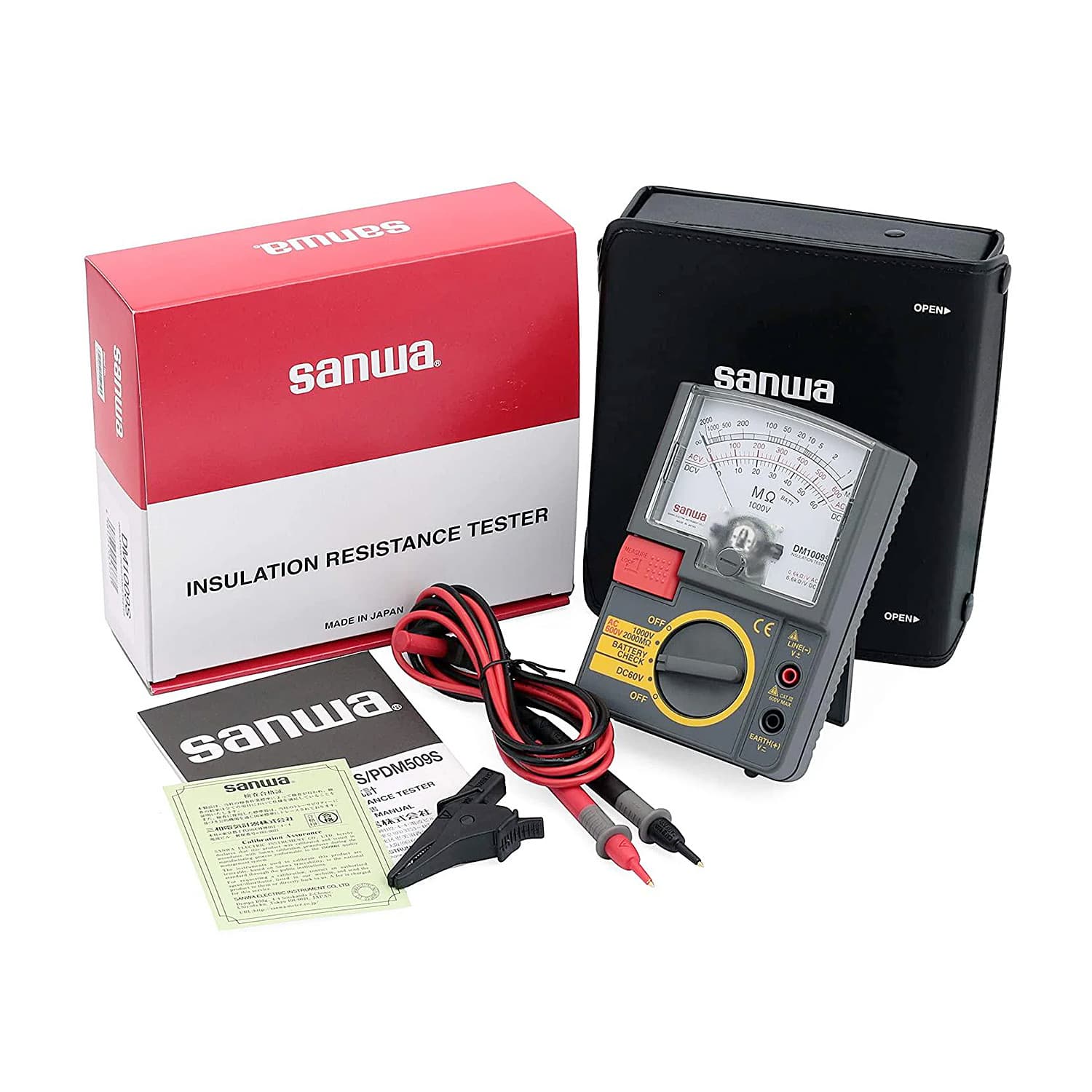

Package Content:
- Analog Insulation Tester

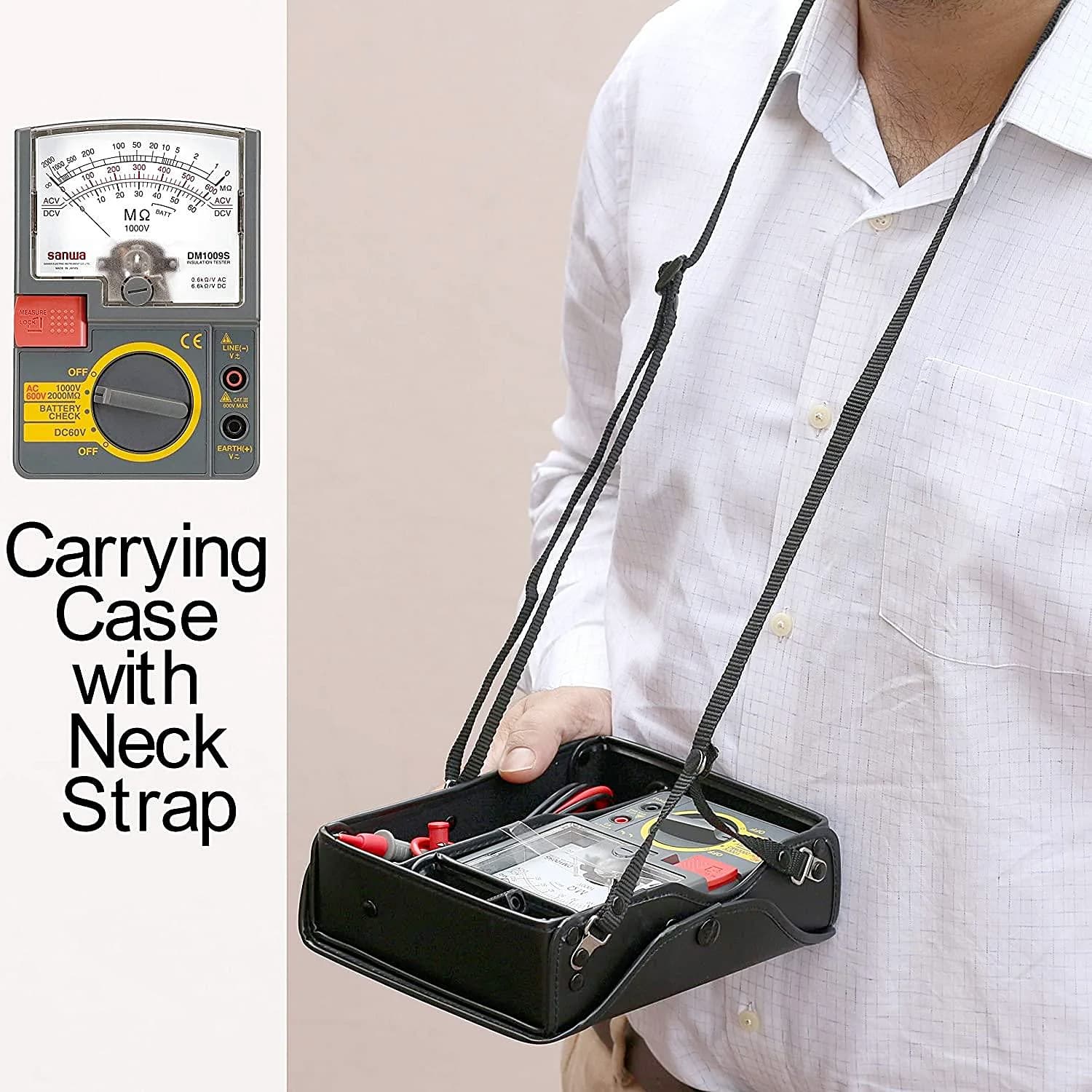

- Carrying Case with Strap
- Test Leads
- Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage | 1000 V |
|---|---|
| Range | 2000 MOhms |
| ACV | 600V |
| DCV | 60V |
| Rated Current | 1.0~1.2mA |
| Battery | 1x 6LF22/6LR61 (9V Alkaline Battery) |
| Safety Standard | IEC61010 CAT.III 600V |
| Dimension (H x W x D) | 144 × 99 × 43 mm |
