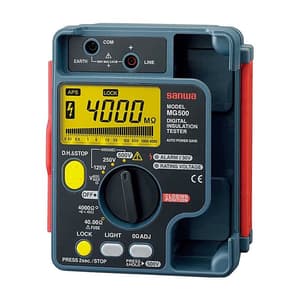

Sanwa 500V / 4000 MOhms Range Digital Insulation Tester, MG500
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 600 g
- Voltage: 125 / 250 / 500V
- Range: 4000 MOhms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,072 (Incl. of all taxes)
₹17,010 + ₹3,062 GST (18%)
MRP was MRP ₹18,900
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights

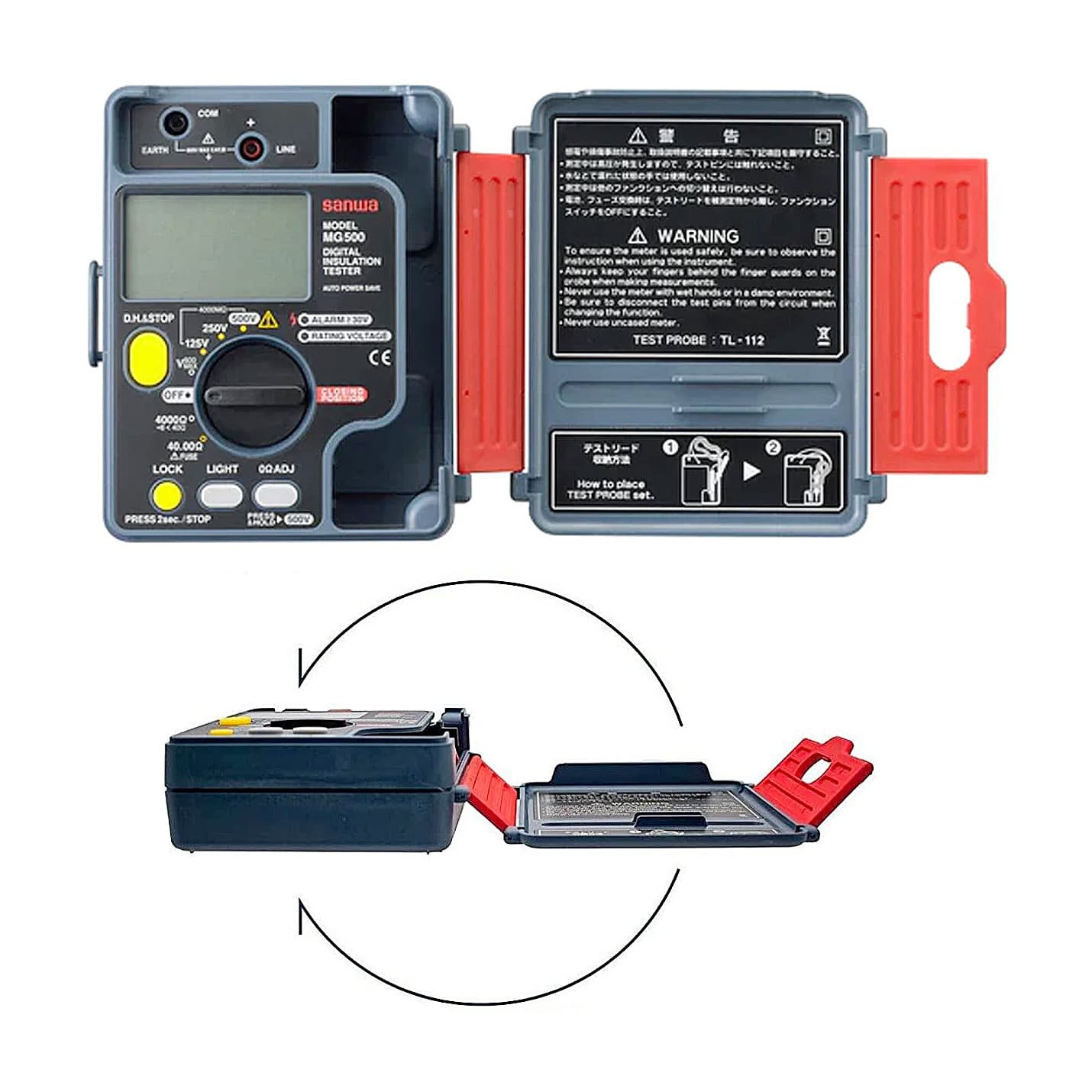

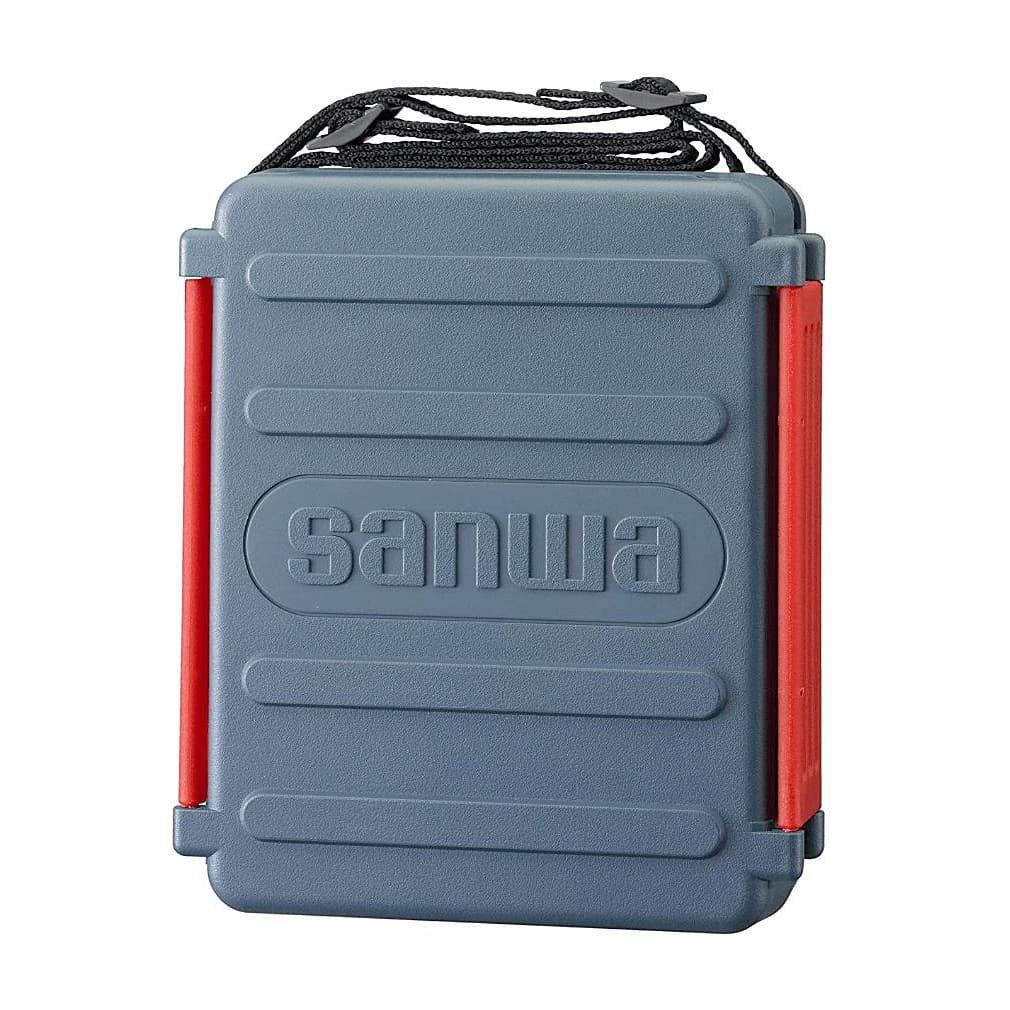

This device is used to measure the insulation resistance of a power line and power equipment within the range of 600V under CAT III. It has a safe design compliant with the IEC 61010-1 rating. The MG1000 also features a lock-down cover that functions as a dust-proof and splash-proof IP54 rated carry case. The MG500 has a large 4200 count LCD display with backlight. It uses the average value method for AC signal sensing and has a sampling rate of 2 samples per second. The device has an auto range feature for automatically adjusting the range of the parameter being measured. It also has auto hold function for pausing a measurement automatically on the screen. This device is also capable of measuring AC and DC voltages (600 Volts MAX). It can also perform continuity test and has a buzzer alarm feature. The MG500 comes with test leads, and an ST-50 strap.
Features:
- Test voltage DC500V/250V/125V
- Bar graph just like analog meter
- Short circuit current up to 2mA
- Large display with backlight
- Auto discharge function
- Data hold (Auto)
- Auto power save: Enables about 10 minutes after the last operation
- Live circuit detection: At 30V AC/DC or more, inhibits test, buzzer sounds and alarm indicator lights up
Technical Data:
| Function | Measuring Range | Accuracy | Resolution |
| MΩ | 400k / 4M / 40M / 400M / 4000MΩ | ±(3%+4) | 0.001MΩ |
| Rated voltage | 125 / 250 / 500V | - | - |
| ACV/DCV | 600V (AC/DC Automatic detection) | ±(3%+2) | 1V |
| Ω (Continuity) | 4000Ω | ±(3%+3) | 1Ω |
| Ω | 40Ω | ±(3%+10) | 0.01Ω |

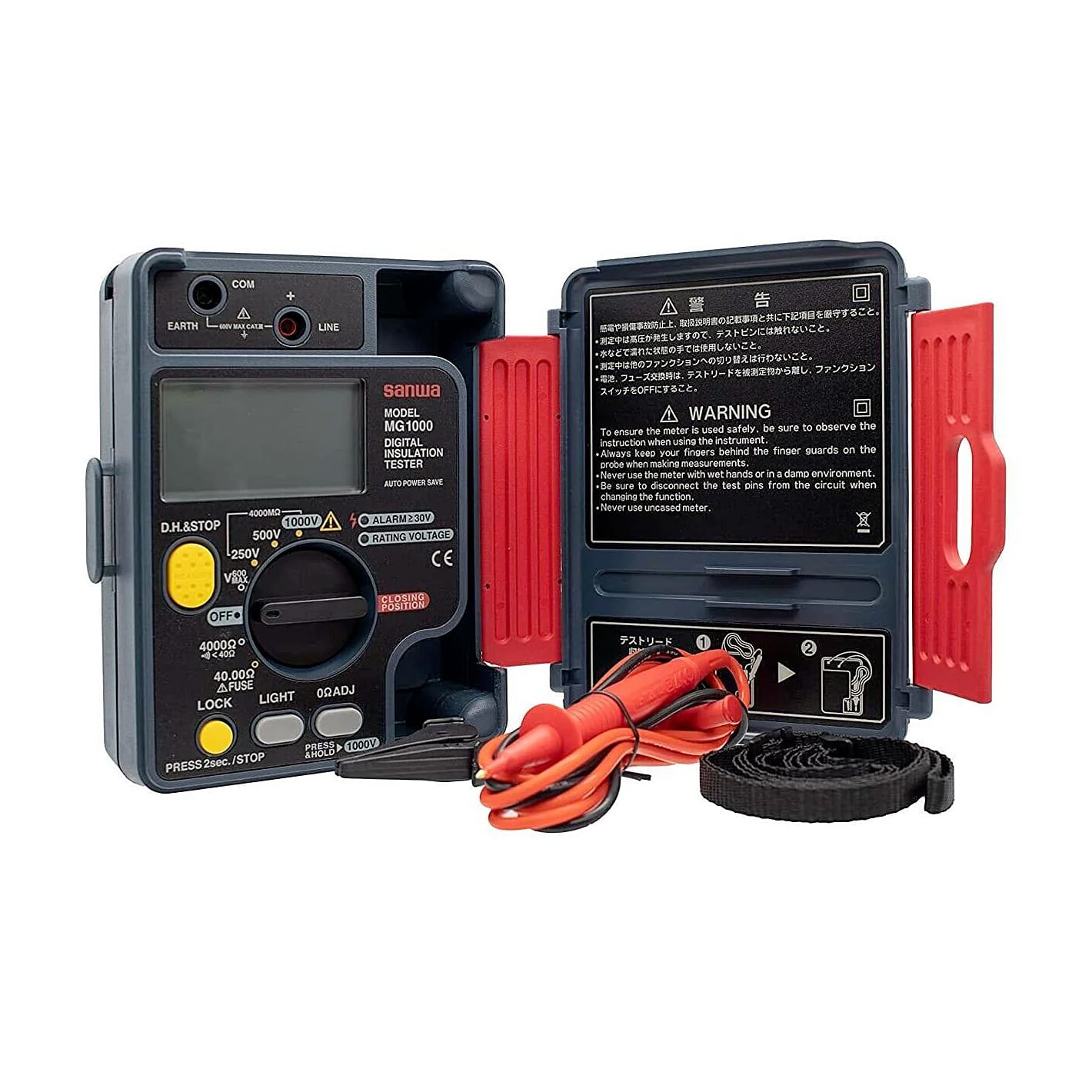

Package Content:
- Digital Insulation Tester
- Carrying Strap
- Test Leads
- Manual
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold
|
 |
Auto Power Save The display disappears to bring the device into the power-save state when a certain time has passed after power-up. Some models have a function to cancel this function. |
 |
Backlight Backlit display allows indicator reading in a dark place |
 |
Automatic Live Circuit Detection Live circuit detection prevents insulation test if the measured object is a live circuit. |
 |
Auto Discharge When the measurement of insulating resistance is complete, voltage charged in the measuring object is discharged. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage | 125 / 250 / 500V |
|---|---|
| Range | 4000 MOhms |
| ACV / DCV | 600V (AC/DC Automatic Detection) |
| Rated Current | 1.0~1.2mA |
| Short-circuit Detection | Below 2mA |
| Battery | 6x 1.5V R6P(AA battery) |
| Safety Standard | IEC61010 CAT.III 600V |
| Dimension (H x W x D) | 170 × 142 × 57 mm |
