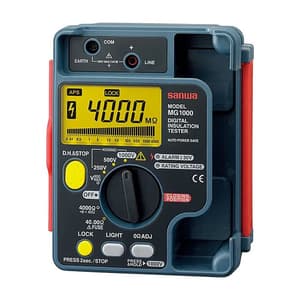

Sanwa 1000V / 4000 MOhms Range Digital Insulation Tester, MG1000
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 600 g
- Voltage: 250 / 500 / 1000V
- Range: 4M / 40M / 400M / 4000 MOhms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,072 (Incl. of all taxes)
₹17,010 + ₹3,062 GST (18%)
MRP was MRP ₹18,900
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights

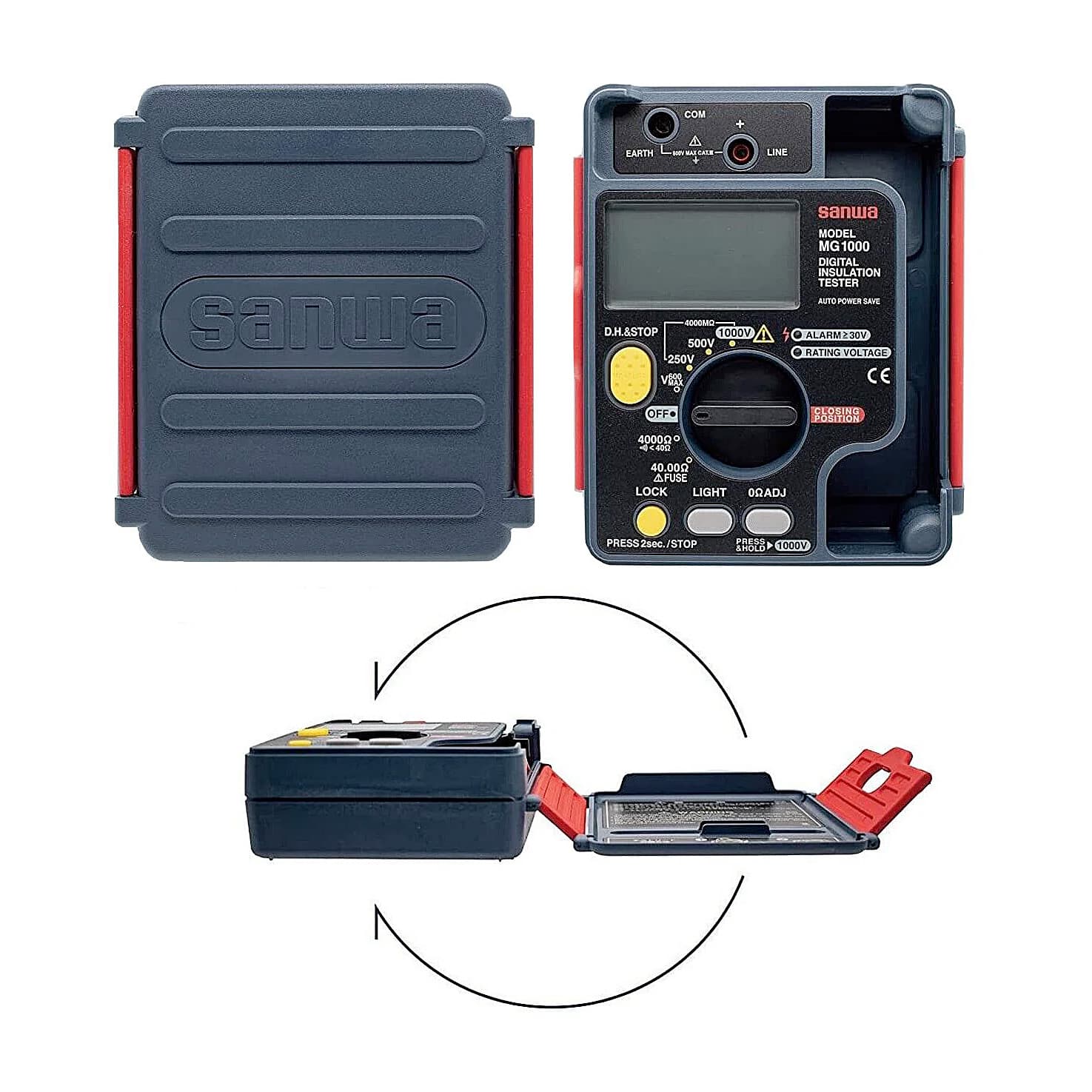

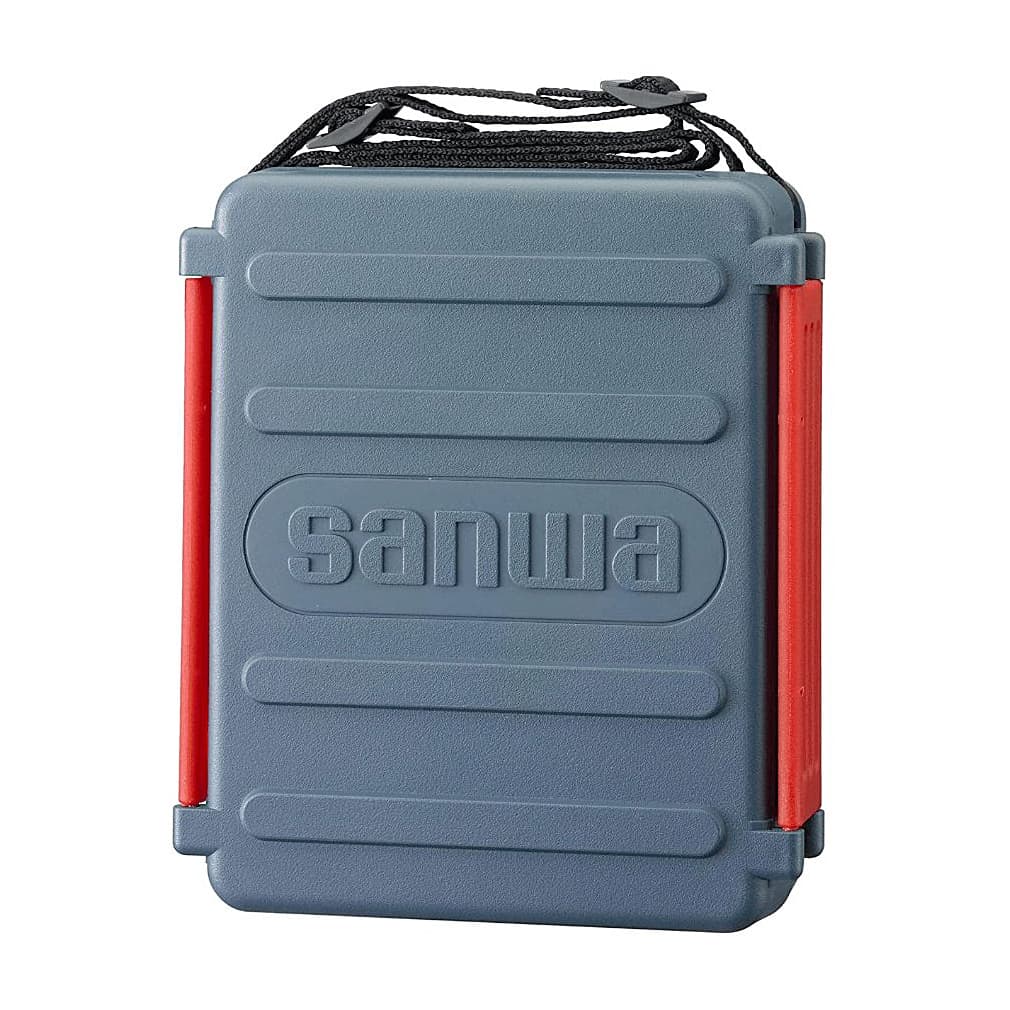

The MG1000 is a digital DC insulation resistance tester to measure the insulation resistance of power lines and equipment within 600V under CAT III. It has an insulation/resistance measurement range of 4M/40M/400M/4000MΩ, and a test voltage measurement range of 1000V/500V/250V. It has a large, 4200 count display with a backlight and log bar graph - just like in an analog meter. The MG1000 also features a lock-down cover that functions as a dust-proof and splash-proof IP54 rated carry case.
This device can also measure AC and DC voltages with an accuracy of 3%, and a maximum voltage of 600 Volts (AC & DC). The AC frequency bandwidth range is 45 to 400 Hertz. An indicator LED lights up when the input is greater than or equal to 30 volts (AC/DC), and the buzzer turns on when the voltage exceeds 600 volts, the maximum voltage that can be displayed in 780 Volts.
Features:
- Design compliant with IEC 61010-1
- MΩ function with automatic live circuit detection (>30 Volts AC/DC)
- Short circuit current up to 2mA
- Continuity test with buzzer alarm
- Large 4200 counts display with log bar and backlight
- Auto Hold function
- Auto Range
- Auto discharge function
- Auto power save: Enables about 10 minutes after the last operation
- Live circuit detection: At 30V AC/DC or more, inhibits test, buzzer sounds and ALARM indicator lights up
Technical Data:
| Function | Measuring Range | Accuracy | Resolution |
| MΩ | 4M / 40M / 400M / 4000MΩ | ±(3%+4) | 0.001MΩ |
| Rated voltage | 250 / 500 / 1000V | - | - |
| ACV/DCV | 600V (AC/DC Automatic detection) | ±(3%+2) | 1V |
| Ω (Continuity) | 4000Ω (Buzzer and Alarm indicator) | ±(3%+3) | 1Ω |
| Ω | 40Ω | ±(3%+10) | 0.01Ω |

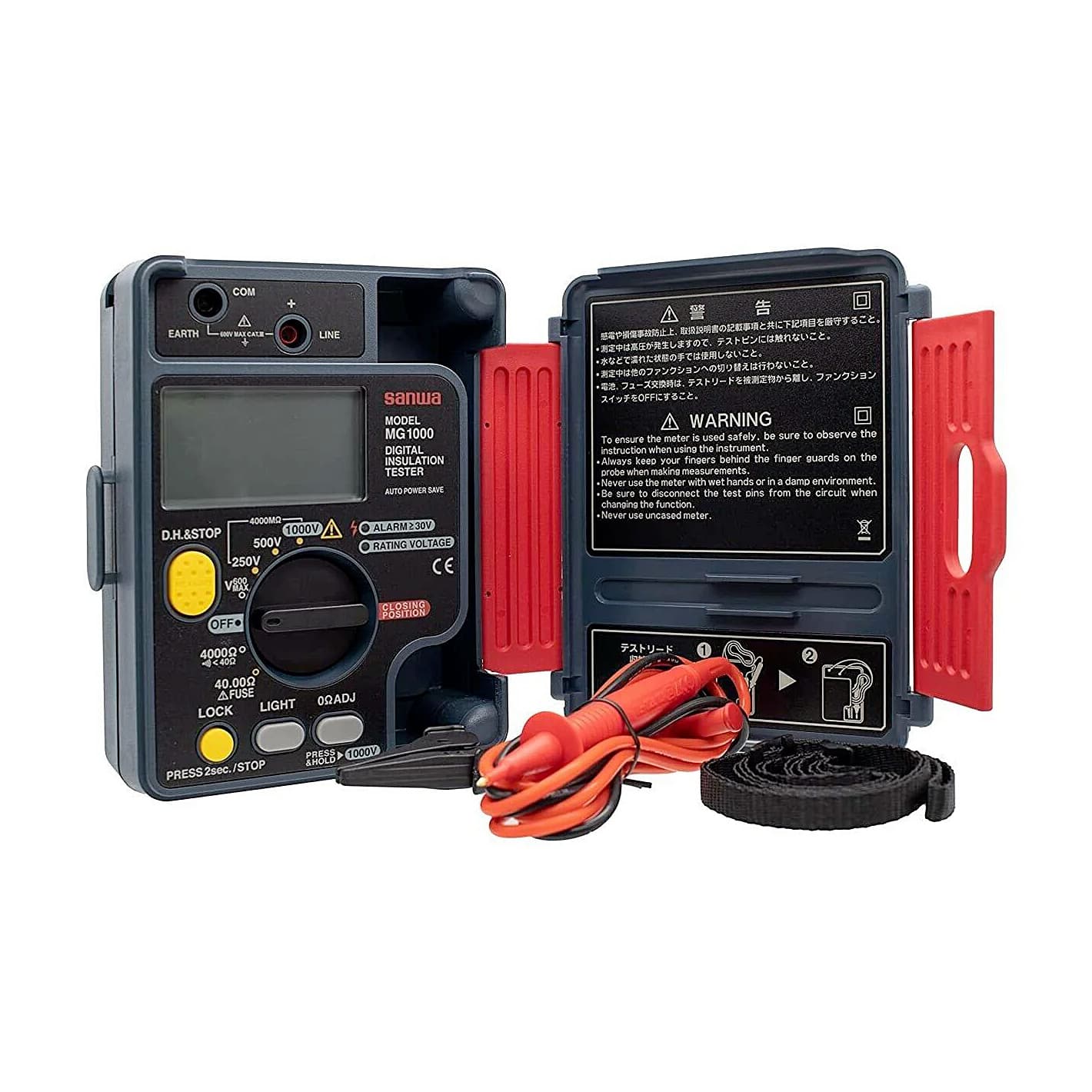

Package Content:
- Digital Insulation Tester
- Strap
- Test Leads
- Manual
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold
|
 |
Auto Power Save The display disappears to bring the device into the power-save state when a certain time has passed after power-up. Some models have a function to cancel this function. |
 |
Backlight Backlit display allows indicator reading in a dark place |
 |
Automatic Live Circuit Detection Live circuit detection prevents insulation test if the measured object is a live circuit. |
 |
Auto Discharge When the measurement of insulating resistance is complete, voltage charged in the measuring object is discharged. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage | 250 / 500 / 1000V |
|---|---|
| Range | 4M / 40M / 400M / 4000 MOhms |
| ACV / DCV | 600V (AC/DC Automatic Detection) |
| Rated Current | 1.0~1.2mA |
| Short-circuit Current | 2mA or less |
| Battery | 6x 1.5V LR6 (AA Alkaline Battery) |
| Safety Standard | IEC61010 CAT.III 600V |
| Dimension (H x W x D) | 170 × 142 × 57 mm |
