Sanwa 5000V DC High Voltage Digital Insulation Tester, MG5000
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 1.75 kg
- Voltage (DC): 250 / 500 / 1000 / 2500 & 5000V
- Rated Current: 3.0 mA ± 0.5 mA
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹69,561 (Incl. of all taxes)
₹58,950 + ₹10,611 GST (18%)
MRP was MRP ₹65,500
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights

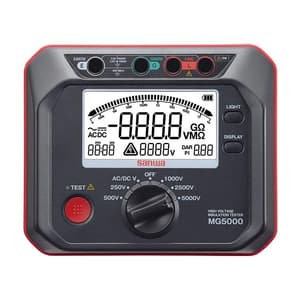

The MG5000 is an all-digital insulation tester that can measure the resistance of a power line and power equipment within the range of 600V under CAT. IV. It can measure a maximum resistance of up to 1TΩ with an accuracy of ±5%+3. The MG5000 has a 1200 counts digital display with a backlight feature and has a 36-point bar graph that displays the insulation resistance. This device has 5 voltage ranges for insulation resistance measurements, the ranges are automatically adjusted on this device. The MG5000 also has an ‘Auto Hold’ function that automatically holds or pauses the measured value on the screen. The instrument is IP54 rated and has a safe design compliant with the IEC61010-1 standards.
Features:
- Test voltage DC5000V/2500V/1000V/500V/250V
- Insulation Resistance up to 1TΩ
- Short circuit current up to 4mA
- Dielectric Absorption Ratio (DAR)
- Polarization Index (PI)
- 1200 Count LCD display with 36-points bar graph
- Auto discharge function
- Data hold (Auto)
- Auto power save: Enables about 10 minutes after the last operation
- Battery monitor
- IP 54 rated dust-proof and splash-proof design
- IEC 61010-1 compliant
Technical Data:
| Test Voltage (DC) | Range | Accuracy |
| 250V | 0.0~104.9Ω | ±5%+3 |
| 500V |
|
|
| 1000V |
|
|
| 2500V |
|
|
| 5000V |
|
|
| 80~1000GΩ | ±20% | |
| 1001~1199GΩ | - |

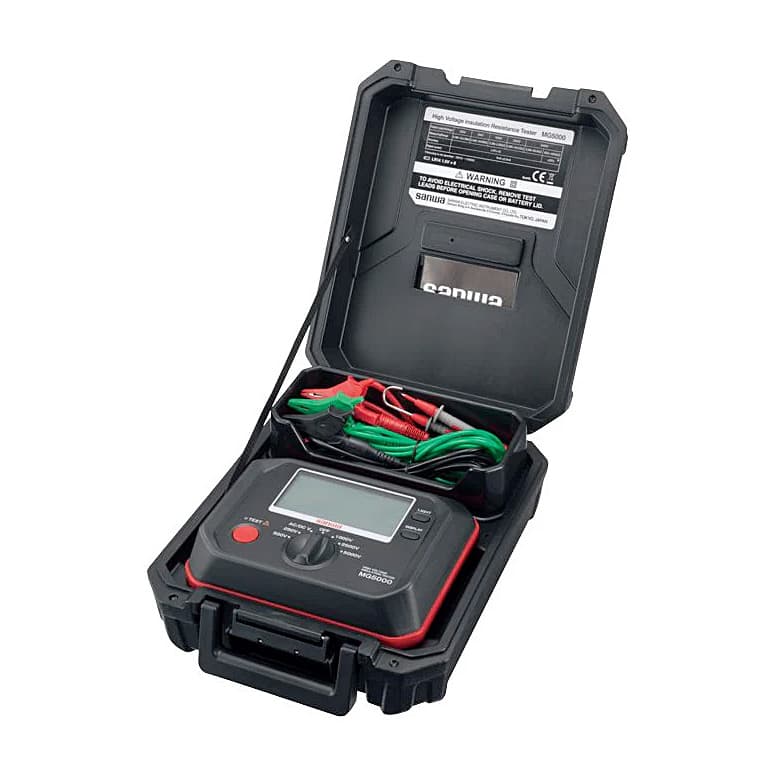

Package Content:
- Digital Insulation Tester
- 3 Test Leads
- Manual
- Hard-shell carry case
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Data Hold
|
 |
Backlight Backlit display allows indicator reading in a dark place |
 |
Automatic Live Circuit Detection Live circuit detection prevents insulation test if the measured object is a live circuit. |
 |
Auto Discharge When the measurement of insulating resistance is complete, voltage charged in the measuring object is discharged. |
 |
Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage (DC) | 250 / 500 / 1000 / 2500 & 5000V |
|---|---|
| Rated Current | 3.0 mA ± 0.5 mA |
| Open Circuit Voltage | 0%~+20% |
| Short-circuit Current | 3mA~4mA |
| Voltage Measurement | AC: 30~1000V (50/60Hz), DC: 30~1000V, Accuracy: ±(2%+3dgt) |
| Battery Monitor | 4-step Indication |
| IP Rate | IP54 |
| Battery | 8x 1.5V LR14(C Alkaline Battery) |
| Safety Standard | IEC61010 CAT.IV 600V |
| Dimensions (H x W x D) | 188 × 225 × 97 mm |
