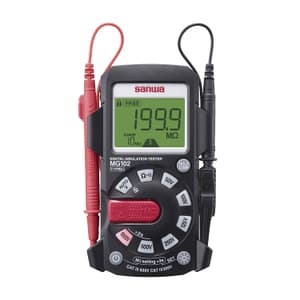

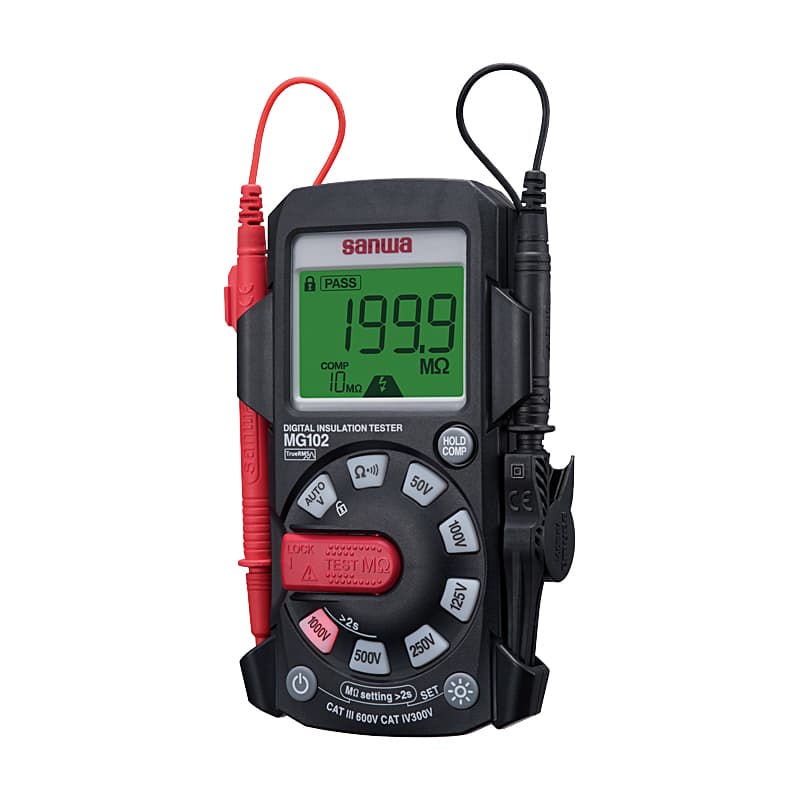

Sanwa 1000V / 4000 MOhms Pocket-sized Digital Insulation Resistance Tester, MG102
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 336 g

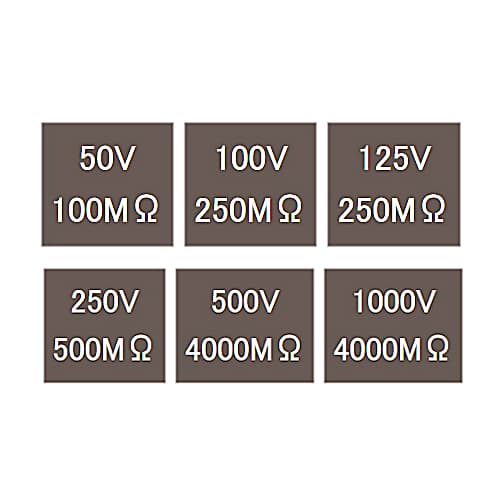

- Voltage Range: 50 / 100 / 125 / 250 / 500 / 1000V
- Range (MOhms): 100 / 250 / 500 / 4000MOhms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹51,188 (Incl. of all taxes)
₹43,380 + ₹7,808 GST (18%)
MRP was MRP ₹48,200
Save 10%
5 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
- Safety design compliant with IEC61010 CAT. IV 300 V.
- Large, easy-to-read LCD with backlight.
- LED-illuminated buttons for clear indication of test voltage.
- Comparator function for insulation resistance values.
- Test voltage selection mode allows enabling or disabling the test voltage button (power-on option).
Technical Data:
| Function | Measuring range | Best accuracy | Resolultion |
|---|---|---|---|
| MΩ | 50V - 0.999 / 9.99 / 99.9MΩ 100/125V - 0.999 / 9.99 / 99.9 / 250MΩ 250V - 0.999 / 9.99 / 99.9 / 500MΩ 500/1000V - 0.999 / 9.99 / 99.9 / 999 / 4000MΩ |
±(2%+6) | 0.001MΩ |
| Rated voltage | 50 / 100 / 125 / 250 / 500 / 1000V | - | - |
| ACV / DCV | 600V (AC/DC Automatic detection) | ±(1.2%+5) | 0.1V |
| Ω | 999.9 / 9.999k / 99.99k / 999.9kΩ | ±(1.5%+7) | 0.1Ω |
| Continuity | 9.999Ω (Buzzer sounds at 30Ω or less.) | ±(1.5%+7) | 0.1Ω |
| Frequency | 1999Hz (Displayed during ACV measurement.) | ±(0.5%+5) | 1Hz |
Functions:
 |
Frequency Expressed in the unit of Hz (hertz). Commercial frequency of 50Hz/60Hz can be measured. |
 |
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
True RMS (True root-mean-square value) True RMS value. AC current and voltage of a non-sine wave can be measured by true RMS values. |
 |
Backlight Allows indicator reading in a dark place. |
 |
Auto power off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
 |
Continuity buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Automatic live circuit detection Live circuit detection prevents insulation test if the mesured object is a live circuit. |
 |
Auto discharge When the measurement of insulating resistance is complete, voltage charged in the measuring object is discharged. |
Package Content:
- 1x Digital Insulation Resistance Tester
- 1x Test Lead (ATL102)
- 1x Test Probe (ABP301)
- 1x Adapter (AAl301)
- 1x Battery Holder (BH1)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage Range | 50 / 100 / 125 / 250 / 500 / 1000V |
|---|---|
| Range (MOhms) | 100 / 250 / 500 / 4000MOhms |
| Rated Current | 1.0~1.2mA |
| Battery | 4x LR6 (AA alkaline battery) |
| Safety Standard | IEC61010 CAT.IV 300V CAT.III 600V |
| Dimension (H x W x D) | 147 x 68 x 33 mm |
