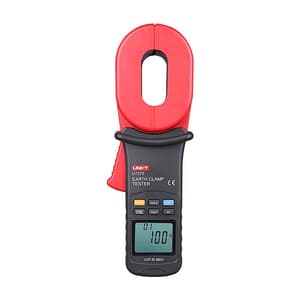

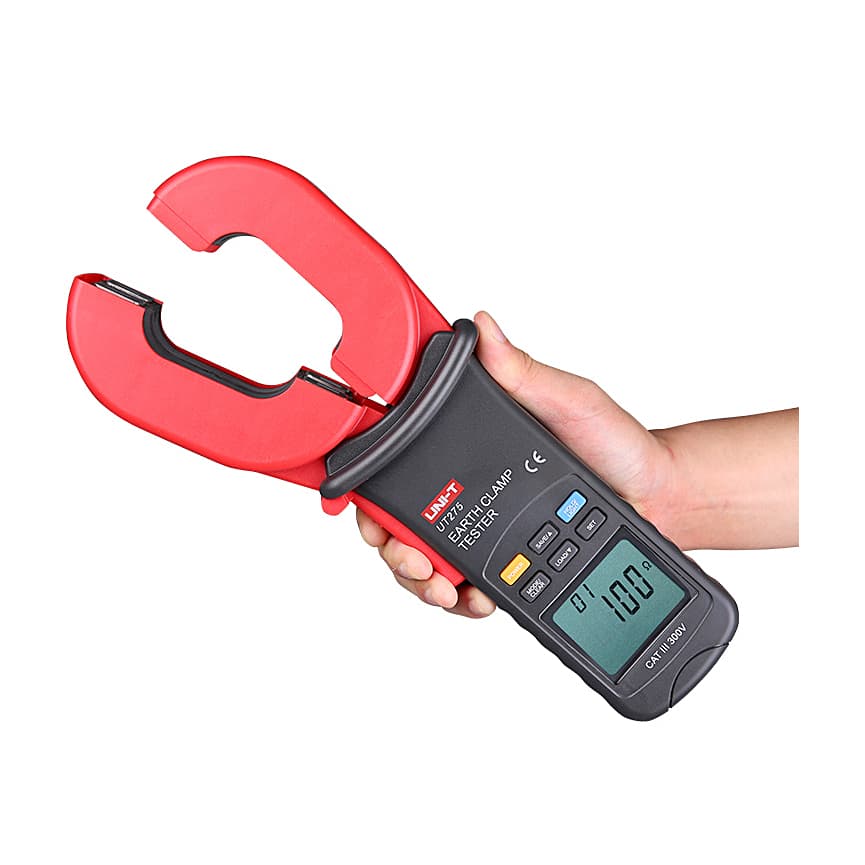

UNI-T 1000 Ohm / 10000 Count Clamp On Earth Resistance Tester, UT275
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 1.32 kg
- Resistance Range: 0.01 - 1000 Ohm
- Leakage Current (A): 0 mA - 30A
- Display Count: 10000
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹41,123 (Incl. of all taxes)
₹34,850 + ₹6,273 GST (18%)
MRP was MRP ₹41,000
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT275 can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω with a resolution of 0.001Ω. UT275 can also measure leakage current up to 30A. These clamps’double insulation design makes them durable tools for outdoor work and e?ective in blocking interference signals from the environment.
Features:
- Resistance limit alarm
- Auto range
- Low battery indication
- Data hold
- Data recall
- LCD backlight
- Auto calibration
- Auto power off
Technical Data:
| Range | Accuracy | |
| Earth Ground Resistance (Ω) | 0.01~0.099Ω | ±(1%+0.01) |
| 0.1~0.99Ω | ±(1%+0.01) | |
| 1~49.9Ω | ±(1.5%+0.1) | |
| 50~99.5Ω | ±(2%+0.5) | |
| 100~199Ω | ±(3%+1) | |
| 200~395Ω | ±(10%+5) | |
| 400~590Ω | ±(20%+10) | |
| 600~1000Ω | ±(25%+20) | |
| Leakage current (A) | 0mA~299mA | ±(2.5%+2mA) |
| 0.3A~2.99A | ±(2.5%+100mA) | |
| 3A~30A | ±(2.5%+300mA) |
Package Content:
- 1x Clamp on Earth Resistance Tester
- 4x 1.5V batteries (LR6)
- Test ring
- English manual
- Gift box
- Tool box
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance Range | 0.01 - 1000 Ohm |
|---|---|
| Leakage Current (A) | 0 mA - 30A |
| Display Count | 10000 |
| Jaw Opening (mm) | 28 mm |
| Data Storage | 30 |
| Display Type | LCD Display |
| Display Size | 47 x 28.5 mm |
| Power Supply | 4x 1.5V batteries (LR6) |
| Dimensions (mm) | 293 x 90 x 66 mm |
