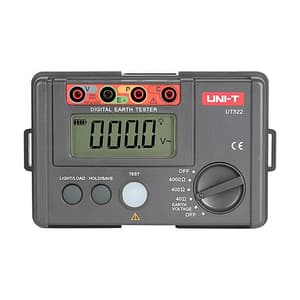

UNI-T 4000 Ohms Range Digital Earth Resistance Tester, UT522
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 560 g
- Earth Resistance: 0 – 4000 Ohms
- AC Earth Voltage: 0 ~ 400V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,048 (Incl. of all taxes)
₹13,600 + ₹2,448 GST (18%)
MRP was MRP ₹16,000
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT522 Digital Earth Tester can perform precise 3-wire and simple 2-wire earth resistance measurement for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment. This series is UNI-T’s introductory earth resistance tester with high economic value. Its lightweight design is convenient for fieldwork.
Features:
- Manual range
- Low battery indication
- Data hold
- LCD backlight/auto power off
- Full icon display
- Double insulation protection
- Poor contact display: “…Ω”
- Over-range display: Display “OL”
- Simple 2-wire testing
- Precise 3-wire testing
Technical Data:
| Specifications | Range | Accuracy |
| Earth resistance (Ω) | 0 ~ 40Ω | ±(2%+20) |
| 0 ~ 400Ω | ±(2%+3) | |
| 0 ~ 4000Ω | ±(2%+3) | |
| AC earth voltage (V) | 0 ~ 400V | ±(1%+6) |
Package Content:
- 1x Digital Earth Tester
- 6x 1.5V batteries (LR6)
- Simple test leads with alligator clips
- Standard test leads with alligator clips
- Earth spike
- Gallus
- Gift box
- Carrying Bag
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Earth Resistance | 0 – 4000 Ohms |
|---|---|
| AC Earth Voltage | 0 ~ 400V |
| AC Earth Voltage Frequency | 50Hz / 60Hz |
| Display Count | 4000 |
| Auto Power Off | Around 10 minutes |
| Data Storage | 20 |
| Power Supply | 6x 1.5V Batteries (LR6) |
| Display Size | 70.6 x 34 mm |
| Product Color | Red & Grey |
| Dimensions (mm) | 160 x 100 x 70.5 mm |
