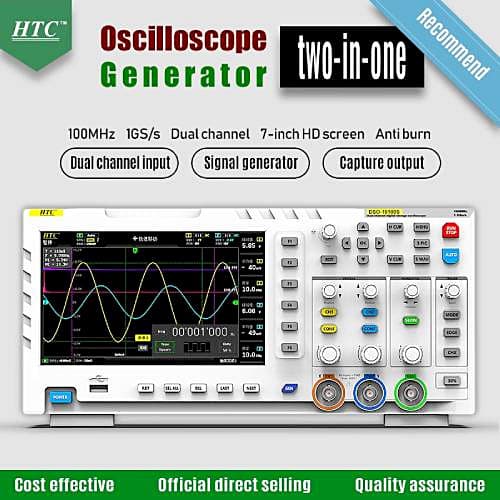

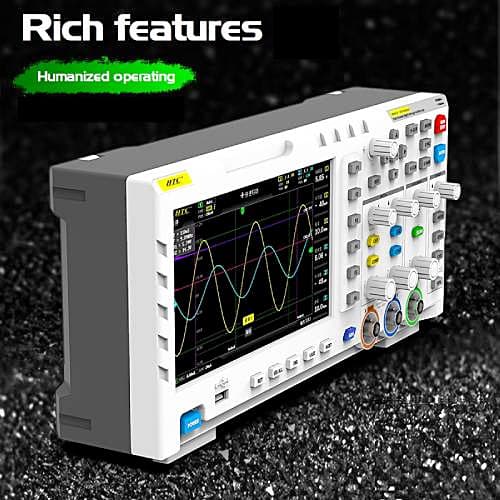

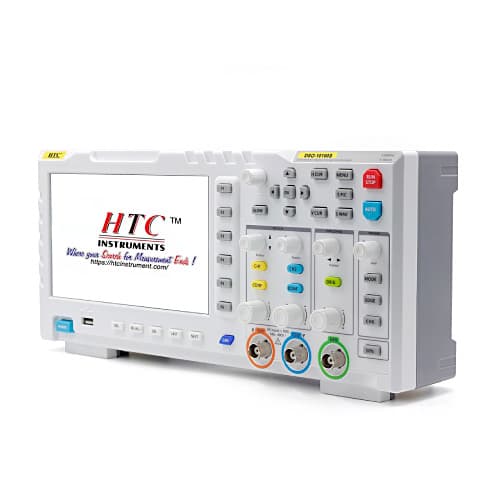

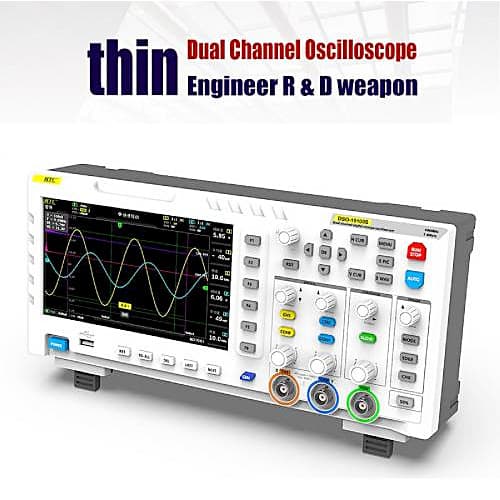

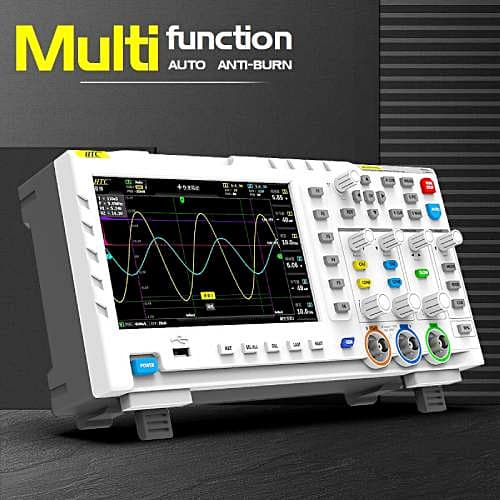

HTC 100 MHz / 1GS/s Dual Channel Digital Oscilloscope & Function Generator, DSO-10100S
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Bandwidth: 100 MHz
- No. of Channels: Dual Channel
- Real-time: 1GS/s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,435 (Incl. of all taxes)
₹13,928 + ₹2,507 GST (18%)
MRP was MRP ₹17,410
Save 20%
5 Business Days
1
90302000
Download HTC CatalogueNot available
Highlights
Built in DDS Function Signal Generator 14 standard signals (@2.5VPP). including sine wave, square wave, triangle wave, sawtooth, anti sawtooth, ladder wave, half wave rectification, full wave rectification, exponential wave, logarithmic wave, pair index, open square wave, multi audio, sink pulse wave, as well as a cut-off output function that can customize the output signal freely.
In which the sine wave frequency can reach 10MHz at most and other standard signals can reach 2MHz. cutt-off frequency can reach 2MHz. The wave output device can reach 1MHz at most an the frequency resolution of all signals can reach 1Hz (Step). It is not the half frequency step mode of half frequency division produced by other handheld devices.
- 2 in 1 Dual Channel Input.
- Signal Generator 100MHz x 2 Analog Bandwidth.
- 1GSa/s Real Time Sampling Rate.
- The LCD screen is 7 inches.
- High Intelligent Decoding algorithm.
Measurement:
| Cursor | Manual mode | Voltage Difference (V) between cursors; Time Difference (T) between cursors; Reciprocal of T(1/) |
| Stored waveform | built-in 1GB storage space, can store up to 1000 screen capture pictures + 1000 groups of waveform data 240Kbit | |
| LCD | 7 INCH 800+400 |
|
| Lissajou’s figure | Phase location difference | ±3 degrees |
Power:
| Power Voltage | 100~240VACRMS, 45~60Hz, CAT II | |
| Power Consumption | To be less than 30VA | |
| Fuse | F1, 6AL, 250V; Fuses are on power board in the unit |
|
| Dimension | Width | 310mm |
| Height | 145mm | |
| Depth | 70mm | |
| Accessories | 100M Probe *2, USB Adapter, User Manual |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Bandwidth | 100 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Real-time | 1GS/s |
| Vertical Sensitivity | 50mV/div~500V/div |
| Horizontal Time base Range | 50S/div ~ 10nS/div |
| Trigger Mode | Single, Normal, Auto |
| Trigger Edge | Rising Edge / Falling Edge |
| Coupling | AC/DC |
| Input Resistance | 1M Ohms |
| Maximum Test Voltage | 40V(1xprobe), 400V(10xprobe) |
