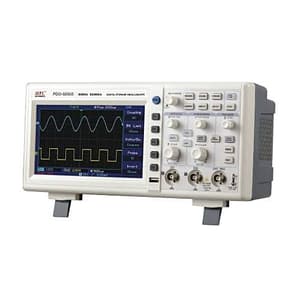

HTC 50 MHz / 1GS/s Dual Channel Digital Oscilloscope, PDO-5050S
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Bandwidth: 50 MHz
- No. of Channels: Dual Channel
- Reading Resolution: 6-bit
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,170 (Incl. of all taxes)
₹18,788 + ₹3,382 GST (18%)
MRP was MRP ₹23,485
Save 20%
Out of Stock
7 Business Days
1
90302000
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
The digital oscilloscope has advanced features of storage, triggering and measurement. Also, it displays the signal visually as well as numerically. The digital oscilloscope digitises and stores the input signal.
Trigger:
| Trigger sensitivity | ≤1div | |
| Trigger level scope | ||
| Internal | ±5div away from screen center | |
| EXT | ±3V | |
| EXT/5* | ±15V | |
| (Typical) precision of trigger | Internal | ±(0.3div V/div) (within scope of ±4div ± from screen center) |
| level for signal of which Rise | EXT | ±(6% of set value + 40mV) |
| Time or Descend Time is | EXT/5* | ±(6% of set value + 200mV) |
| not less than 20ns | ||
| Pre-trigger ability | Normal mode/scanning mode, pre-trigger/delay trigger with adjustable pre-trigger depth | |
| Inhibition scope | PDO-50200S: 100ns-1.5s PDO-5025S/5050S/5070S/50100S : 80ns-1.5s |
|
| (Typical) level set to 50% | Operation if frequency of input signal is not less than 50Hz |
Measurement:
| Cursor | Manual mode | Voltage difference (V) between cursors; |
| Time difference (T) between cursors; | ||
| Reciprocal of ?T(1/?) | ||
| Tracing mode | Voltage and time of waveform point | |
| It is allowed to display cursor during automatic measurement | ||
| Automatic measurement | Peak value, amplitude, the maximum value, the minimum value, top value, bottom value, middle value, average value, root-mean-square, overshoot, preshoot, frequency, cycle Rise Time, Descend Time, positive pulse width, negative pulse width, positive duty cycle negative duty cycle and delay | |
| Mathematical operation | +,-,x,% | |
| Stored waveform | PDO-50200S/PDO-5025S/5050S/5070S/50100S: 20 groups of waveform and 20 kinds of setup | |
| FFT | Window | Hanning, Hamming, Blackman, Rectangle |
| Sampling point | 1024 points | |
| Lissajous’s figure | Phase location | ±3degrees |
| difference |
Power:
| Power Voltage | 100-240VACRMS, 45-440Hz, CAT II | |
| Power Consumption | To be less than 30VA | |
| Fuse | F1.6AL 250V; Fuses are on Power board in the unit |
|
| Dimension | Width | 320mm |
| Height | 150mm | |
| Depth | 130mm | |
| Weight | Not containing package | 2.5kg |
| Containing package | 4.0kg |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Bandwidth | 50 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Reading Resolution | 6-bit |
| Trigger Sensitivity | <30Vrms |
| (Typical) Precistion | ±51ppm (+word) |
| Pulse Width Scope | 20ns-10s |
| Trigger Mode | To be more than, less than or equivalent to positive/negative pulse width |
| Edge Type | Ascend, descend, ascend & descend |
