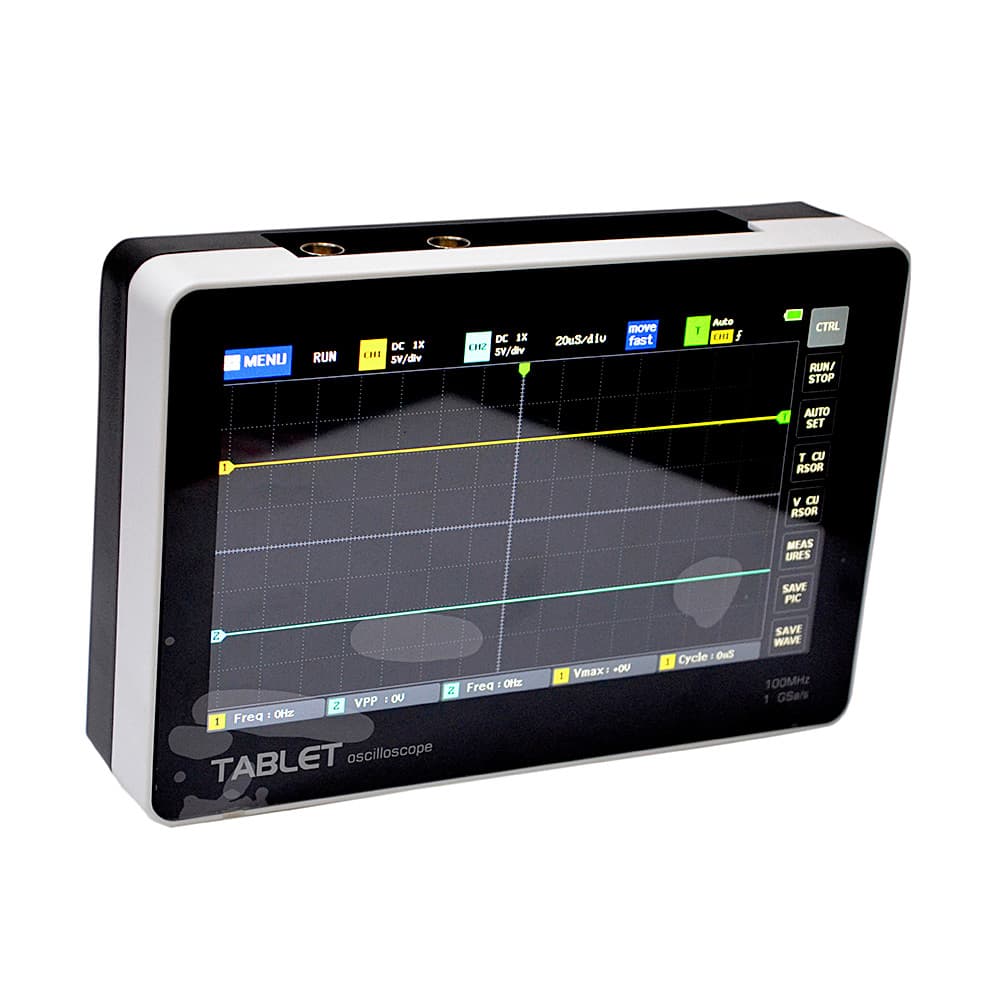

HTC 100 MHz / 1GSa Tablet Type Digital Storage Oscilloscope (Touchscreen), DSO-20100S
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Bandwidth: 100 MHz
- Display: 7 inch – 800x480
- Real-Time: 1GSa
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,427 (Incl. of all taxes)
₹15,616 + ₹2,811 GST (18%)
MRP was MRP ₹19,520
Save 20%
5 Business Days
1
90302000
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Intelligent anti-burn, 1X can withstand up to 400V withstand voltage
- 100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz,10X=100MHz).
- One-button waveform storage and screenshot
- Equipped with high-efficiency One-button AUTO
- At any time, the waveform display (pause function) is frozen
- FFT display function can analyze the spectral characteristics of the signal.
- Built-in 6000mAh rechargeable lithium battery, fully charged for 4 hours of continuous use at the highest screen brightness.
- Screen brightness adjustment.
- Background grid brightness adjustment.
- Ultra-thin, easy to carry.

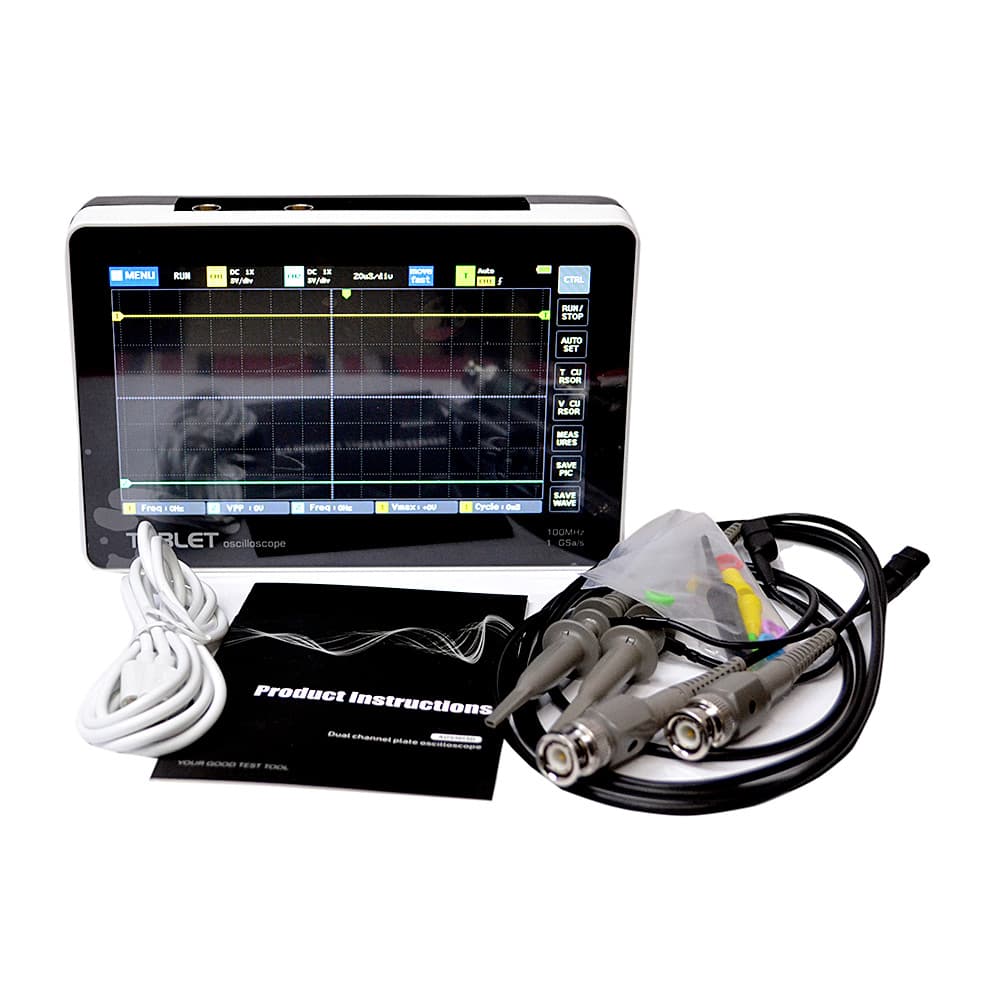

Package Contents:
- DSO-20100S Digital Storage Oscilloscope.,
- Instruction Manual,
- Charging Cable,
- Test Leads.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Bandwidth | 100 MHz |
|---|---|
| Stored waveform | Built-in 1 Gb Storage Space |
| Display | 7 inch – 800x480 |
| Lissajou's Figure | Phase Location Difference |
| Real-Time | 1GSa |
| Band Width | 1x-5MHz / 10x-100MHz |
| Vertical Sensitivity | 50mV/div~500V/div |
| Horizontal Time Base Range | 50S/div ~ 10nS/div |
| Trigger Mode | Auto, Single, Normal |
| Trigger Edge | Rising Edge & Falling Edge |
| External Trigger Voltage | 0~40V |
| Coupling Mode | AC/DC |
| Input Resistance | 1 Ohms |
| Maximum Test Voltage | 40V (1 X Probe), 400V (10 X Probe) |
| Power Supply | 1x Lithium battery , 6000mAh (Included) |
