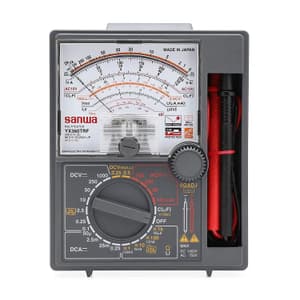

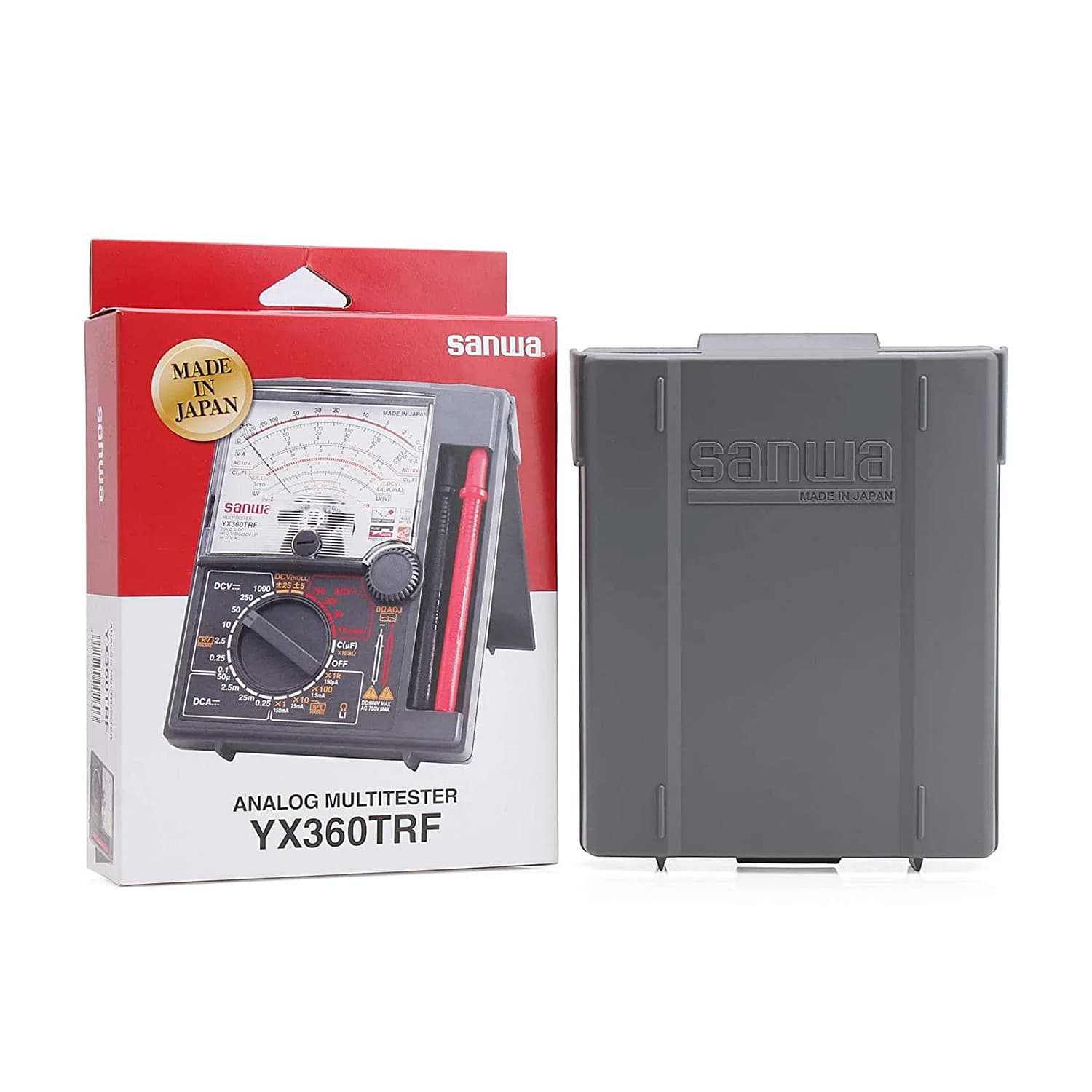

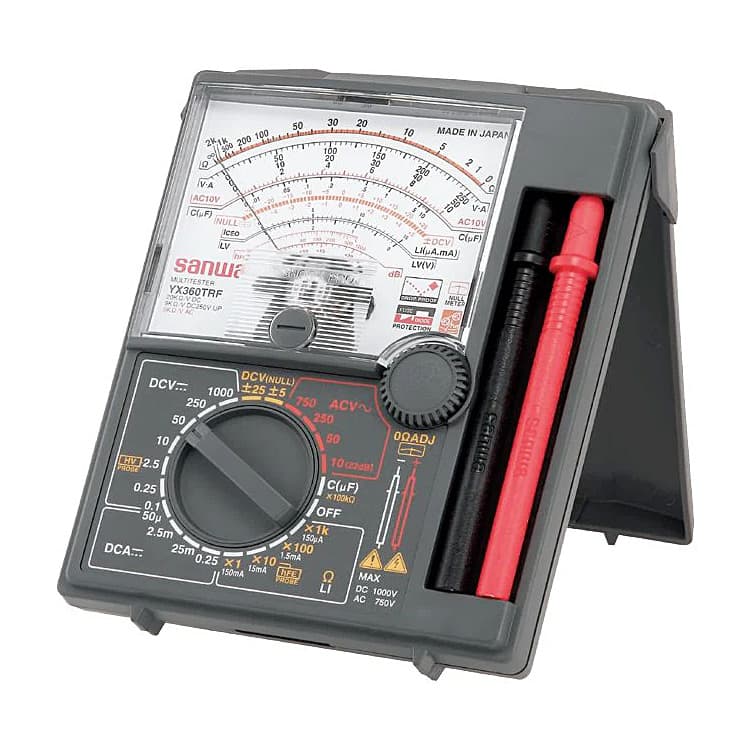

Sanwa 0.1 - 1000V Analog Multimeter With Built-In Case, YX360TRF
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 320 g
- DC High Voltage: DC25kV
- hFE: 1000 at x10 range
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,460 (Incl. of all taxes)
₹3,780 + ₹680 GST (18%)
MRP was MRP ₹4,200
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights

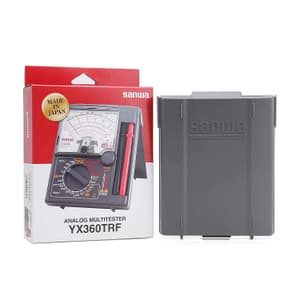

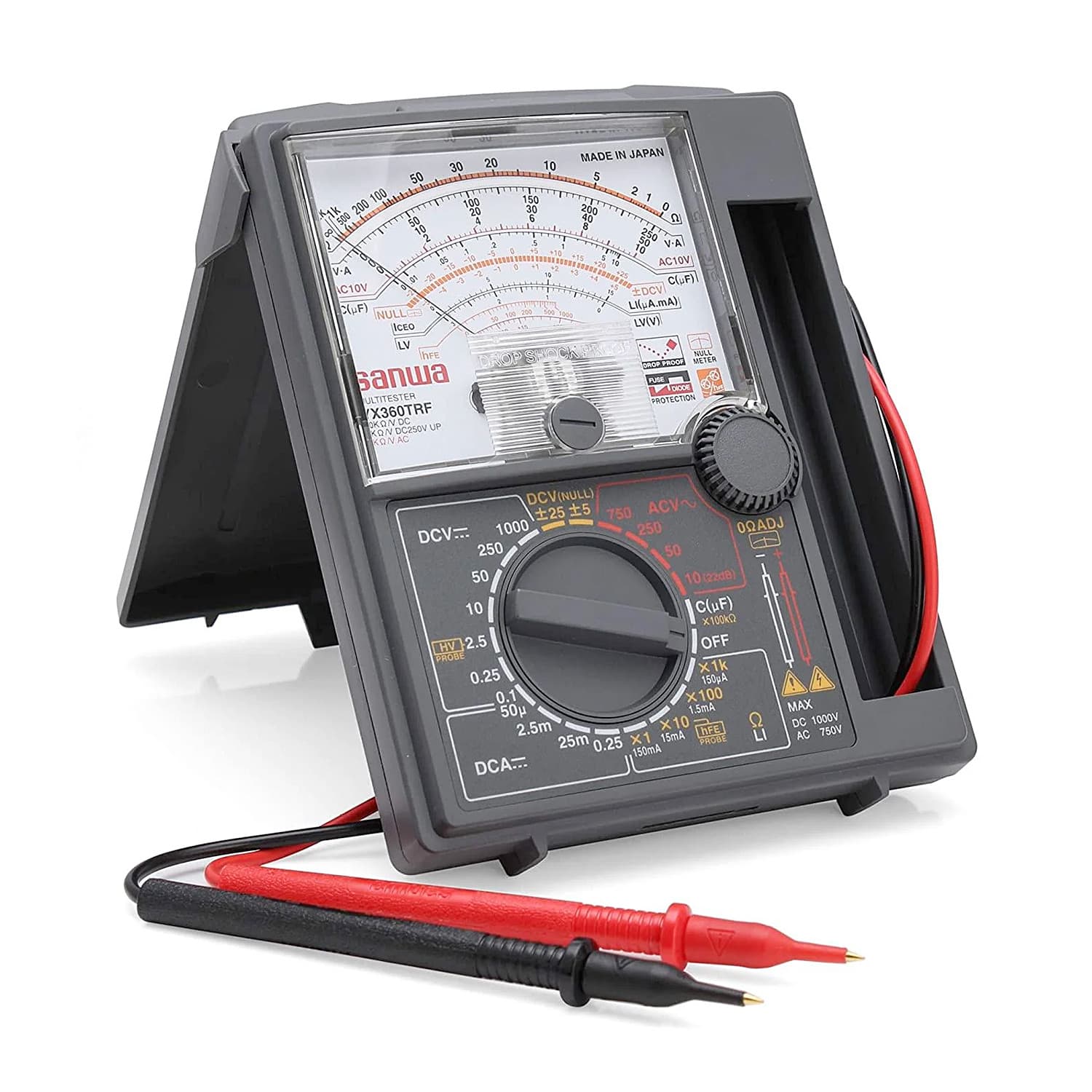

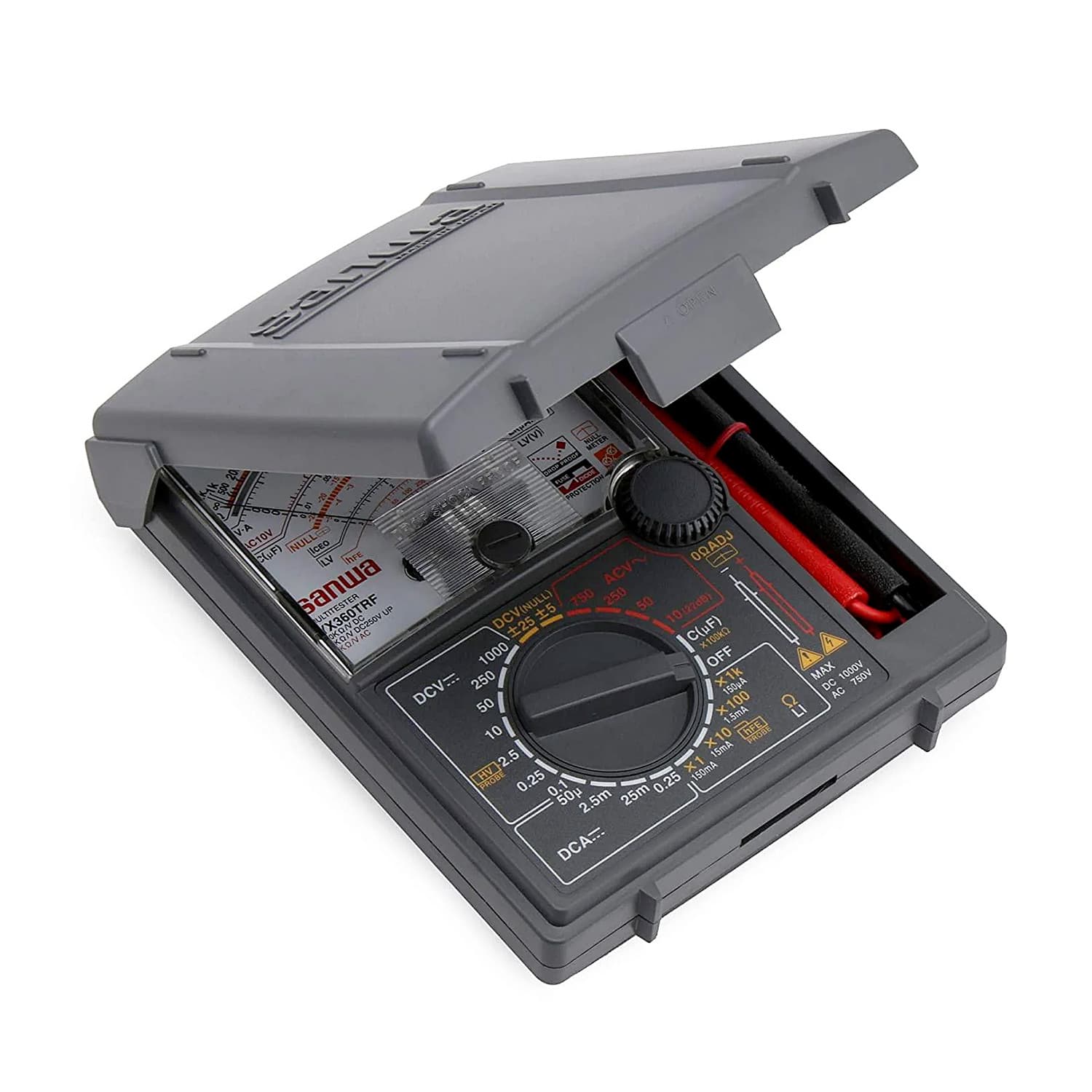

The YX360TRF is a taut-band type meter designed for low-voltage circuit measurements. It can measure DCV, DCA, AC, resistance, capacitance(10uF), Load line current, Signal power in dB as well as high DC voltage of up to 25kV using an HV-10T probe (optional). When measuring DCV the meter utilizes the Null reading for ±25V with an accuracy of ±5% full-scale accuracy. This multimeter has a solid cover that provides protection against drop shocks, and conveniently folds over to use as a tilt stand, and features a compartment for storing the attached test leads. For circuit protection, the device features a replaceable fuse rated at (250V / 0.5A).
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Drop shock-proof meter
- Null (zero center) meter ±5 / ±25 in DCV
- High resistance up to 200MΩ with low voltage
- Solid & protective body cover that can also be used as a tilt stand
- Capacitance, dB, LI measurement
Technical Data:
| Function | Measuring Range | Tolerange |
| DCV | 0.1 (20kΩ/V) | ±5% of full scale |
| 0.25/2.5/10/50 (20kΩ/V)/250/1000V (9kΩ/V) | ±3% of full scale | |
| DCV (NULL) | ±5/25V (40kΩ/V) | ±5% of full scale |
| ACV | 10/50/250/750 (9kΩ/V) | ±4% of full scale |
| DCA | 50µ/2.5m/25m/0.25A | 1±3% of full scale |
| Resistance | 2k/20k/200k/2MΩ (x1/x10/x100/x1k) | ±3% of arc |
| 200MΩ (x100k) | ±5% of arc | |
| Capacitance | 10μF | Approximate value |
| dB | -10dB ~ +22dB (for 10VAC) ~ +62dB | Approximate value |
| Load current (LI) | 0-150m/15m/1.5m/150μ/1.5μA | Approximate value |
Functions:
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
Battery Check Battery voltage is measured and assessed by running a given current. |
 |
Drop Shock Proof The meter element is constructed with a taut band and impact-resistant design. |
 |
hFE Provided with graduations for measuring the DC current amplification factor (hFE) of a transistor. |
 |
Zero Center Meter (NULL) Moves the indicator of the analog tester to the center of the scale for measurement of positive and negative voltage. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC High Voltage | DC25kV |
|---|---|
| hFE | 1000 at x10 range |
| Battery | R6 (IEC) or UM-3 (1.5V)x2 |
| Fuse | Ø5.2x20mm (250V/0.5A) |
| Dimensions (H x W x D) | 159.5 × 129 × 41.5 mm |
