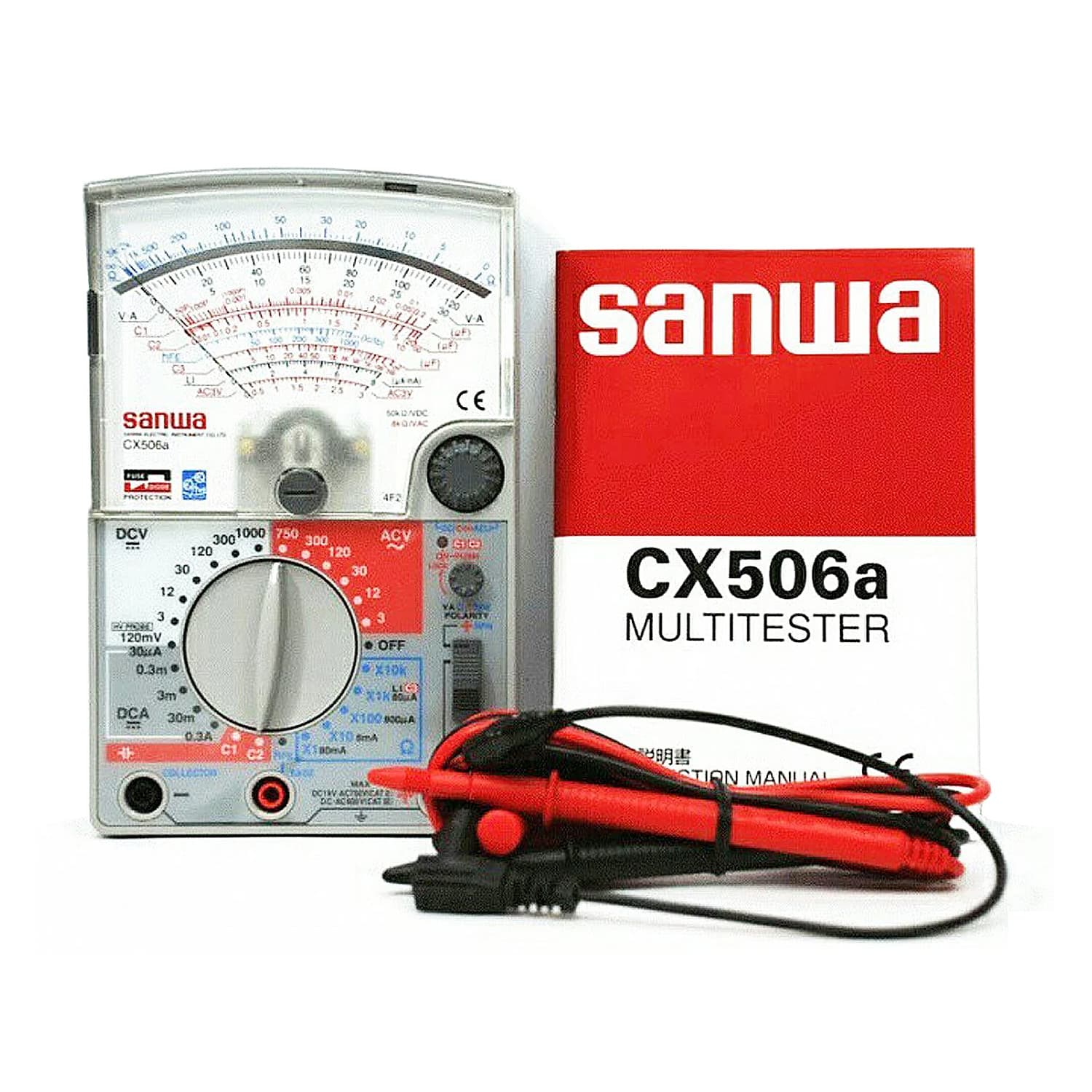

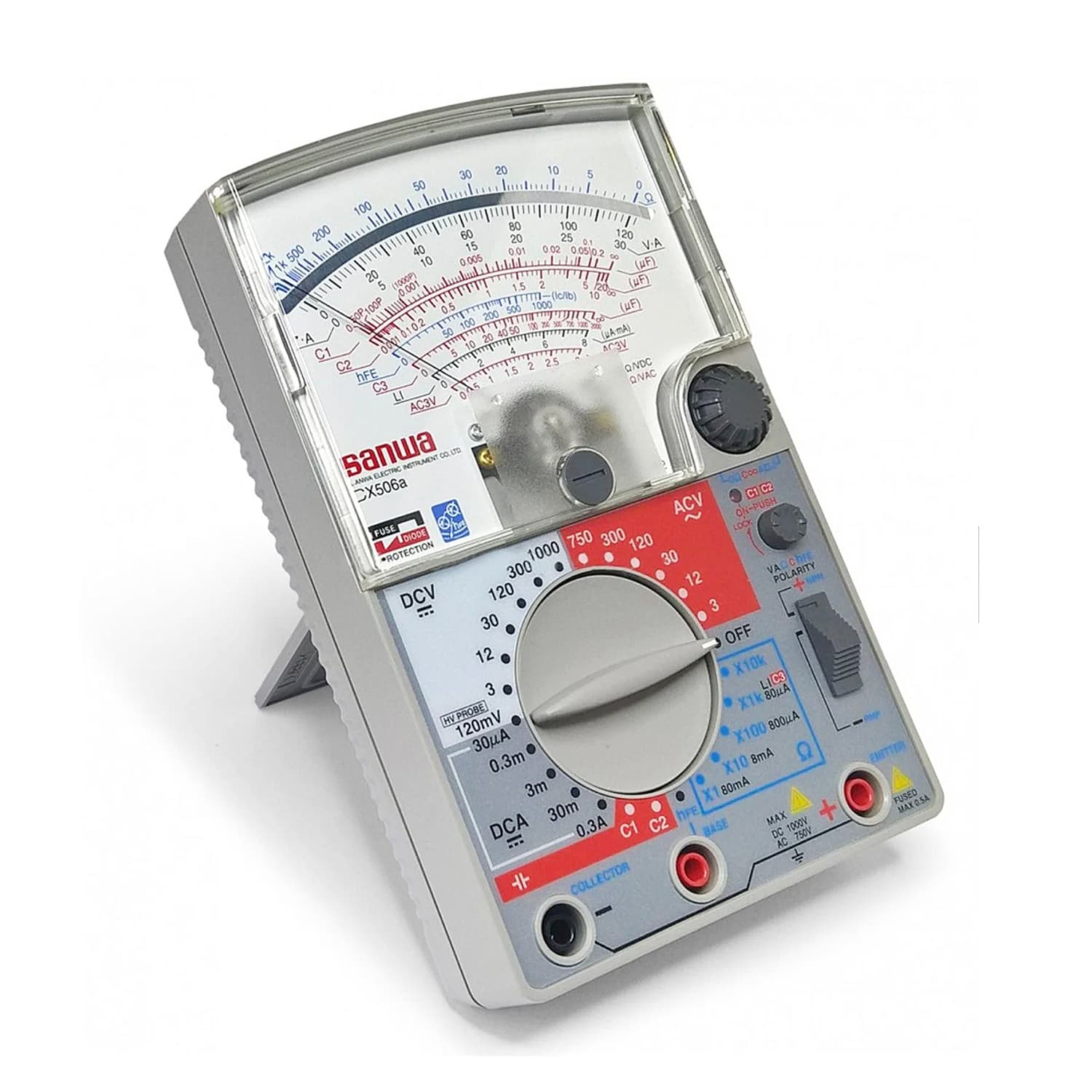

Sanwa 3 - 1000V Analog Multimeter, CX506A
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 370 g
- Frequency: AC12V range or lower 40Hz to 30kHz, AC30V range 40Hz to 10 kHz: frequency response within ±3%
- Battery: 2x1.5V R6P (AA Battery), 1x 6F22 (9V Manganese Battery)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,682 (Incl. of all taxes)
₹9,900 + ₹1,782 GST (18%)
MRP was MRP ₹11,000
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The CX506a is a multimeter designed for low-voltage circuit measurements and home electric appliances. This is a taut-band type meter (15μA) with internal magnet that features an all-plastic rigid body and wide range of measurement functions - 26 to be exact. It can measure DC voltages up to 1000 volts with an accuracy of ±2.5% of full scale, and AC voltages of up to 750 volts with an accuracy of ±3.0% of full scale. Users can also use this multi-tester to measure DC current, resistances, and capacitances. The device also has a polarity reversal switch for DCV and DCA. The CX506a also features a transistor check function that allows the users to test their BJTs (Bi-junctional transistors).
Features:
- Wide measurement functions 26ch switches
- Polarity reversal switch for DCV and DCA
- High-sensitivity taut-band meter (DC 50k Ω/V)
- Capacitance measurement by built-in transistor oscillator
Technical Data:
| Function | Measuring Range | Tolerange |
| DCV | 120m (4kΩ)/3/12/30/120 300 (50kΩ/V) / 1000V (15kΩ/V) | 120m:±4% ±2.5% of full scale |
| ACV | 3/12/30/120/300/750V (8kΩ/V) | ±3% of full scale (3/12V:±4% of full scale) |
| DCV | 30µ/0.3m/3m/30m/0.3A | ±2.5% of full scale (30μ/0.3mA:±3% of full scale) |
| Resistance | 5k/50k/500k/5M/50MΩ | Within ±3% of arc |
| Capacitance | C1: 50p ~ 0.2μF; C2: 0.01μ~20μF; C3:1 ~ 2000μF | C1/C2: ±6% of arc C3: Approximate value |
| DC current gain hFE | Transistor hFE: 0 to 1000 | Approximate value |
Functions:
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
hFE Provided with graduations for measuring the DC current amplification factor (hFE) of a transistor. |
 |
Polarity switch The positive and negative polarity of the measuring terminal can be changed by this switch. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency | AC12V range or lower 40Hz to 30kHz, AC30V range 40Hz to 10 kHz: frequency response within ±3% |
|---|---|
| Battery | 2x1.5V R6P (AA Battery), 1x 6F22 (9V Manganese Battery) |
| Built-in Fuse | F1176 Ø5x20mm 0.5A/250 V 1.5kA Ceramic Fuse |
| Dimension (H x W x D) | 165 × 106 × 46 mm |
