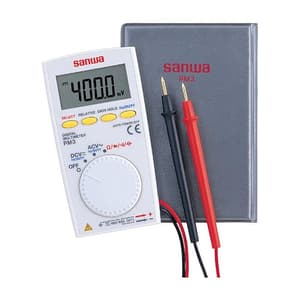

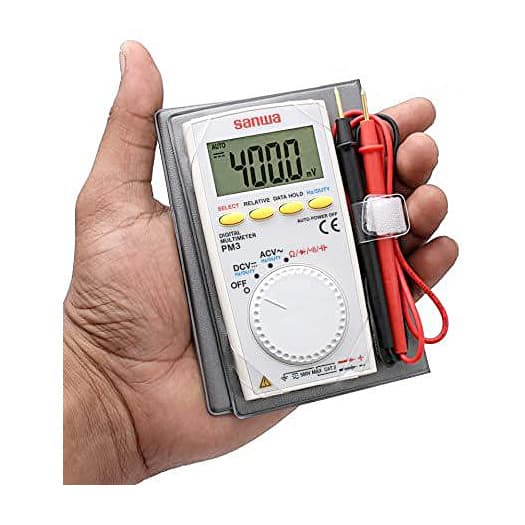

Sanwa 4000 Count Pocket Digital Multimeter with Folding Case, PM3
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 50 g
- Display Count: 4000 Count
- Sampling Rate: 3 Times/sec.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,142 (Incl. of all taxes)
₹3,510 + ₹632 GST (18%)
MRP was MRP ₹3,900
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights

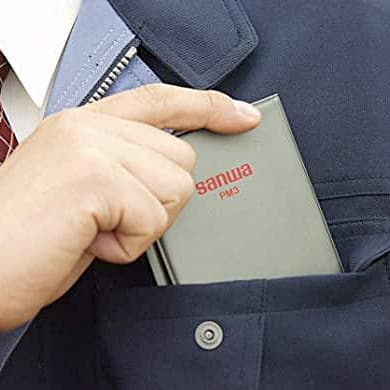

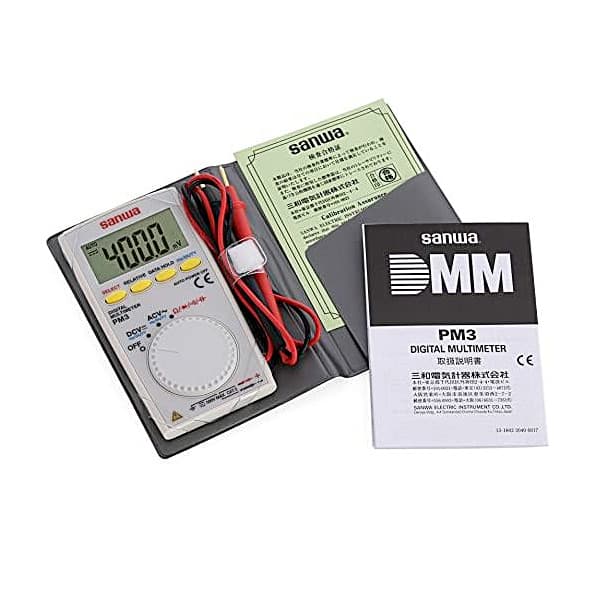

The PM3 is designed for measuring low voltage circuits, measures a mere 4.25" x 2.2" x 0.45" (H x W x D), and weighs approximately 3 ounces. The PM3 digital multimeter can perform all basic measurements such as voltage, resistance, capacitance, frequency, and duty cycle as well as continuity test. The probes in the Sanwa PM3 are internally connected with the circuit and are not removable The device is EN61010-1 CAT.II 500V compliant, meaning it can be used to measure the main socket and plug-in loads such as home electrical appliances. For keeping the device protected against moisture and dust, the PM3 comes with a leather case that can hold both the multimeter as well as the test leads in place.
Features:
- 4000 Count Display
- 0.7% Accuracy
- Resistance measurement
- Capacitance measurement (Not suitable for measurement of condensers with large leak current).
- Frequency measurement (AC sine wave only)
- Duty cycle measurement
- Continuity test with buzzer
- Data hold
- Relative value
- Auto power save (15min after the last operation) (cancelable)
- EN61010-1 CAT.II 500V compliant
Technical Data:
| Range | Accuracy | Resolution | Input Impedance | |
| DCV | 400m / 4 / 40 / 400 / 500V | ±(0.7%+3) | 0.1mV | 10M~100MΩ |
| ACV | 4 / 40 / 400 / 500V | ±(2.3%+5) | 0.001V | 10M~11MΩ |
| Resistance | 400 / 4k / 40k / 400k / 4M / 40MΩ | ±(2.0%+5) | 0.1Ω | |
| Capacitance | 5n / 50n / 500n / 5μ / 50μ / 200μF | ±(5.0%+10) | 0.001nF | |
| Frequency | 9.999 / 99.99 / 999.9 / 9.999k / 60.00kHz | ±(0.7%+5) | 0.001Hz |
Functions:
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
 |
Frequency in Hertz Commercial frequencies of 50Hz/60Hz can be measured. |
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
Duty Cycle The duty cycle of repeating waveform is indicated on a percentage basis (%). |
 |
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Low Power Ohm Resistance is measured by applying voltage of approximately 0.4V or less on a measuring object. |
 |
Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 4000 Count |
|---|---|
| Sampling Rate | 3 Times/sec. |
| Bandwidth | 40~400Hz |
| Battery | 1x CR2032(3V) Coin Type Lithium Battery |
| Battery Life | Approx.150h at DCV |
| Safety | IEC61010 CAT.?DC / AC500V |
| Test Lead Length/Pin Tip | Approx.0.5m (Length) / 18mm |
| Duty Cycle | 0.1~99% |
| Continuity | Buzzer sounds at less than 10 ~120 Ohm / Open voltage: Approx. 0.4V |
| Diode Test | Approx. 1.5V (Open Voltage) |
| Dimensions (H x W x D) | 108 × 56 × 11.5 mm |
