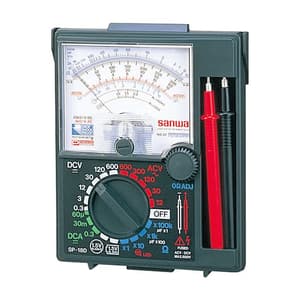

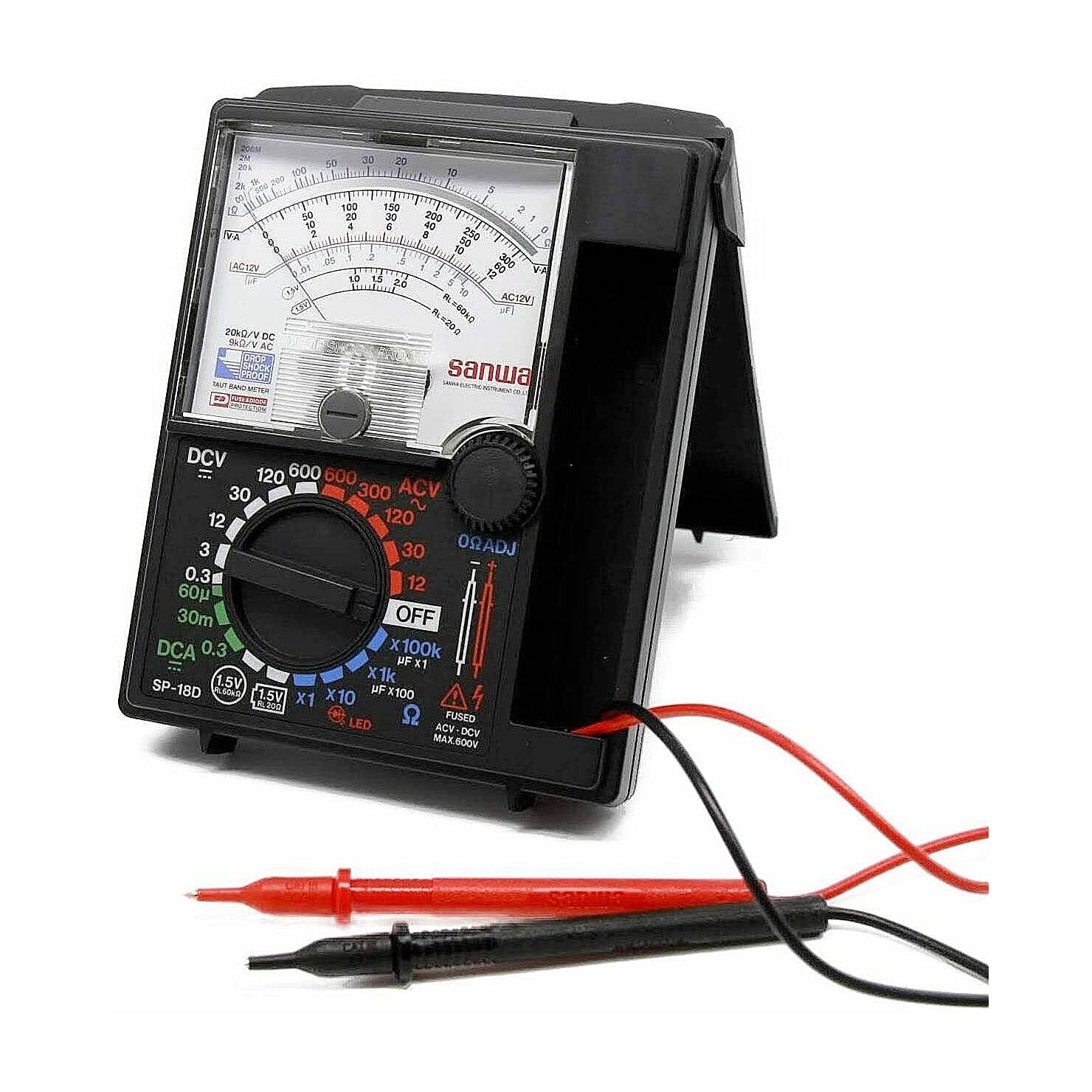

Sanwa 0.3 - 600V Analog Multimeter with Built-In Case, SP-18D
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 320 g
- Battery: 2x1.5V R6P(AA Battery)
- Test Lead Length: Length Approx. 0.9m
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,991 (Incl. of all taxes)
₹4,230 + ₹761 GST (18%)
MRP was MRP ₹4,700
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The Sanwa SP18D is a portable analog multimeter that can measure resistance up to 200MΩ. This device is designed for measurement of low-voltage circuits, small communications equipment, home electric appliances, voltage of lump line, and measurement of various types of batteries. This device can measure both AC and DC voltages with an accuracy of 3% of full scale. It can also measure resistances of up to 200MΩ, and capacitance with a range of 0.01μF~1000μF. The SP-18D has a protective folding body cover that protects it against drop shocks. The test-leads come with removable protection pin covers rated at CAT III 300V when covered, and CAT II 600V uncovered. The circuit is protected by fuse even when voltage of up to AC 250 V is impressed on each range for 5 seconds.
Features:
- Drop shock proof meter
- Low power ohm (3V) measurement up to 200MΩ
- Capacitance measurement 0.01μF~1000μF
- LED check by 3V terminal voltage at resistance range
- Battery check
- Protective body cover
- ±3.0% of full scale
Technical Data:
| Function | Measuring Range | Tolerange |
| DCV | 0.3 (5kΩ) /3/12/30/120/600V (20kΩ/V) | ±3% of full scale |
| ACV | 12/30/120/300/600V(9kΩ/V) | ±3% of full scale |
| DCV | 60μ/30m/0.3A | ±3% of full scale |
| Resistance | 2k/20k/2M/200MΩ | ±3% of arc (200MΩ: ±5% of arc) |
| Capacitance | 1000μF | Approximate value |
Functions:
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
Battery Check Battery voltage is measured and assessed by running a given current |
 |
Drop Shock Proof The meter element is constructed with a taut band and impact-resistant design |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency | AC12V range 30Hz to 70kHz, AC30V range 30Hz to 20kHz: frequency response within ±3% |
|---|---|
| Battery | 2x1.5V R6P(AA Battery) |
| Built-in Fuse | F0301 Ø5x20mm 0.5A/250V 300A Glass fuse |
| Test Lead Length | Length Approx. 0.9m |
| Pin Tip | 19 mm |
| Dimension (H x W x D) | 159.5 × 129 × 41.5 mm |
