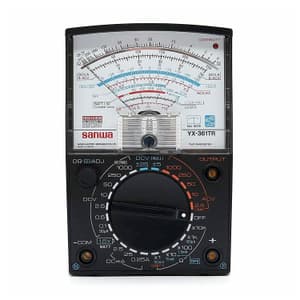

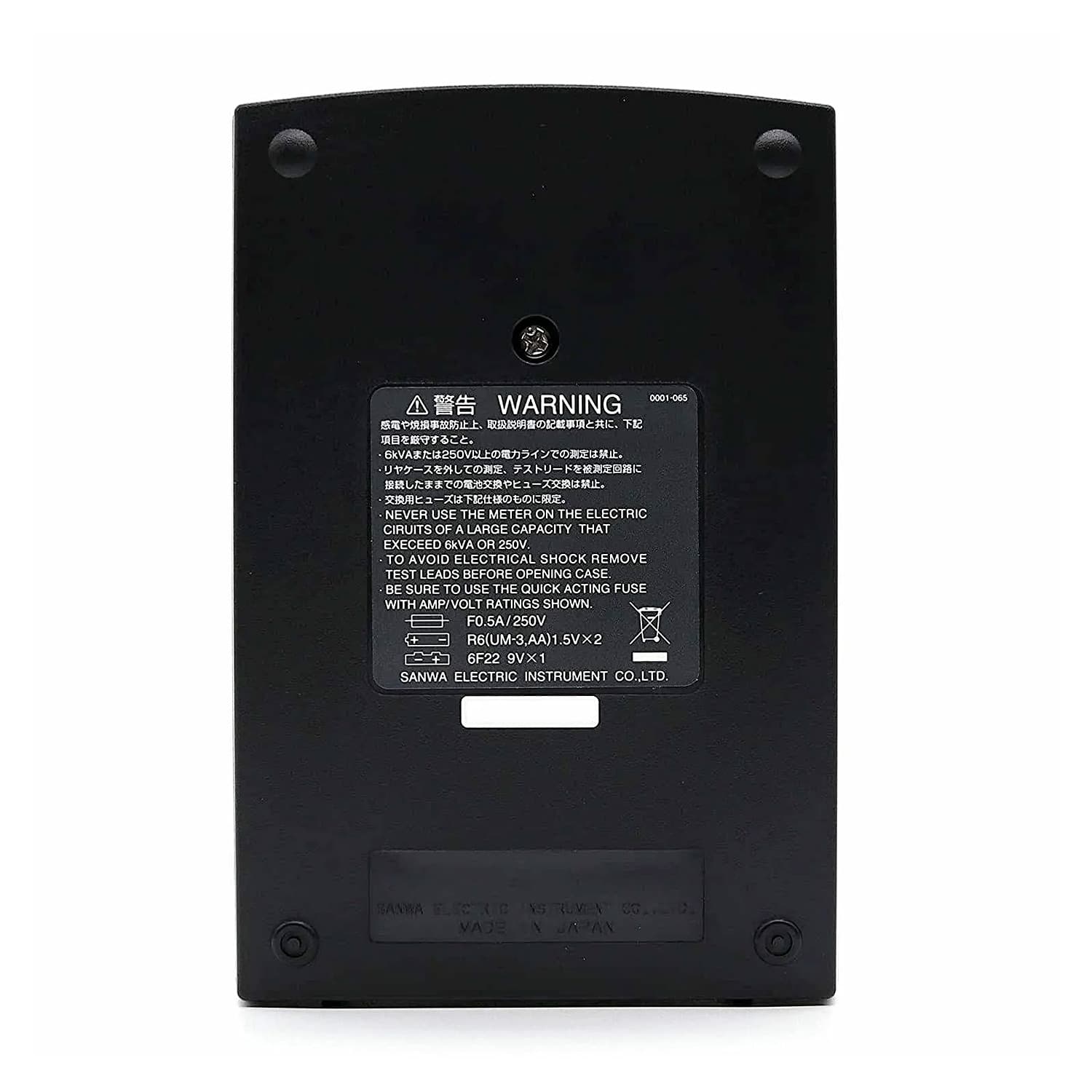

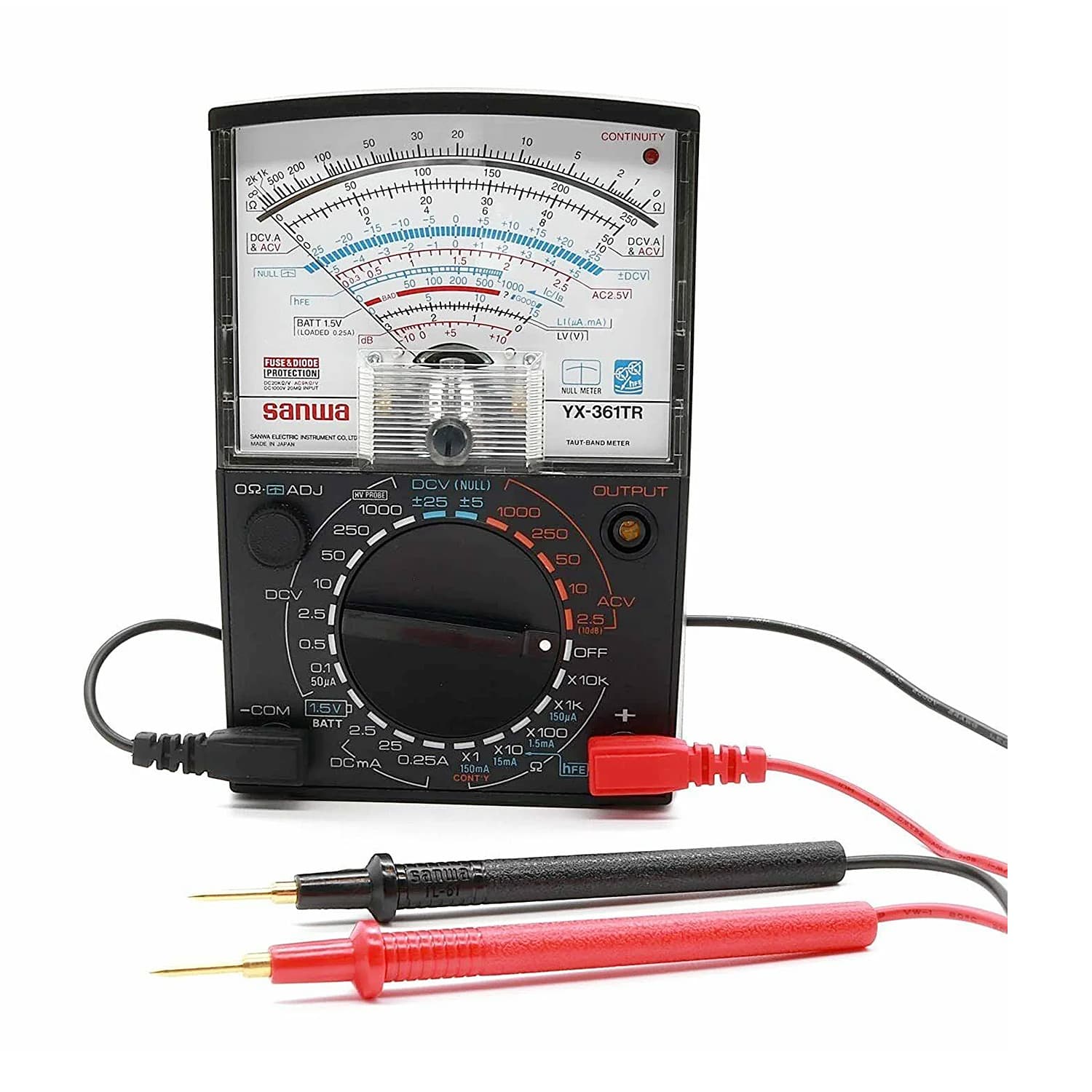

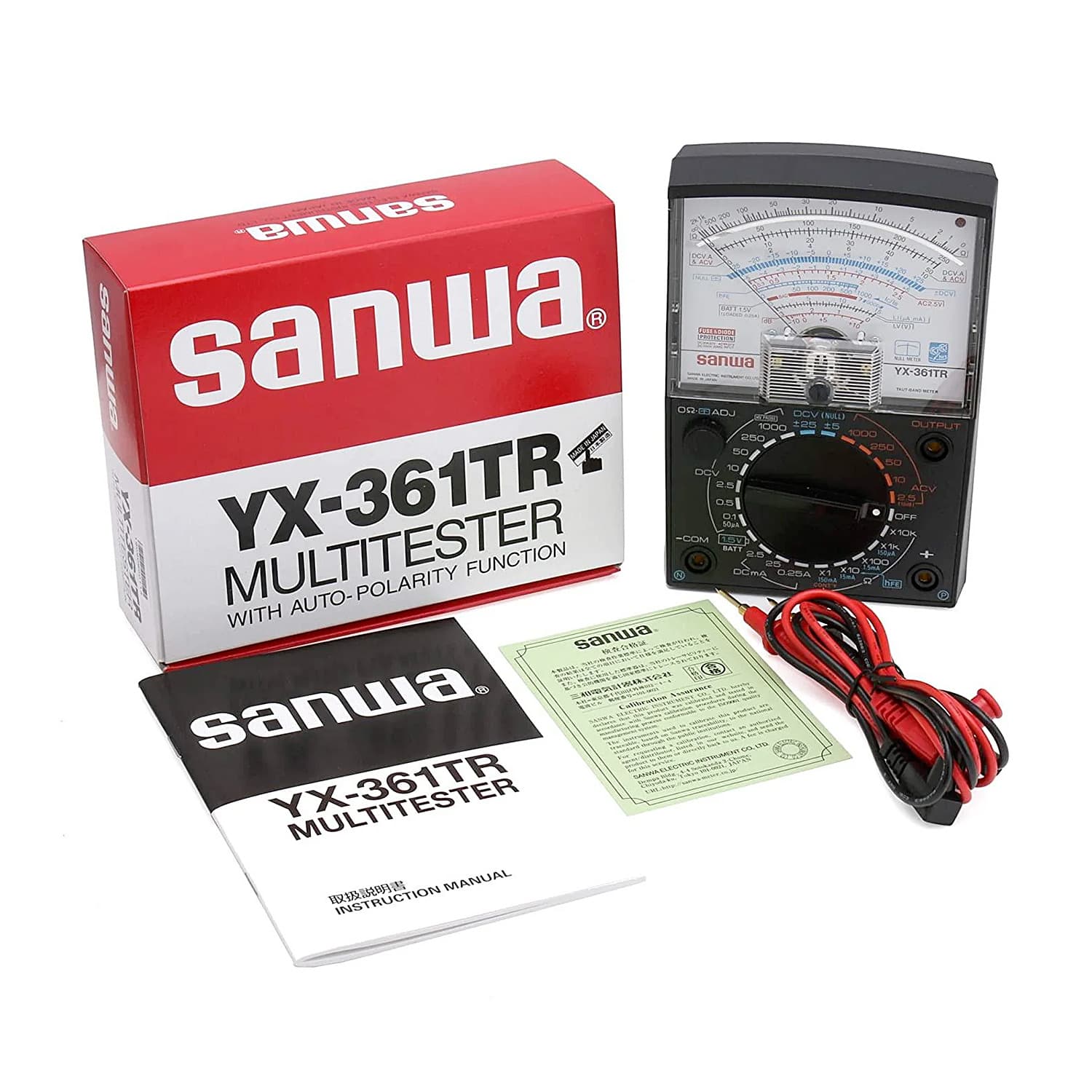

Sanwa 0.1 - 1000V Analog Multimeter, YX361TR
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 290 g
- Battery Check: 1.5V
- Bandwidth: 40Hz~20kHz (Less Than AC50V: ±3% of Full Scale)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,124 (Incl. of all taxes)
₹6,885 + ₹1,239 GST (18%)
MRP was MRP ₹7,650
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
This multimeter is designed for low voltage circuits and has an average accuracy of 3% of full-scale reading. This device can measure DC voltages using the null reading or zero methods for both negative and positive readings, it can also measure DC current of up to 0.25A and can measure AC Voltage (1000V max). The YX-361TR is capable of measuring signal power in dB in the range of -10dB~+62dB. Users can also use it to check the continuity of a capable or a trace, for which an LED output is provided. The device has an all-plastic rigid body that can withstand all kinds of environments. The instrument’s circuitry is protected by a replaceable (250V/0.5A) fuse
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Total 35 wide ranges (24 ch switch + additional functions)
- ±DCV zero center meter
- LED for continuity check
- Output terminal (series capacitor terminal)
- Battery check
Technical Data:
| Function | Measuring Range | Tolerange |
| DCV | 0.1/0.5/2.5/10/50/250/1000V(20KΩ/V) | ±2.5% of full scale |
| ±DCV | ±5/25V (40kΩ/V) | ±5% of full scale |
| ACV | 2.5/10/50/250/1000V (9kΩ/V) | ±3% of full scale (2.5/10V:±4% of full scale) |
| DCA | 50μ/2.5m/25m/0.25A | ±2.5% of full scale |
| Resistance | 2k/20k/200k/2M/20MΩ | ±3% of arc |
| Low-frequency output | -10~+62dB | ±3% of full scale (2.5/10V:±4% of full scale) |
| hFE | 0~1000 hFE | ±3% of arc |
| Continuity | ? approx.10Ω: LED lights. Open circuit voltage: approx. 3V |
Functions:
 |
Battery Check Battery voltage is measured and assessed by running a given current. |
 |
Zero Center Meter (NULL) Moves the indicator of the analog tester to the center of the scale for measurement of positive and negative voltage. |
 |
Continuity check The LED lights up when the measuring object is electrically conducting. |
 |
Output terminal Cancels the DC current portion of the voltage mixed with DC and AC to measure the AC portion alone. It is used for the measurement of audio signals. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Battery Check | 1.5V |
|---|---|
| Bandwidth | 40Hz~20kHz (Less Than AC50V: ±3% of Full Scale) |
| Battery | R6P(AA Battery)1.5Vx2, 6F22(9V Manganese Battery)x1 |
| Fuse | F0301 Ø5x20mm 0.5A/250V 300A Glass Fuse |
| Dimensions (H x W x D) | 150 × 100 × 37 mm |
