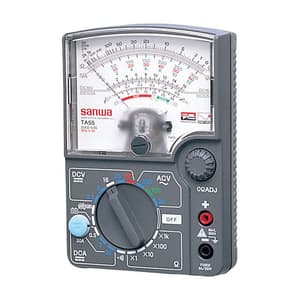

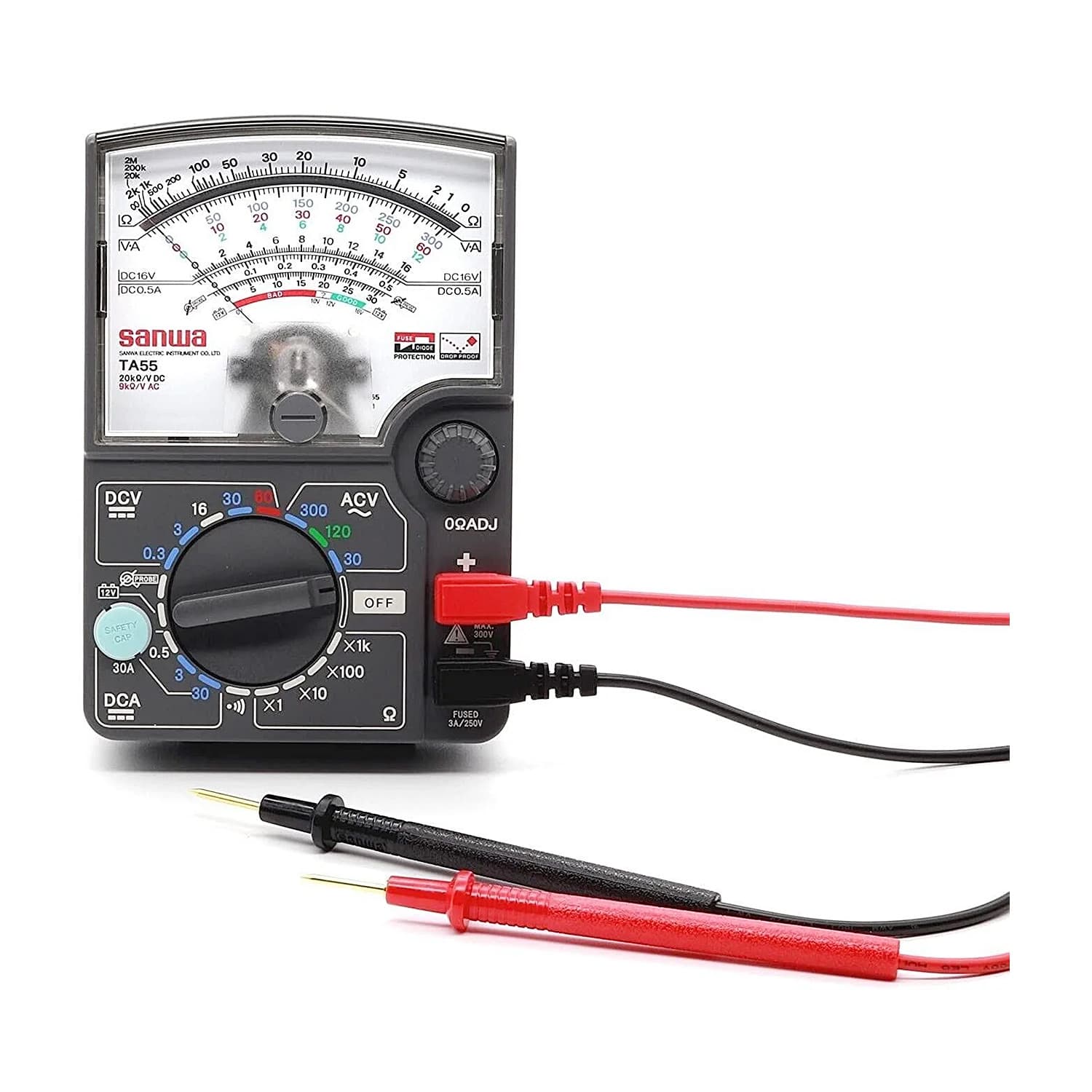

Sanwa 0.3 - 60V DC Voltage Analog Multimeter, TA55
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 300 g
- DC Voltage Range: 0.3/3/16/30/60V (20k ohm/V)
- AC Voltage Range: 30/120/300V (9kO/V)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,133 (Incl. of all taxes)
₹7,740 + ₹1,393 GST (18%)
MRP was MRP ₹8,600
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The TA55 multimeter is a taut-band type meter with an easy color matching scale and measurement ranges for DCV, DCA, & ACV measurements. The TA55 can measure DC current of up to 30 Amperes or 300 Amperes DC using an optional CL33DC clamp. The device can measure a maximum of 60 Volts DC and 300 Volts AC making it perfect for measuring home electrical outlets and electric appliances. Measuring resistances of up to 2MΩ and continuity test with a buzzer that sounds at less than approximately 70Ω is also possible with a TA-55 analog multi-tester. The device has a protective casing that provides protection against drop shocks and has a (250V / 3A) breaking capacity (300A) fast-blow fuse for protecting the internal circuity of this instrument.
Features:
- Improved visibility with color matching of scale and range selector switch
- Continuity check function with beeper sound

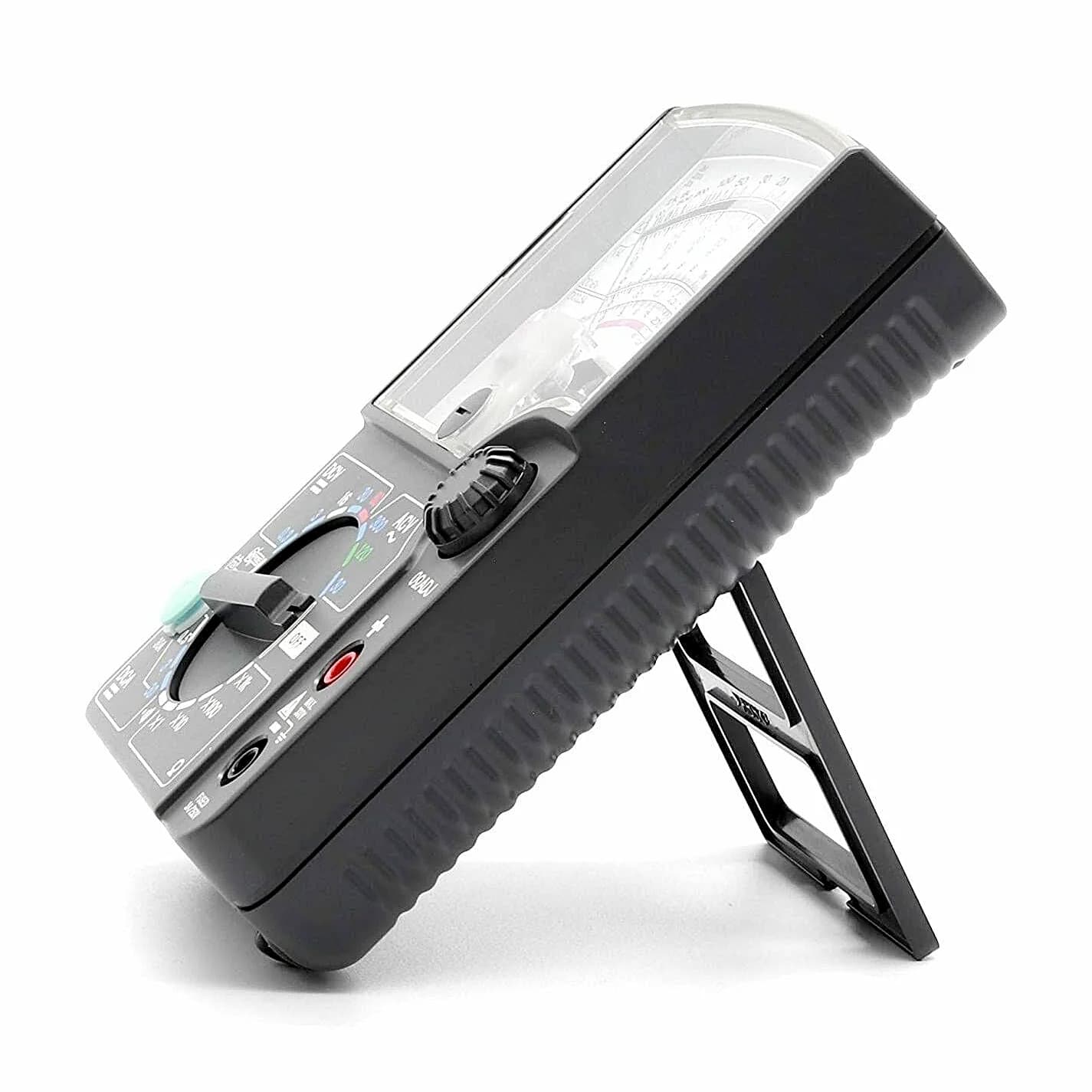

- Stand to make easy to read the scale
- Measurable up to DCA30A(300A using an optional clamp)
- Battery check(12V battery only)
Technical Data:
| Function | Measuring Range | Tolerange |
| DCV | 0.3/3/16/30/60V (20kΩ/V) | ±3% of full scale |
| ACV | 30/120/300V (9kΩ/V) | ±4% of full scale |
| DCV | 0.5/3/30A | ±5% of full scale |
| Resistance | 2k/20k/200k/2MΩ | ±3% of arc |
| Continuity | < Approx. 70Ω: Beep sounds. Open circuit voltage: approx.3V | |
| Battery check | For 12V Automobile Battery |
Functions:
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc. |
 |
Battery Check Battery voltage is measured and assessed by running a given current |
 |
Drop Shock Proof The meter element is constructed with a taut band and impact-resistant design |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Voltage Range | 0.3/3/16/30/60V (20k ohm/V) |
|---|---|
| AC Voltage Range | 30/120/300V (9kO/V) |
| Frequency | 40Hz to 5kHz: Frequency Response Within ±3% |
| Battery | 2x1.5V R6P (AA Battery) |
| Built-in Fuse | F0020 Ø6.4x30mm 3A/250V 300A Glass fuse |
| Dimension (H x W x D) | 159.5 × 129 × 41.5 mm |
