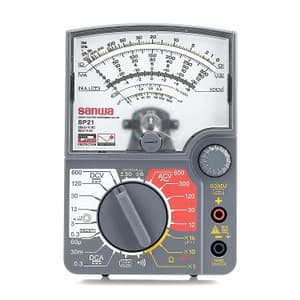

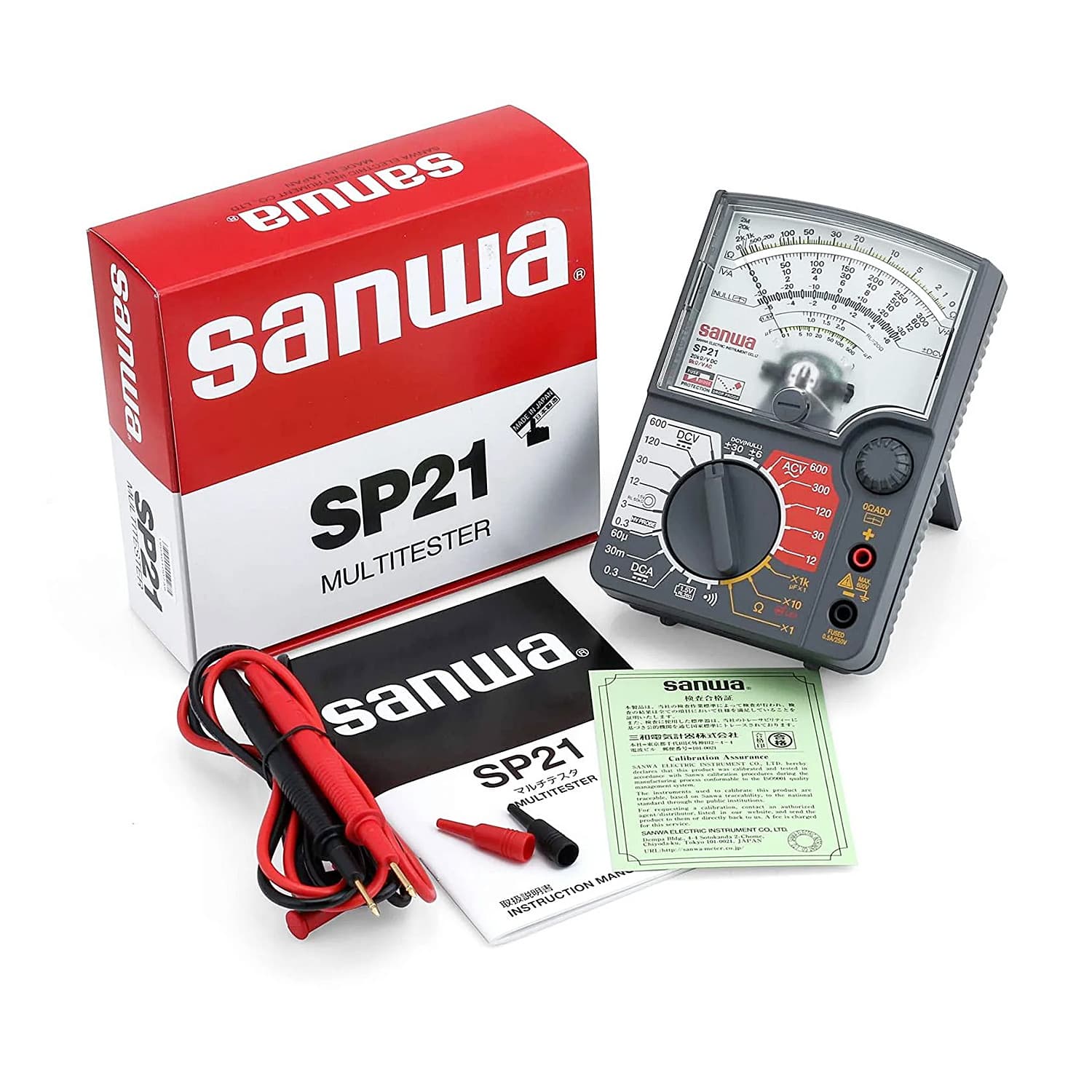

Sanwa 0.3 - 600V Analog Multimeter with Continuity Check Beeper, SP21
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 270 g
- Battery Check: 1.5V/1.5V button (1.0 to 2.0V)
- Battery: 1.5Vx2 R6P(AA battery)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,062 (Incl. of all taxes)
₹5,985 + ₹1,077 GST (18%)
MRP was MRP ₹6,650
Save 10%
7 Business Days
1
–
Download Sanwa CatalogueNot available
Highlights
The SP21 multimeter is designed for low voltage circuit analysis and must not be used to measure high power voltage lines. The meter is a taut-band type meter with zero center for ±DCV measurements. The SP21 can measure both ACV and DCV as well as resistance and capacitances with a 3% full-scale accuracy. The SP21 features a continuity test function with a buzzer alarm that sounds at less than approximately 10Ω. The device has a protective case with built-in kickstand, made using fire retardant material that also provides protection against drop shocks, and a (250V/0.5A) fuse with a blowout capacity of 300A to protect its internal circuitry.
Features:
- Drop shock proof taut-band meter
- ±DCV zero center meter
- Fuse and diode protection
- Battery check
- Tilt stand
Technical Data:
| Function | Measuring Range | Tolerange |
| DCV | 0.3 (5kΩ)/3/12/30/120/600V (20kΩ/V) | Within ±3% |
| ±DCV | ±6/30V (20kΩ/V) | ±5% of full scale |
| ACV | 12/30/120/300/600V (9kΩ/V) | ±3% of full scale |
| DCA | 60μ/30m/0.3A | ±3% of full scale |
| Resistance | 2k/20k/2MΩ | ±3% of arc |
| Capacitance | 500μF | Approximate value |
| Continuity | < approx.100Ω: Beep sounds. Open circuit voltage: approx. 3V | |
| Battery check | 1.5V/1.5V button(1.0 to 2.0V) | Approximate value |
Functions:
 |
Battery Check Battery voltage is measured and assessed by running a given current. |
 |
Zero Center Meter (NULL) Moves the indicator of the analog tester to the center of the scale for measurement of positive and negative voltage. |
 |
Capacitor Capacitor capacity (electrostatic capacity) is measured and expressed in the unit of F (farad), μF, etc. |
 |
Drop Shockproof The meter element is furnished with a taut band and impact-resistant design enough to withstand a shock of drop. |
 |
Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Battery Check | 1.5V/1.5V button (1.0 to 2.0V) |
|---|---|
| Battery | 1.5Vx2 R6P(AA battery) |
| Fuse | F0301 Ø5x20mm 0.5A/250V 300A Glass fuse |
| Frequency | AC12V range 40Hz to 100kHz: frequency response within ±3% |
| Dimensions (H x W x D) | 144 × 99 × 41 mm |
